Name: TOP Rack Solar Panel TRT Rail Base System(TRT 02)
Brand: My Store
SKU: T212P
Price: 520.0 USD
Availability: InStock

TOP Rack Solar Panel TRT Rail Base System(TRT 02)

$520.00

Save $0

Free shipping (lower 48 states)

TRT 02 Rail Base Roof Racking System UL 2703 listed, waterproof rail-base mounting Adjustable mini-rail for asphalt shingle roofs Fast, low-profile installation—no long rails required PE-certified structure, Class A/B fire rating 25-year structural warranty

Product Model

12P SKU:T212P

16P SKU:T216P

31P SKU:T231P

40P SKU:T240P

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports
Reviews

Overview

Title

Tech Specs

Title

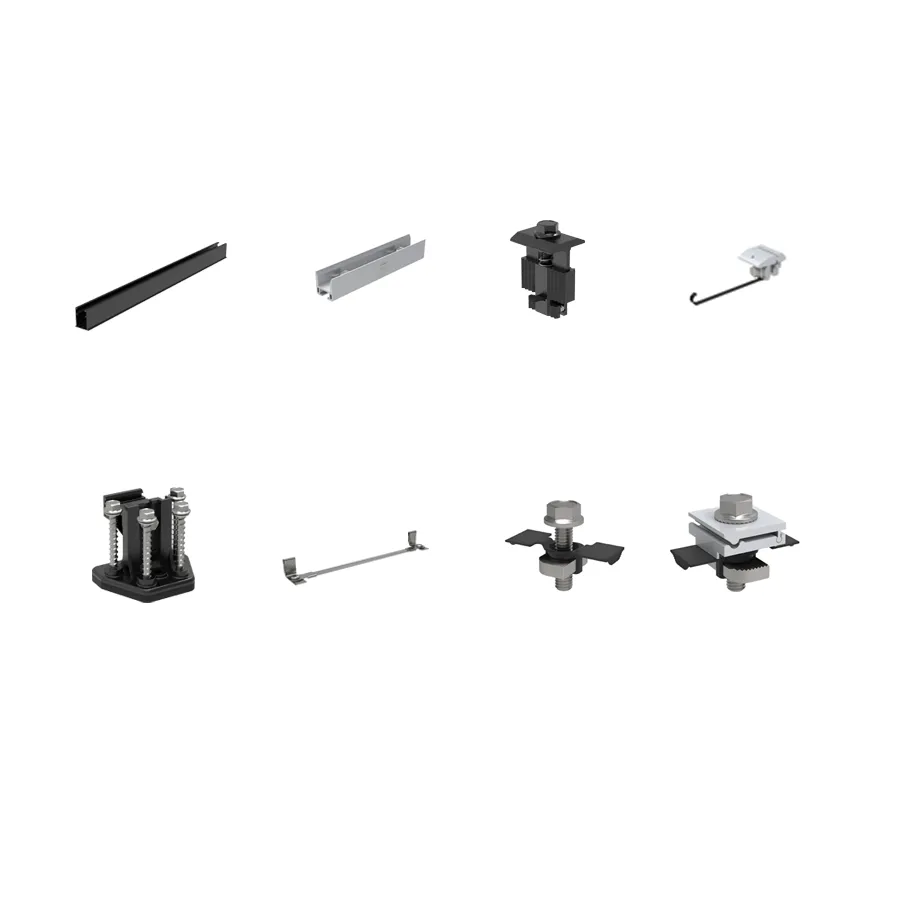

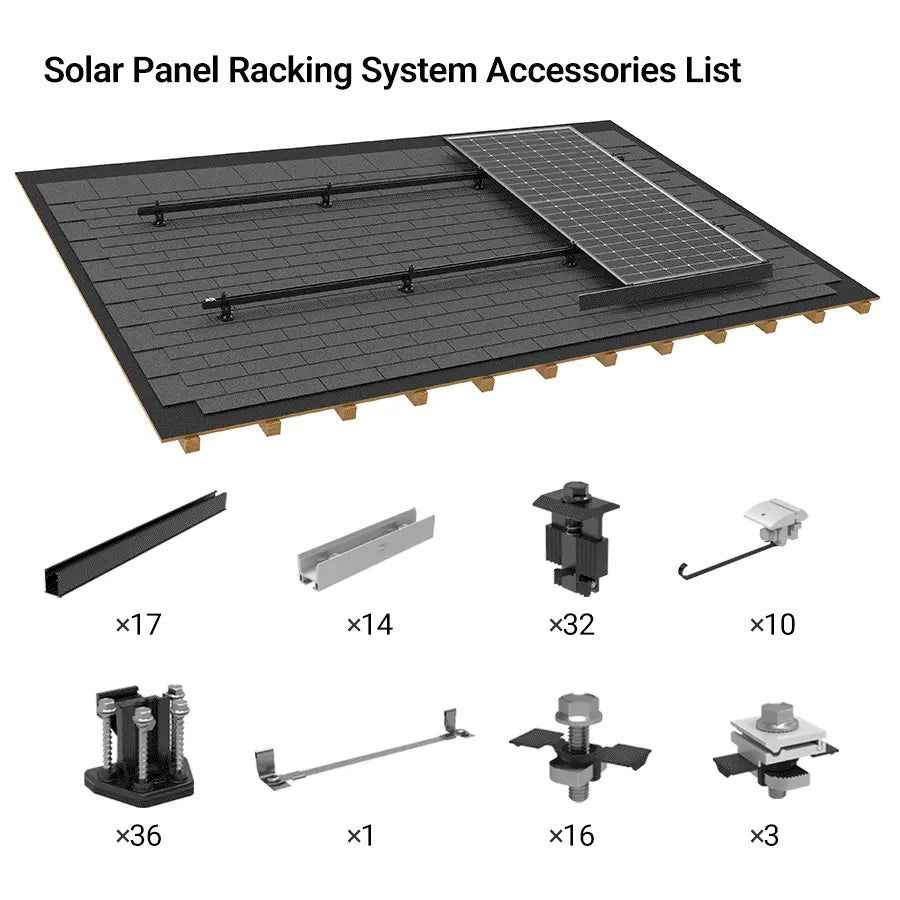

TRT02 Rail Base Roof Racking System

Rail (A188-2300&4270)	Roof rail made from Aluminum 6005-T5 for standard conditions, featuring integrated wire management.
Rail Connector (3010404)	Splice designed to connect TRT rails, made from high-quality aluminum.
Mid Clamp (3010355)	Black surface treatment, compatible with modules 30 ~ 40mm thick, and equipped with a grounding device.
Hidden End Clamp (3010138)	Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness.
Rail Base (3010368)	Made from cast aluminum with a black anodized finish, designed for direct attachment to TRT Rail, featuring EPDM and butyl rubber.
Bonding Jumper (3010406)	To connect N-S modules or E-W modules
Micro Inverter Racking (3010167)	Rail based system micro inverter holder
Grounding Lug (3010407)	Designed specially for TRT Rail.
