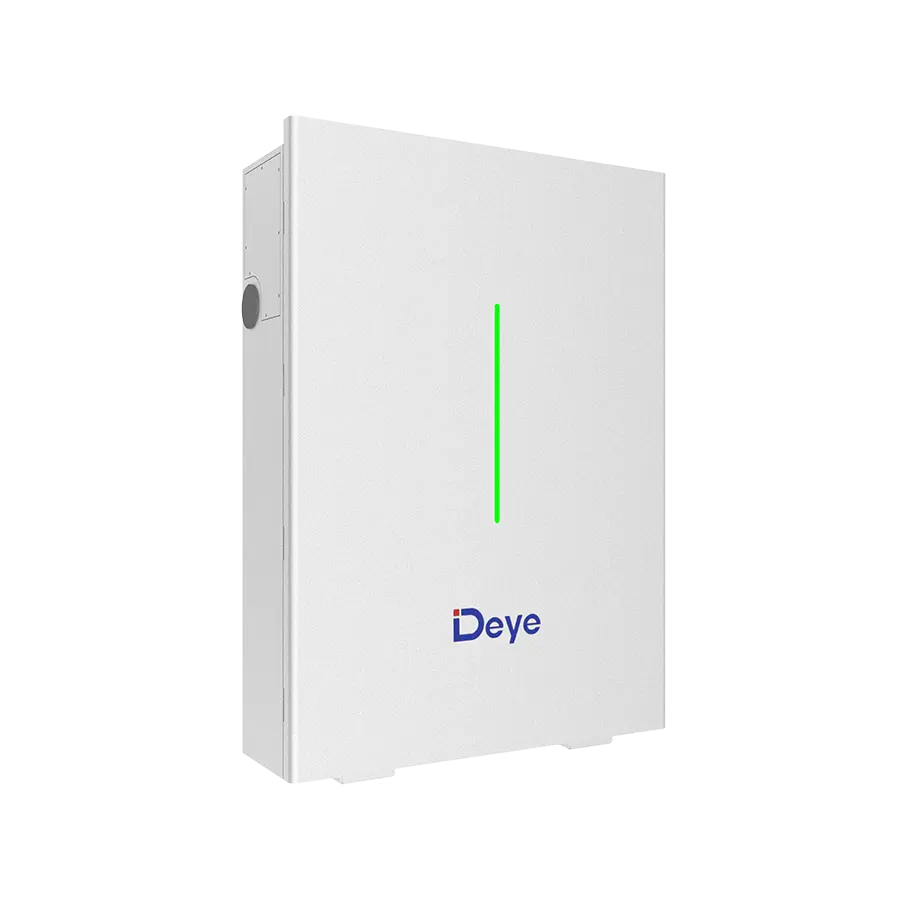

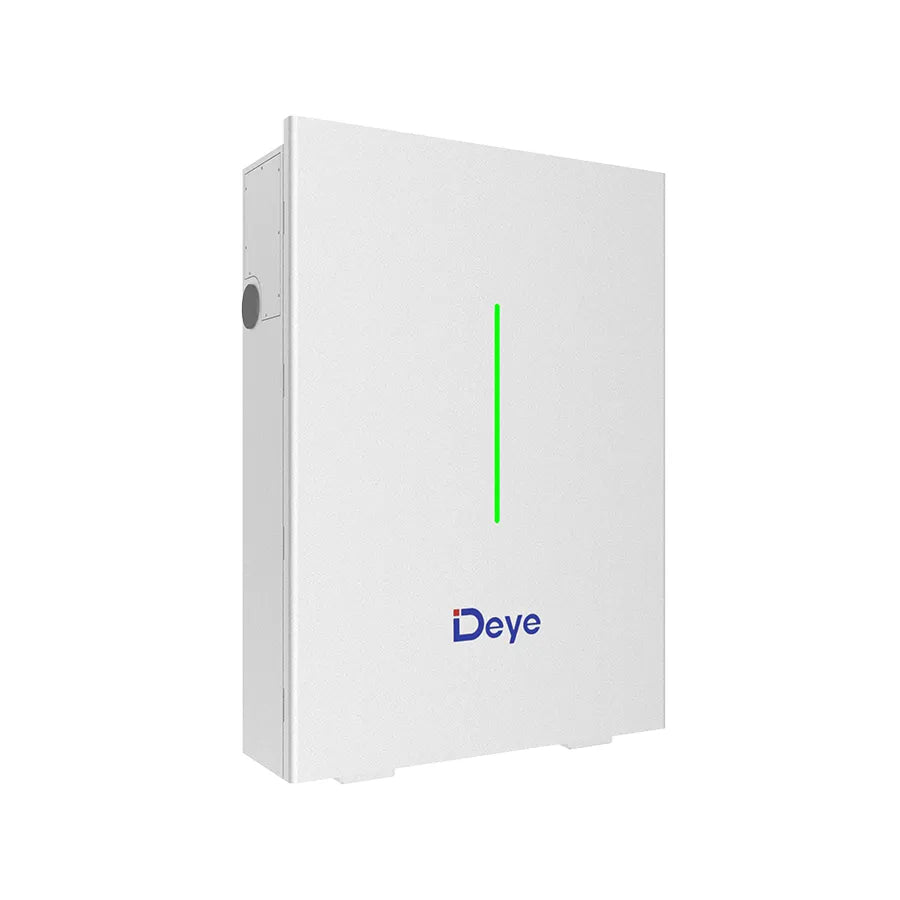

Deye RW F10.2 B Battery

$2,290.00
$3,200.00
Save $910

Free shipping (lower 48 states)

Deye RW-F10.2-B Battery (10.24 kWh) 10.24 kWh wall-mounted LFP battery Parallel up to 32 units (327 kWh total) IP65 waterproof, supports 1C charge / 1.25C discharge CAN / RS485 interface, 10-year warranty UL9540A certified for residential ESS
Product Model
Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

  • Overview

  • Tech Specs

  • Supports

  • Reviews

Overview

Title

Tech Specs

Title
Deye RW-F10.2 LifePO4 Battery
Nominal Voltage 51.2V
Nominal Capacity 200AH
Built-in Circuit Breaker 125A 4P,60Vdc
Energy 10.24KWH
Scalability Expandable up to 32 units in parallel (max. 327kWh)
Usable Energy 9.2kWh
Recommend Depth of Discharge 90%
IP Rating Of Enclosure IP65
Operating Temperature Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C
Cycle Life ≧6000
Installation Wall-Mounted, Floor-Mounted
Dimension 600 × 830 × 200 mm
Weight 107kg
Warranty 10 Years
Certificate UN38.3,FCC, UL1973,UL9540A,UL9540

Supports

Title

  • Download

  • Video

  • FAQ

Data Sheet
User Manual
Warranty
Certifications
Deye RW-F10 Datasheet
Download
Deye RW-F10.2 User Manual
Download
Deye Warranty For RW-F10.2-B
Download
RW-F10.2-B_UL1973_9540_9540A
Download

Reviews

Title

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mark Clark of Montana

High end construction I added to my other Battery Bank. I may have to Purchase another couple of them. Depending on my usage going into the Winter months. I now heat with electricity so I am testing my needs at 65 kWh’s of Banked Energy Thus far we are satisfied with Deye 48 Volt Batteries.

A
Apple_Pi

Bought 6. 4 for one job and 2 for another. The two battery job is done and the 4 battery job is still being charged before they're connected. The 2 batteries were connected to the existing battery system for a Sol-ark 15k and are working perfectly. The build quality of these batteries seem great. I wish, I had some kind of software to monitor them, but otherwise perfect.
