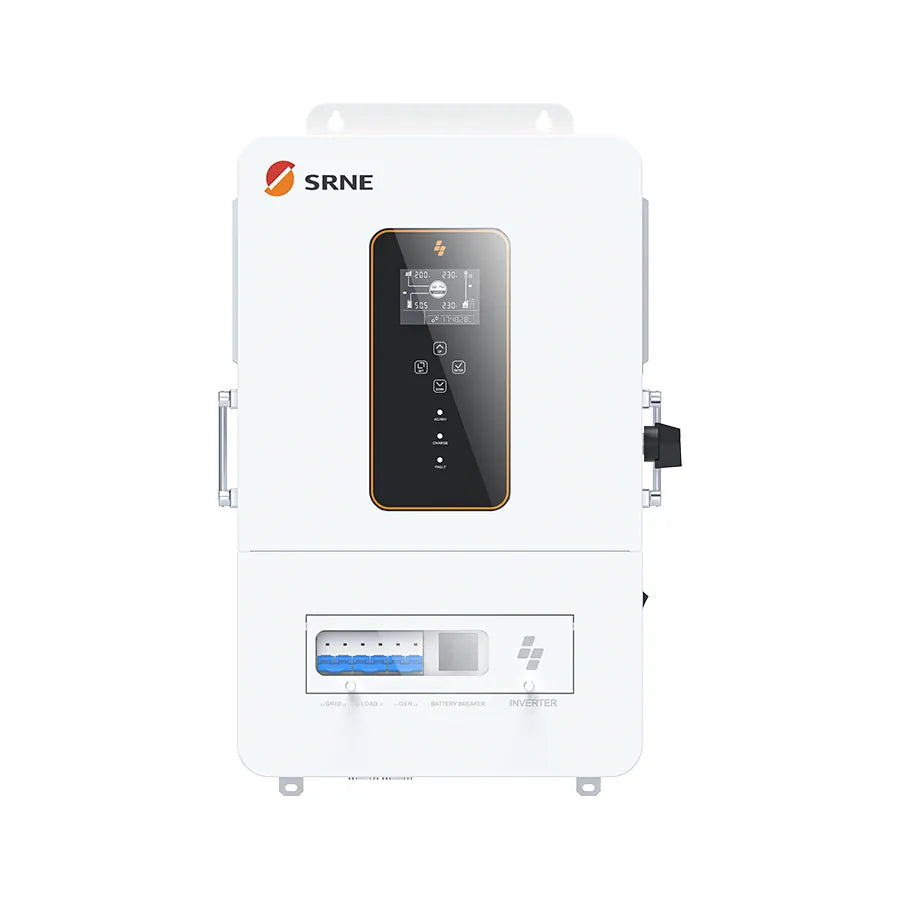

SRNE 6.5kW Off-Grid Inverter

$1,299.00
Save $0

Free shipping (lower 48 states)

SRNE ABP 6.5kW Off-Grid Inverter Split/single-phase hybrid inverter (6.5 kW) Up to 140 A solar charging current Supports grid + PV hybrid charging and generator input Time-sharing charge/discharge function 6 units parallel operation (39 kW total) Intelligent fan cooling, multiple protections, UL1741 certified 3-year warranty
Product Model
Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

  • Overview

  • Tech Specs

  • Supports

  • Reviews

Overview

Title

Tech Specs

Title
SRNE 6.5kW 48VDC 120/240VAC Off Grid Solar Inverter
Rated Output Power 6,500W
Max. Output Power 13,000VA
Rated Output Voltage 120/240 Vac (single-phase/split-phase)
Max. Solar Charging Current 48V
Max. PV Array Power 5,000W+5,000W
Battery Type Lithium-ion battery/lead-acid battery/user-defined battery
Switch Time 10ms(typical value)
Max. Hybrid Charging Current 140A
Efficiency 93%
Parallel Capacity 1～6 Units（More than 3 units in parallel can form a three-phase output）
BMS Communication RS485/CAN/USB/Dry Contact
Enclosure IP20 Indoor Only
Operating Temperature -15~55℃
Noise <60 dB
Dimension 648x410x140mm
Weight 21.7kg
Warranty 2 Years
Certificate ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741

Supports

Title

  • Download

  • Video

  • FAQ

Data Sheet
User Manual
Warranty
Certifications
SRNE 6.5KW Datasheet
Download
SRNE 6.5KW User Manual
Download
SRNE-DEYE Product Warranty
Download
SRNE 6.5kW ABP4865U140-H Test Report
Download
ABP4865U140-H Certificate
Download
