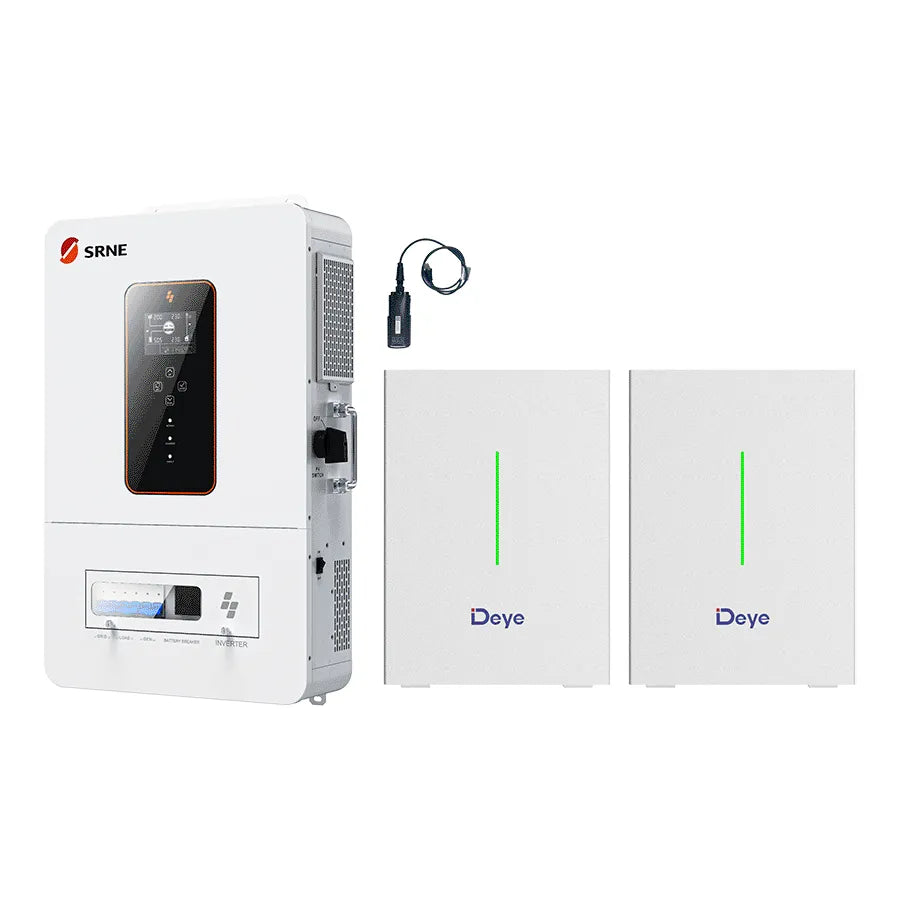

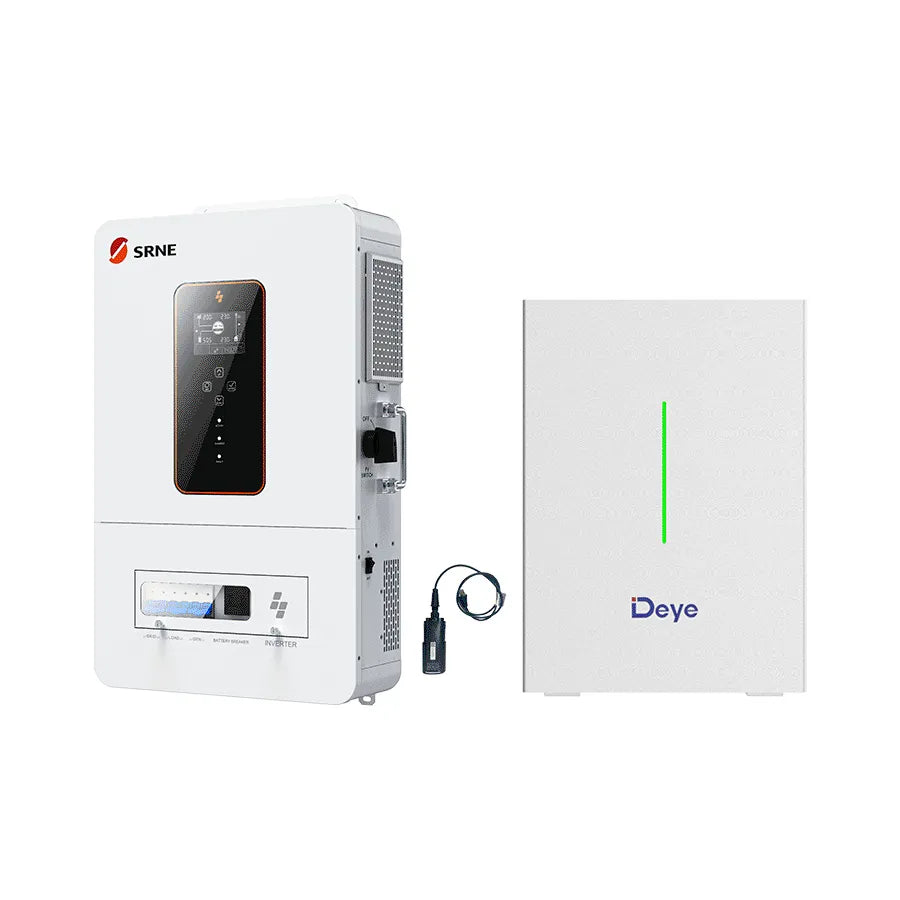

SRNE 6.5kW 48VDC 120/240VAC Off Grid Solar Inverter
| Rated Output Power | 6,500W |
| Max. Output Power | 13,000VA |
| Rated Output Voltage | 120/240 Vac (single-phase/split-phase) |
| Max. Solar Charging Current | 48V |
| Max. PV Array Power | 5,000W+5,000W |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Switch Time | 10ms(typical value) |
| Max. Hybrid Charging Current | 140A |
| Efficiency | 93% |
| Parallel Capacity | 1～6 Units（More than 3 units in parallel can form a three-phase output） |
| BMS Communication | RS485/CAN/USB/Dry Contact |
| Enclosure | IP20 Indoor Only |
| Operating Temperature | -15~55℃ |
| Noise | <60 dB |
| Dimension | 648x410x140mm |
| Weight | 21.7kg |
| Warranty | 2 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |
Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |
