Name: SRNE 5kW Off-Grid Bundle | 5.28kW PV + 5-15kWh Battery
Brand: My Store
SKU: KSR550112
Price: 3858.0 USD
Availability: InStock

SRNE 5kW Off-Grid Bundle | 5.28kW PV + 5-15kWh Battery

$3,858.00

Save $0

Free shipping (lower 48 states)

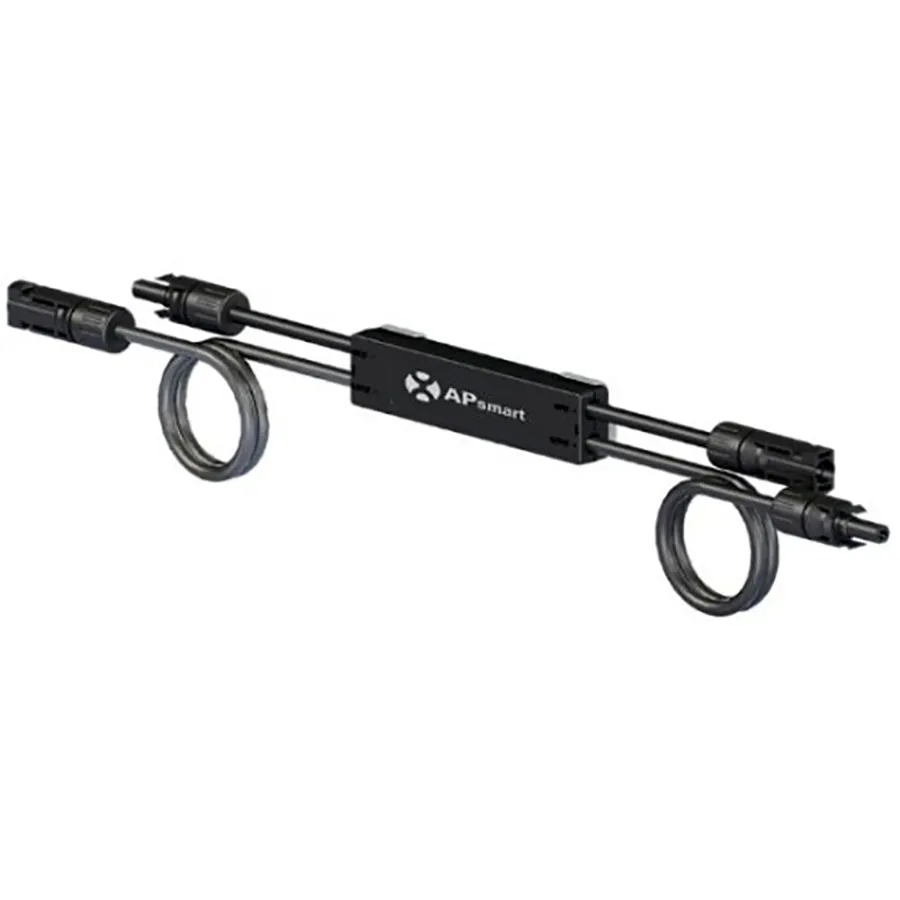

Bundle Contents: Off-Grid Inverter: 5 kW Batteries: 3 Different Battery Capacity Options Available Solar Panels: Sunpro 440W Tier 1 Full Black Panel(×12) Racking: TopRack System for 12 Panels PV Cables and MC4 Connectors RSD-S-PLC Rapid Shutdown Units (×12) Solarman Wifi Dongle

Select Battery Capacity

Choose a configuration below.

5.1kWh

10.2kWh

15.3kWh

Quantity

Title

Total Price

Total Price

$3,858.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

SRNE 5kW 48VDC 120VAC Off Grid Solar Inverter

Rated Output Power	5,000W
Max. Output Power	10,000VA
Rated Output Voltage	120Vac（L/N/PE, Single-Phase）
Max. Solar Charging Current	100A
Max. PV Array Power	5,500W
Battery Type	Li-ion / Lead-acid / User-defined
Rated Battery Voltage	48V
Max. Solar Charging Current	100A
Efficiency	92%
Parallel Capacity	1～6 Units（Single/Split/Three-Phase）
BMS Communication	RS485/CAN/USB/Dry Contact
Enclosure	IP20 Indoor Only
Operating Temperature	-15~55℃
Noise	<60 dB
Dimension	1722x1134x30mm
Weight	21.5kg
Warranty	2 Years
Certificate	ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741

Deye SE-G5.1 Pro-B Lithium Battery

Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	5.12KWH
Scalability	Expandable up to 64 units in parallel (max. 327kWh)
Usable Energy	4.6kWh
Recommend Depth of Discharge	90%
IP Rating Of Enclosure	IP20
Operating Temperature	Charge:0~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C
MAX Continuous Charge Current	100A
Cycle Life	≧6000
Installation	Installation Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Dimension	440 × 133 × 540 mm
Weight	45kg
Warranty	10 Years
Certificate	UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A

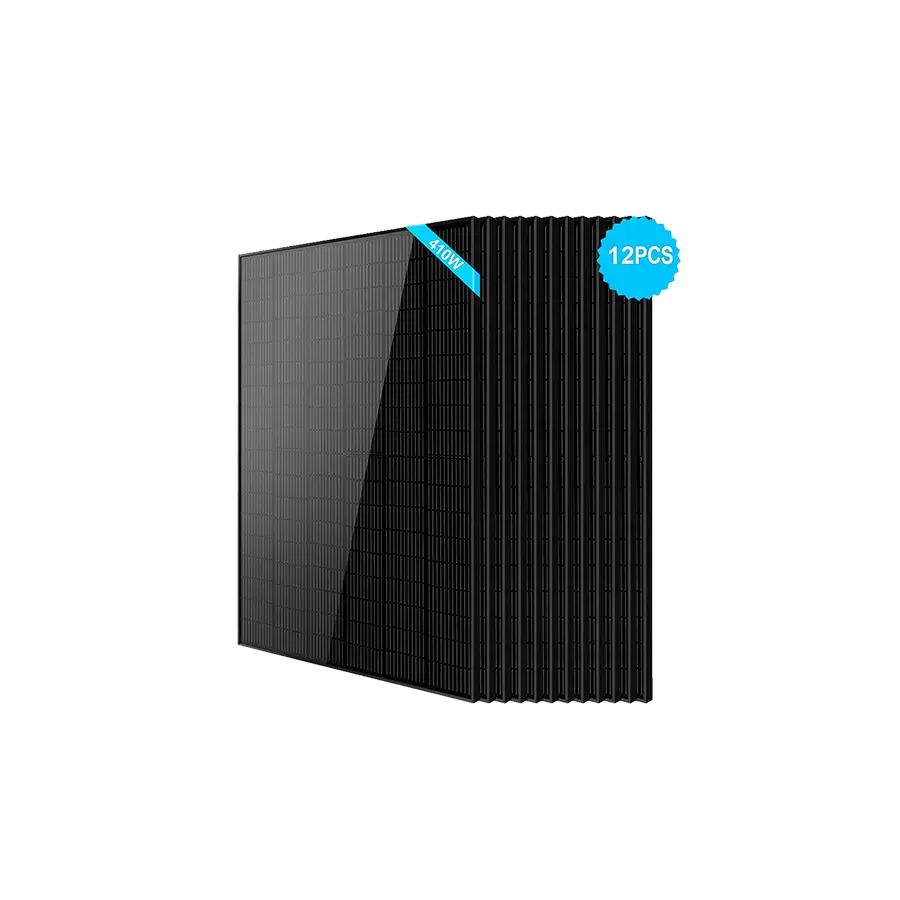

440W Mono-Crystalline BIFACIAL Solar Panel

Peak Power	440W
Solar Cell	Mono Crystalline BIFACIAL,91mm×182mm
Power Tolerance	(0~+5W）
Module Efficiency(%)	22.53%
Maximum Power Current(IMP)	13.72A
Maximum Power Voltage(VMP)	32.09V
Short Circuit Current(ISE)	14.43A
Open Circuit Voltage(VOC)	38.53V
Landscape	1100mm (4mm2)
Front cover	2.0mm Anti-Reflection Coating, Heat Strengthened Glass
Connector	MC4 Compatible
Junction box	IP68, 3 bypass diodes
Operating Temperature	-40°C to +85°C
Maximum System Voltage	1000V
Dimension	1722x1134x30mm
Weight	23.3kg
Warranty	15-year product warranty & 25-year linear power warranty
Certificate	UL 61730-1,UL 61730-2,CSA C22.2

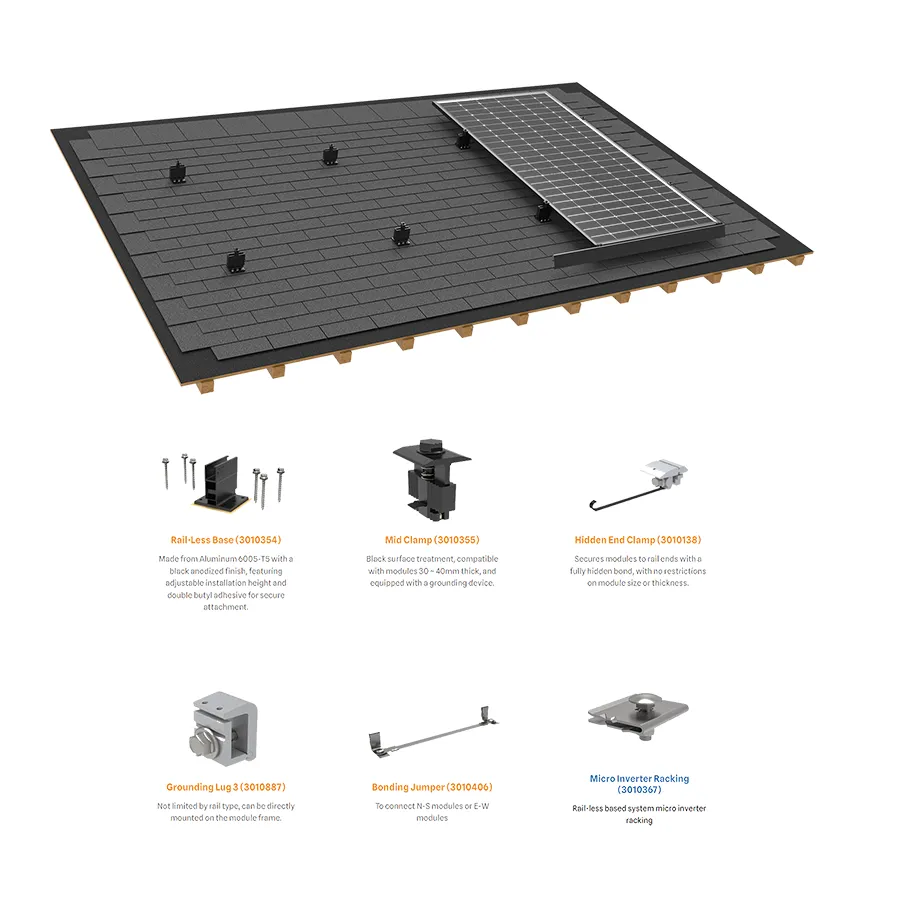

TRT Rail-less Base System

Rail-less Base 3010354	Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment.
Mid Clamp 3010355	Mid Clamp 3010355
Hidden End Clamp 3010138	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking
Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness.	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking

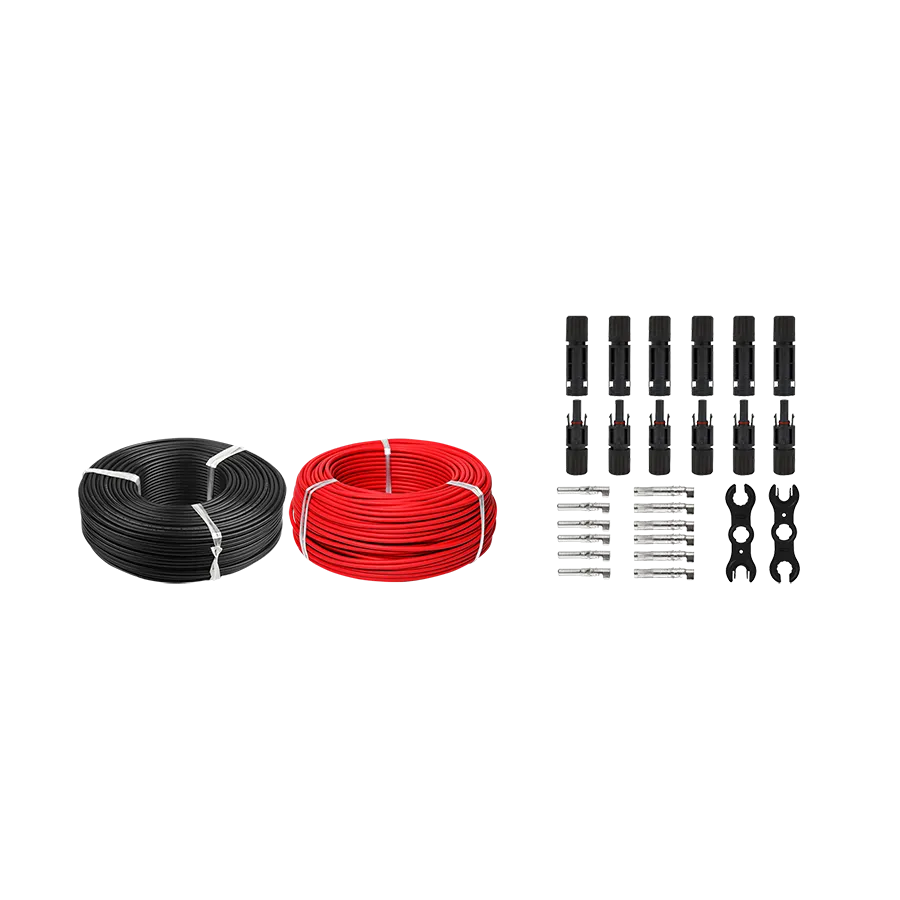

PV Wire

Wire Size	10AWG 6mm²
Number of Strands	75
Color	Black/Red
Inner Layer Thickness	0.044in
Outer Jacket Thickness	0.029in
Outer Diameter(O.D.)	0.268in
Bending Radius	1.60in
Conductor Resistance	1.01Ω/1,000ft
Voltage rating	2,000V/2KV
Temperature Rating	40ºC to 90ºC
Certificate	UL 4703, RoHS compliant

PV Connector

Rated Voltage	UL1500V
Rated Current	50A
Cable Specification	90ºC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm, 14 AWG, 12 AWG, 10 AWG
Resistance of Connector	Max 0.3mΩ
Flammability Class	UL94 V-0
Temperature Range	-40℃～+85℃
Flammability Class	UL94 V-0
