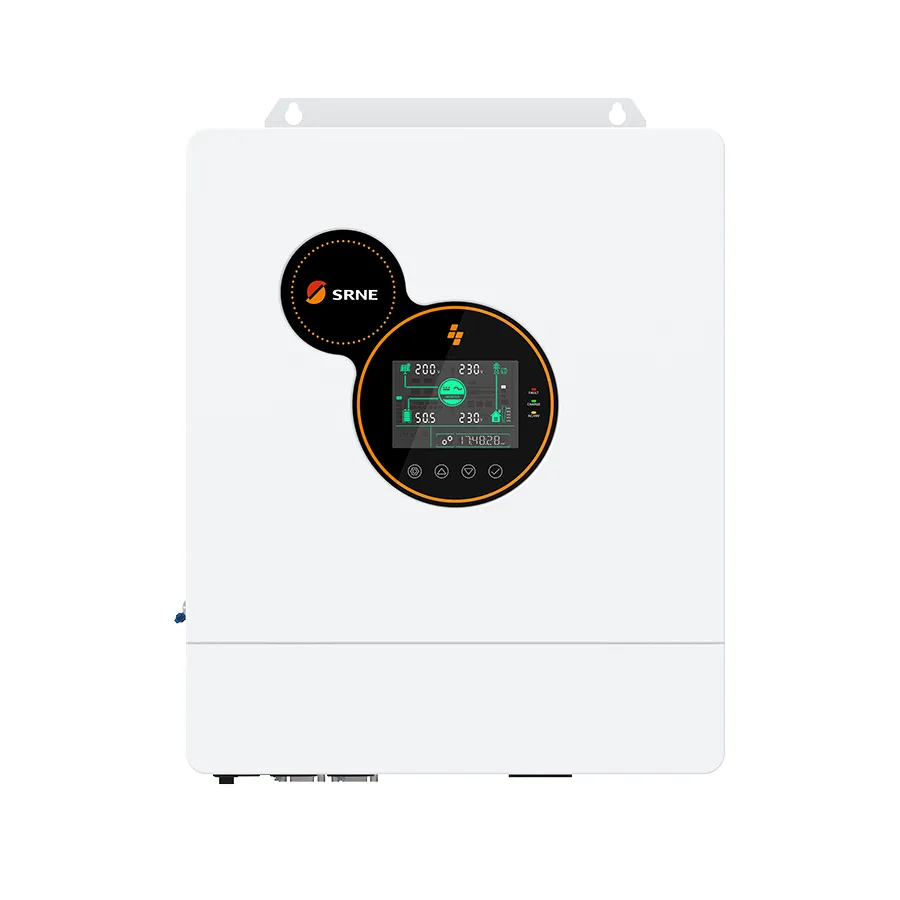

SRNE 5kW 48VDC 120VAC Off Grid Solar Inverter
| Rated Output Power | 5,000W |
| Max. Output Power | 10,000VA |
| Rated Output Voltage | 120Vac（L/N/PE, Single-Phase） |
| Max. Solar Charging Current | 100A |
| Max. PV Array Power | 5,500W |
| Battery Type | Li-ion / Lead-acid / User-defined |
| Rated Battery Voltage | 48V |
| Max. Solar Charging Current | 100A |
| Efficiency | 92% |
| Parallel Capacity | 1～6 Units（Single/Split/Three-Phase） |
| BMS Communication | RS485/CAN/USB/Dry Contact |
| Enclosure | IP20 Indoor Only |
| Operating Temperature | -15~55℃ |
| Noise | <60 dB |
| Dimension | 1722x1134x30mm |
| Weight | 21.5kg |
| Warranty | 2 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |
Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |

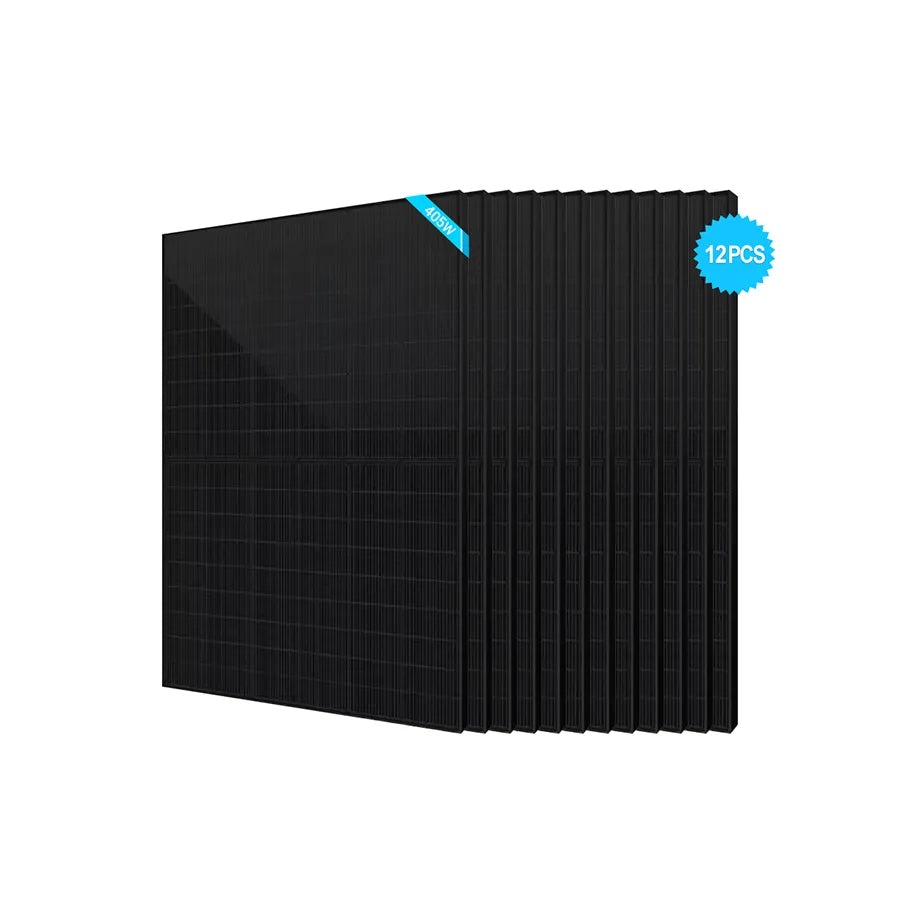

405W Mono-Crystalline PERC Solar Panel
| Peak Power | 405W |
| Solar Cell | Mono Crystalline Silicon,91mm×182mm |
| Power Tolerance | (0~+5W） |
| Module Efficiency(%) | 20.72% |
| Maximum Power Current(IMP) | 13.05A |
| Maximum Power Voltage(VMP) | 31.04V |
| Short Circuit Current(ISE) | 13.83A |
| Open Circuit Voltage(VOC) | 37.13V |
| Landscape | 1100mm (4mm2) |
| Front cover | 3.2mm ultra clear embossed tempered coated glass |
| Connector | MC4 compatible |
| Junction box | IP68, |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V |
| Dimension | 1722x1134x30mm |
| Weight | 20.3kg |
| Warranty | 12-year product warranty & 25-year linear power warranty |
| Certificate | UL 61730-1,UL 61730-2,CSA C22.2 |
TRT Rail-less Base System
| Rail-less Base 3010354 | Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment. |
| Mid Clamp 3010355 | Mid Clamp 3010355 |
| Hidden End Clamp 3010138 | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
| Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness. | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |

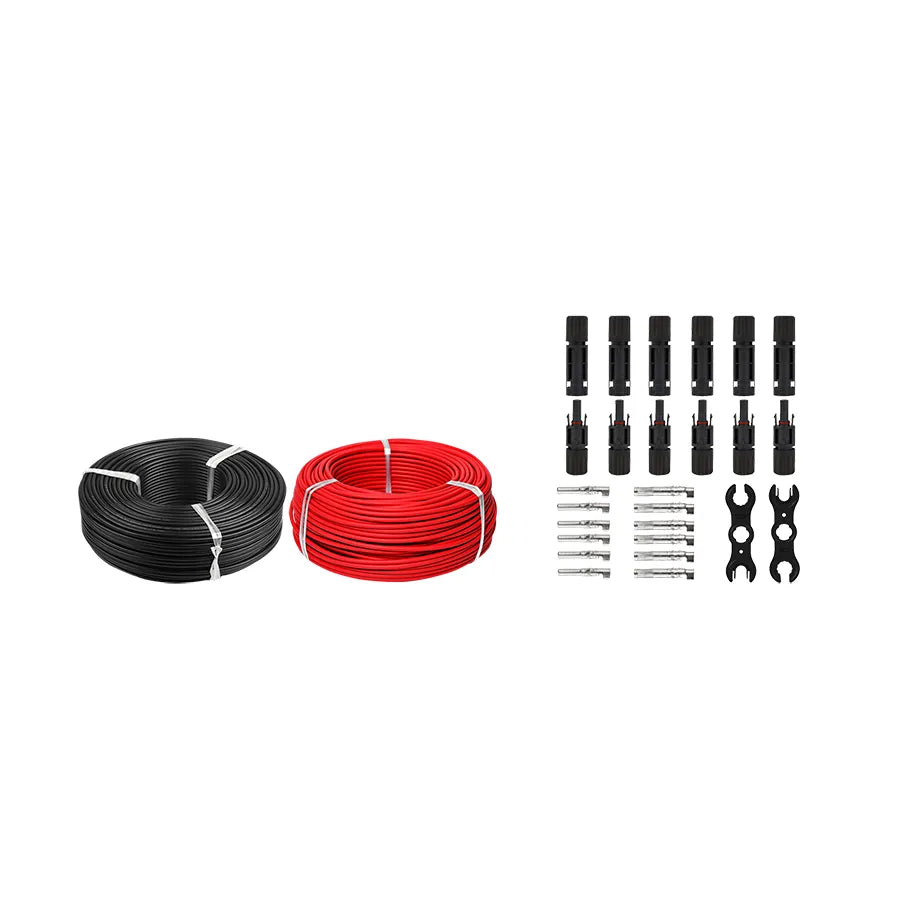

PV Wire
| Wire Size | 10AWG 6mm² |
| Number of Strands | 75 |
| Color | Black/Red |
| Inner Layer Thickness | 0.044in |
| Outer Jacket Thickness | 0.029in |
| Outer Diameter(O.D.) | 0.268in |
| Bending Radius | 1.60in |
| Conductor Resistance | 1.01Ω/1,000ft |
| Voltage rating | 2,000V/2KV |
| Temperature Rating | 40ºC to 90ºC |
| Certificate | UL 4703, RoHS compliant |
PV Connector
| Rated Voltage | UL1500V |
| Rated Current | 50A |
| Cable Specification | 90ºC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm, 14 AWG, 12 AWG, 10 AWG |
| Resistance of Connector | Max 0.3mΩ |
| Flammability Class | UL94 V-0 |
| Temperature Range | -40℃～+85℃ |
| Flammability Class | UL94 V-0 |
Supports
Title
-
Download
-
Video
-
FAQ
Data Sheet
User Manual
Warranty
Certifications
SRNE 5KW Datasheet
Download
Deye RW-F10 Datasheet
Download
SUNPRO 405W Full Black 30MM Data Sheet
Download
TRT Rail-less Base System01 Datasheet
Download
TRT Rail-less Base Racking System Datasheet
Download
TRT Rail-less Base System Datasheet
Download
TRT Rail-less Base System User Manual
Download
PV Wire Flyer Datasheet
Download
QC4.10_H4 Connector Datasheet
Download

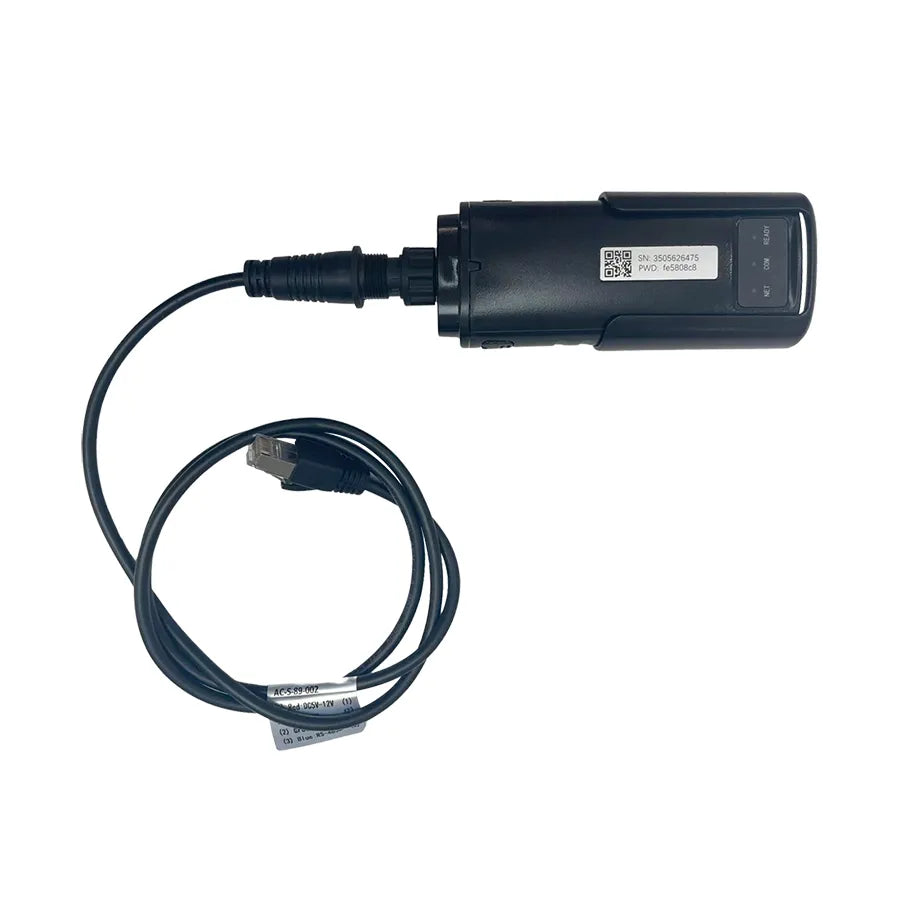

Solarman Wifi Dongle Datasheet
Download

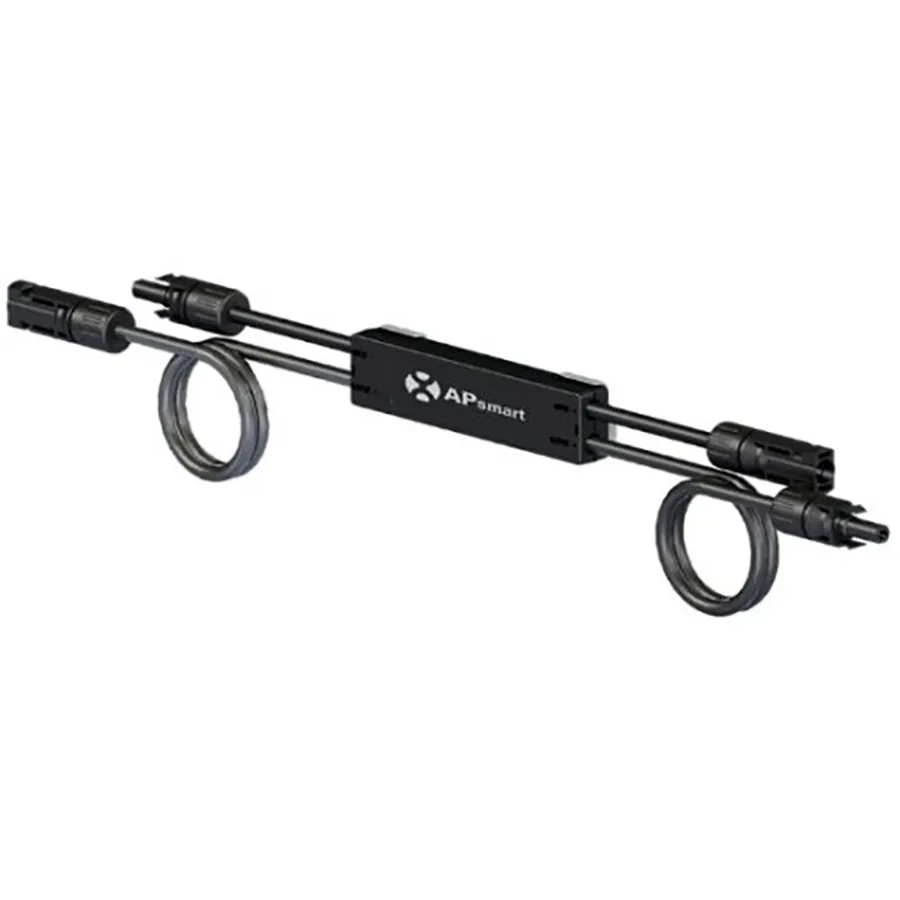

RSD-S-PLC Rapid Shutdown Datasheet
