Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title

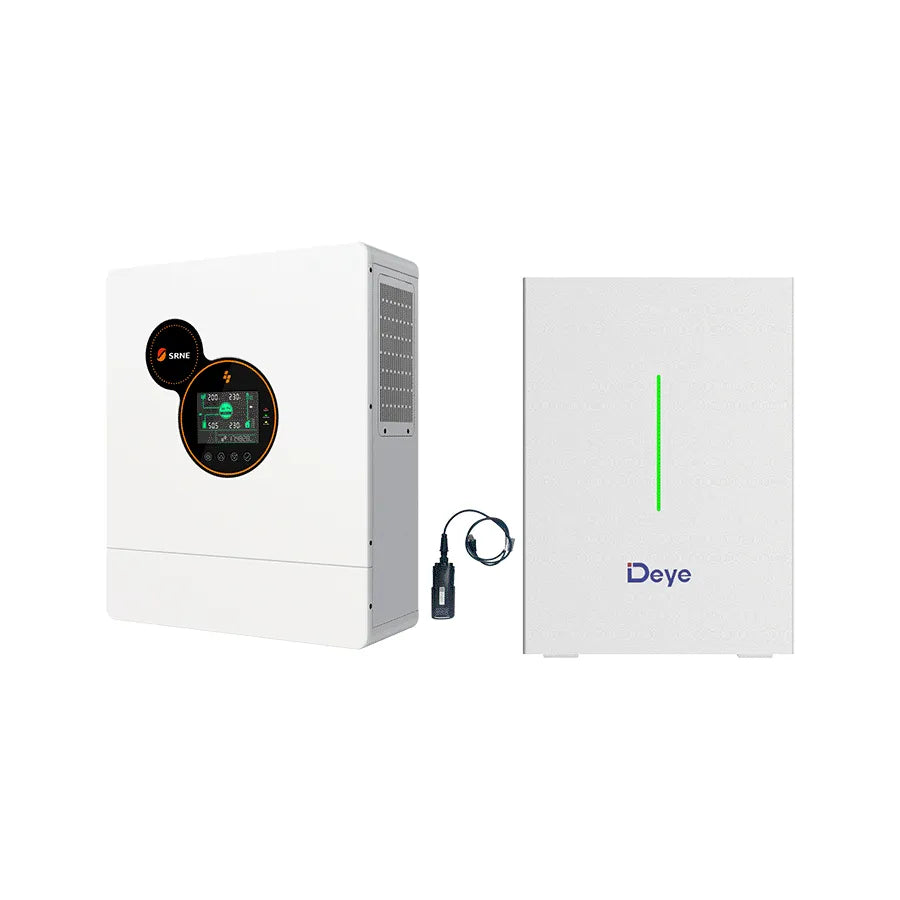

SRNE 5kW 48VDC 120VAC Off Grid Solar Inverter
| Rated Output Power | 5,000W |
| Max. Output Power | 10,000VA |
| Rated Output Voltage | 120Vac（L/N/PE, Single-Phase） |
| Max. Solar Charging Current | 100A |
| Max. PV Array Power | 5,500W |
| Battery Type | Li-ion / Lead-acid / User-defined |
| Rated Battery Voltage | 48V |
| Max. Solar Charging Current | 100A |
| Efficiency | 92% |
| Parallel Capacity | 1～6 Units（Single/Split/Three-Phase） |
| BMS Communication | RS485/CAN/USB/Dry Contact |
| Enclosure | IP20 Indoor Only |
| Operating Temperature | -15~55℃ |
| Noise | <60 dB |
| Dimension | 1722x1134x30mm |
| Weight | 21.5kg |
| Warranty | 2 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |
Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |
