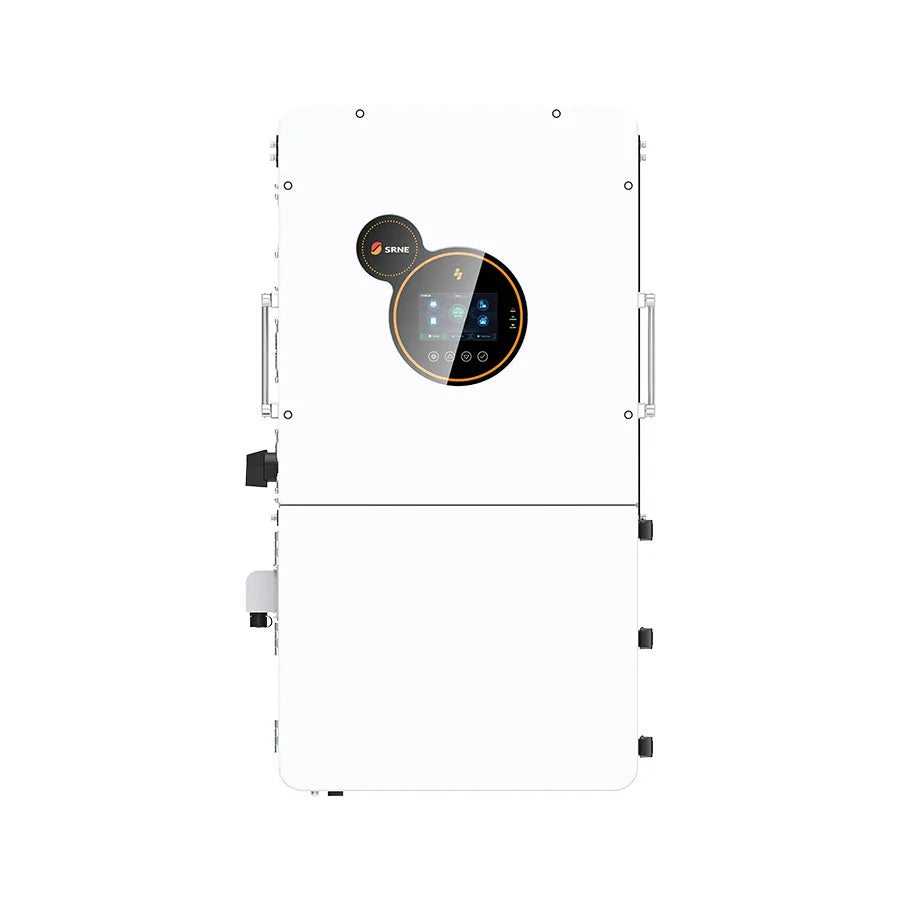

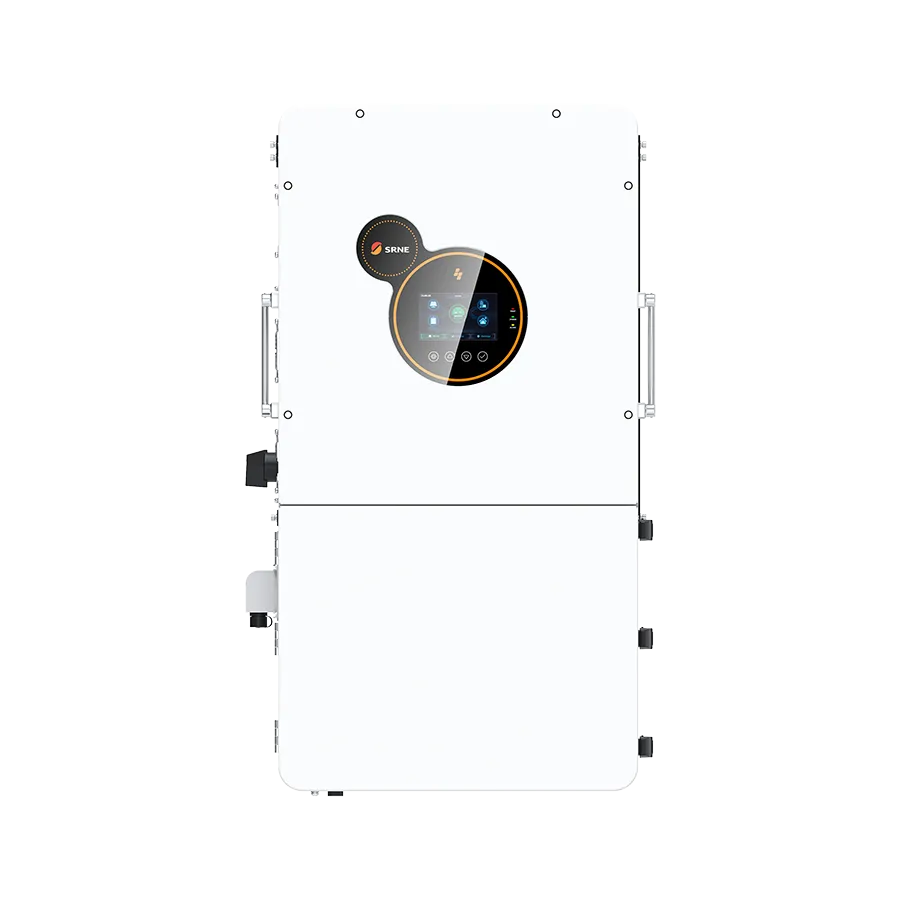

SRNE 12kW Hybrid Inverter

$1,980.00
$2,899.00
Save $919

Free shipping (lower 48 states)

SRNE HEBP-Pro 12kW Hybrid Inverter 8–12 kW hybrid inverter, supports 48 V batteries Dual independent MPPTs, 240 A max hybrid charging Separate generator port & AC coupling IP65 waterproof aluminum enclosure Works in split or three-phase configuration High 97.5% efficiency, UL1741 & IEEE 1547 certified 3-year warranty
Product Model
Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

  • Overview

  • Tech Specs

  • Supports

  • Reviews

Overview

Title

Tech Specs

Title
SRNE 12KW 48VDC 120/240VAC,120/208V Hybrid Solar Inverter
Rated Output Power @240V 12000W @208V 10400W
Max. Peak Power 1.5 times rated power
Rated Output Voltage 120/240Vac（Split-phase）; 120/208V(Three-phase)
Output Voltage Error 50A
Parallel Capacity 1 to 6 units (2 or more units can form a three-phase output)
Battery Type Li-ion / Lead-Acid / User Defined
Rated Battery Voltage 48Vdc
Max. PV Array Power 9000W / 9000W
MPPT Voltage Range 125 ~ 450Vdc / 125 ~ 450Vdc
Continuous Grid Passthrough Current 180A
Max Efficiency 97.5%
Communication Port RS485 / CAN / USB / Dry contact
Operating Temperature -25~60℃, >45℃ derated
Noise <60 dB
Dimension 840*440*260mm
Weight 48kg
Warranty 2 Years
Certificate UL1741&IEEE1547.1-2020, CEC, RULE 21, HECO,FCC 15 class B,RoHS

Supports

Title

  • Download

  • Video

  • FAQ

Data Sheet
User Manual
Warranty
Certifications
SRNE 12KW Datasheet
Download
SRNE 12KW User Manual
Download
SRNE-DEYE Product Warranty
Download
HEBP48120U200-PRO-UL1741 IEE1547 UL1699B Test Report
Download
HEBP48120U240-PRO-UL1741 IEE1547 UL1699B Certificate
Download
