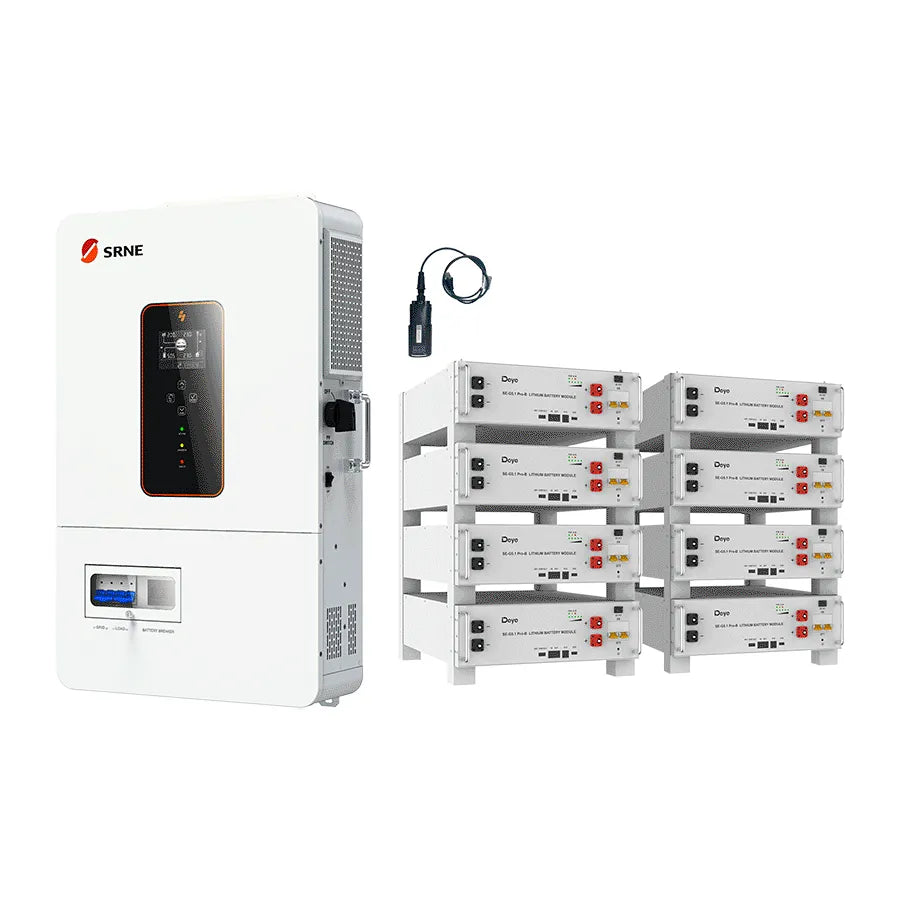

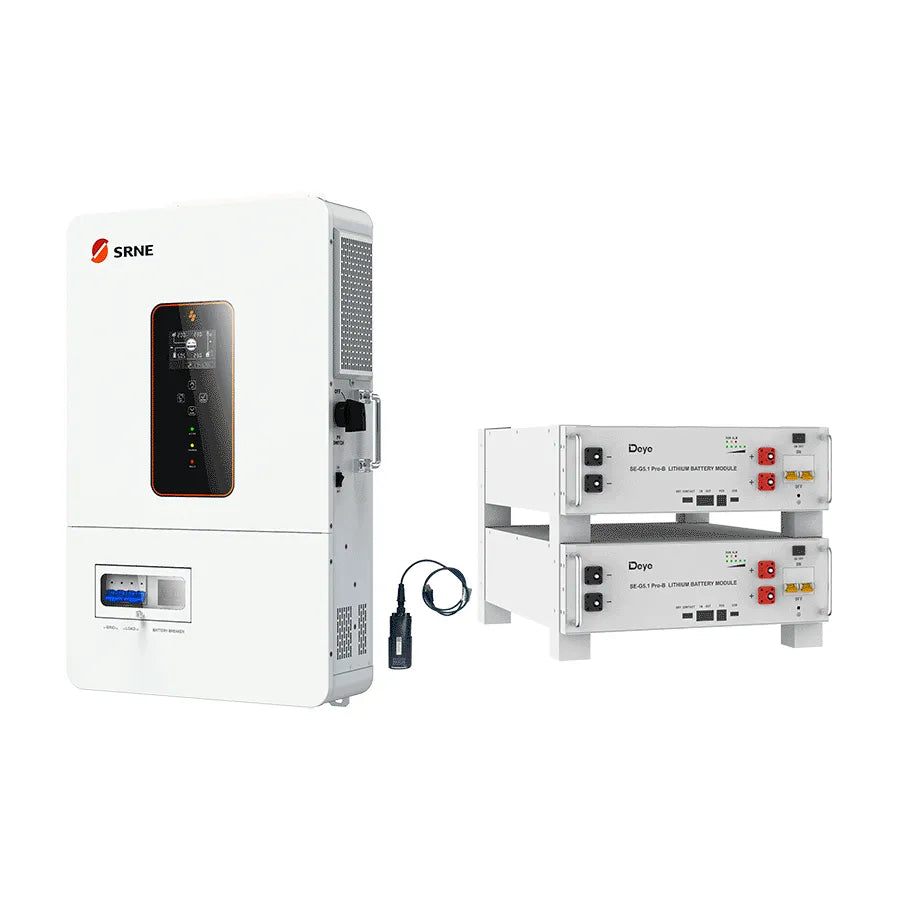

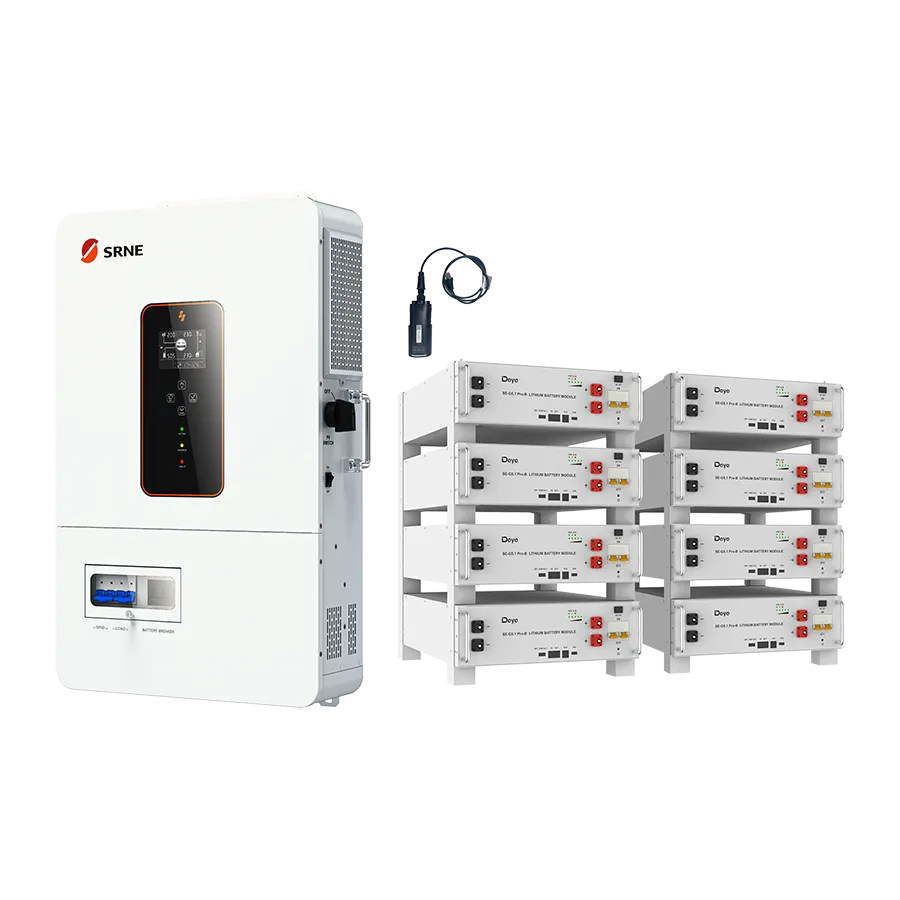

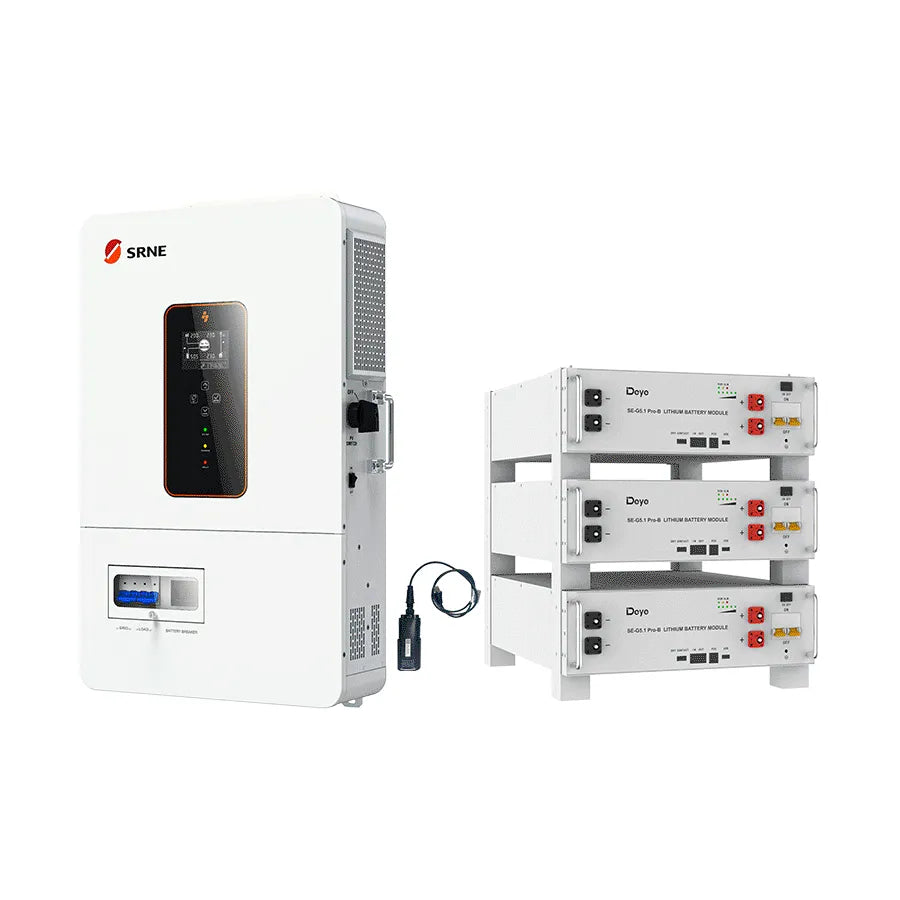

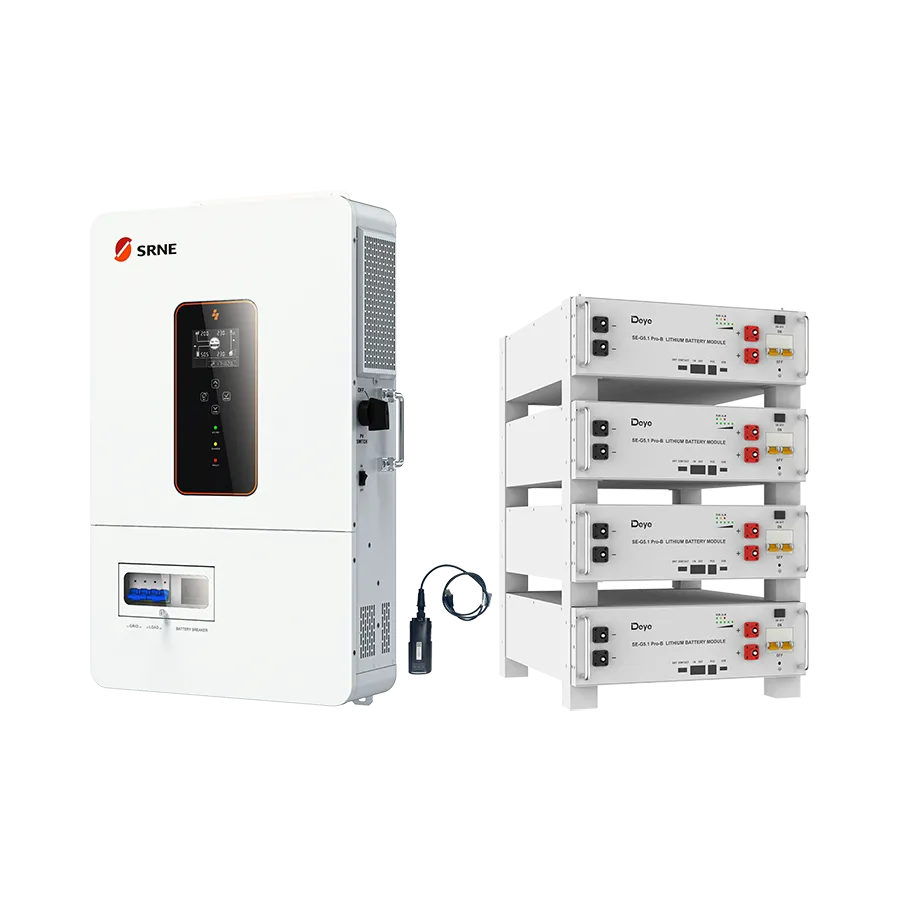

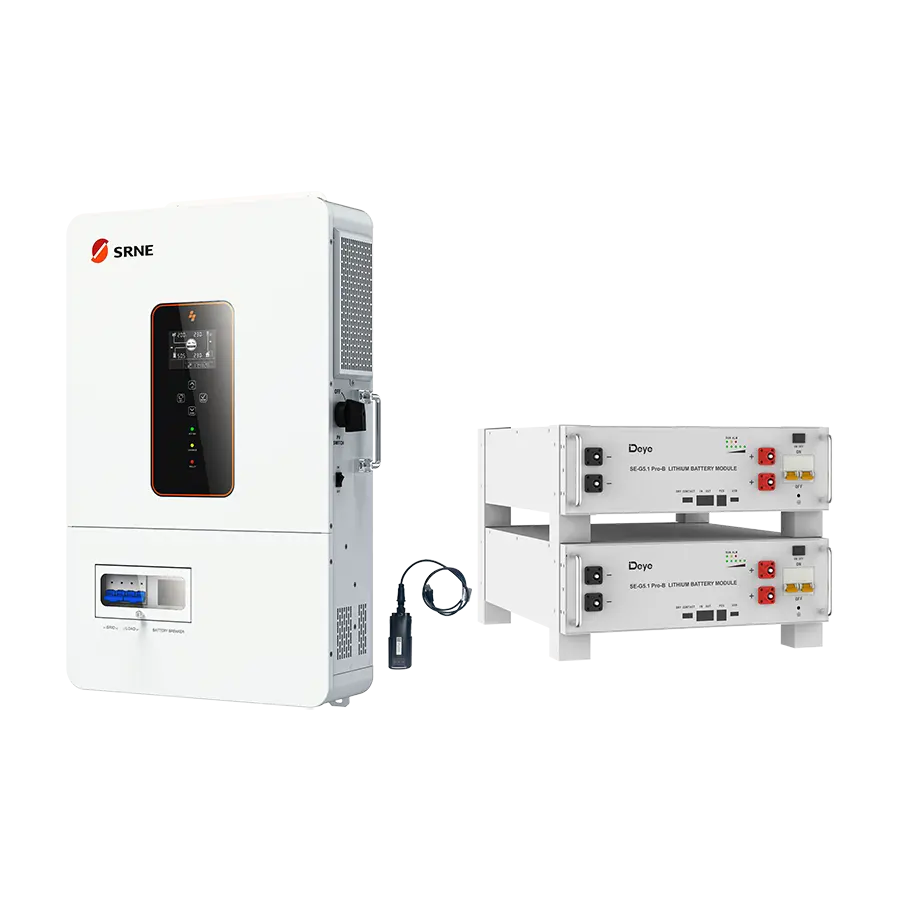

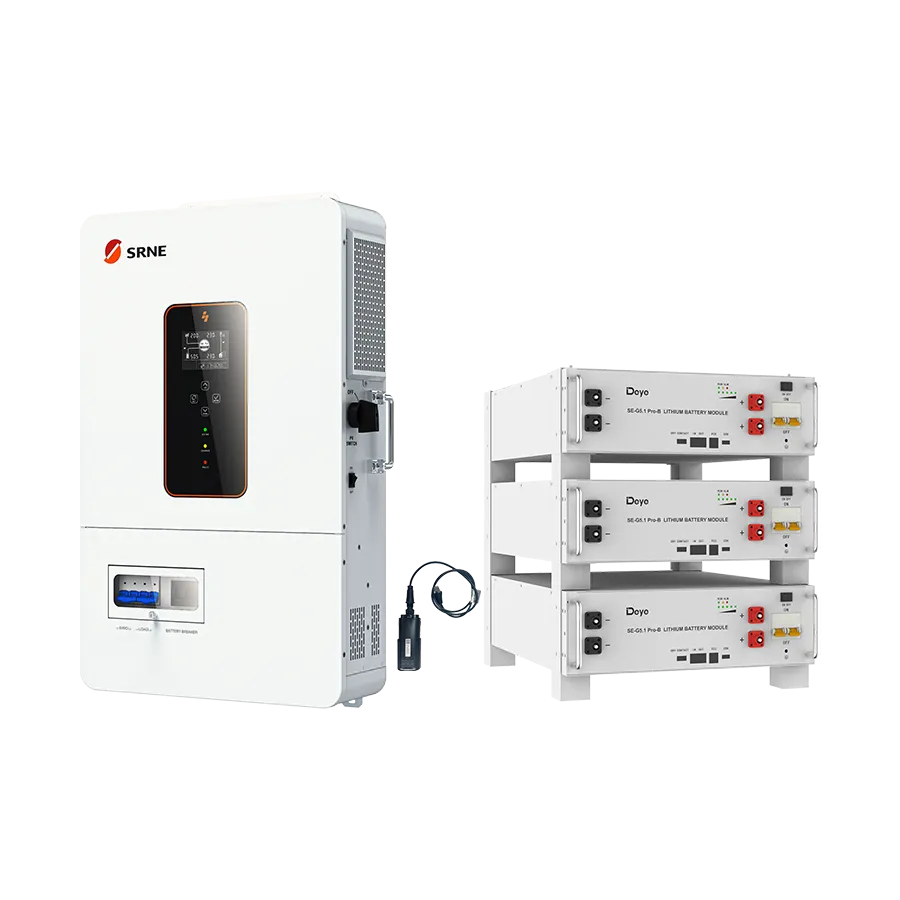

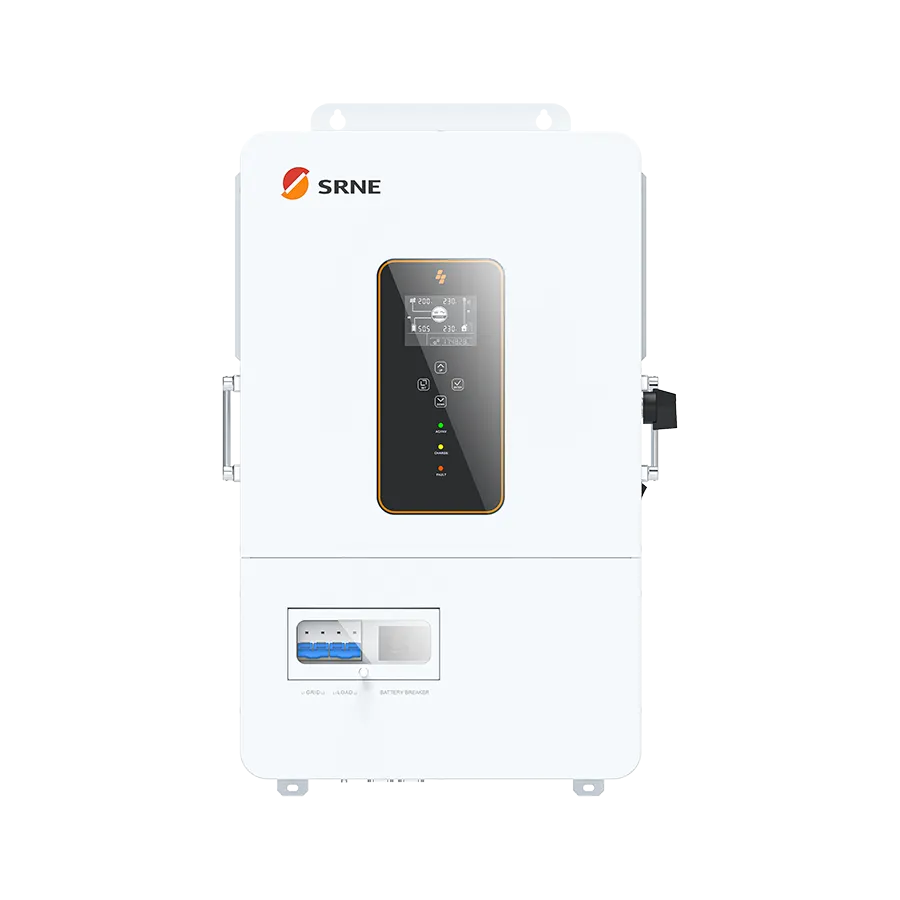

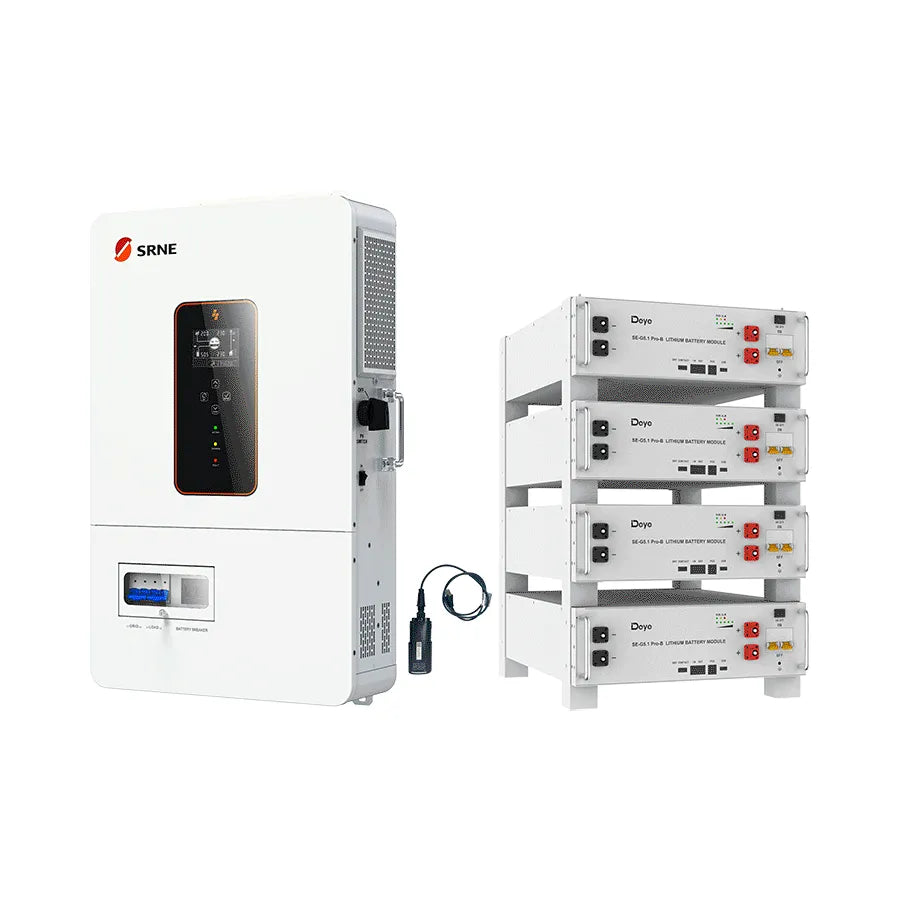

SRNE 10kW 48VDC 120/240VAC Off Grid Solar Inverter
| Rated Output Power | 10,000W |
| Max. Output Power | 20,000VA |
| Rated Output Voltage | 120/240 Vac (single-phase/split-phase) |
| Max. Solar Charging Current | 48V |
| Max. Solar Charging Current | 200A |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Switch Time | 10ms(typical value) |
| Max. Mix Charge Current | 200A |
| Efficiency | 92% |
| Parallel Capacity | 1～6 Units（More than 3 units in parallel can form a three-phase output） |
| BMS Communication | RS485/CAN/USB/Dry Contact |
| Enclosure | IP20 Indoor Only |
| Operating Temperature | -10-55°C, >45°C Derate |
| Noise | <60 dB |
| Dimension | 723x448x150mm |
| Weight | 28kg |
| Warranty | 2 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |
Deye SE-G5.1 Pro-B Lithium Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12KWH |
| Scalability | Expandable up to 64 units in parallel (max. 327kWh) |
| Usable Energy | 4.6kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP20 |
| Operating Temperature | Charge:0~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| MAX Continuous Charge Current | 100A |
| Cycle Life | ≧6000 |
| Installation | Installation Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) |
| Dimension | 440 × 133 × 540 mm |
| Weight | 45kg |
| Warranty | 10 Years |
| Certificate | UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A |
