Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
Overview
Title
Tech Specs
Title

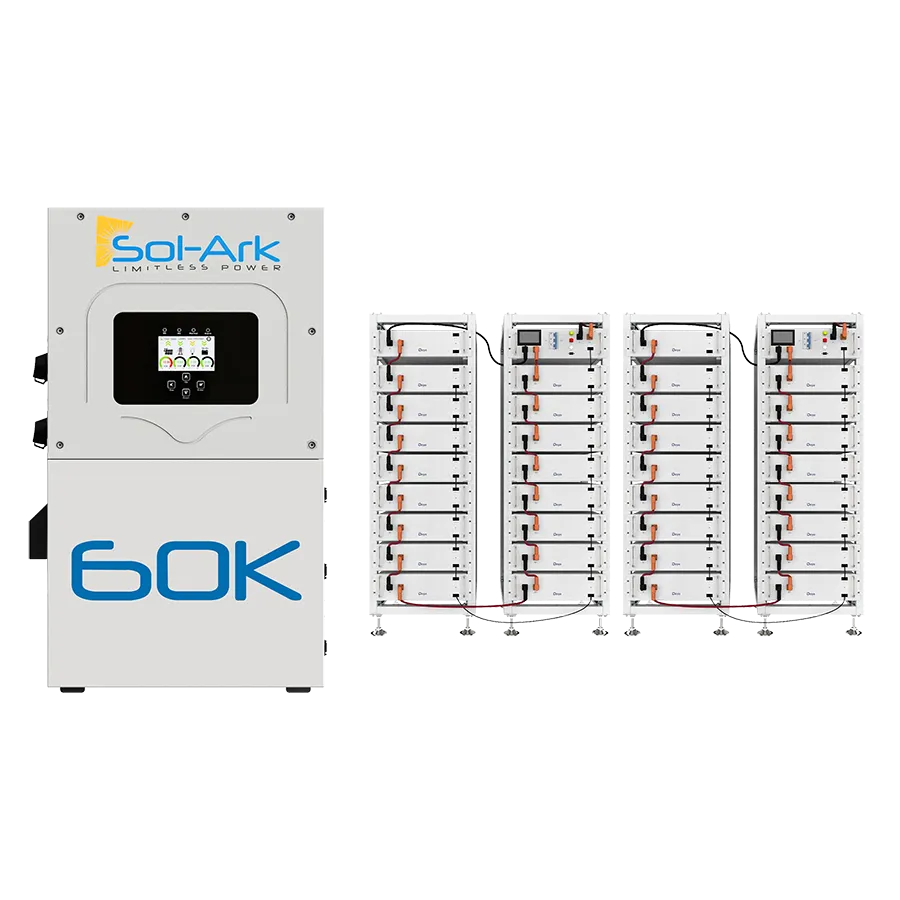

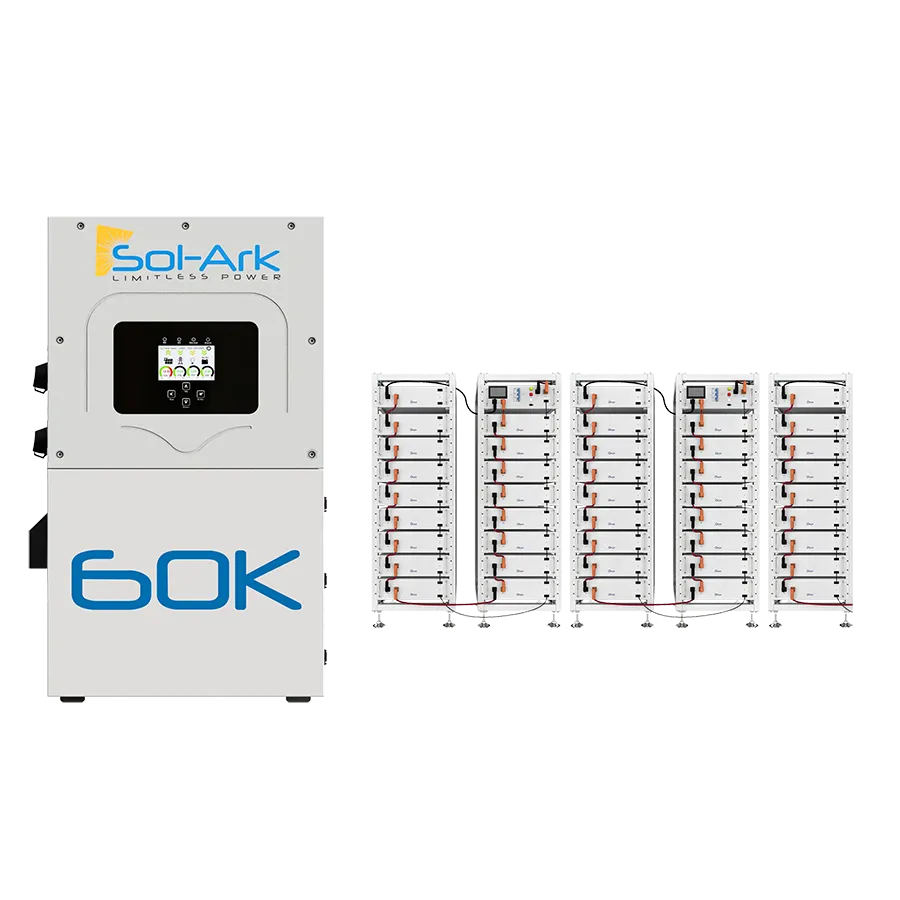

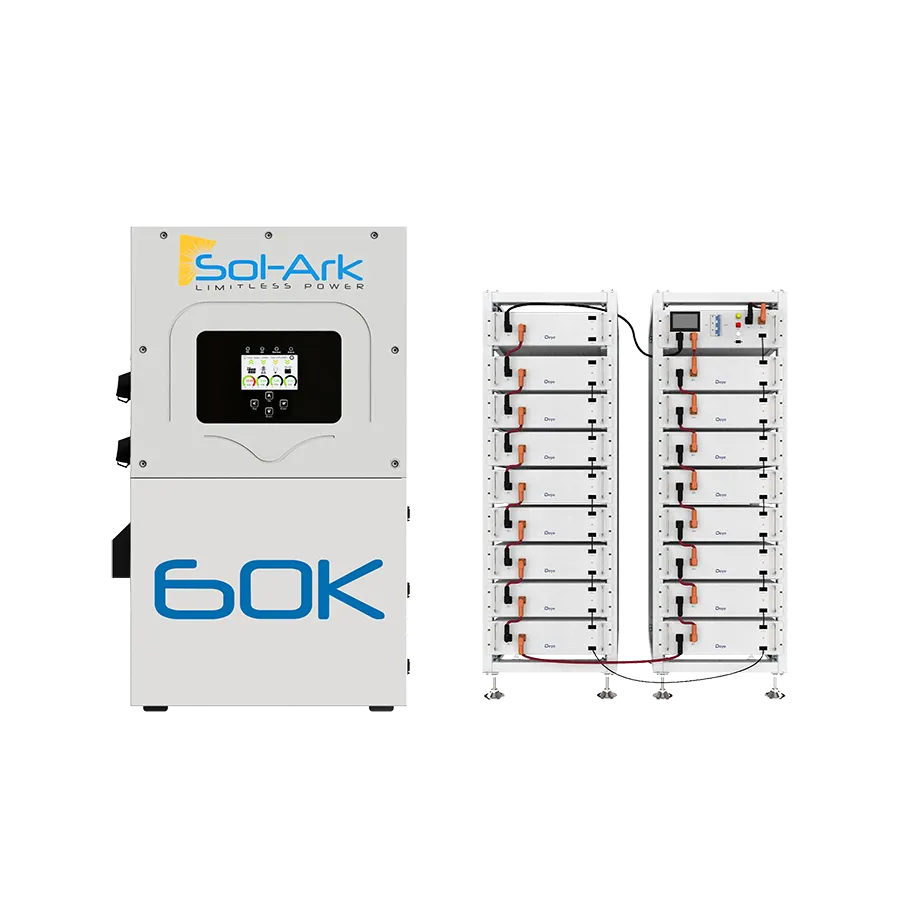

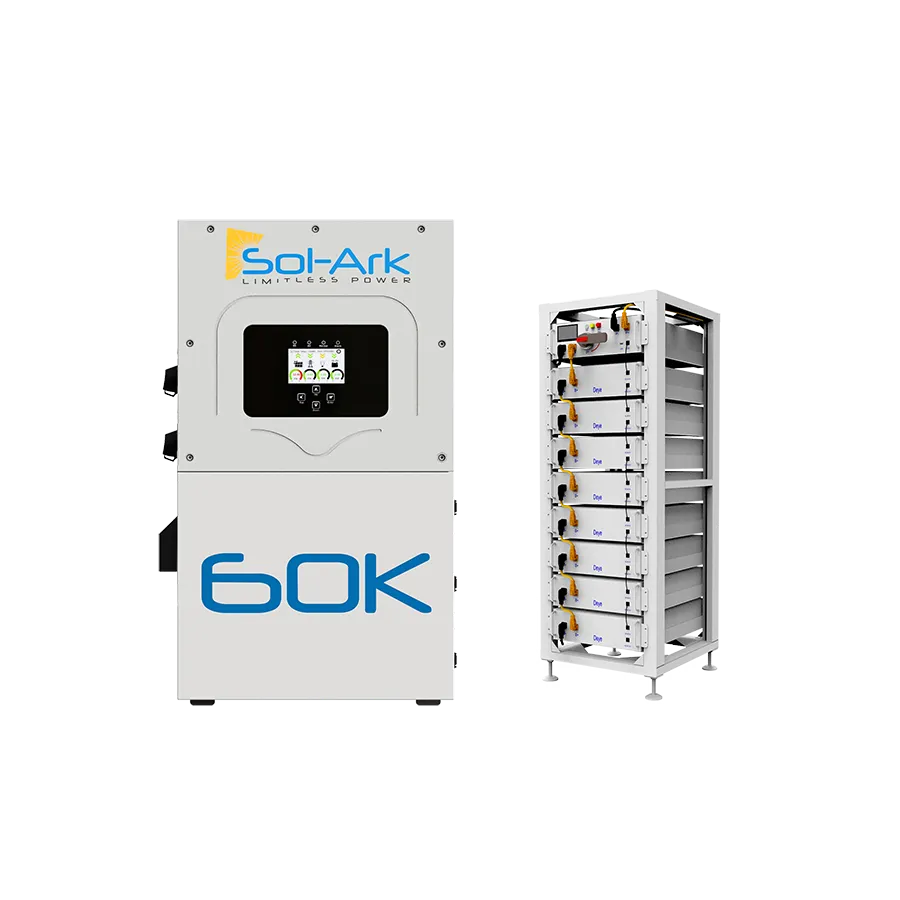

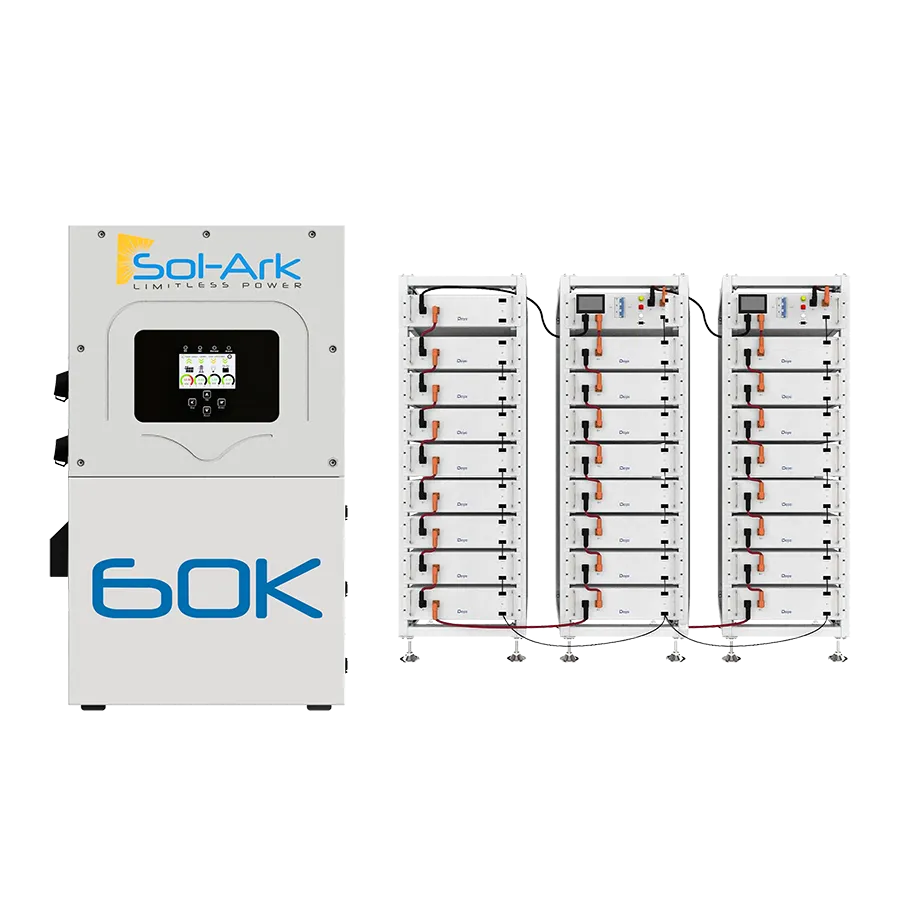

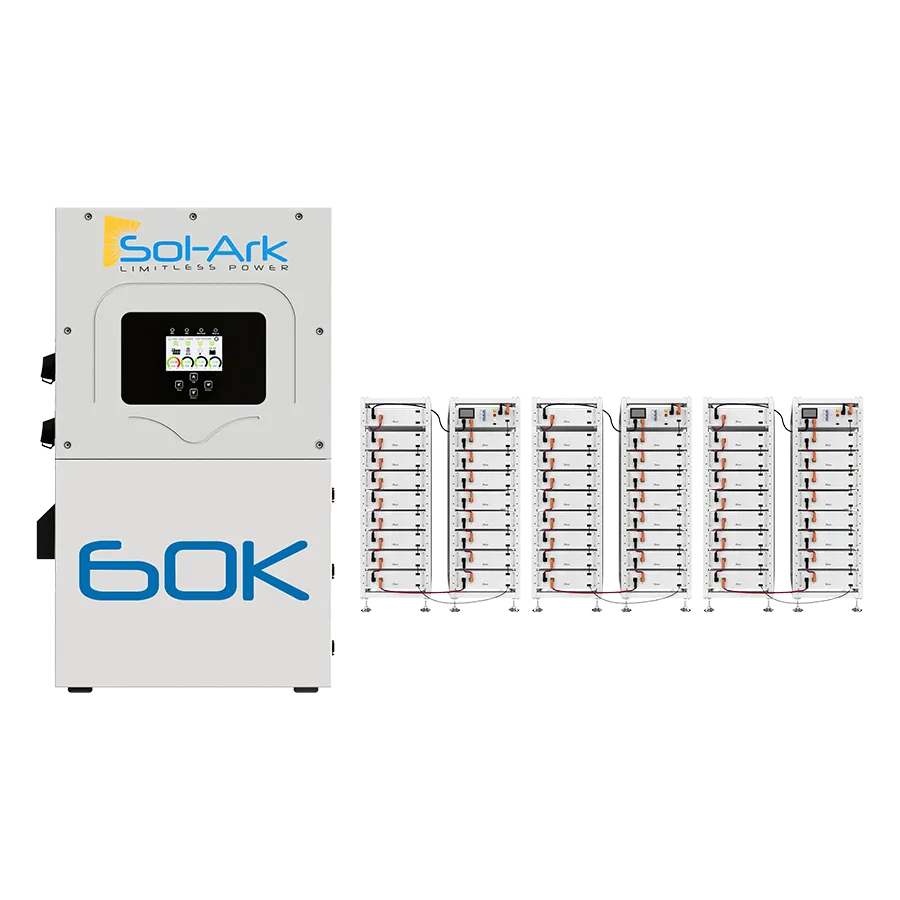

Sol-Ark 60KW Hybrid Inverter
| AC Output Voltage | 277/480V |
| Max. Input Power | 78000W |
| Efficiency | 97.5% |
| Max Charging Current | 100A |
| MPPT Voltage Range | 850VDC |
| Backup Transfer Time | 5ms(adjustable) |
| Battery Technologies | Lithium iron phosphate |
| Battery Nominal DC Voltage | ≧600V |
| BMS Communication | CANBus & RS485 |
| Enclosure | IP65 / NEMA 3R |
| Surge Protection | DC Type || AC Type ||| |
| Ambient Temperature | -40~60°C,>45°C Derating |
| Noise | <30 dB @ 25°C(77°F) |
| Dimension | 35.2in x 20.8in x 11.6in |
| Weight | 176bs |
| Warranty | 10 Years |
| Certificate | UL1741-2021(UL1741SB) CSA C22.2 No 107.1-16.IEEE1547-2018&1547a-2020&1547.1-2020(SRD V2.0).UL1741 CRD.PCS,UL1699B,CEC,SGIP4 |
BOS-G 61.44kWH 51.2V 100ALiFePO4 HV Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 61.44KWH |
| System Nominal Voltage | 614.4V |
| Usable Energy | 45.29kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP20 |
| Nominal Continuous Charge Current | 100A |
| Cycle Life | ≧6000 |
| Installation | Rack-Mounted |
| Dimension | 530 × 602 × 2187 mm |
| Weight | 594kg |
| Warranty | 10 Years |
| Certificate | CE/IEC62619 /VDE2510-50/UL1973 /UL9540A/UN38.3 |
