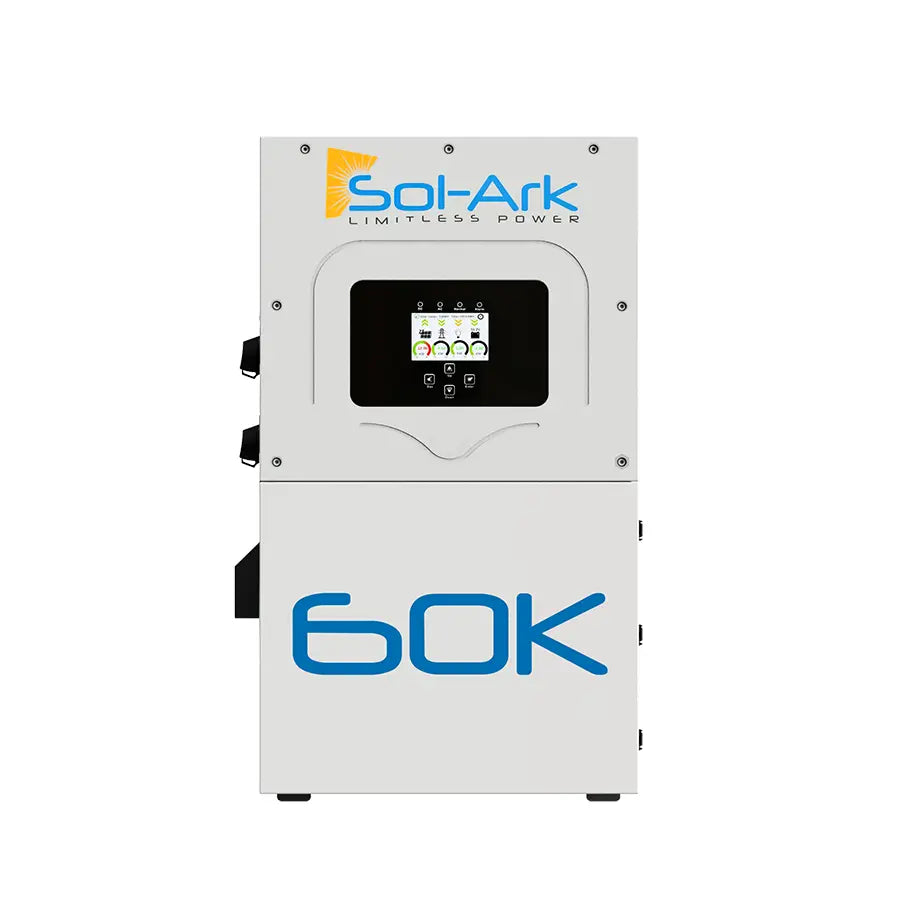

Sol-Ark 60kW Hybrid Inverter

$15,899.00

Save $0

Free shipping (lower 48 states)

Sol-Ark 60 kW 3-Phase 480 V Hybrid Inverter 60 kW AC output, 78 kW PV input (150–850 V range) Native 277/480 V 3-phase output—no step-down transformer 5ms transfer time, 200 A grid pass-through Stackable to 600 kW for commercial microgrids Dual battery inputs, CAN & RS485 communication Outdoor rated (IP65/NEMA 3R), 97.5 % efficiency, 10-year warranty

Product Model

60kW SKU:SOL60K

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports
Reviews

Overview

Title

Tech Specs

Title

Sol-Ark 60kW Hybrid Inverter

AC Output Voltage	277/480V
Max. Input Power	78000W
Efficiency	97.5%
Max Charging Current	100A
MPPT Voltage Range	850VDC
Backup Transfer Time	5ms(adjustable)
Battery Technologies	Lithium iron phosphate
Battery Nominal DC Voltage	≧600V
BMS Communication	CANBus & RS485
Enclosure	IP65 / NEMA 3R
Surge Protection	DC Type \|\| AC Type \|\|\|
Ambient Temperature	-40~60°C,>45°C Derating
Noise	<30 dB @ 25°C(77°F)
Dimension	35.2in x 20.8in x 11.6in
Weight	176bs
Warranty	10 Years
Certificate	UL1741-2021(UL1741SB) CSA C22.2 No 107.1-16.IEEE1547-2018&1547a-2020&1547.1-2020(SRD V2.0).UL1741 CRD.PCS,UL1699B,CEC,SGIP4
