Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
Overview
Title
Tech Specs
Title

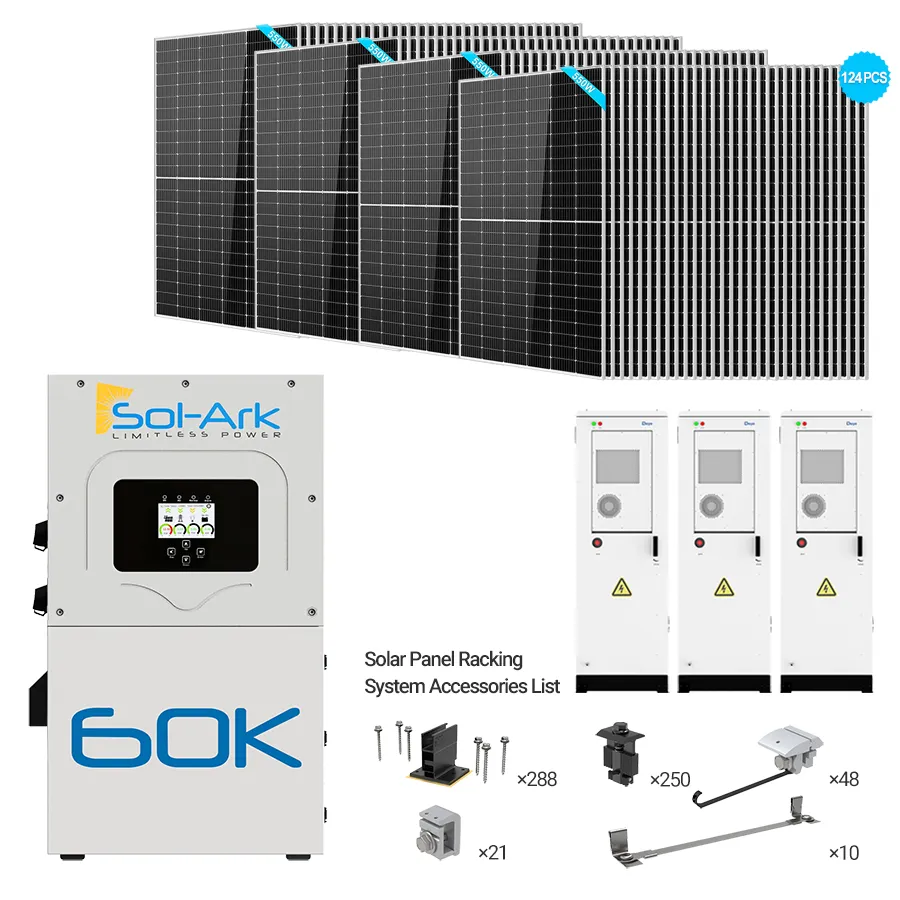

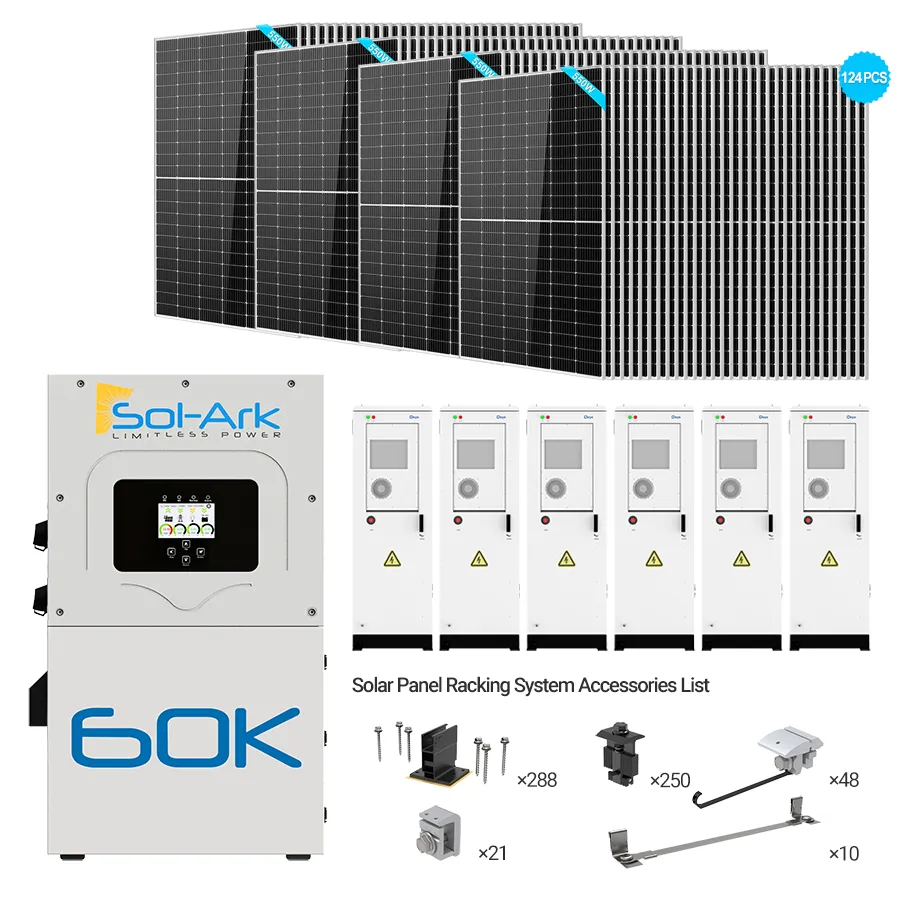

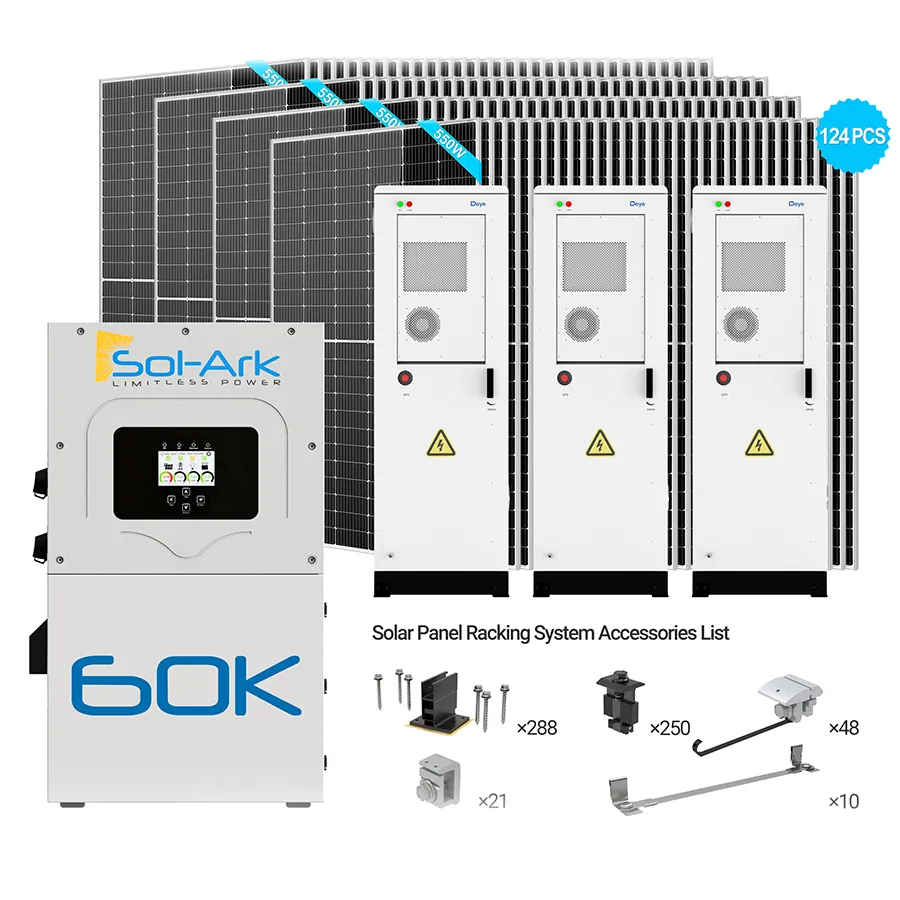

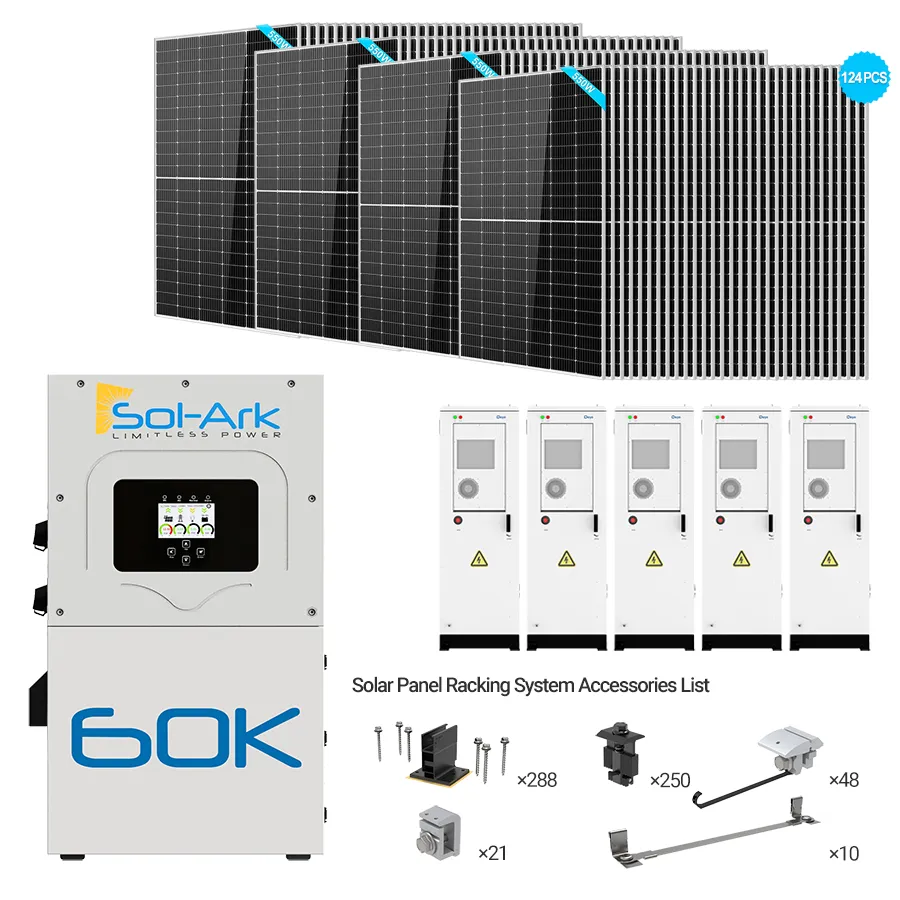

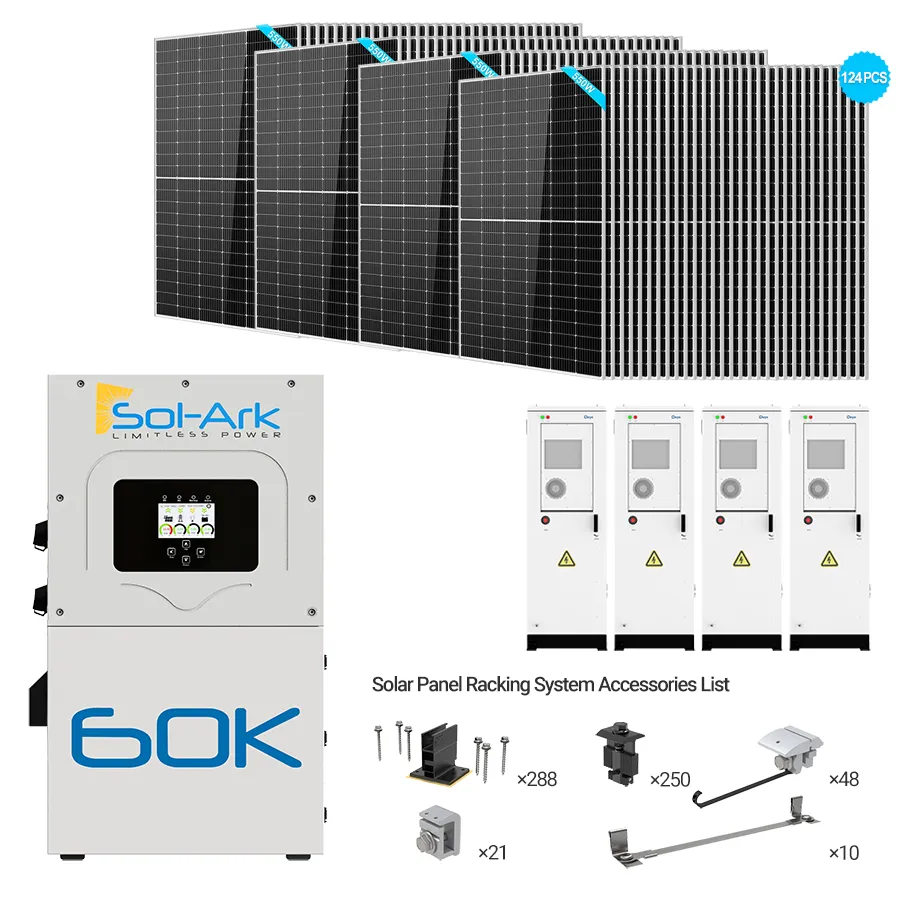

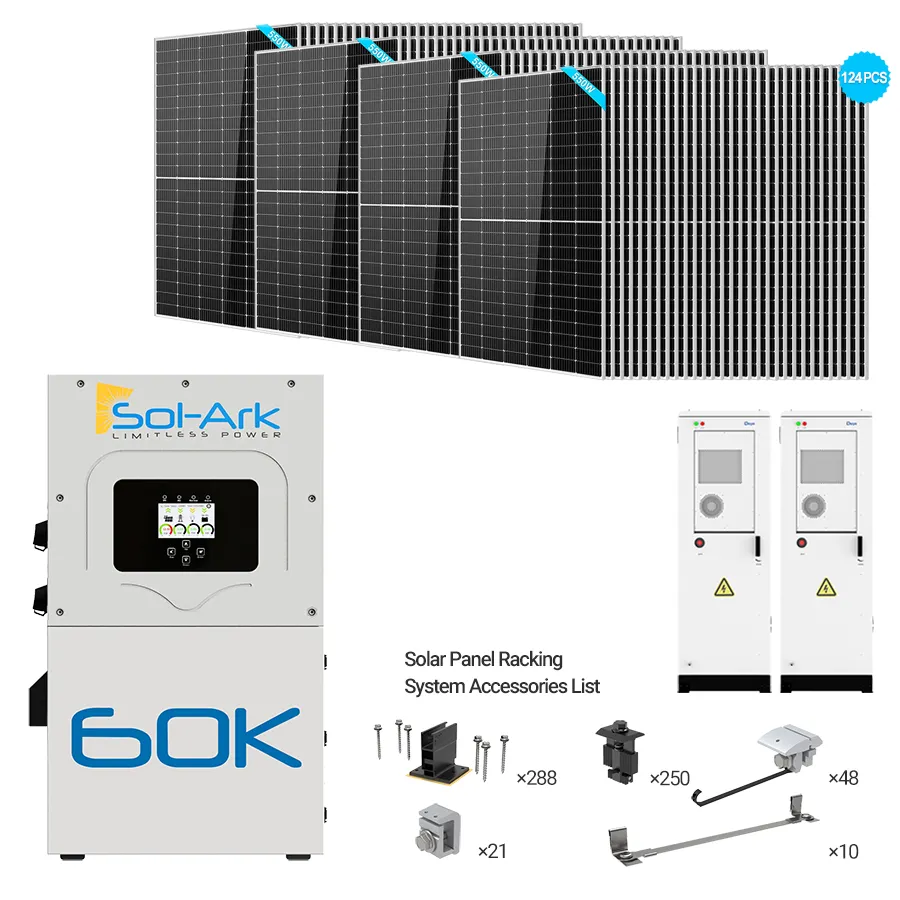

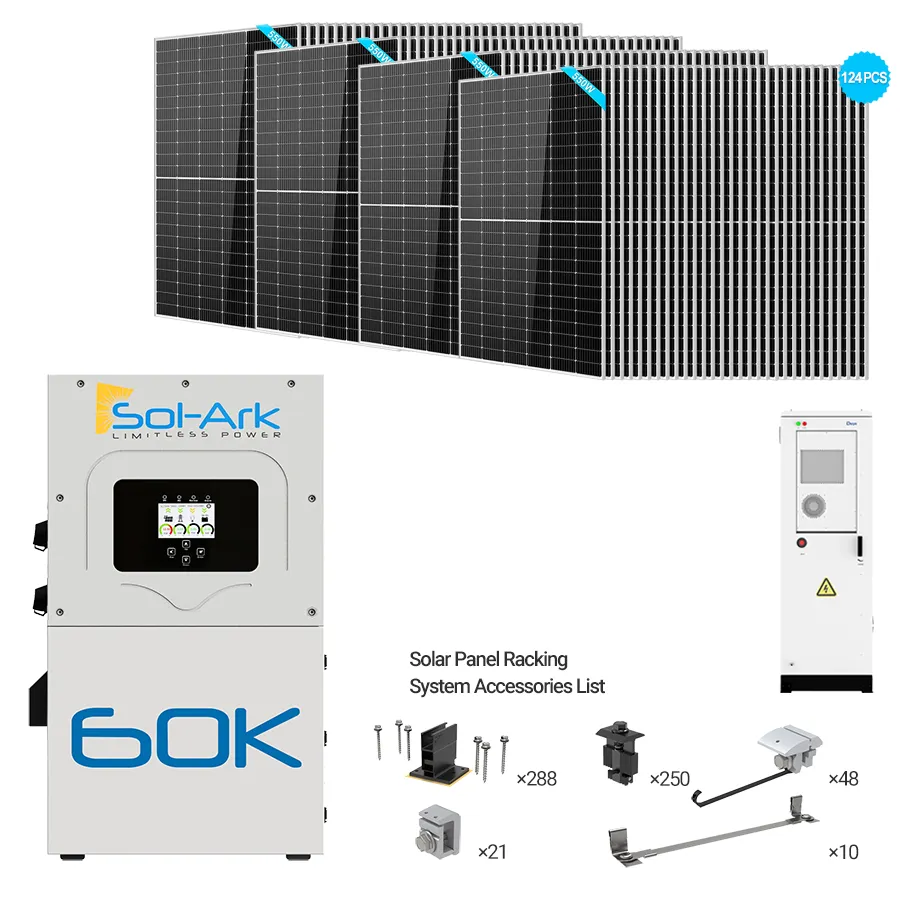

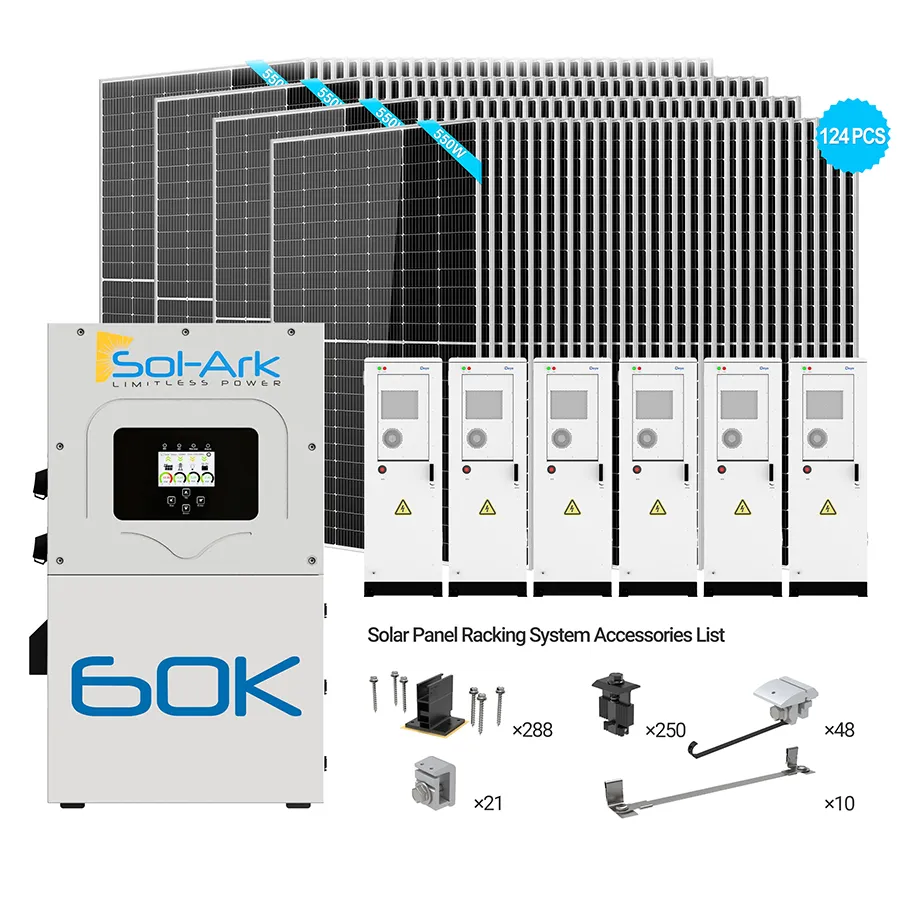

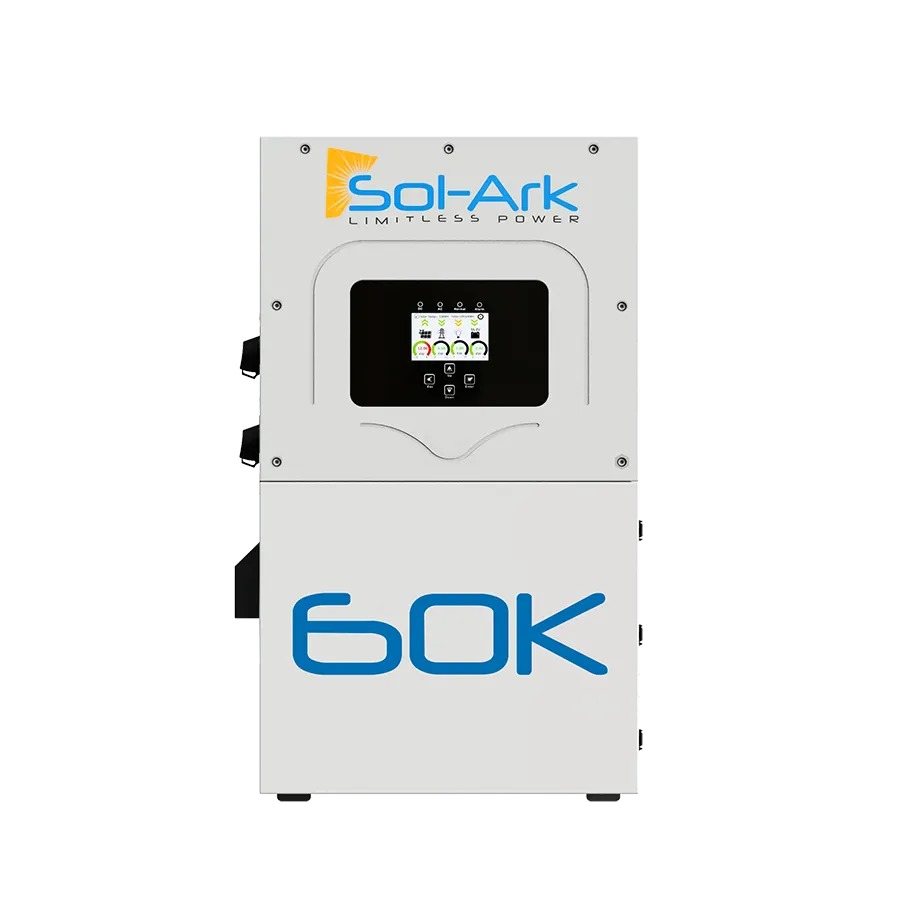

Sol-Ark 60KW Hybrid Inverter
| AC Output Voltage | 277/480V |
| Max. Input Power | 78000W |
| Efficiency | 97.5% |
| Max Charging Current | 100A |
| MPPT Voltage Range | 850VDC |
| Backup Transfer Time | 5ms(adjustable) |
| Battery Technologies | Lithium iron phosphate |
| Battery Nominal DC Voltage | ≧600V |
| BMS Communication | CANBus & RS485 |
| Enclosure | IP65 / NEMA 3R |
| Surge Protection | DC Type || AC Type ||| |
| Ambient Temperature | -40~60°C,>45°C Derating |
| Noise | <30 dB @ 25°C(77°F) |
| Dimension | 35.2in x 20.8in x 11.6in |
| Weight | 176bs |
| Warranty | 10 Years |
| Certificate | UL1741-2021(UL1741SB) CSA C22.2 No 107.1-16.IEEE1547-2018&1547a-2020&1547.1-2020(SRD V2.0).UL1741 CRD.PCS,UL1699B,CEC,SGIP4 |

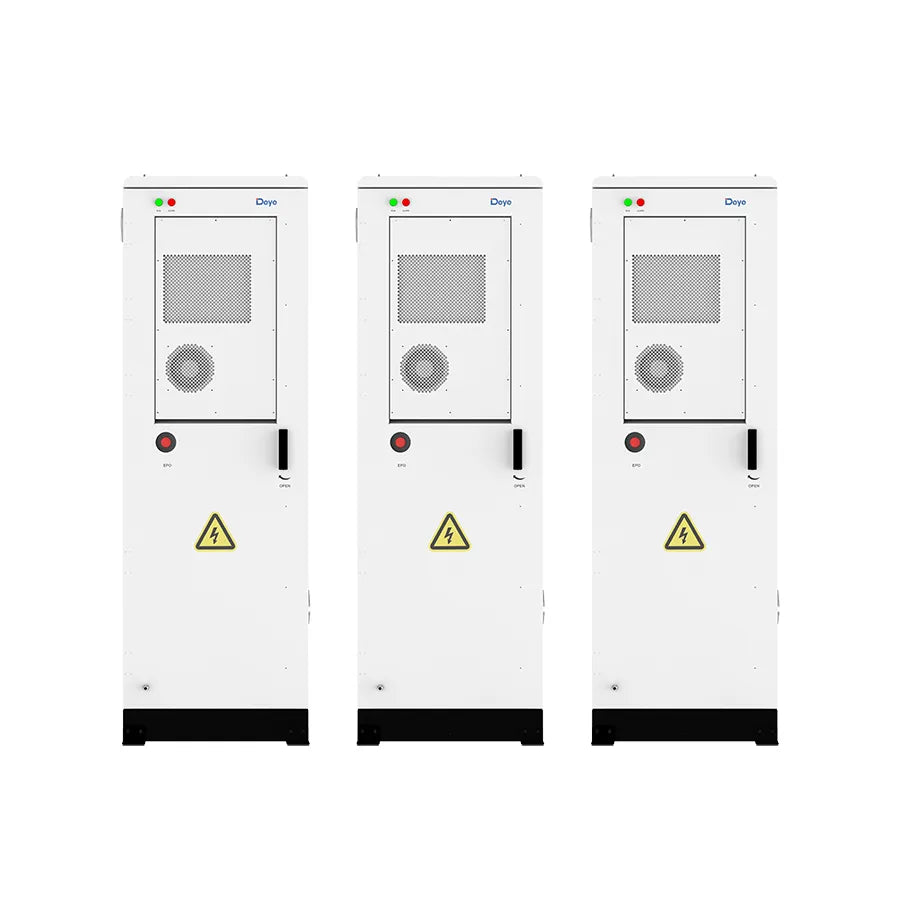

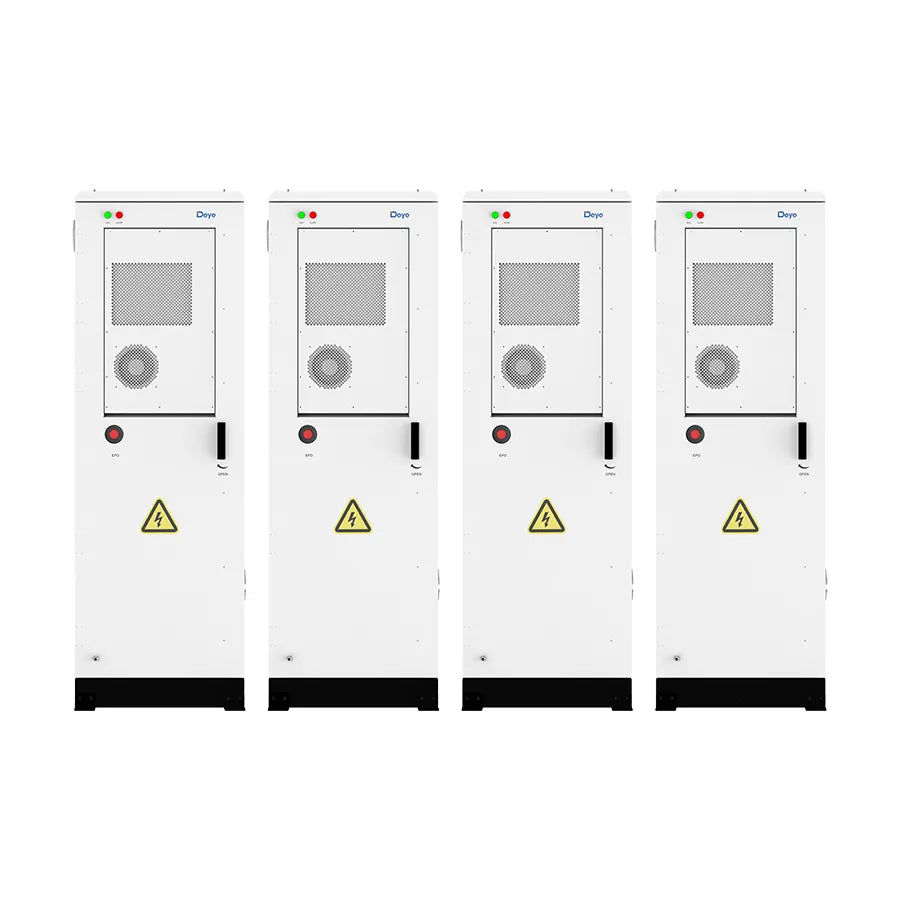

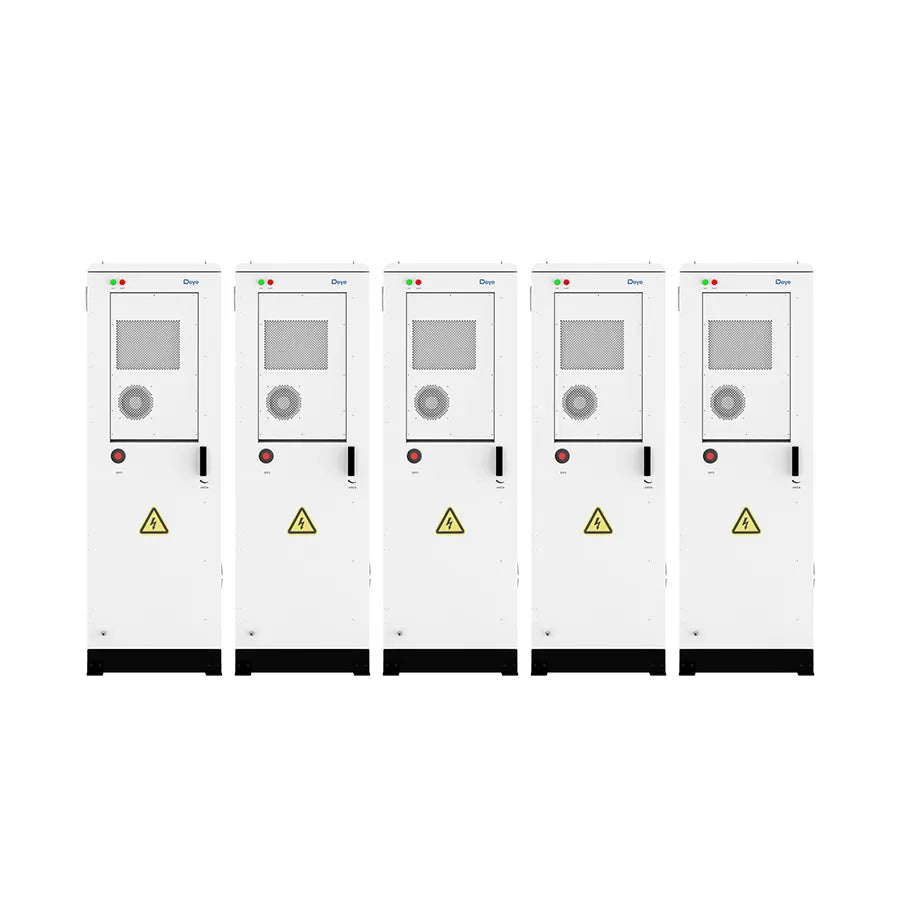

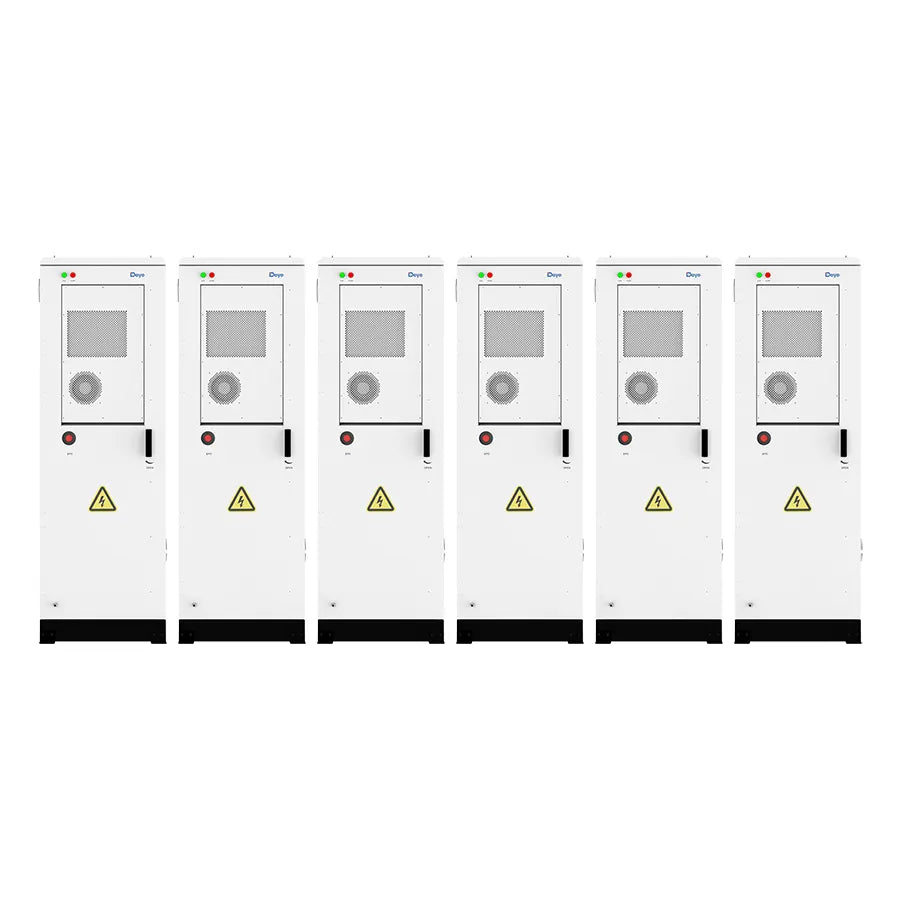

Deye GE-FL60/GE-FH60 61.44kWH LiFePO4 Cabinet HV Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 61.44KWH |
| System Nominal Voltage | 307.2V |
| Usable Energy | 55.29kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP55 |
| Working Temperature | Charge:0~55℃,Discharge:-20℃~55°C |
| Nominal Continuous Charge Current | 100A |
| Cycle Life | ≧6000 |
| Installation | Floor-Mounted |
| Dimension | 735 × 1045 × 2235 mm |
| Weight | 1015kg |
| Warranty | 10 Years |
| Certificate | UL1973 /UL9540A/UN38.3 |

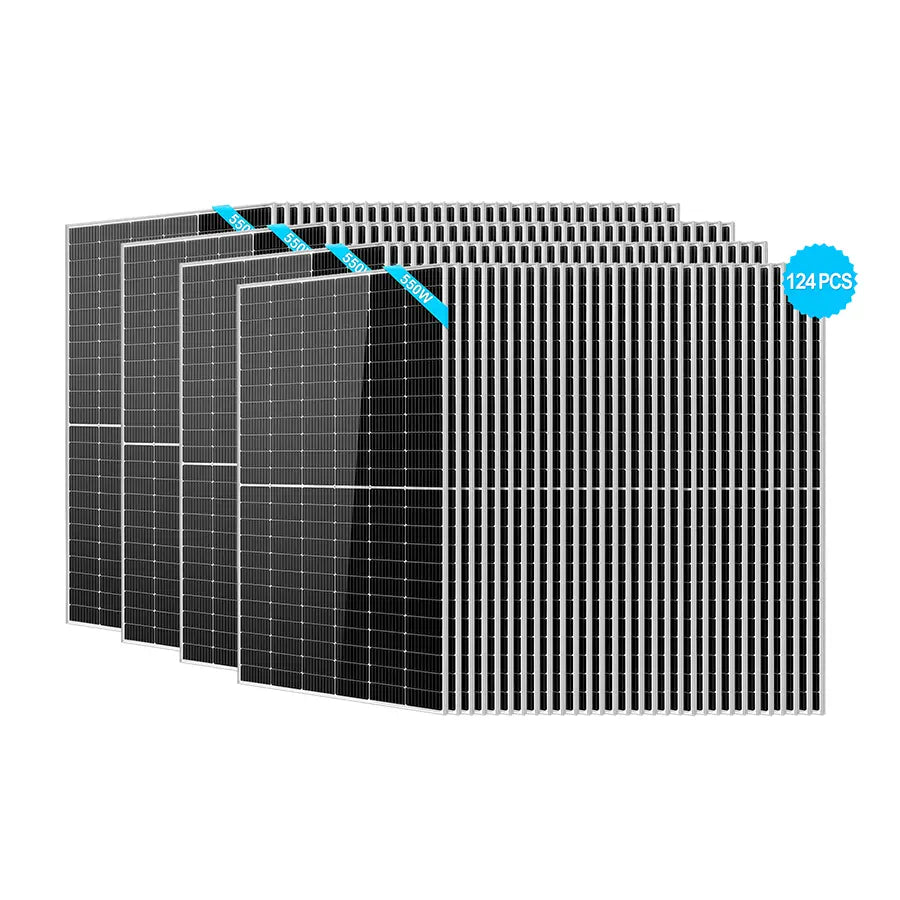

550W Monocrystalline PERC Solar Panels
| Peak Power | 550W |
| Solar Cell | Mono Bi-Facial |
| Product Tolerance | ±3% |
| Module Efficiency(%) | 21.3% |
| Maximum Power Current(IMP) | 13.12A |
| Maximum Power Voltage(VMP) | 41.95V |
| Short Circuit Current(ISE) | 14.47A |
| Open Circuit Voltage(VOC) | 50.41V |
| Maximum System Voltage | 1500VDC(IEC) |
| Landscape | 1400mm ,4 mm²/12 AWG |
| Front cover | 3.2 mm high transparency, AR coating, thermal reinforced glass |
| Connector | MC Compatible / MC4-EVO2 (optional) |
| Junction box | IP68, 3 diodes |
| Operating Temperature | -40°C to +85°C |
| Dimension | 2278x1134x35mm |
| Weight | 28.5 ± 0.5kg |
| Warranty | 25 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |
TRT Rail-less Base System
| Rail-less Base 3010354 | Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment. |
| Mid Clamp 3010355 | Mid Clamp 3010355 |
| Hidden End Clamp 3010138 | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
| Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness. | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
