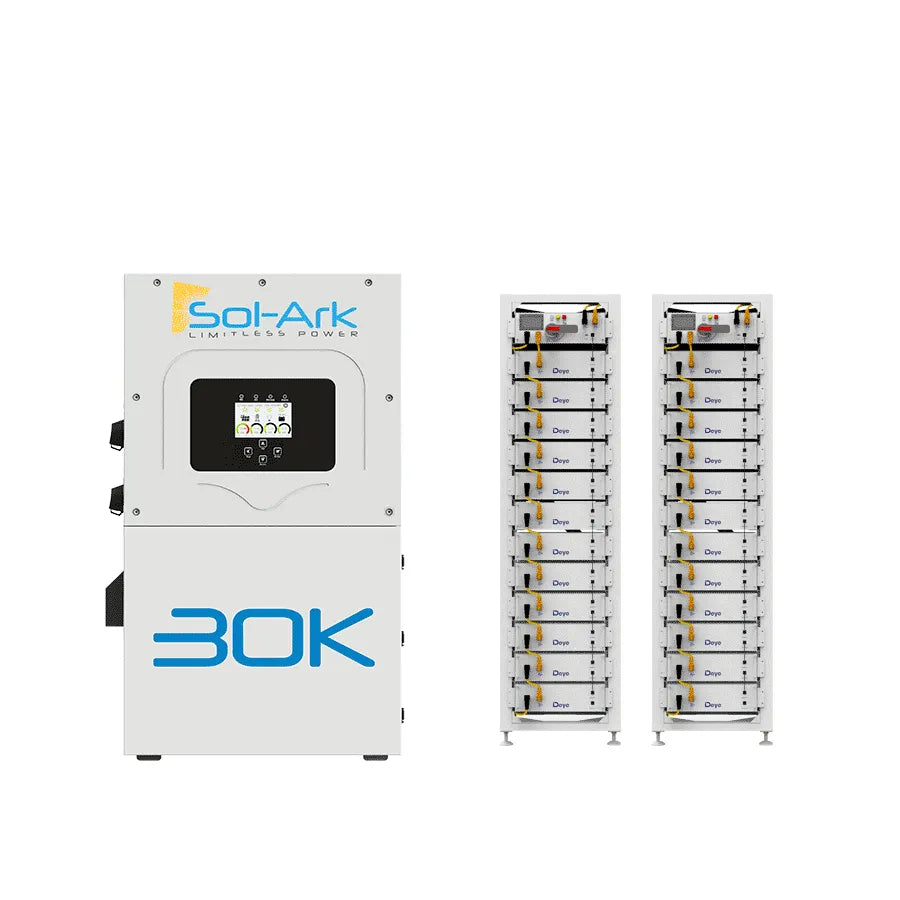

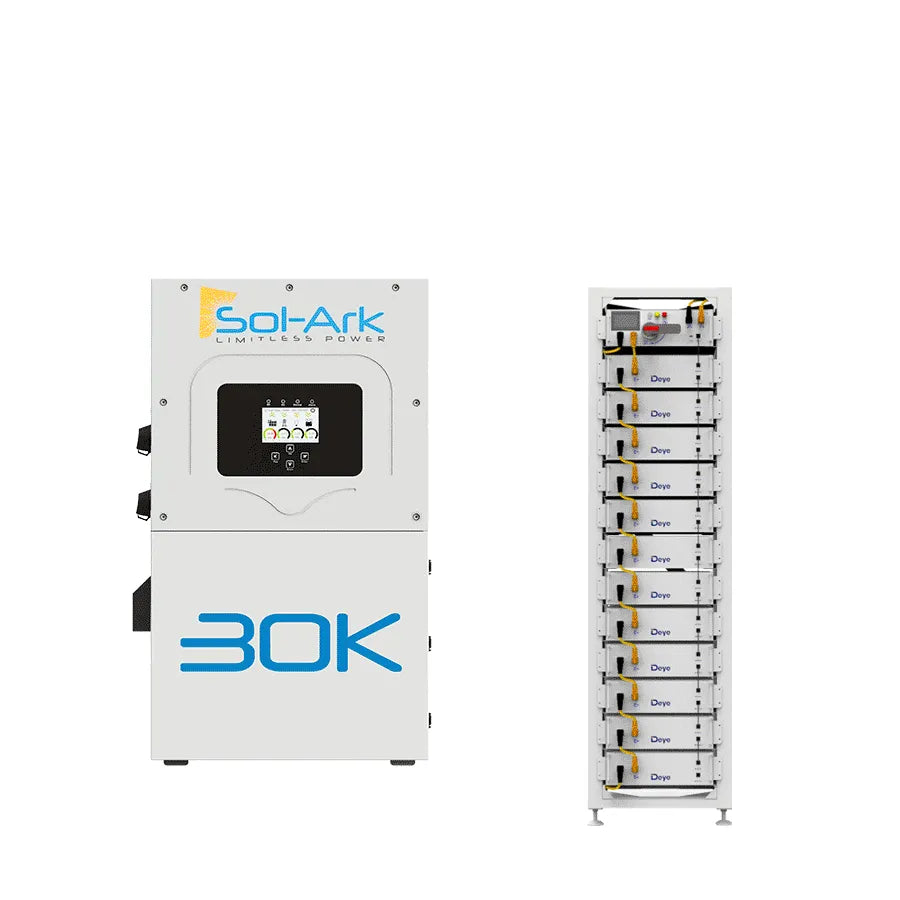

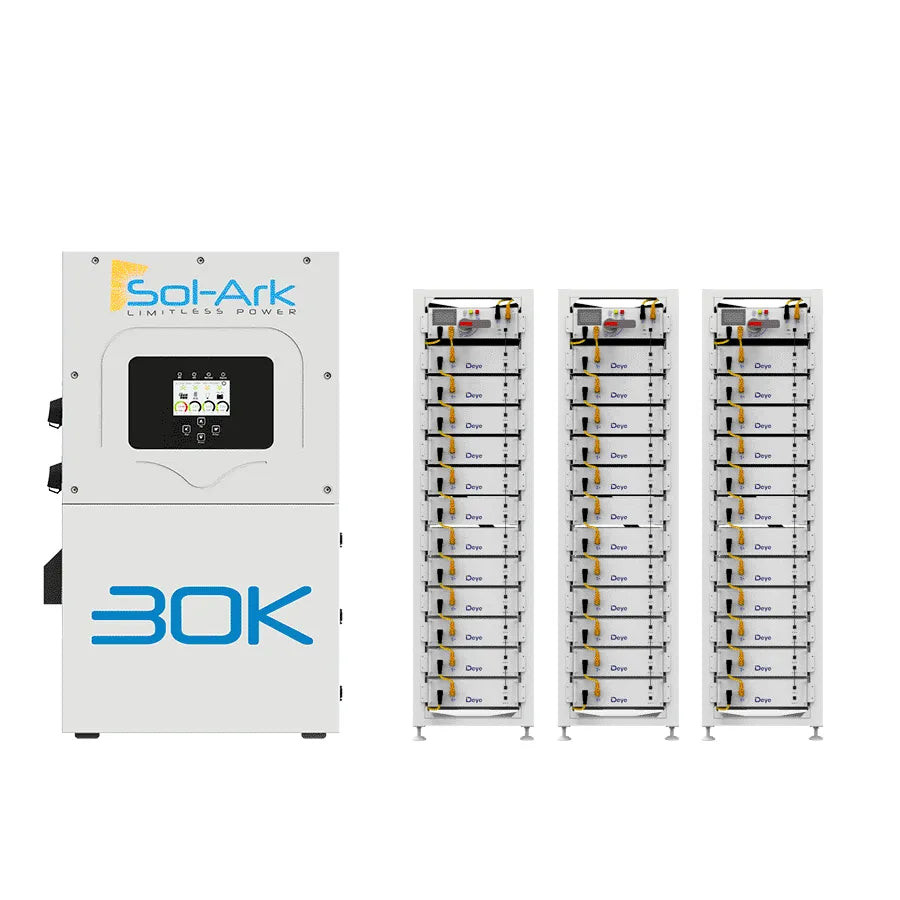

Name: Sol-Ark 30kW Inverter with Deye BOS-G High Voltage LiFePO4 Battery Pack — UL 9540 Closed-Loop Bundle (60/120/180kWh)
Brand: My Store
SKU: KSAB30601
Price: 30800.0 USD
Availability: InStock

Sol-Ark 30kW Inverter with Deye BOS-G High Voltage LiFePO4 Battery Pack — UL 9540 Closed-Loop Bundle (60/120/180kWh)

$30,800.00

Save $0

Free shipping (lower 48 states)

Bundle Contents: Hybrid Inverter: 30 kW Batteries: 3 Different Battery Capacity Options Available

Select Battery Capacity

Choose a configuration below.

60kWh

120kWh

180kWh

Quantity

Title

Total Price

Total Price

$30,800.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

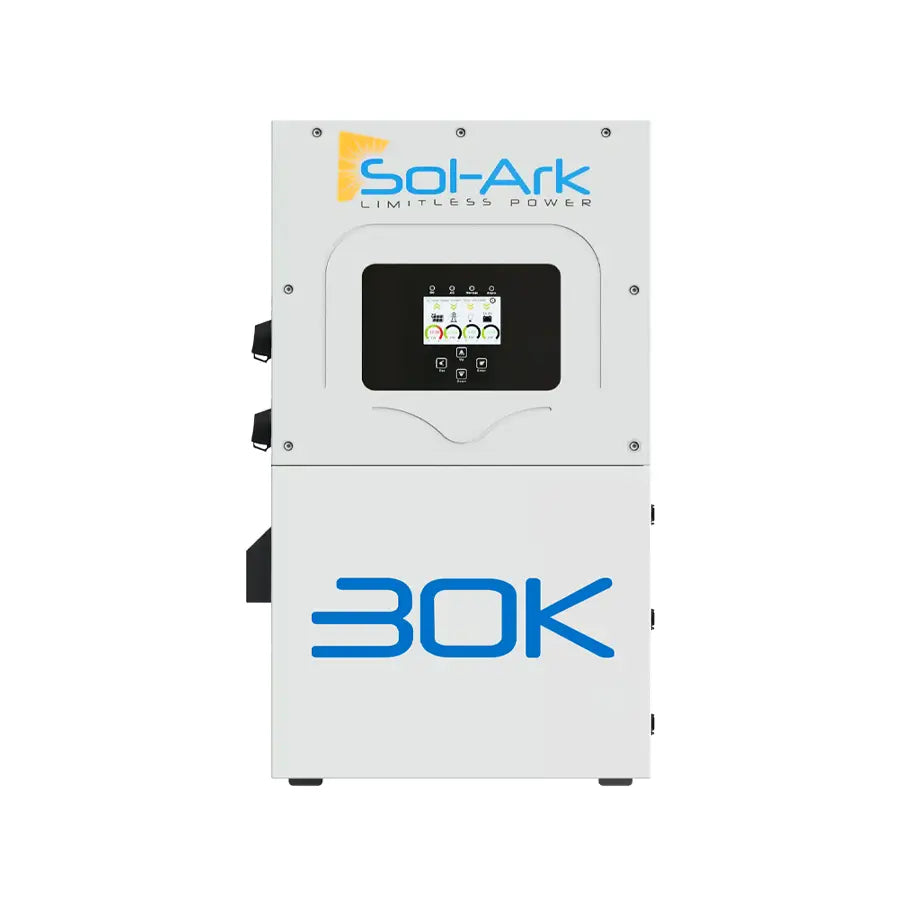

Sol-Ark 30KW Hybrid Inverter

AC Output Voltage	120/208V
Max. Input Power	39000W
Efficiency	97.5%
Max Charging Current	100A
MPPT Voltage Range	500VDC
Backup Transfer Time	5ms(adjustable)
Battery Technologies	Lithium iron phosphate
Battery Nominal DC Voltage	≧300V
BMS Communication	CANBus & RS485
Enclosure	IP65 / NEMA 3R
Surge Protection	DC Type \|\| AC Type \|\|\|
Ambient Temperature	-40~60°C,>45°C Derating
Noise	<30 dB @ 25°C(77°F)
Dimension	35.2in x 20.8in x 11.6in
Weight	176bs
Warranty	10 Years
Certificate	UL1741-2021(UL1741SB) CSA C22.2 No 107.1-16.IEEE1547-2018&1547a-2020&1547.1-2020(SRD V2.0).UL1741 CRD.PCS,UL1699B,CEC,SGIP4

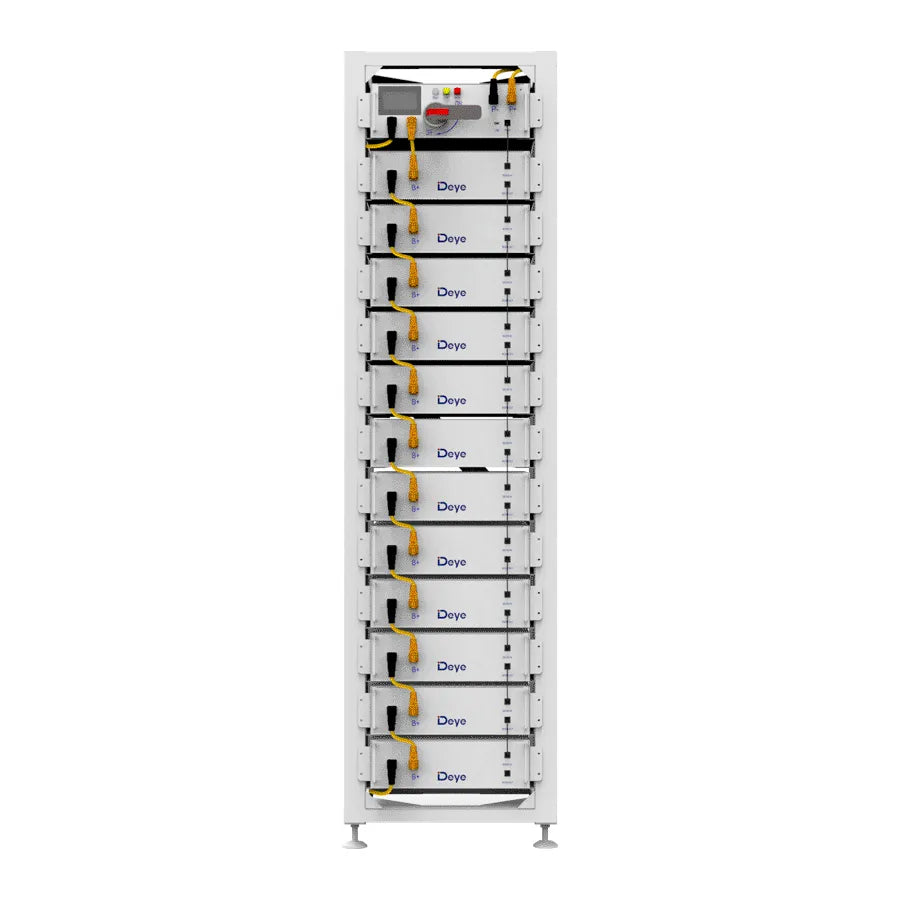

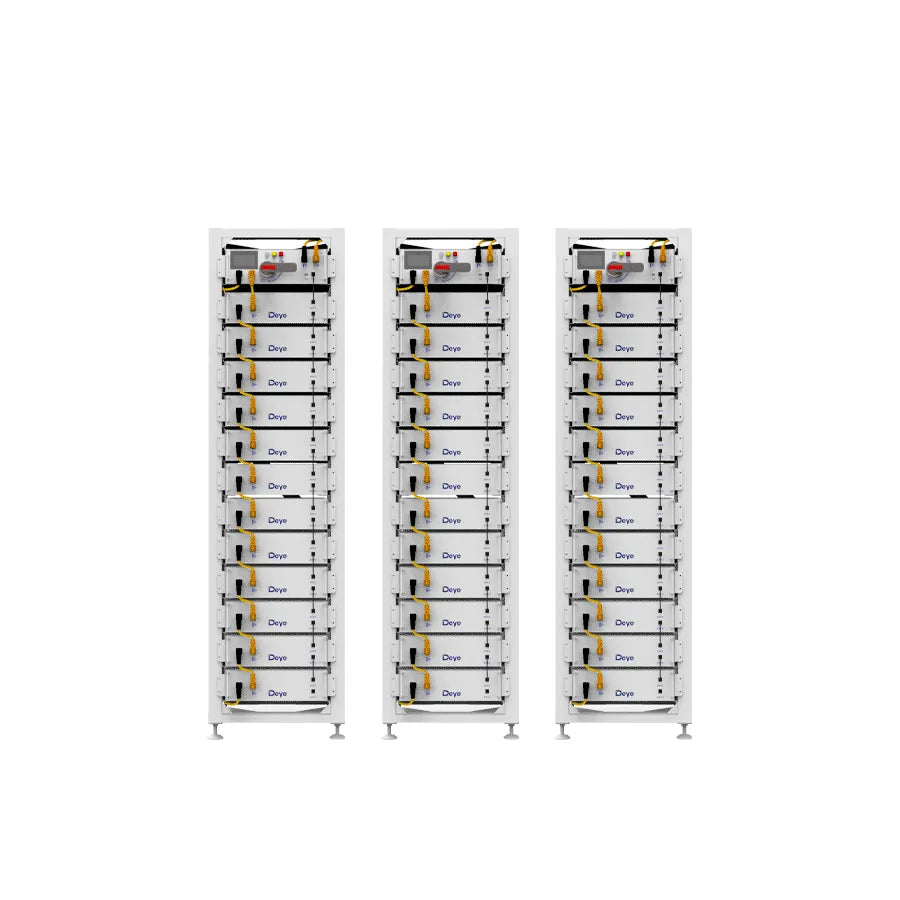

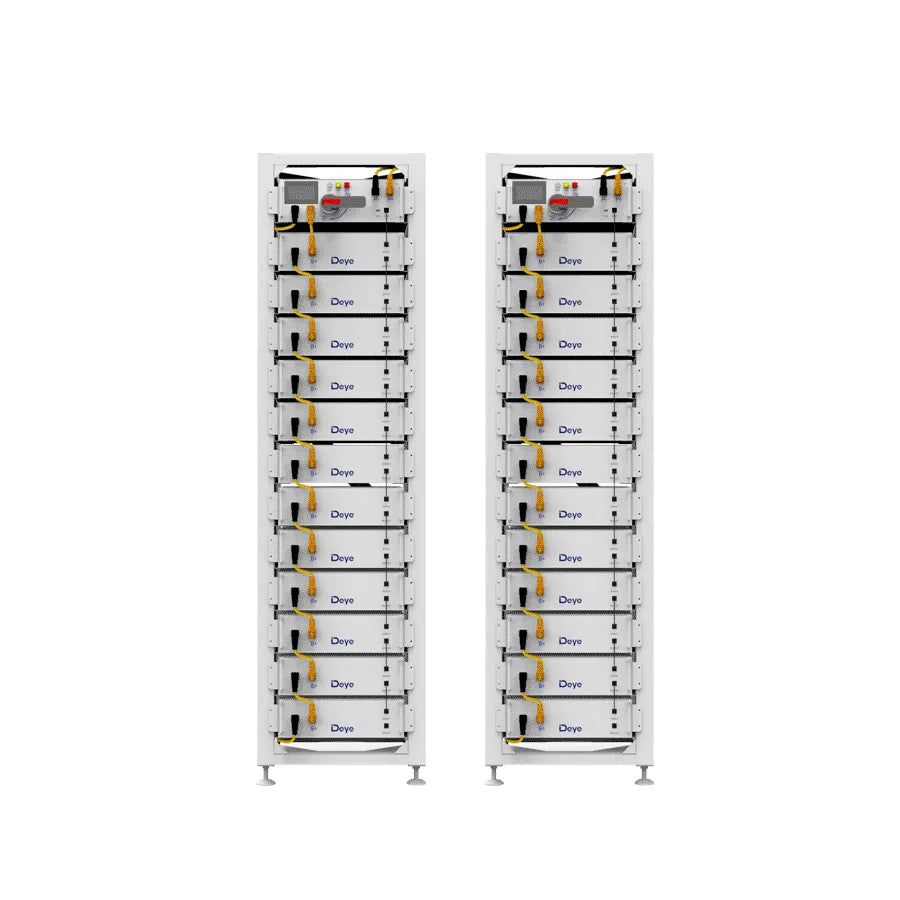

BOS-G 61.44kWH 51.2V 100ALiFePO4 HV Battery

Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	61.44KWH
System Nominal Voltage	614.4V
Usable Energy	45.29kWh
Recommend Depth of Discharge	90%
IP Rating Of Enclosure	IP20
Nominal Continuous Charge Current	100A
Cycle Life	≧6000
Installation	Rack-Mounted
Dimension	530 × 602 × 2187 mm
Weight	594kg
Warranty	10 Years
Certificate	CE/IEC62619 /VDE2510-50/UL1973 /UL9540A/UN38.3
