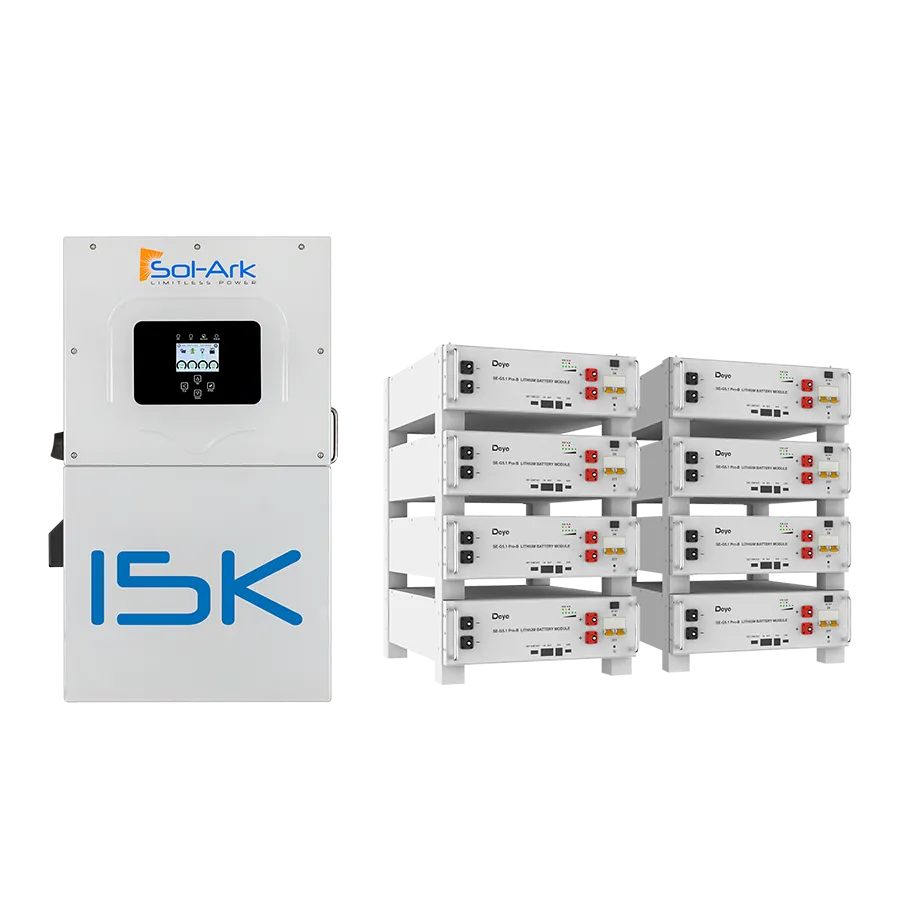

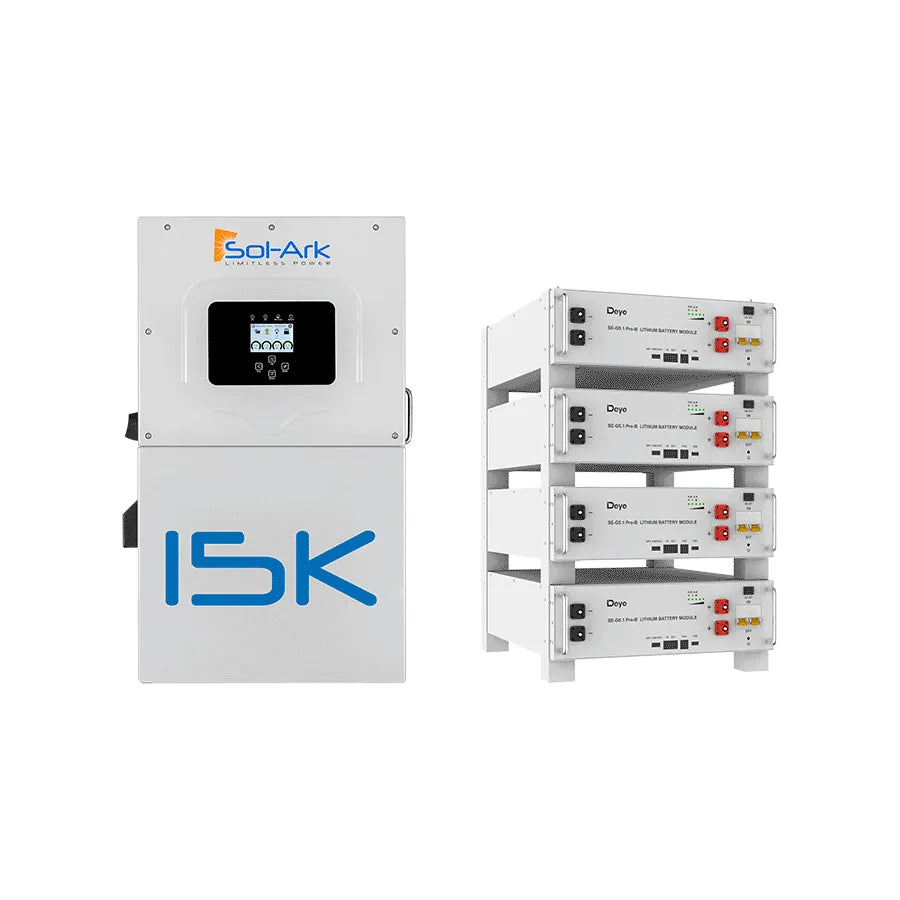

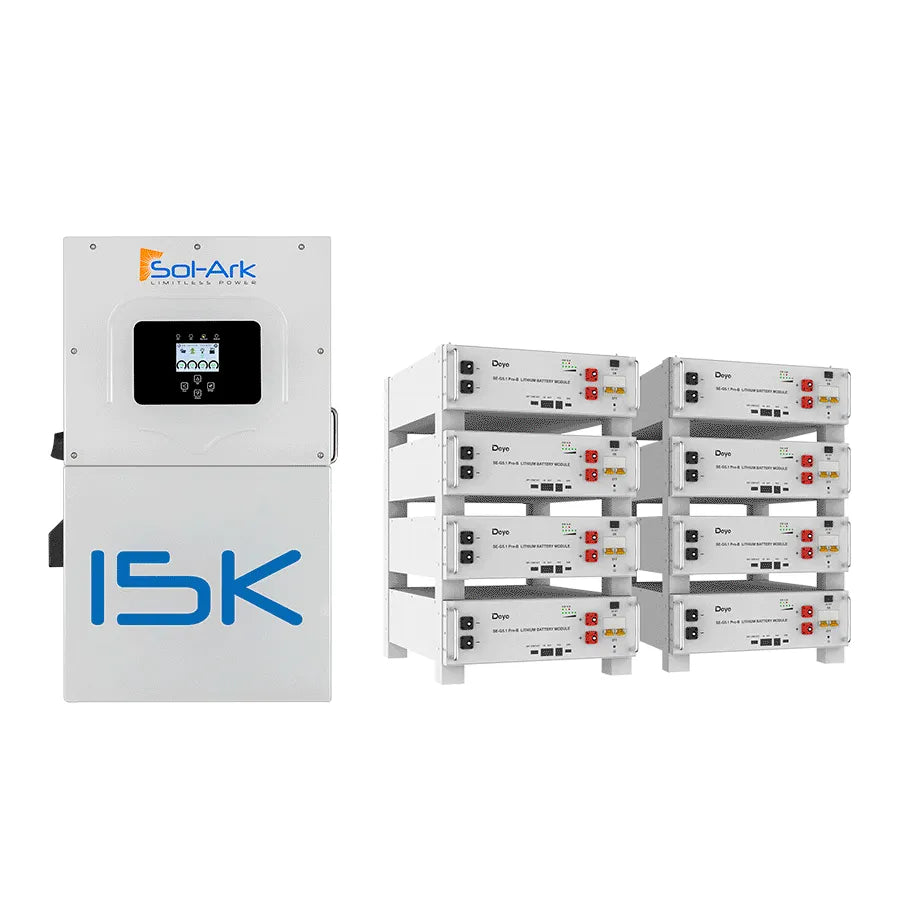

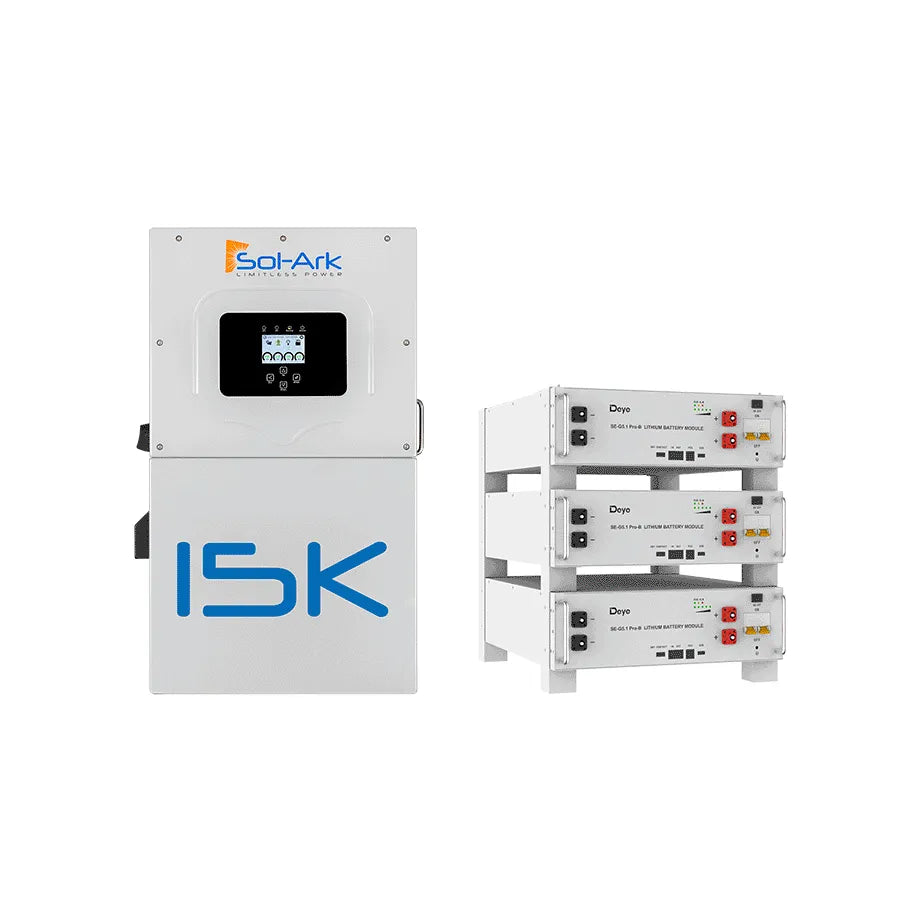

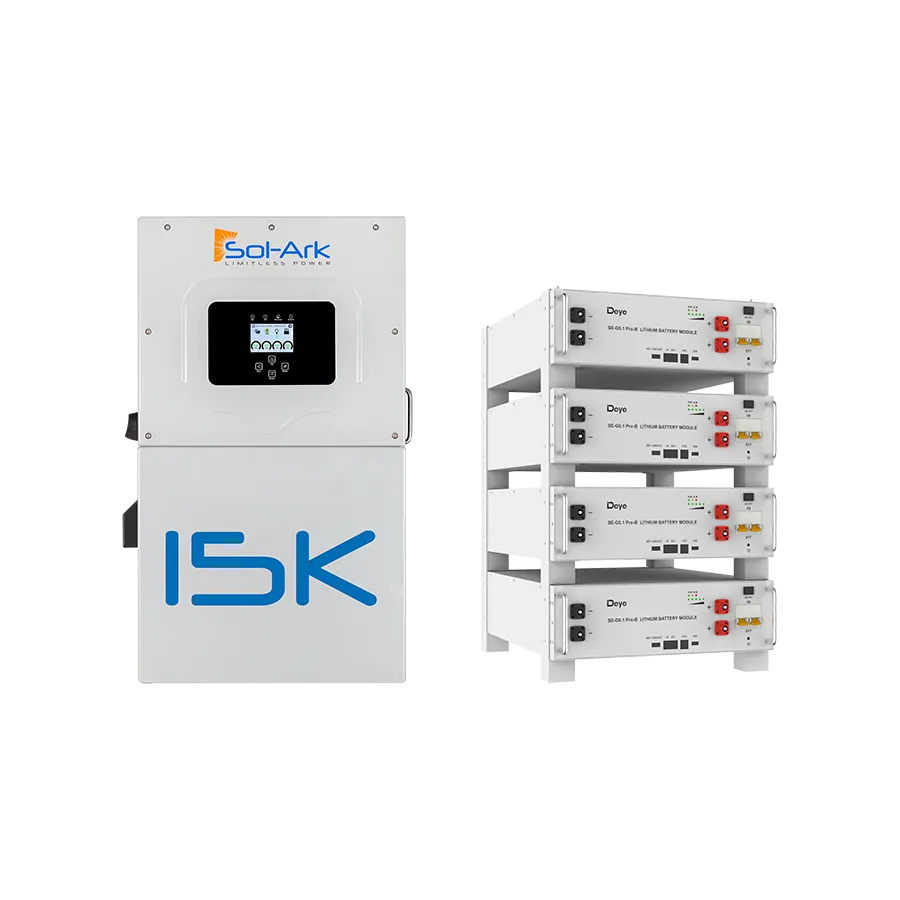

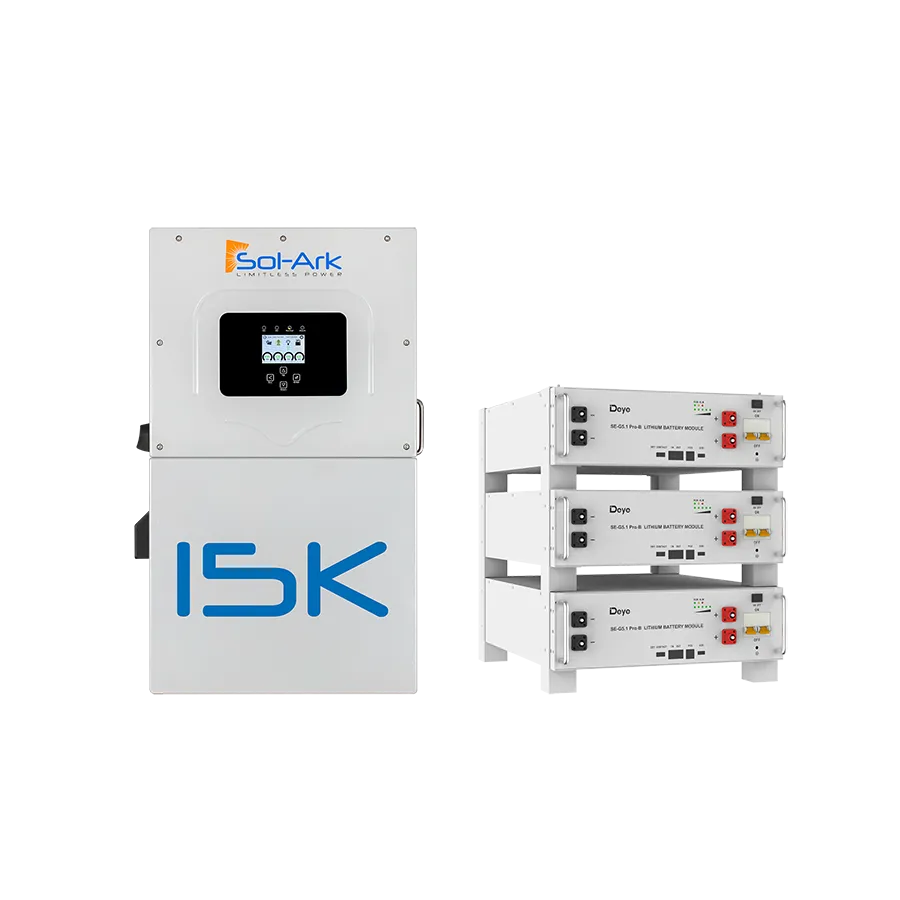

- Sol-Ark 15kW Inverter with Deye SE-G5.1 Pro-B Battery Pack — UL 9540 Closed-Loop Bundle (15/20/40kWh)
Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title
Sol-Ark 15KW Hybrid Inverter
| AC Output Voltage | 120/240V,120/208V,220V |
| Max. Input Power | 19500W |
| Efficiency | 97.5% |
| Max Charging Current | 275A |
| MPPT Voltage Range | 500VDC |
| Backup Transfer Time | 5ms |
| Battery Technologies | Lead-Acid or Lithium |
| Battery Nominal DC Voltage | 48V |
| BMS Communication | CANBus & RS485 MODBUS |
| Enclosure | IP65 / NEMA 3R |
| Surge Protection | DC Type || AC Type ||| |
| Ambient Temperature | -25~55°C,>45°C Derating |
| Noise | <30 dB @ 25°C(77°F) |
| Dimension | 31.8in x 19.4in x 12in |
| Weight | 135lbs |
| Warranty | 10 Years |
| Certificate | UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
Deye SE-G5.1 Pro-B Lithium Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12KWH |
| Scalability | Expandable up to 64 units in parallel (max. 327kWh) |
| Usable Energy | 4.6kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP20 |
| Operating Temperature | Charge:0~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| MAX Continuous Charge Current | 100A |
| Cycle Life | ≧6000 |
| Installation | Installation Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) |
| Dimension | 440 × 133 × 540 mm |
| Weight | 45kg |
| Warranty | 10 Years |
| Certificate | UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A |
