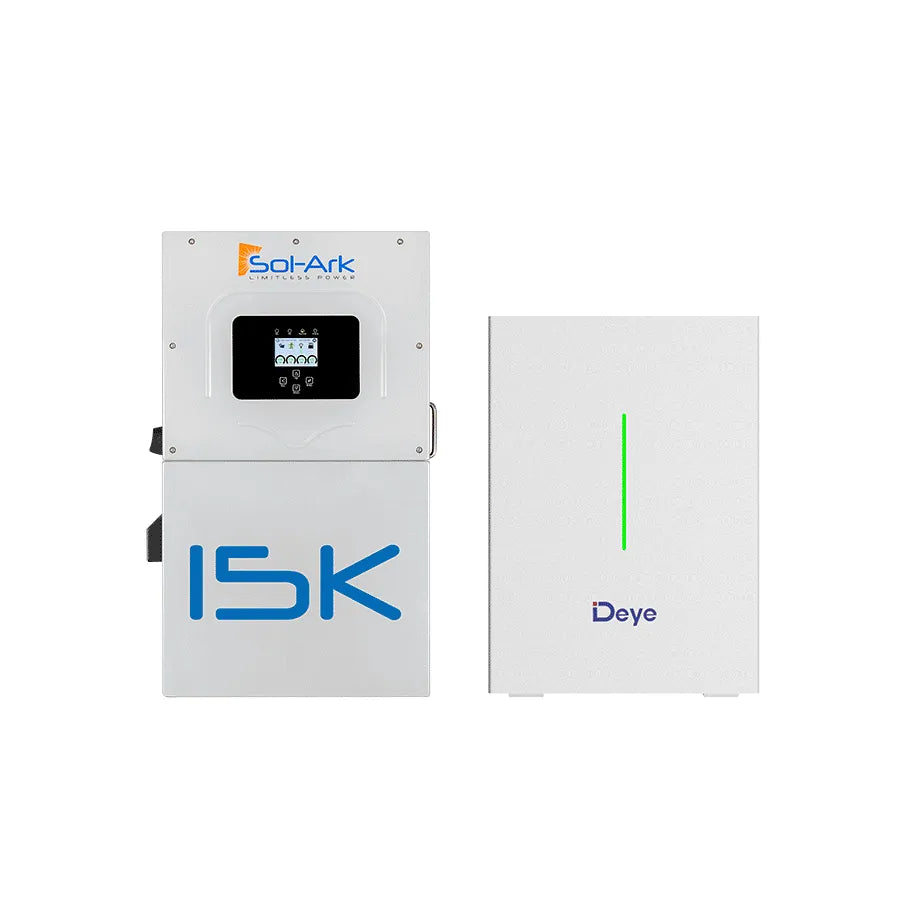

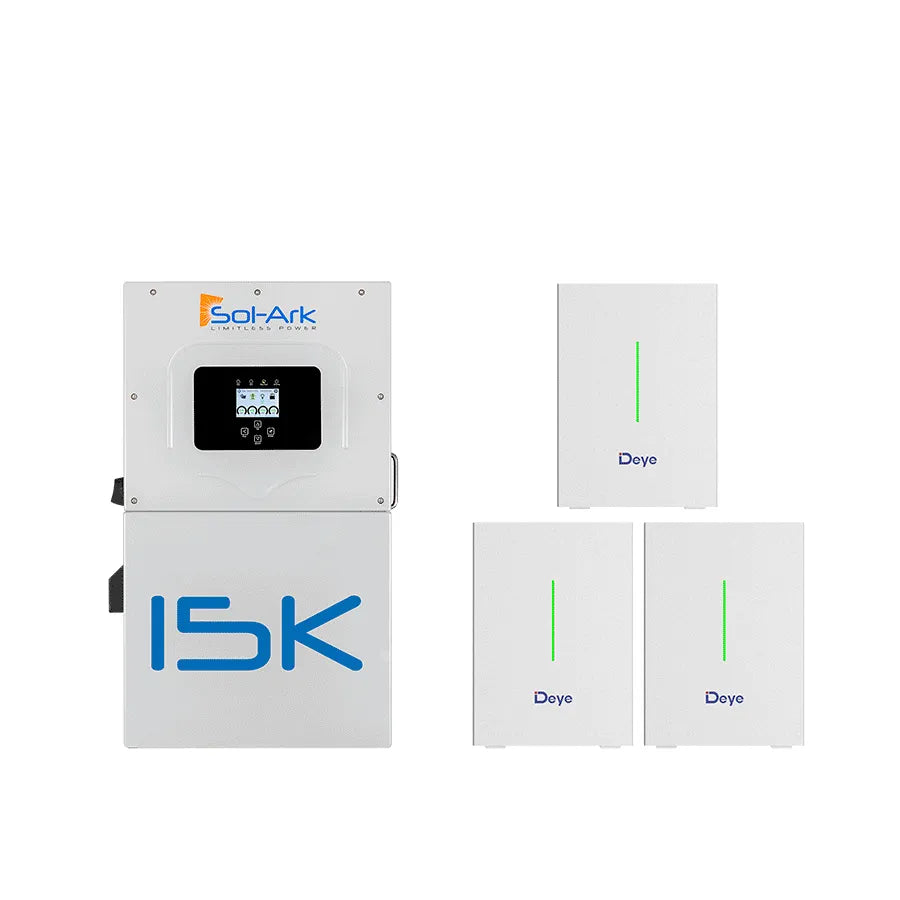

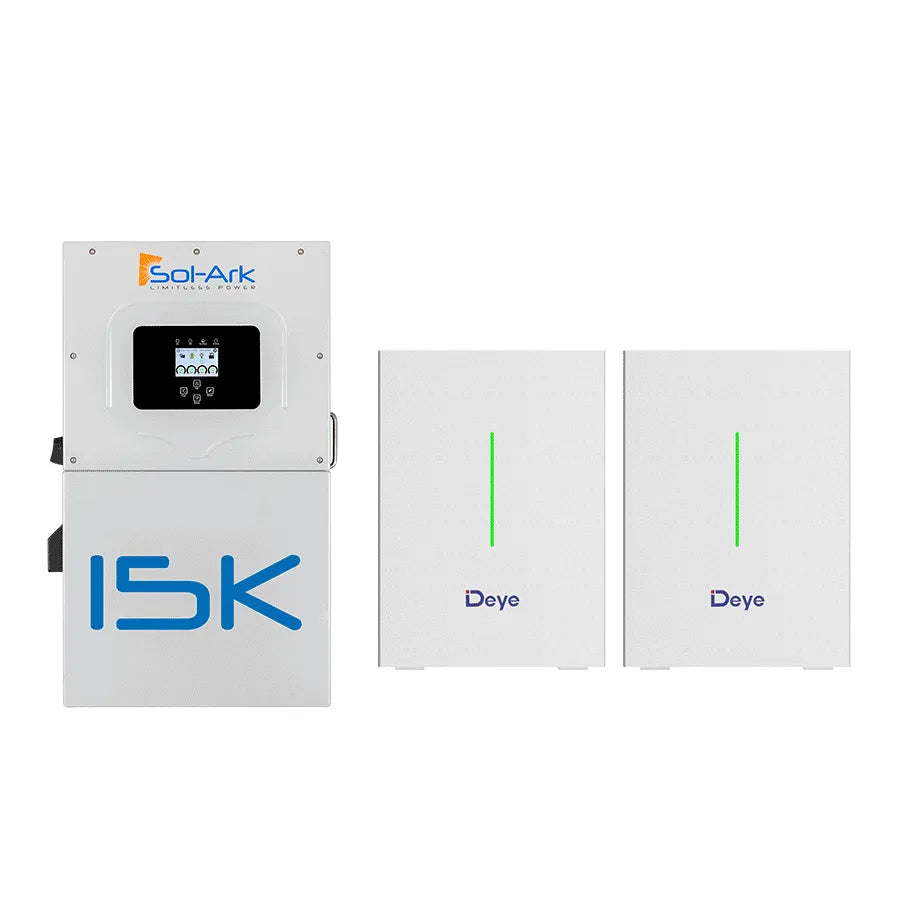

- Sol-Ark 15kW Inverter with Deye RW-F10.2 — UL 9540 Closed-Loop Bundle (10/20/30kWh)
Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title
Sol-Ark 15KW Hybrid Inverter
| AC Output Voltage | 120/240V,120/208V,220V |
| Max. Input Power | 19500W |
| Efficiency | 97.5% |
| Max Charging Current | 275A |
| MPPT Voltage Range | 500VDC |
| Backup Transfer Time | 5ms |
| Battery Technologies | Lead-Acid or Lithium |
| Battery Nominal DC Voltage | 48V |
| BMS Communication | CANBus & RS485 MODBUS |
| Enclosure | IP65 / NEMA 3R |
| Surge Protection | DC Type || AC Type ||| |
| Ambient Temperature | -25~55°C,>45°C Derating |
| Noise | <30 dB @ 25°C(77°F) |
| Dimension | 31.8in x 19.4in x 12in |
| Weight | 135lbs |
| Warranty | 10 Years |
| Certificate | UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |
Supports
Title
-
Download
-
Video
-
FAQ
Data Sheet
User Manual
Warranty
Certifications
Sol-Ark 15KW User Manual
Download
Sol-Ark 15kW Guía de instalación
Download
Sol-Ark SDM630MCT RGM User Manual
Download
Sol-Ark Low Voltage Battery Integration Guide
Download
Sol-Ark 15KW Ficha Técnica
Download
Sol-Ark Residential Inverter Basic Programming Guide
Download
Deye RW-F10.2 User Manual
Download
Deye Warranty For RW-F10.2-B
Download
Sol-Ark 15K-2P-N EMP Test Report
Download
Sol-Ark 15K-2P-N UL1741SB Certificate of Compliance
Download
Sol-Ark 15kW Anti-Islanding Protocol Letter for 15K-2P-N (Signed)
Download
Sol-Ark RULE 14H-IEEE1547-2018 Certifications (2024)
Download
Sol-Ark IRS Section 25D Certification Statement
Download
Sol-Ark JA12 Battery Storage Declaration Statement (2023)
Download
RW-F10.2-B_UL1973_9540_9540A
Download
Sol-Ark 10.2 Short no panels
Hybrid Inverter Diesel generator Application - Video & Guide
Hybrid Inverters Daralleling Solutions Video
Sol-Ark AC Coupling Application – Video & Guide.mp4 Sol-Ark AC Coupling Application – Video & Guide
Sol-Ark Inverter Peak Shaving Operation – Video & Guide
Sol-Ark Power Installation– Video & Guide
Sol-Ark Smart Load Application – Video & Guide
Sol-Ark 10.2 Installation Guide
