Name: Sol-Ark 15kW Hybrid Bundle | 17.2kW PV + 15-30kWh Battery
Brand: My Store
SKU: KSA1510140
Price: 15344.0 USD
Availability: InStock

Sol-Ark 15kW Hybrid Bundle | 17.2kW PV + 15-30kWh Battery

$15,344.00

Save $0

Free shipping (lower 48 states)

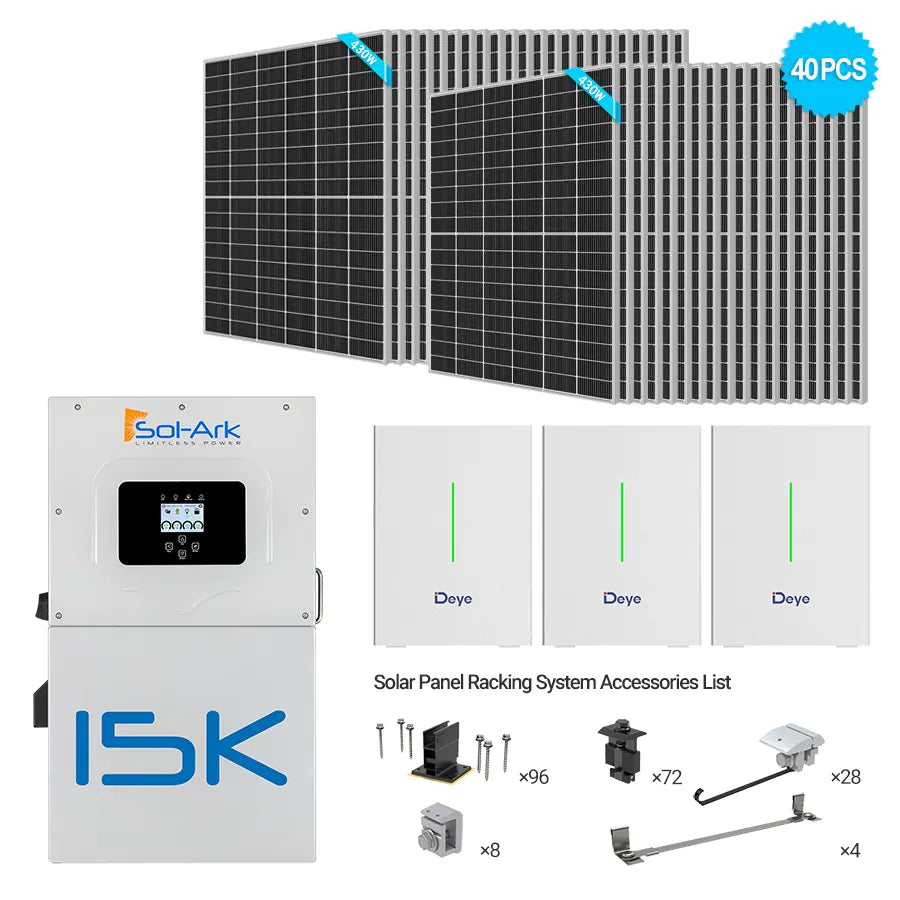

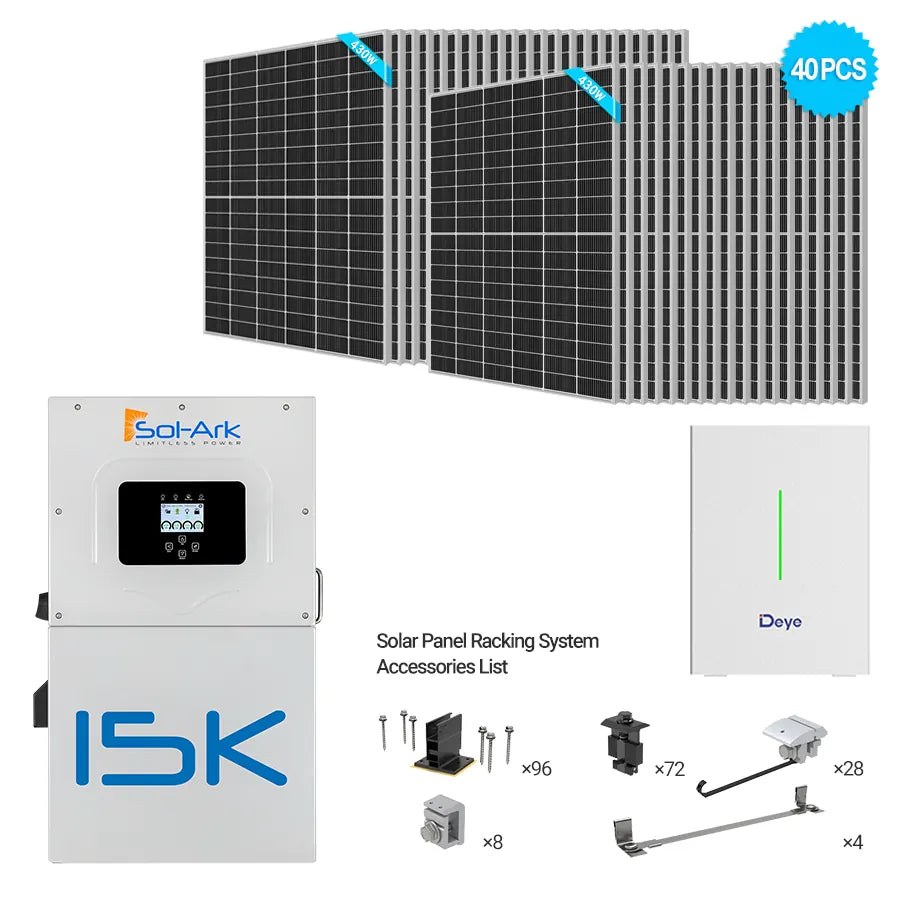

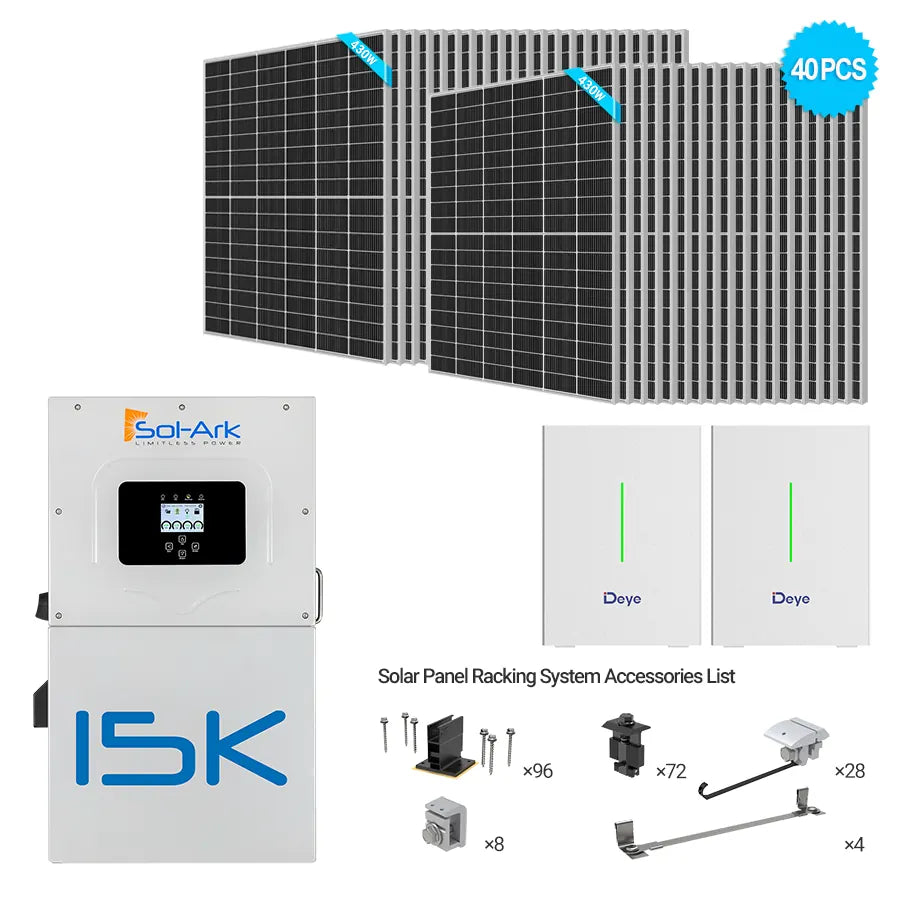

Bundle Contents: Hybrid Inverter: 15kW Batteries: 3 Different Battery Capacity Options Available Solar Panels: Resun 430W Bifacial Solar Panel(×40) Racking: TopRack System for 40 Panels

Select Battery Capacity

Choose a configuration below.

10.2kWh

20.4kWh

30.6kWh

Quantity

Title

Total Price

Total Price

$15,344.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

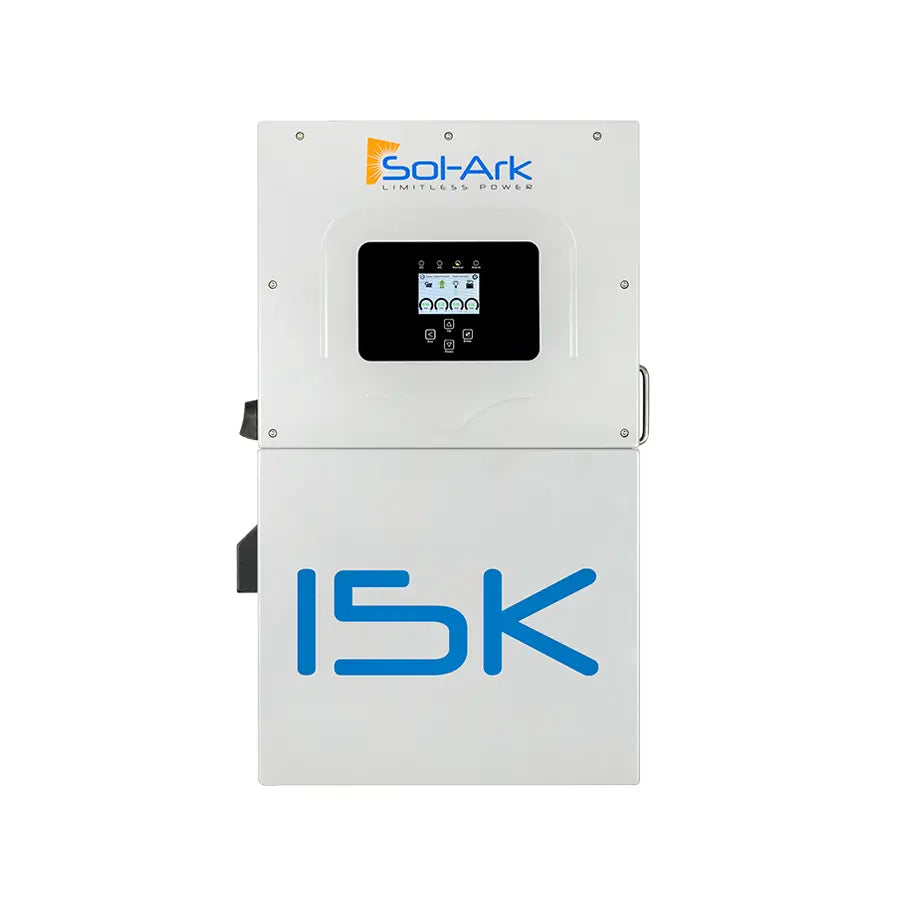

Sol-Ark 15KW Hybrid Inverter

AC Output Voltage	120/240V,120/208V,220V
Max. Input Power	19500W
Efficiency	97.5%
Max Charging Current	275A
MPPT Voltage Range	500VDC
Backup Transfer Time	5ms
Battery Technologies	Lead-Acid or Lithium
Battery Nominal DC Voltage	48V
BMS Communication	CANBus & RS485 MODBUS
Enclosure	IP65 / NEMA 3R
Surge Protection	DC Type \|\| AC Type \|\|\|
Ambient Temperature	-25~55°C,>45°C Derating
Noise	<30 dB @ 25°C(77°F)
Dimension	31.8in x 19.4in x 12in
Weight	135lbs
Warranty	10 Years
Certificate	UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

Deye RW-F10.2 LifePO4 Battery

Nominal Voltage	51.2V
Nominal Capacity	200AH
Built-in Circuit Breaker	125A 4P,60Vdc
Energy	10.24KWH
Scalability	Expandable up to 32 units in parallel (max. 327kWh)
Usable Energy	9.2kWh
Recommend Depth of Discharge	90%
IP Rating Of Enclosure	IP65
Operating Temperature	Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C
Cycle Life	≧6000
Installation	Wall-Mounted, Floor-Mounted
Dimension	600 × 830 × 200 mm
Weight	107kg
Warranty	10 Years
Certificate	UN38.3,FCC, UL1973,UL9540A,UL9540

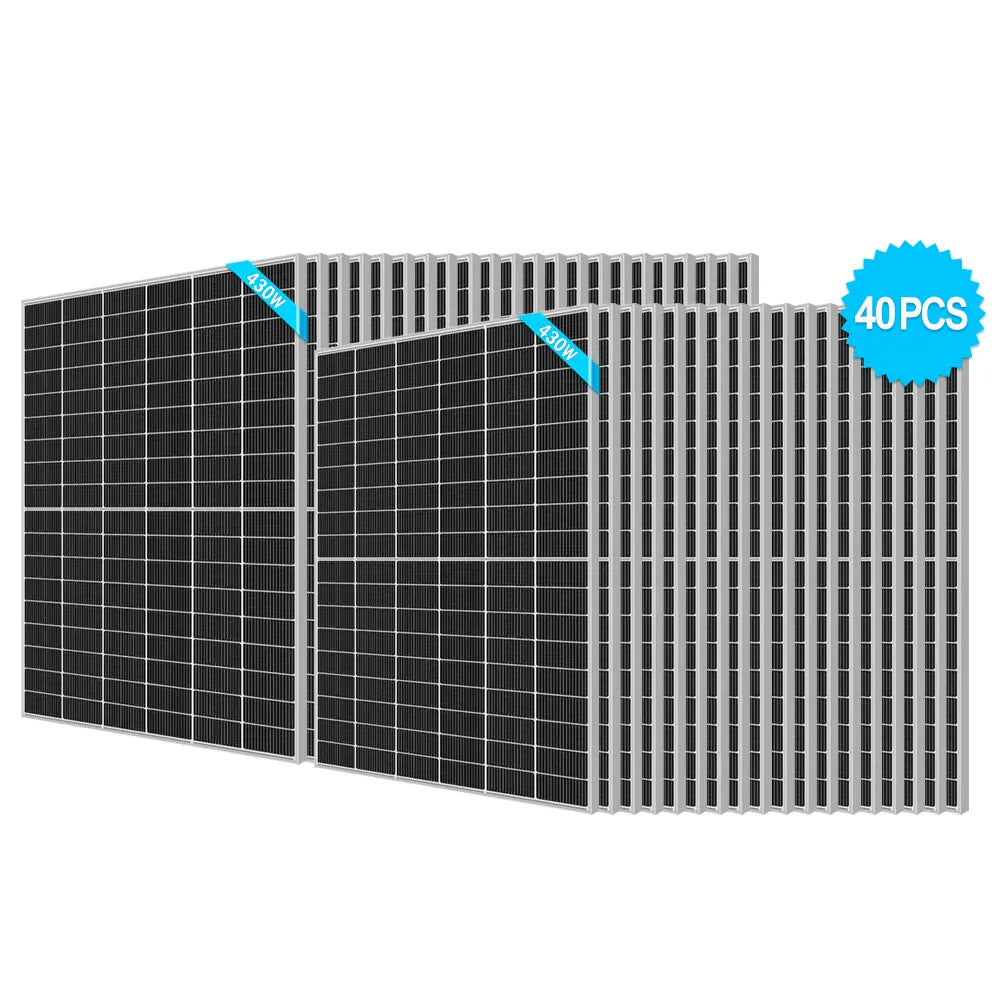

430W Mono-Crystalline BIFACIAL Solar Panel

Peak Power	430W
Solar Cell	Mono Crystalline BIFACIAL,91mm×182mm
Module Efficiency(%)	22.02%
Maximum Power Current(IMP)	13.38A
Maximum Power Voltage(VMP)	32.15V
Short Circuit Current(ISE)	14.18A
Open Circuit Voltage(VOC)	38.60V
Cell configuration	108cells(6*18)
Front cover	2.0+2.0mm Tempered Glass
Junction box	IP68, 3 bypass diodes
Operating Temperature	-40°C to +85°C
Maximum System Voltage	1000V(DC)/1500V(DL)
Fire Rating	Class C，Type 29
Dimension	1722x1134x30mm
Weight	23.8kg
Warranty	15-year product warranty & 25-year linear power warranty
Certificate	UL 61730-1,UL 61730-2,CSA C22.2

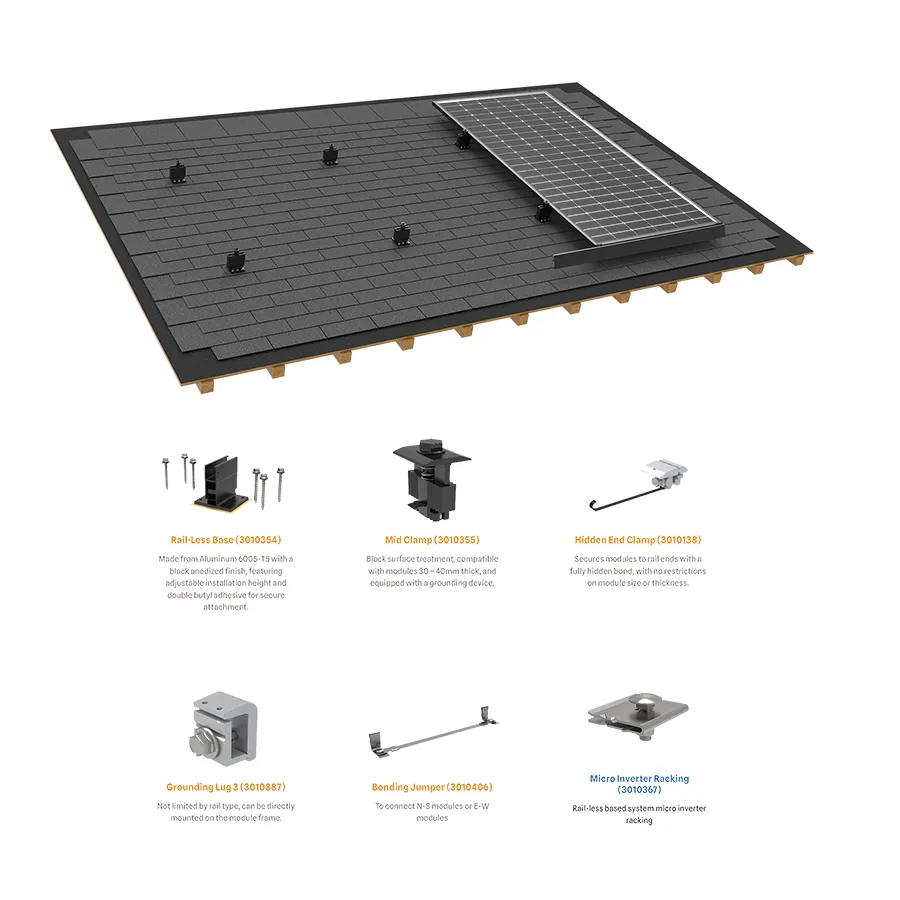

TRT Rail-less Base System

Rail-less Base 3010354	Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment.
Mid Clamp 3010355	Mid Clamp 3010355
Hidden End Clamp 3010138	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking
Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness.	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking
