Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
Overview
Title
Tech Specs
Title

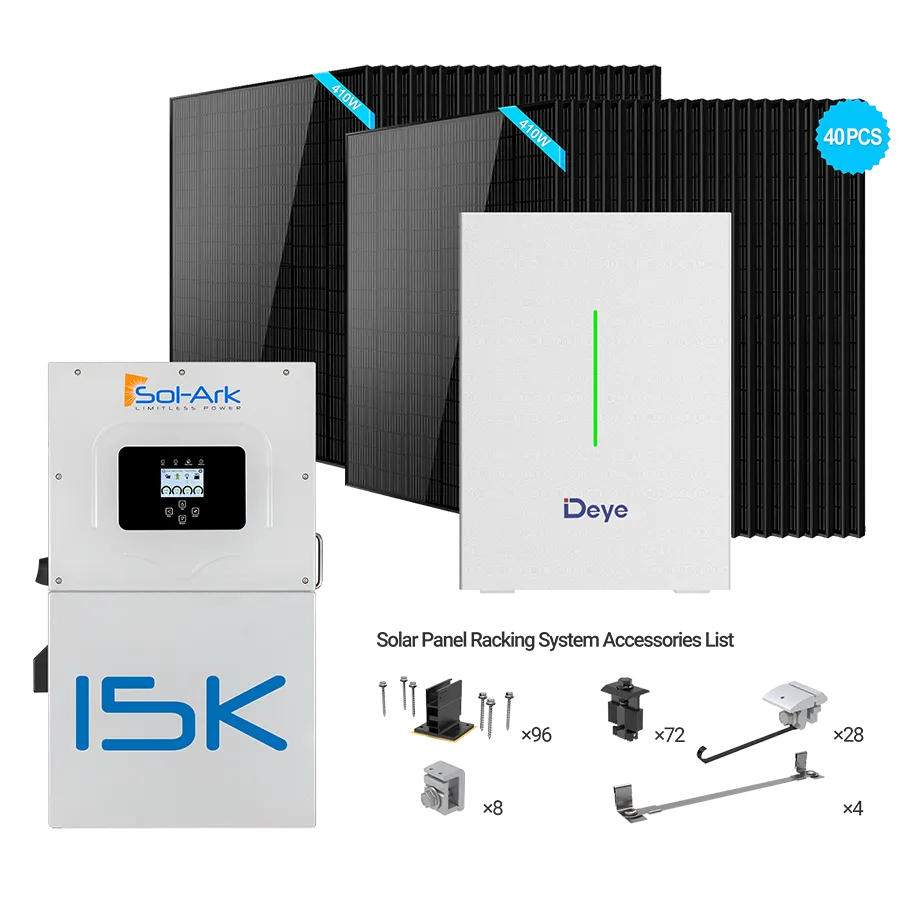

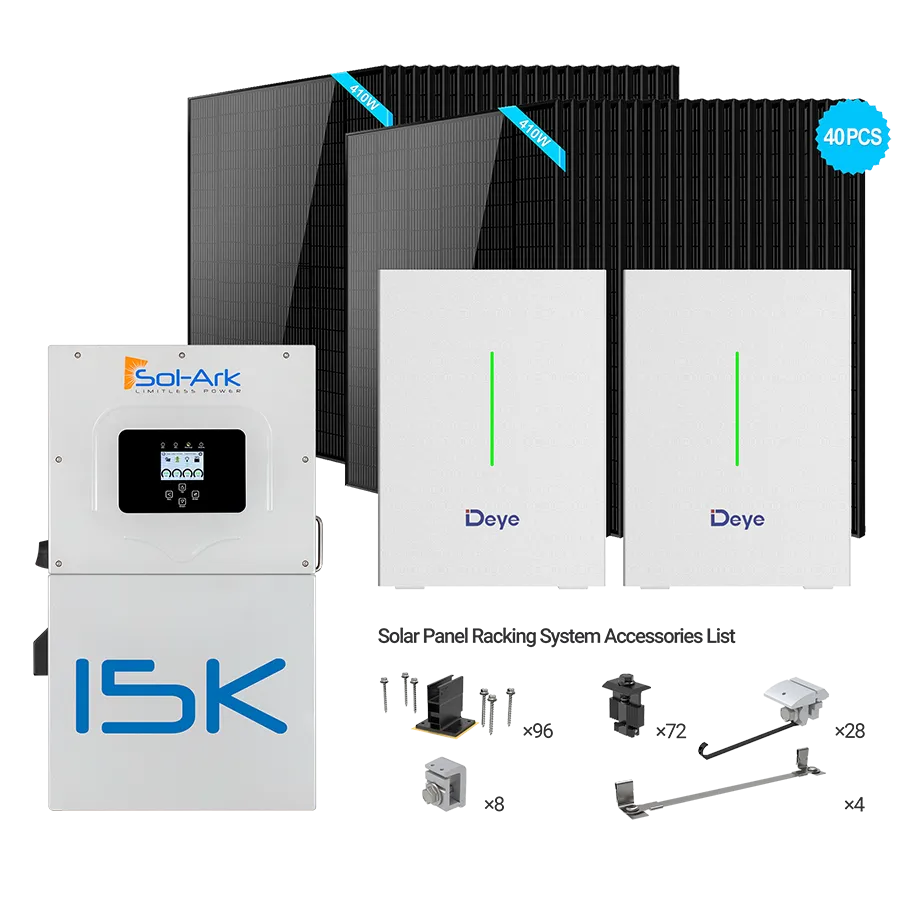

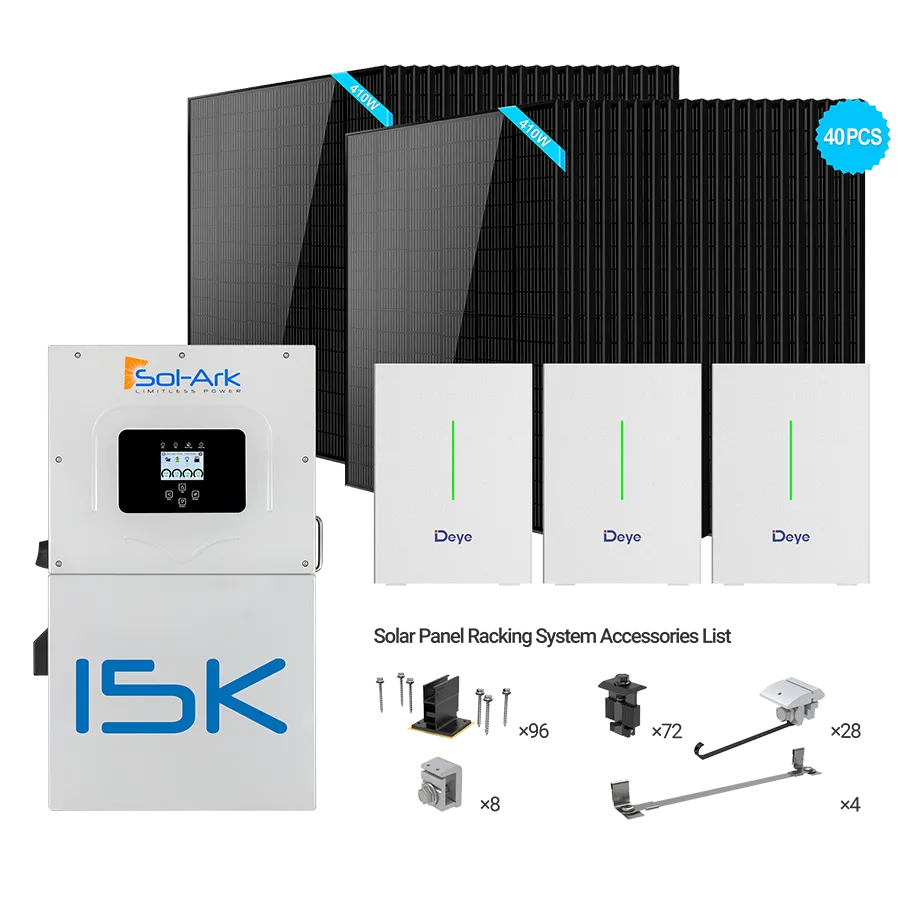

Sol-Ark 15KW Hybrid Inverter
| AC Output Voltage | 120/240V,120/208V,220V |
| Max. Input Power | 19500W |
| Efficiency | 97.5% |
| Max Charging Current | 275A |
| MPPT Voltage Range | 500VDC |
| Backup Transfer Time | 5ms |
| Battery Technologies | Lead-Acid or Lithium |
| Battery Nominal DC Voltage | 48V |
| BMS Communication | CANBus & RS485 MODBUS |
| Enclosure | IP65 / NEMA 3R |
| Surge Protection | DC Type || AC Type ||| |
| Ambient Temperature | -25~55°C,>45°C Derating |
| Noise | <30 dB @ 25°C(77°F) |
| Dimension | 31.8in x 19.4in x 12in |
| Weight | 135lbs |
| Warranty | 10 Years |
| Certificate | UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |

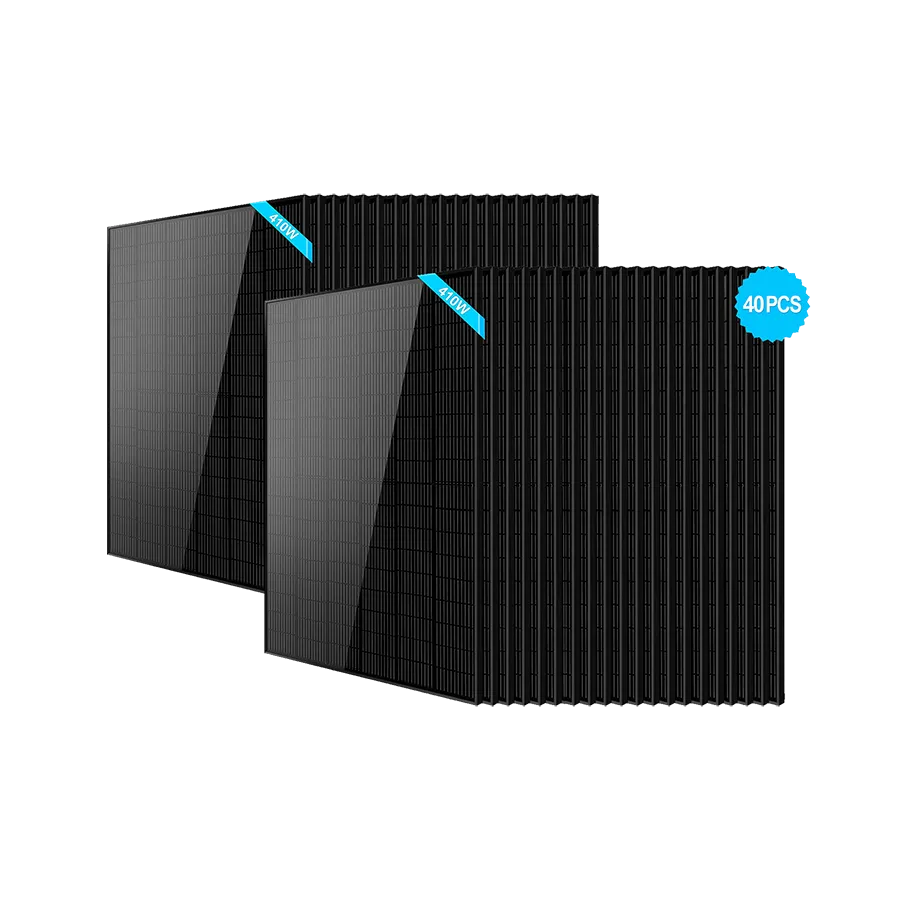

410W Monocrystalline PERC Solar Panels
| Peak Power | 410W |
| Solar Cell | Monocrystalline PERC 182*91mm |
| Product Tolerance | ±3% |
| Module Efficiency(%) | 21.00% |
| Maximum Power Current(IMP) | 13.06A |
| Maximum Power Voltage(VMP) | 31.4V |
| Short Circuit Current(ISE) | 13.82A |
| Open Circuit Voltage(VOC) | 37.6V |
| Landscape | 1200mm (47.24inches) |
| Front cover | 3.2mm (0.13inches) tempered glass with AR coating |
| Connector | MC4 or MC4 compatible |
| Junction box | IP68, 3 diodes |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V DC/1500V DC |
| Dimension | 1722x1134x30mm |
| Weight | 21.5kg |
| Warranty | 25 Years |
| Certificate | ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741 |

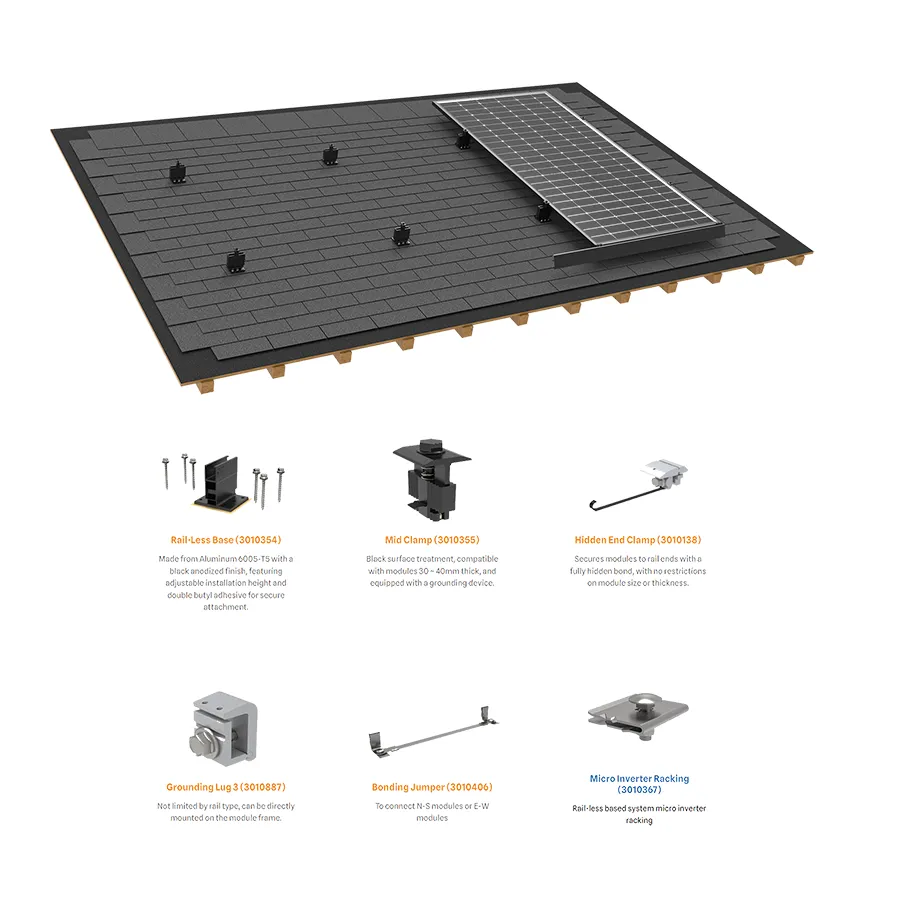

TRT Rail-less Base System
| Rail-less Base 3010354 | Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment. |
| Mid Clamp 3010355 | Mid Clamp 3010355 |
| Hidden End Clamp 3010138 | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
| Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness. | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
