Name: Sinotec 550w Solar Panel | 17.1kW PV
Brand: My Store
SKU: S17.1KW
Price: 6300.0 USD
Availability: InStock

Home tab - Accessories Only

Sinotec 550w Solar Panel | 17.1kW PV

$6,300.00

Save $0

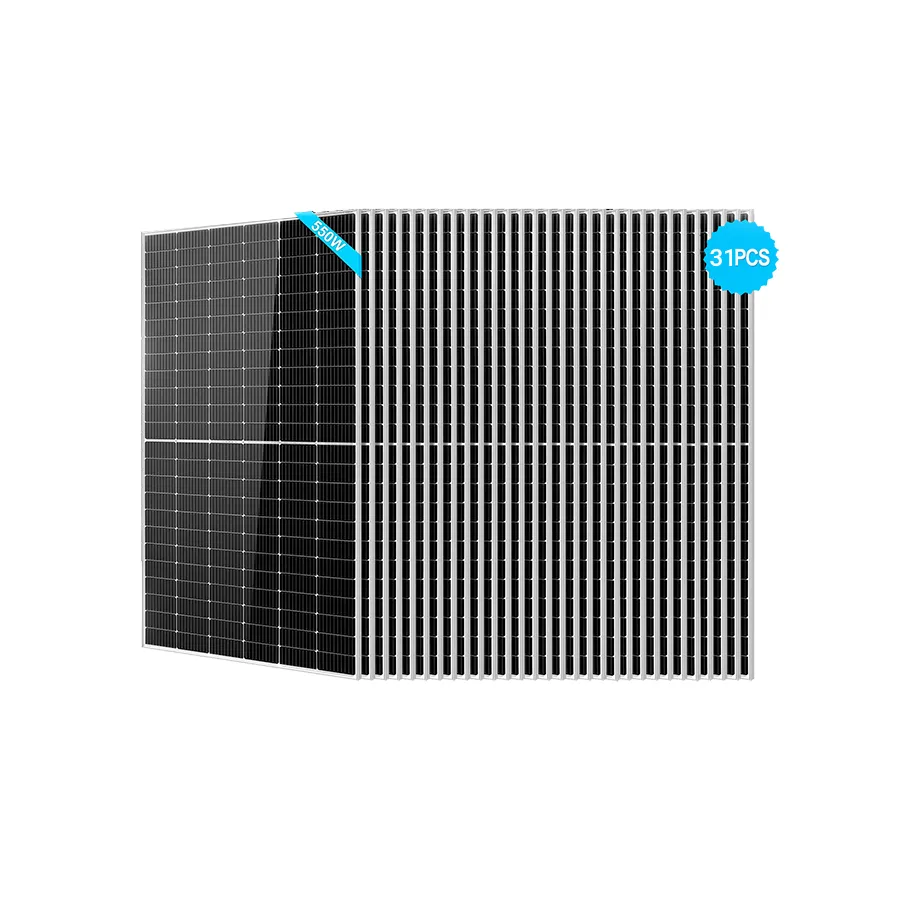

WHAT IS INCLUDED WITH THE ACCESSORIES ! S17.1KW – 550W Solar Panel 17.1kW PV (31×550W) ★ Panels: 31 X 550W Monocrystalline PERC Solar Panels — U.S.-Made Panels

+SHOW MORE

Product Model

S17.1KW(31*550W PV)

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Title

30 DAYS Price Guarantee

BestSolarBundle guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Title

Free Local

Shipping

Warranty

Protection

Lifetime Customer

Support

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports

Overview

Title

Tech Specs

Title

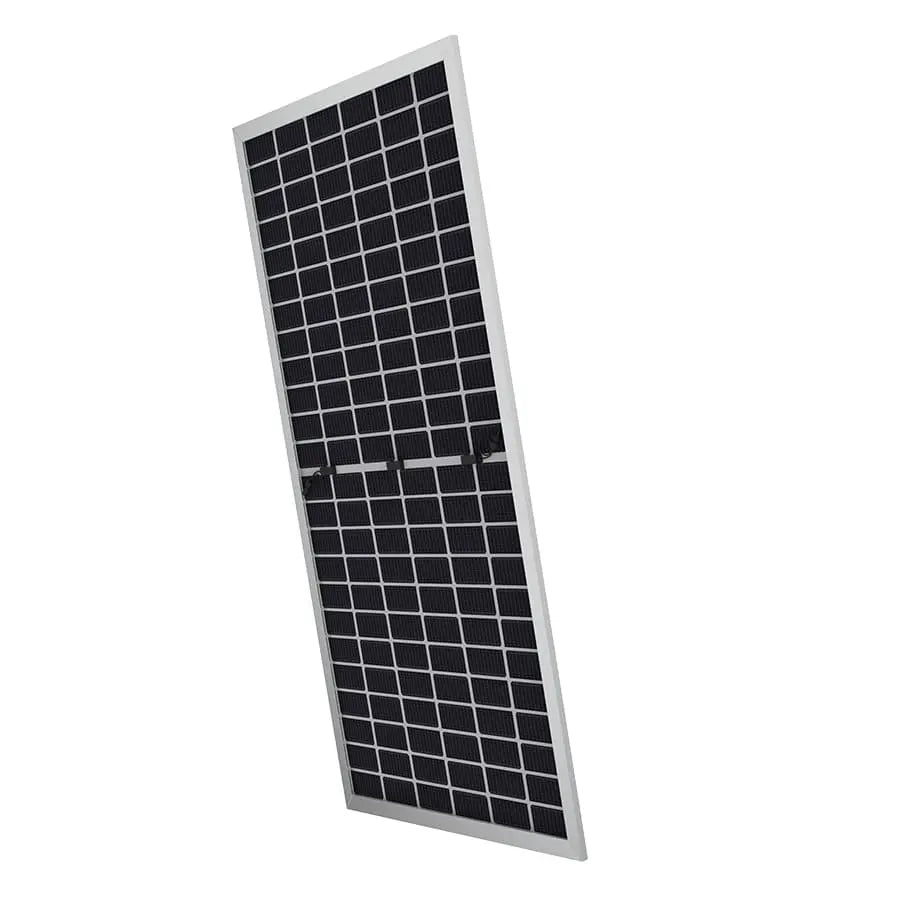

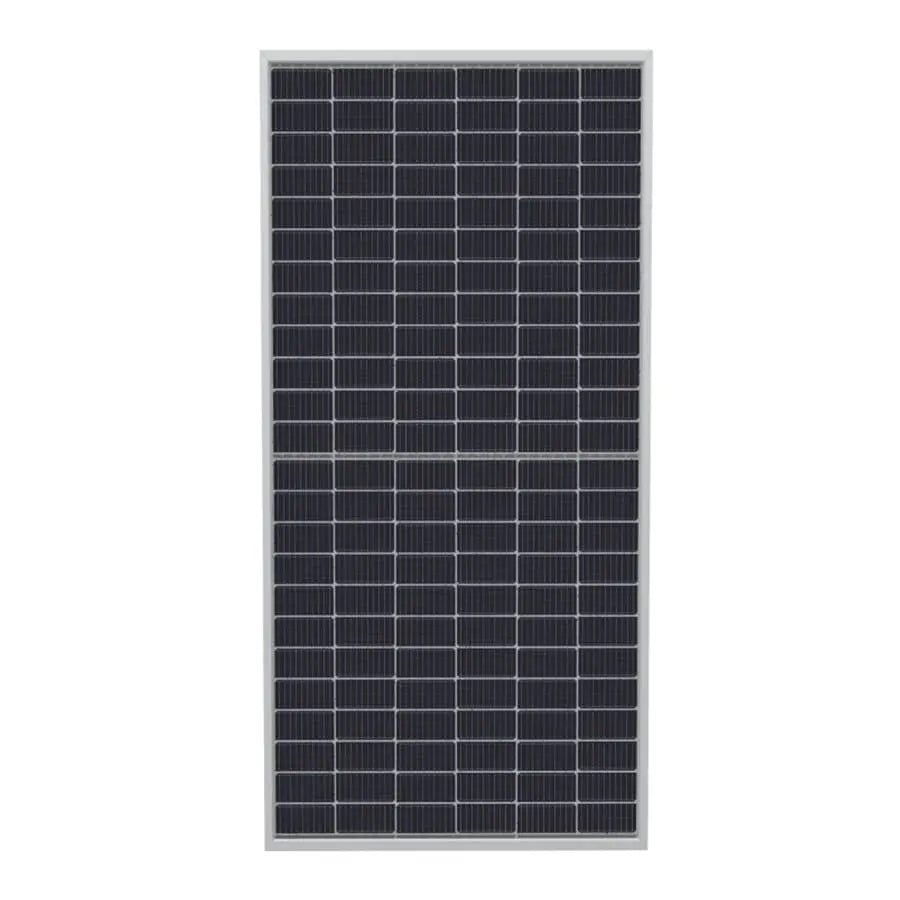

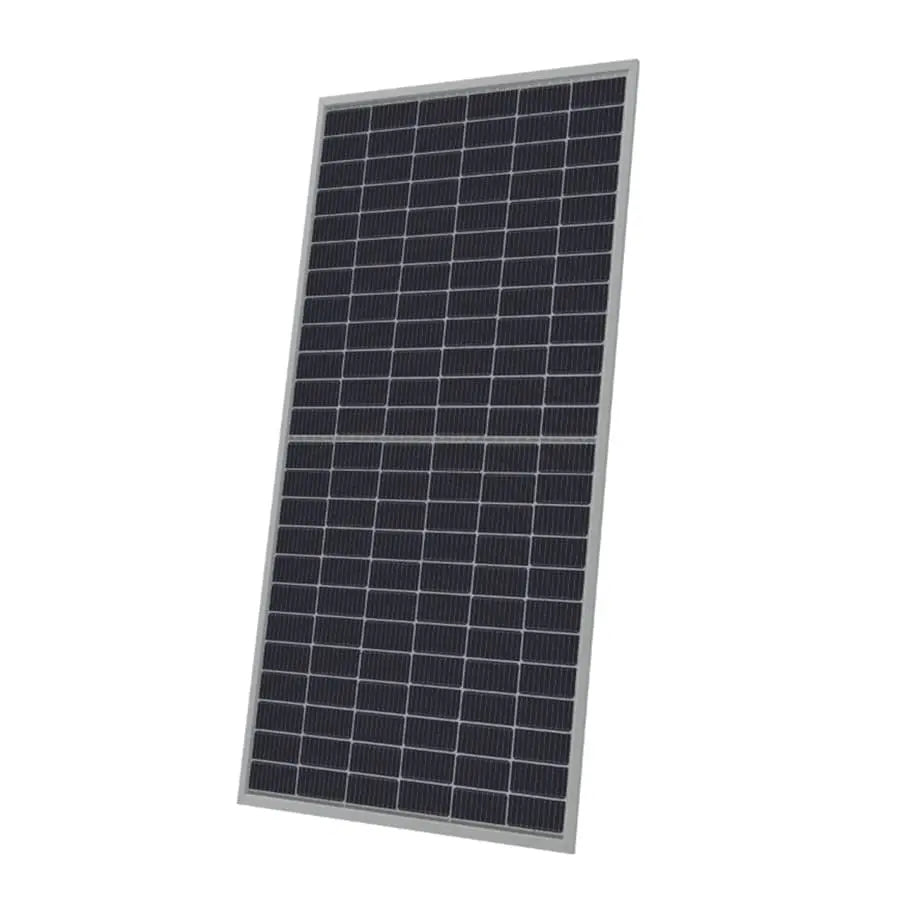

550W Monocrystalline PERC Solar Panels

Peak Power	550W
Solar Cell	Mono Bi-Facial
Product Tolerance	±3%
Module Efficiency(%)	21.3%
Maximum Power Current(IMP)	13.12A
Maximum Power Voltage(VMP)	41.95V
Short Circuit Current(ISE)	14.47A
Open Circuit Voltage(VOC)	50.41V
Maximum System Voltage	1500VDC(IEC)
Landscape	1400mm ,4 mm²/12 AWG
Front cover	3.2 mm high transparency, AR coating, thermal reinforced glass
Connector	MC Compatible / MC4-EVO2 (optional)
Junction box	IP68, 3 diodes
Operating Temperature	-40°C to +85°C
Dimension	2278x1134x35mm
Weight	28.5 ± 0.5kg
Warranty	25 Years
Certificate	ROHS/EN61000-6-1/EC61000-6-3/FCC15 class B/EC62109-1/IEC62109-2/UL1741
