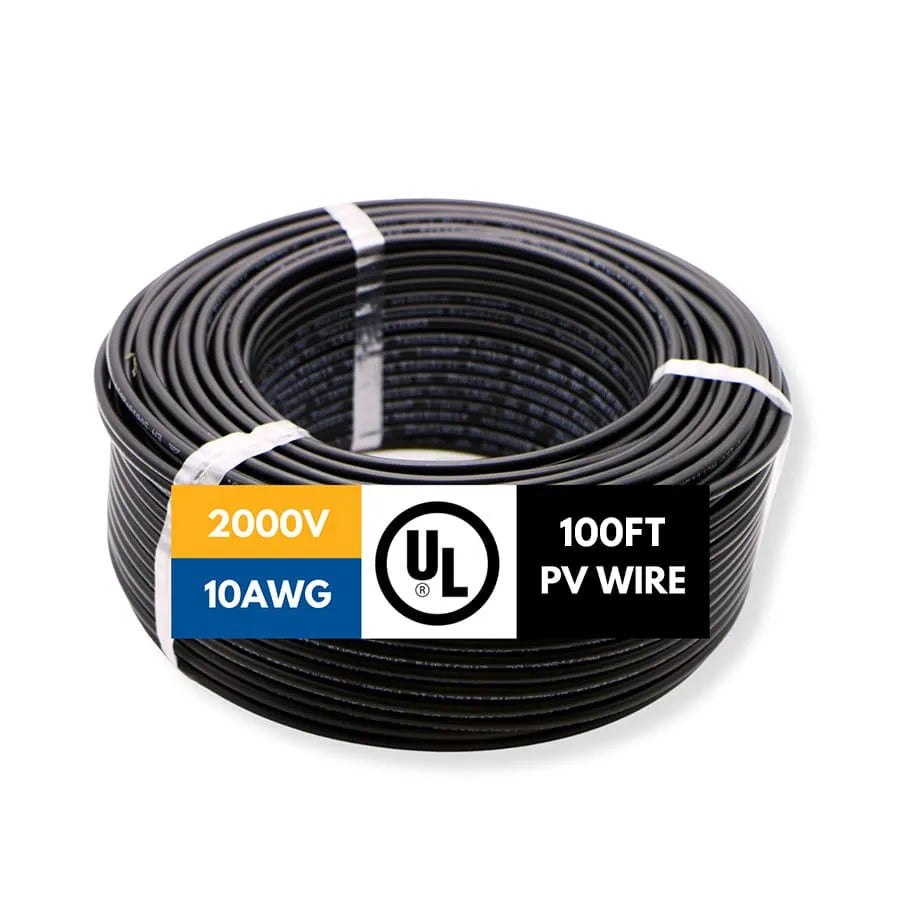

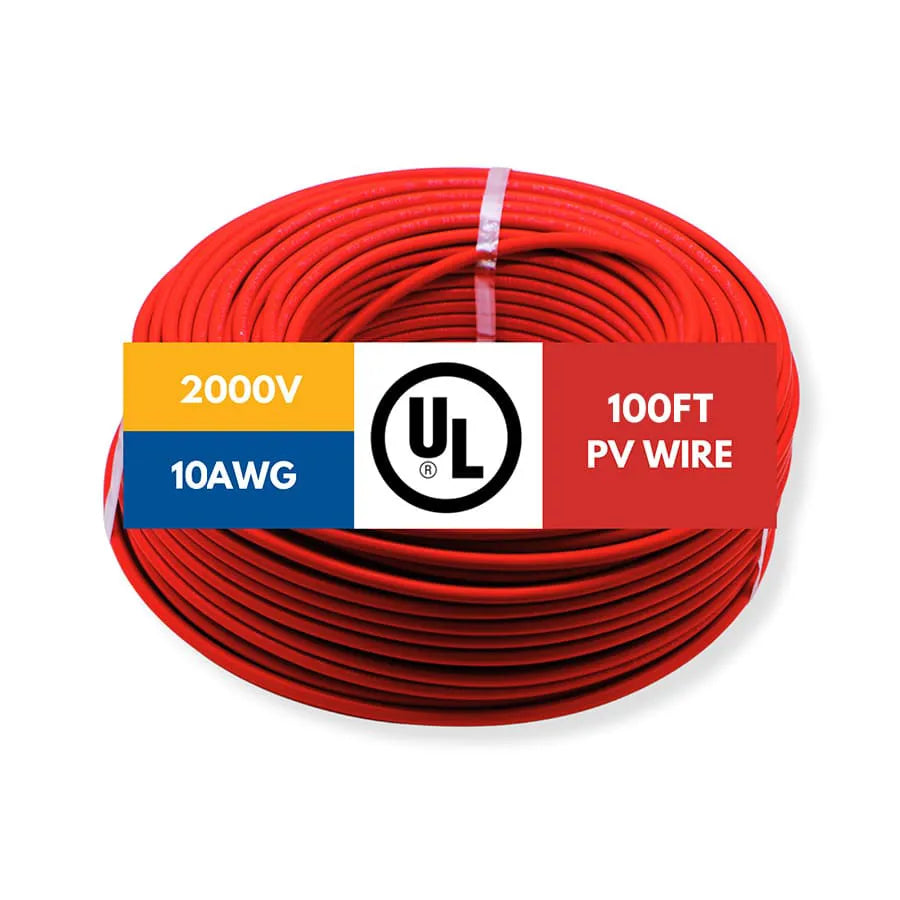

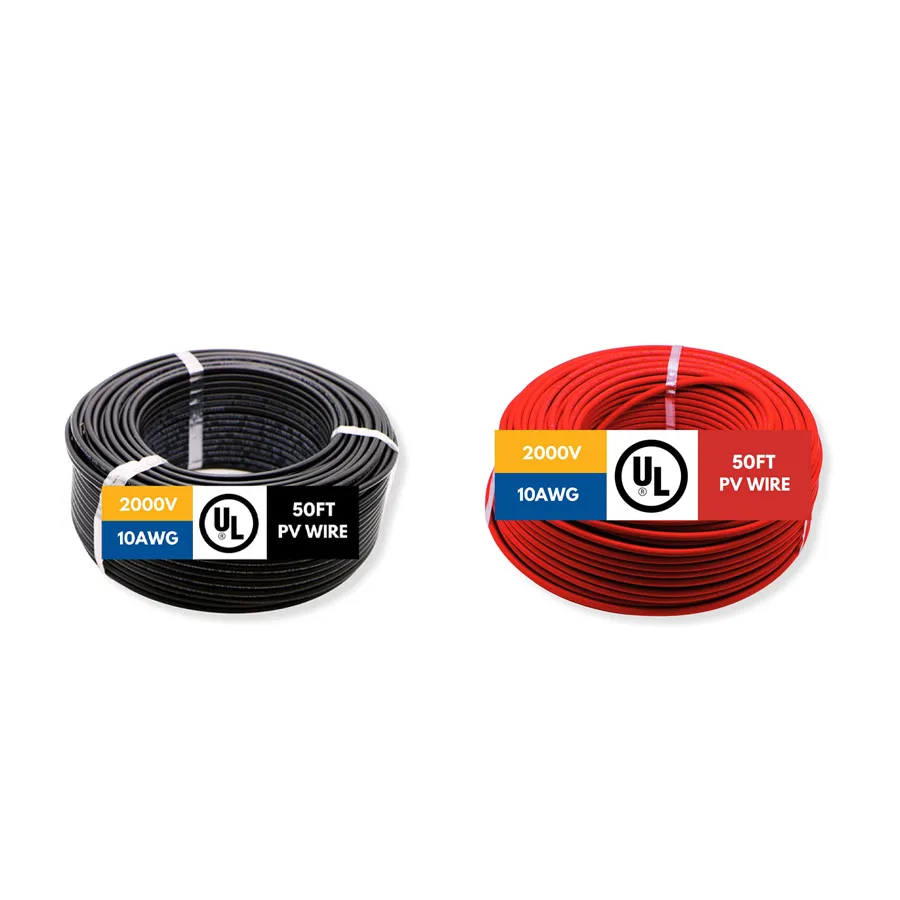

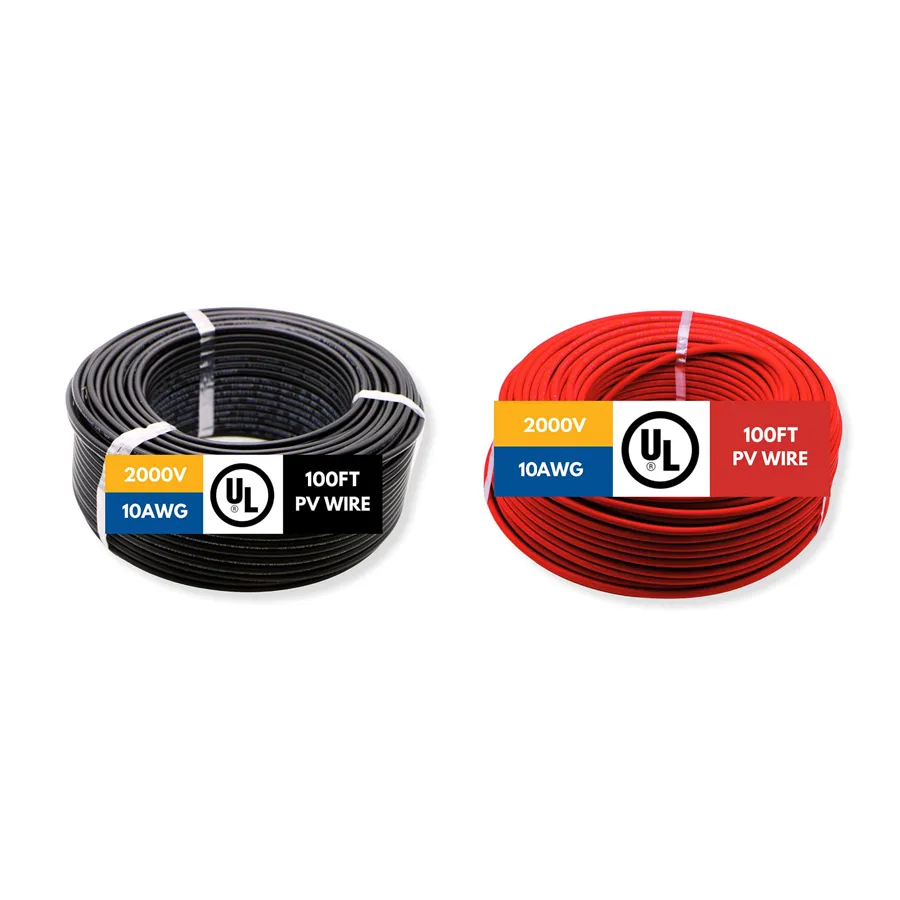

PV Wire | 10AWG | 50FT-100FT

$140.00
Save $0

Free shipping (lower 48 states)

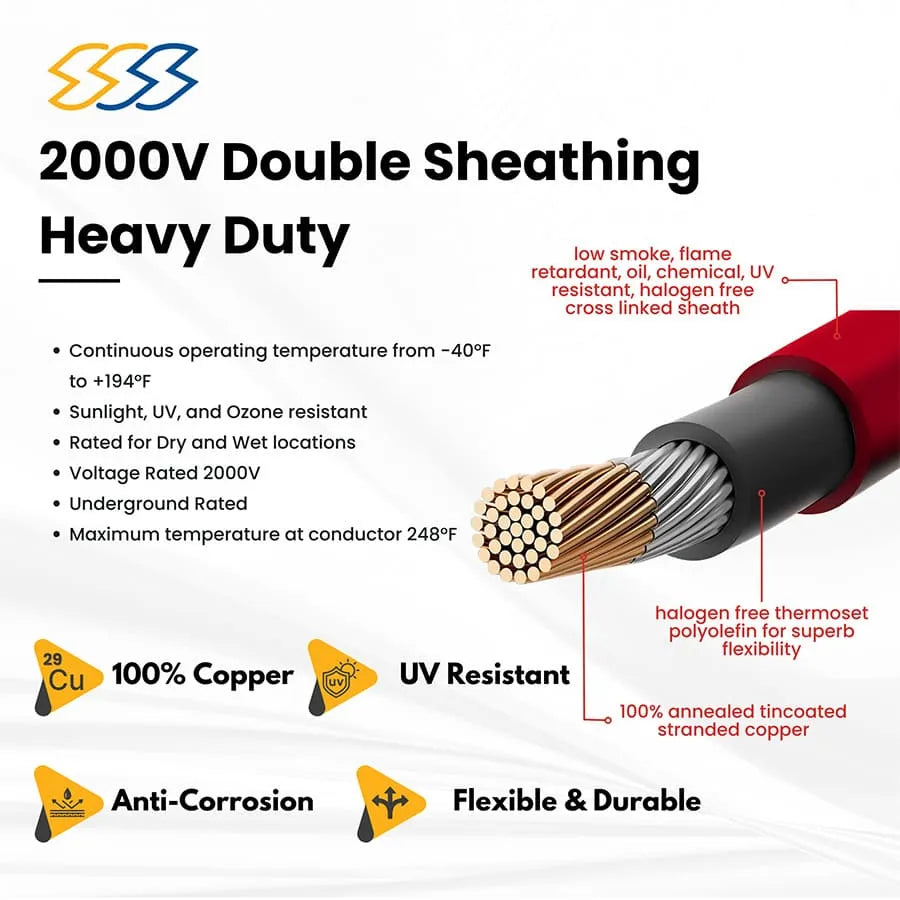

SSS UL4703 PV Wire UL4703 rated 2000 V dual-insulation PV cable 100% tinned copper conductor, UV & sunlight resistant –40 °C to +90 °C temperature range Flexible, flame-retardant, RoHS compliant Ideal for solar module interconnection
Product Model
Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

  • Overview

  • Tech Specs

  • Supports

  • Reviews

Overview

Title

Tech Specs

Title
PV Wire
Wire Size 10AWG 6mm²
Number of Strands 75
Color Black/Red
Inner Layer Thickness 0.044in
Outer Jacket Thickness 0.029in
Outer Diameter(O.D.) 0.268in
Bending Radius 1.60in
Conductor Resistance 1.01Ω/1,000ft
Voltage rating 2,000V/2KV
Temperature Rating 40ºC to 90ºC
Certificate UL 4703, RoHS compliant

Supports

Title

  • Download

  • Video

  • FAQ

Data Sheet
User Manual
Warranty
Certifications
PV Wire Datasheet
Download
PV Wire UL4703
Download
