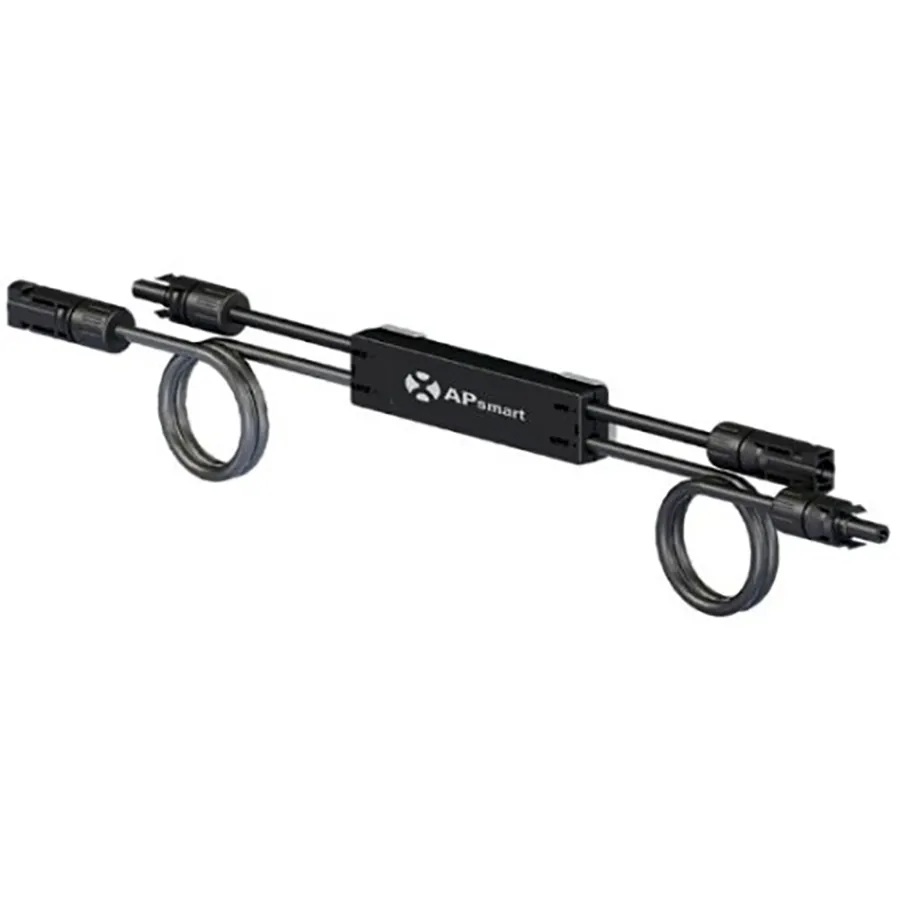

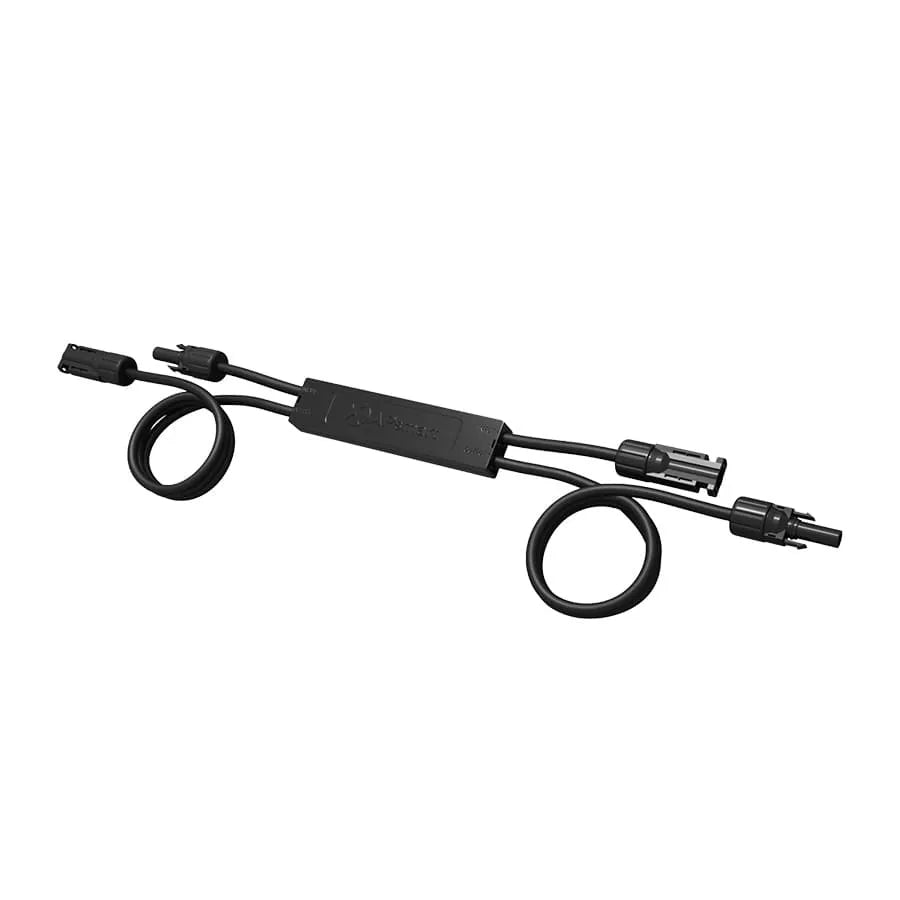

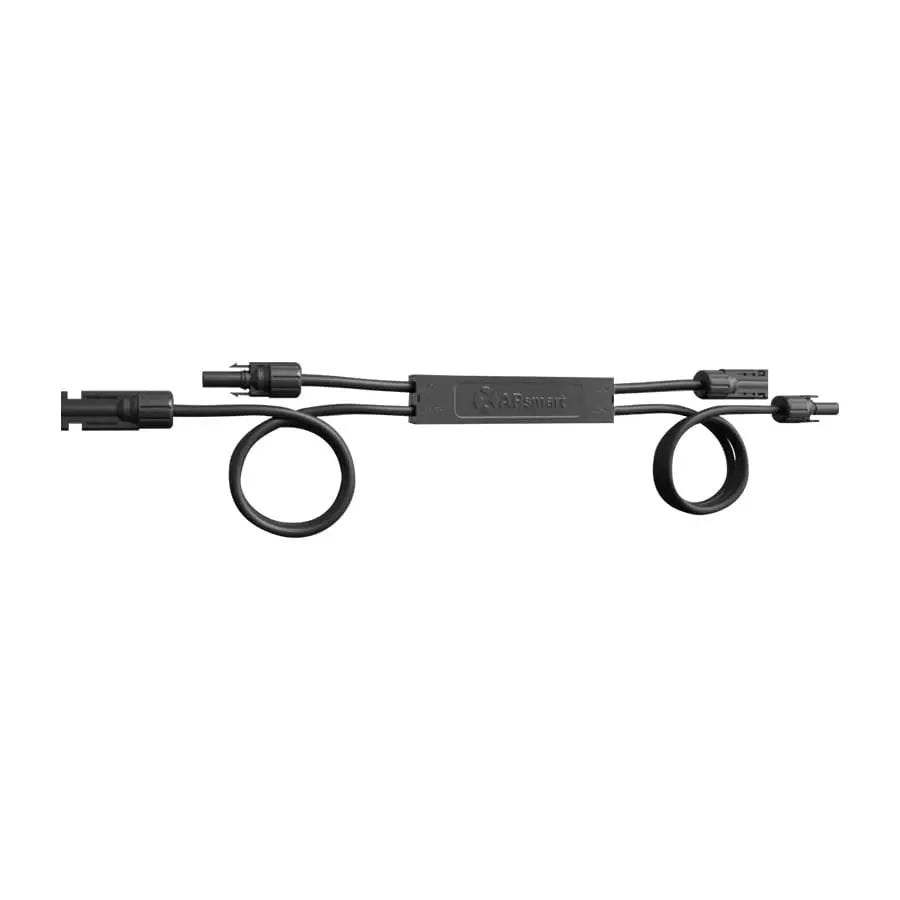

RSD-S-PLC Rapid Shut Down Five-Piece Package

$180.00
Save $0

Free shipping (lower 48 states)

RSD-S-PLC Rapid Shut Down Meets NEC 2017, 2020&2023 (690.12) requirements Executes rapid shutdown of system when Transmitter-PLC signal is absent –40 °C to +85 °C temperature range Meets SunSpec requirements
Product Model

Choose a configuration below.


Quantity
Title

Total Price

           Total Price

$180.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title
RSD-S-PLC Rapid Shutdown
Output voltage range 10.5-80 V
Input voltage range 10.5-80 V
Maximum current 15 A
Maximum short circuit current 25 A
Maximum system voltage 1000 V / 1500 V
Maximum Series Fuse Rating 30A
Communication type PLC
Input/Output connectors Input: Stäubli MC4 PV-KBT4&KST4 or Customized Output: APsystems specified or Customized
Input cable length Input 250mm/Output 1200mm
Dimensions 5.5" x 1.3" x 0.7"(140 mm x 32 mm x 18 mm)
Operating Temperature -40°F to +185°F (-40 °C to + 85 °C)
Enclosure Rating NEMA Type 6P/IP68
Certificate NEC 2017, 2020&2023 (690.12); UL1741; CSA C22.2 No. 330-17; IEC/EN62109-1; 2PFG2305;FCC Part15; ICES-003;IEC/EN61000-6-1/-2/-3/-4

Supports

Title

  • Download

  • Video

  • FAQ

User Manual
Warranty
Certifications
RSD-S-PLC Rapid Shutdown Datasheet
