Name: Hoymiles Rapid Shut Down
Brand: My Store
SKU: HRSD2C
Price: 52.0 USD
Availability: InStock

Home tab - Accessories Only

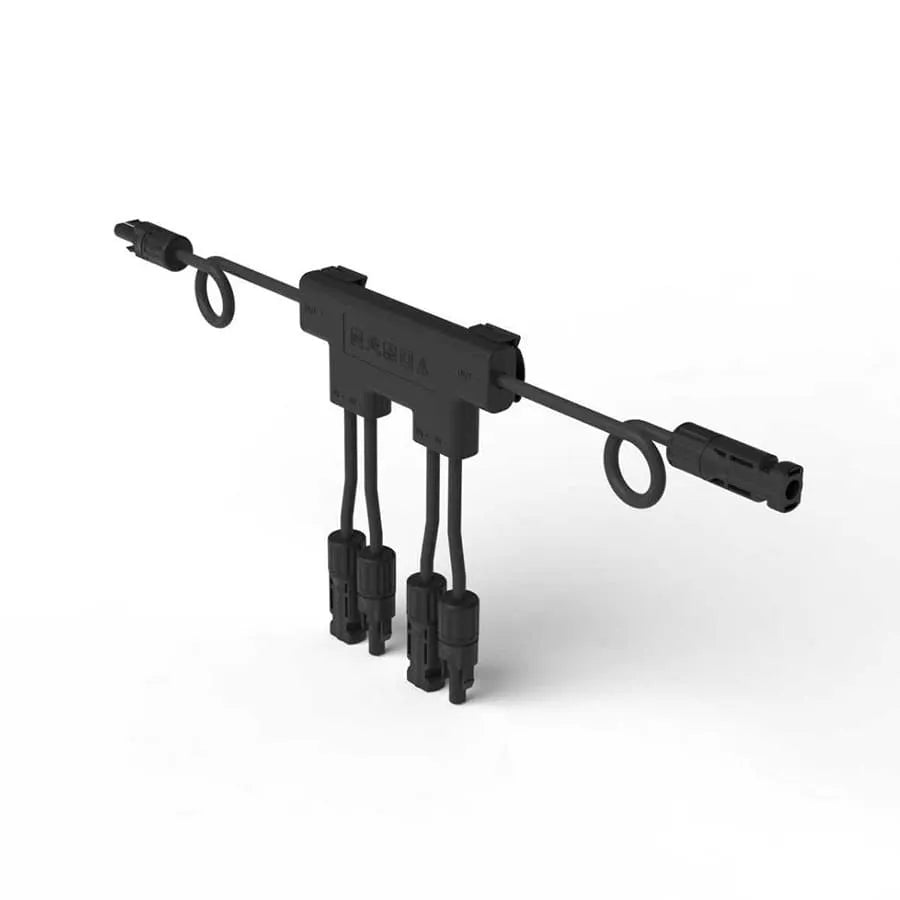

Hoymiles Rapid Shut Down

$52.00

Save $0

WHAT IS INCLUDED WITH THE ACCESSORIES ! HRSD2C – Hoymiles Rapid shut down ★ Rapid Shutdown: 1 x Hoymiles Rapid Shutdown

+SHOW MORE

Product Model

HRSD2C(Hoymiles Rapid shut down)

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Title

30 DAYS Price Guarantee

BestSolarBundle guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Title

Free Local

Shipping

Warranty

Protection

Lifetime Customer

Support

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports

Overview

Title

Tech Specs

Title

Hoymiles Rapid Shutdown

Output voltage range	16-160 V
Input voltage range	8-80 V
Maximum current	15 A
Maximum short circuit current	25 A
Maximum system voltage	1000 V / 1100 V (1500 V optional)
Communication type	SunSpec PLC
Shutdown output voltage	1 V
Power consumption	200 mW
Input/Output connectors	MC4 / MC4 EVO2, optional
Input cable length	0.45 m (1.48 ft.) / 1.6 m (5.23 ft.), optional
Output cable length	2.7 m (+) / 0.1 m (-) 8.86 ft. (+) / 0.33 ft. (-)
Dimensions	133 x 58 x 16 mm (5.24 x 2.28 x 0.63 inch)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Outdoor rating	IP68 / NEMA6P
Certificate	UL1741, CSA C22.2 No. 330-17, IEC/EN 62109-1, FCC Part15 Class B, ICES-003, IEC/EN 61000-6-1/-2/-3/-4
