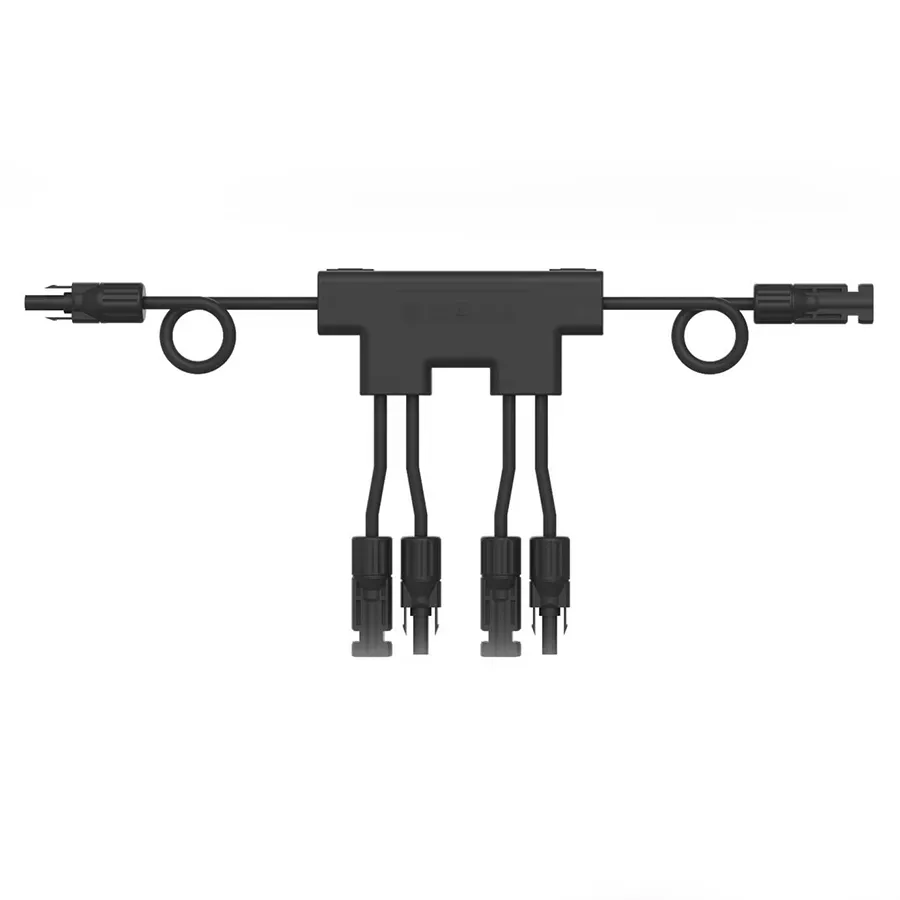

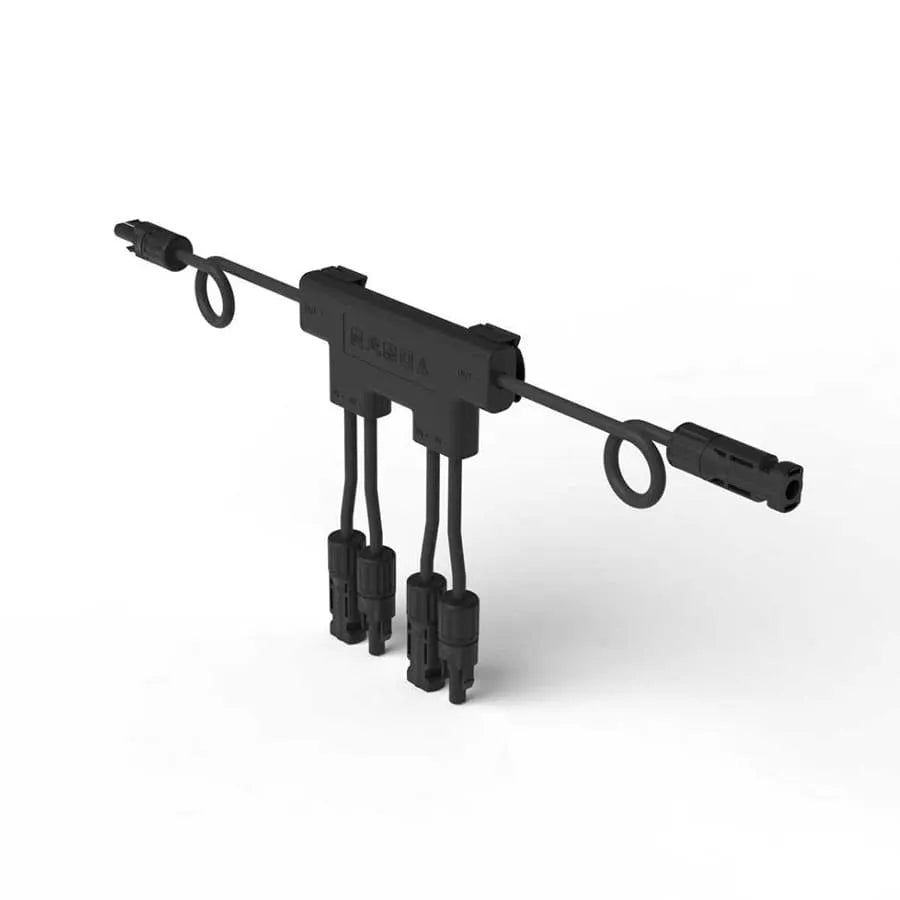

Name: Hoymiles Rapid Shut Down Three-Piece Package
Brand: My Store
SKU: HRSD2C
Price: 230.0 USD
Availability: InStock

Hoymiles Rapid Shut Down Three-Piece Package

$230.00

Save $0

Free shipping (lower 48 states)

Hoymiles Rapid Shut Down Meets SunSpec RSD, NEC 2017&NEC 2020 690.12 requirements Plug & play, no configuration required Uses Active Bypass to reduce heat generation in shade and other situations Lower power consumption and 16-160V wider operating voltage range –40 °C to +85 °C temperature range Able to avoid crosstalk with special communication modulation technique

Product Model

Choose a configuration below.

Hoymiles HRSD2C Three-Piece Package

Quantity

Title

Total Price

Total Price

$230.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

Hoymiles Rapid Shutdown

Output voltage range	16-160 V
Input voltage range	8-80 V
Maximum current	15 A
Maximum short circuit current	25 A
Maximum system voltage	1000 V / 1100 V (1500 V optional)
Communication type	SunSpec PLC
Shutdown output voltage	1 V
Power consumption	200 mW
Input/Output connectors	MC4 / MC4 EVO2, optional
Input cable length	0.45 m (1.48 ft.) / 1.6 m (5.23 ft.), optional
Output cable length	2.7 m (+) / 0.1 m (-) 8.86 ft. (+) / 0.33 ft. (-)
Dimensions	133 x 58 x 16 mm (5.24 x 2.28 x 0.63 inch)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Outdoor rating	IP68 / NEMA6P
Certificate	UL1741, CSA C22.2 No. 330-17, IEC/EN 62109-1, FCC Part15 Class B, ICES-003, IEC/EN 61000-6-1/-2/-3/-4
