Name: Hoymiles 11.5kW Inverter with Deye SE-G5.1 Pro-B — UL 9540 Closed-Loop Bundle (10/15/20/30/40kWh)
Brand: My Store
SKU: KH11552
Price: 4580.0 USD
Availability: InStock

UL 9540 Closed-Loop Bundle

Hoymiles 11.5kW Inverter with Deye SE-G5.1 Pro-B — UL 9540 Closed-Loop Bundle (10/15/20/30/40kWh)

$4,580.00

Save $0

WHAT IS INCLUDED WITH THE SOLAR KITS ! KH11552 – 11.5kW Inverter + 10.2kWh Battery ★ Hybrid Inverter: 1 X Hoymiles 11.5kW Single-phase ★ Battery: 2 X Deye SE-G5.1 Pro-B 5.12kWH 51.2V 100A Lithium Module(UL 9540) ★ Gateway: 1 x Gateway ★ Split Phase Meter: 1 x Split Phase Meter KH11553 – 11.5kW Inverter + 15.3kWh Battery ★ Hybrid Inverter: 1 X Hoymiles 11.5kW Single-phase ★ Battery: 3 X Deye SE-G5.1 Pro-B 5.12kWH 51.2V 100A Lithium Module(UL 9540) ★ Gateway: 1 x Gateway ★ Split Phase Meter: 1 x Split Phase Meter KH11554 – 11.5kW Inverter + 20.4kWh Battery ★ Hybrid Inverter: 1 X Hoymiles 11.5kW Single-phase ★ Battery: 4 X Deye SE-G5.1 Pro-B 5.12kWH 51.2V 100A Lithium Module(UL 9540) ★ Gateway: 1 x Gateway ★ Split Phase Meter: 1 x Split Phase Meter KH11556 – 11.5kW Inverter + 30.7kWh Battery ★ Hybrid Inverter: 1 X Hoymiles 11.5kW Single-phase ★ Battery: 6 X Deye SE-G5.1 Pro-B 5.12kWH 51.2V 100A Lithium Module(UL 9540) ★ Gateway: 1 x Gateway ★ Split Phase Meter: 1 x Split Phase Meter KH11558 – 11.5kW Inverter + 40.9kWh Battery ★ Hybrid Inverter: 1 X Hoymiles 11.5kW Single-phase ★ Battery: 8 X Deye SE-G5.1 Pro-B 5.12kWH 51.2V 100A Lithium Module(UL 9540) ★ Gateway: 1 x Gateway ★ Split Phase Meter: 1 x Split Phase Meter

+SHOW MORE

Product Model

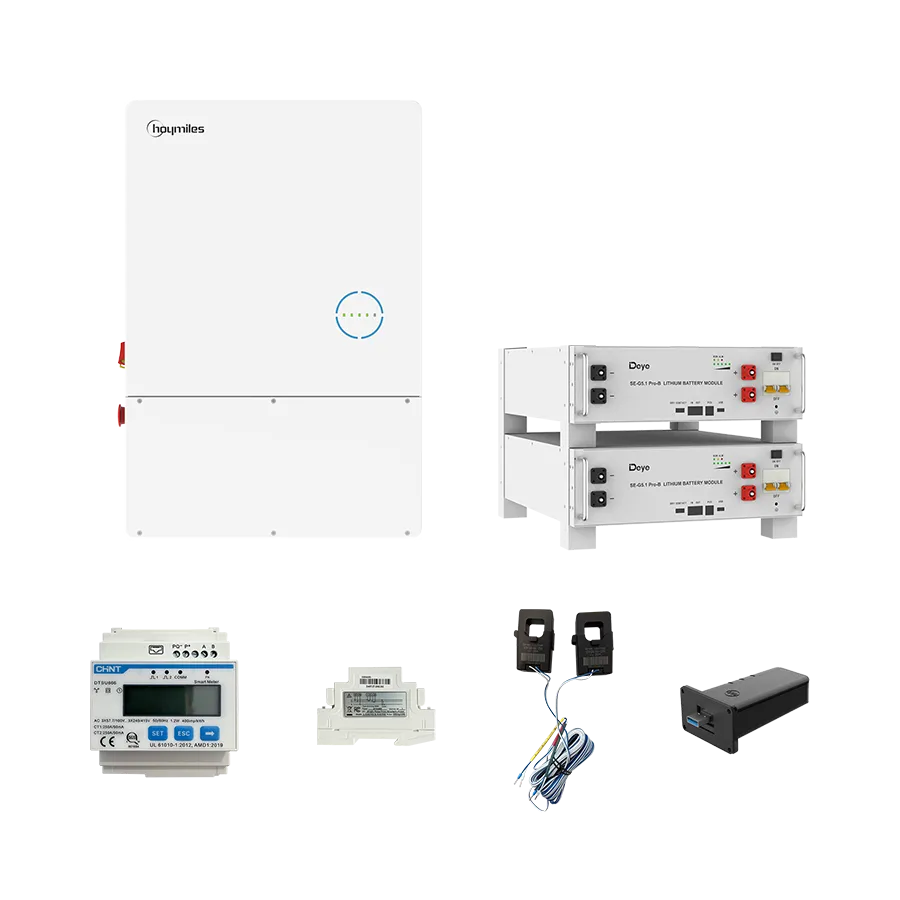

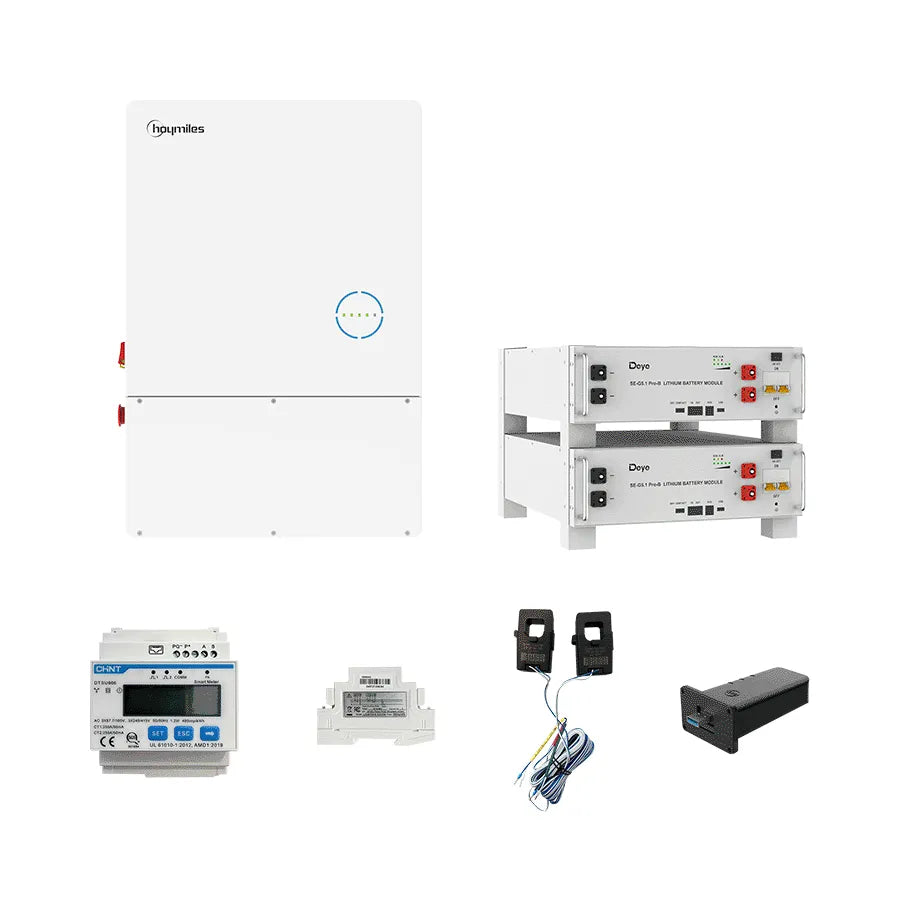

KH11552(11.5KW INV+2*5.12KWH BAT)

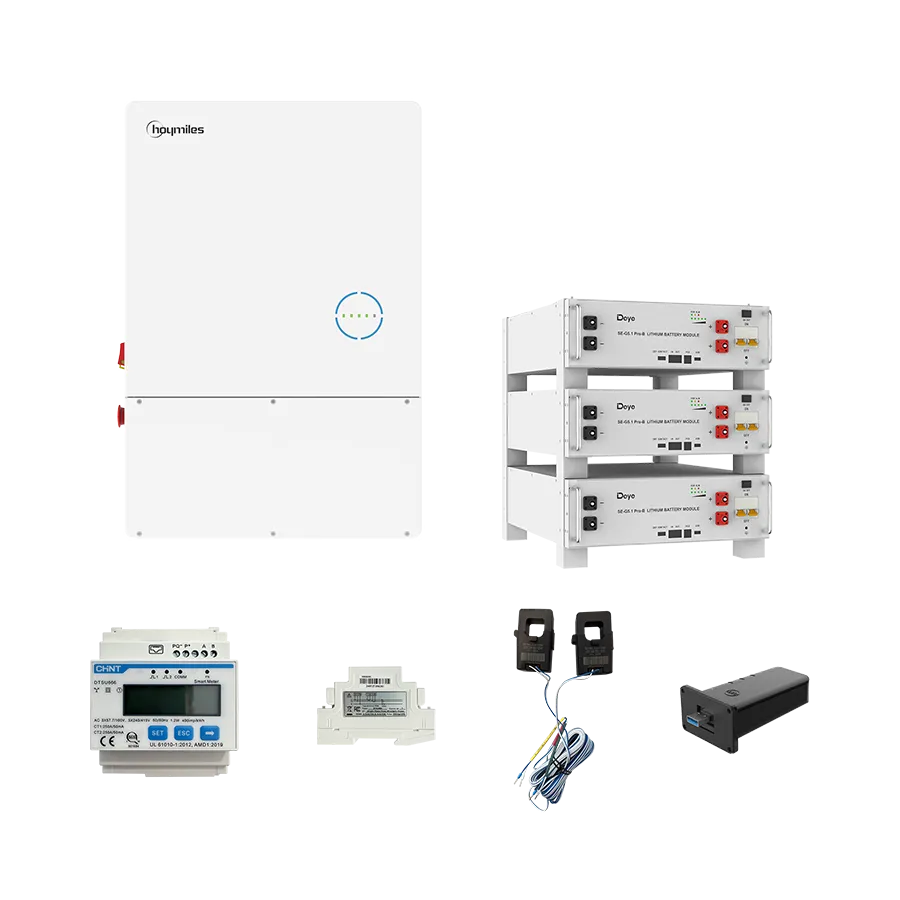

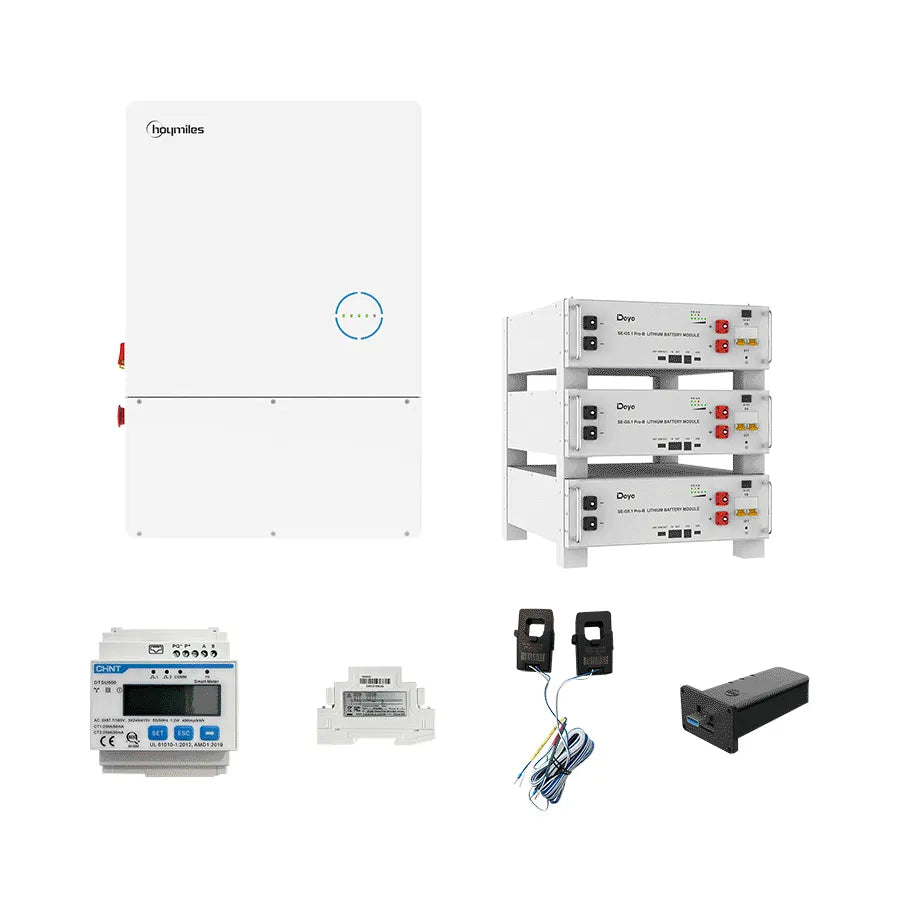

KH11553(11.5KW INV+3*5.12KWH BAT)

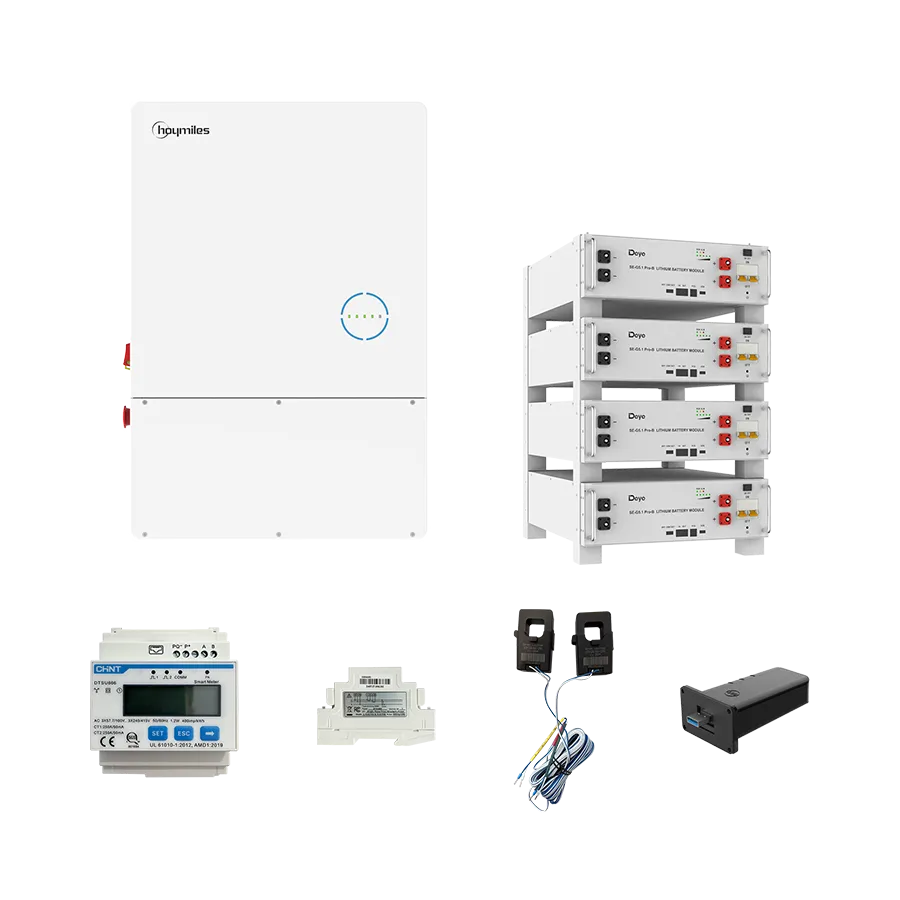

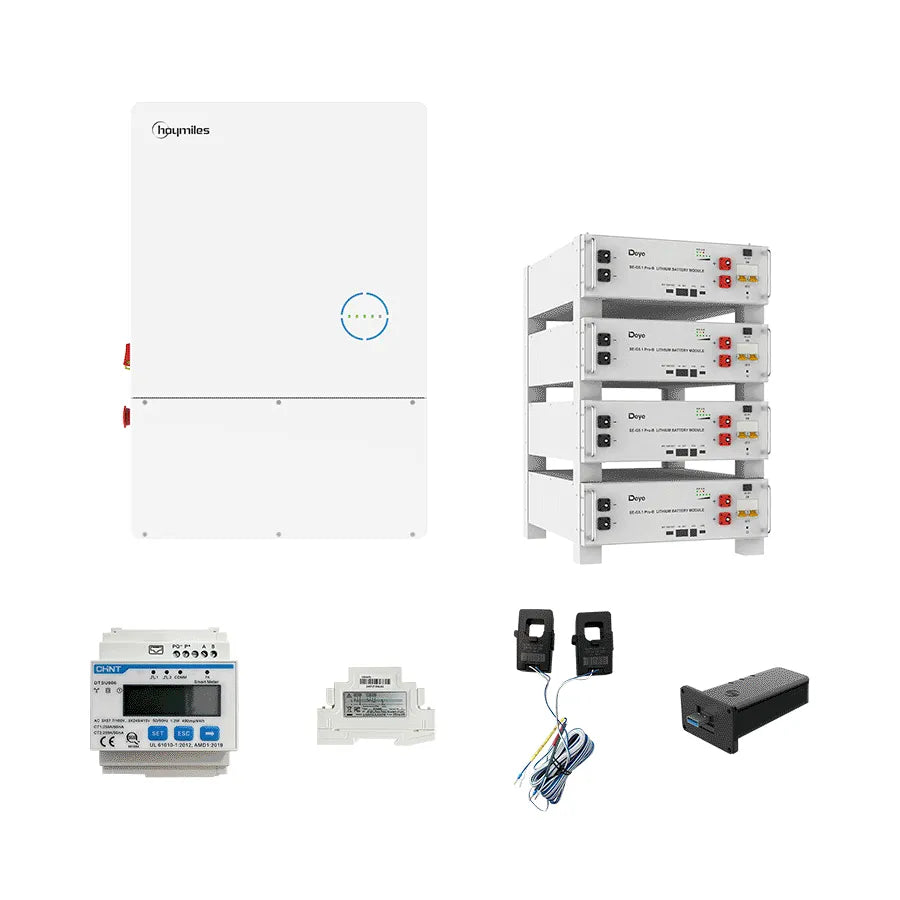

KH11554(11.5KW INV+4*5.12KWH BAT)

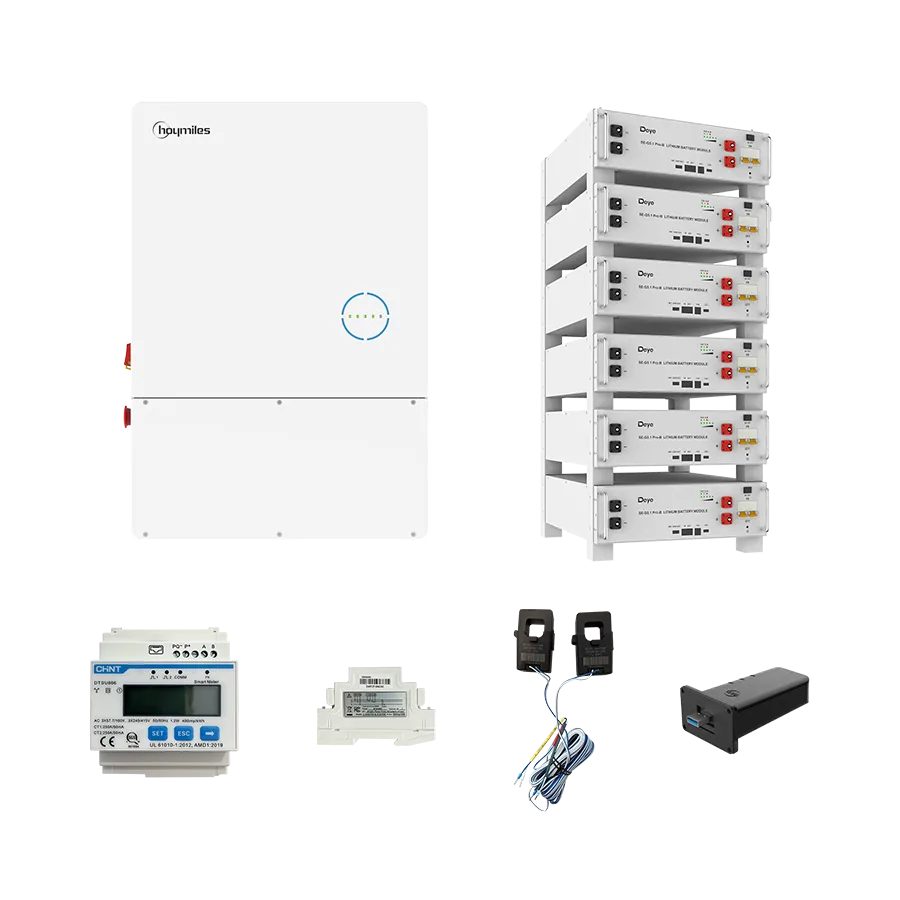

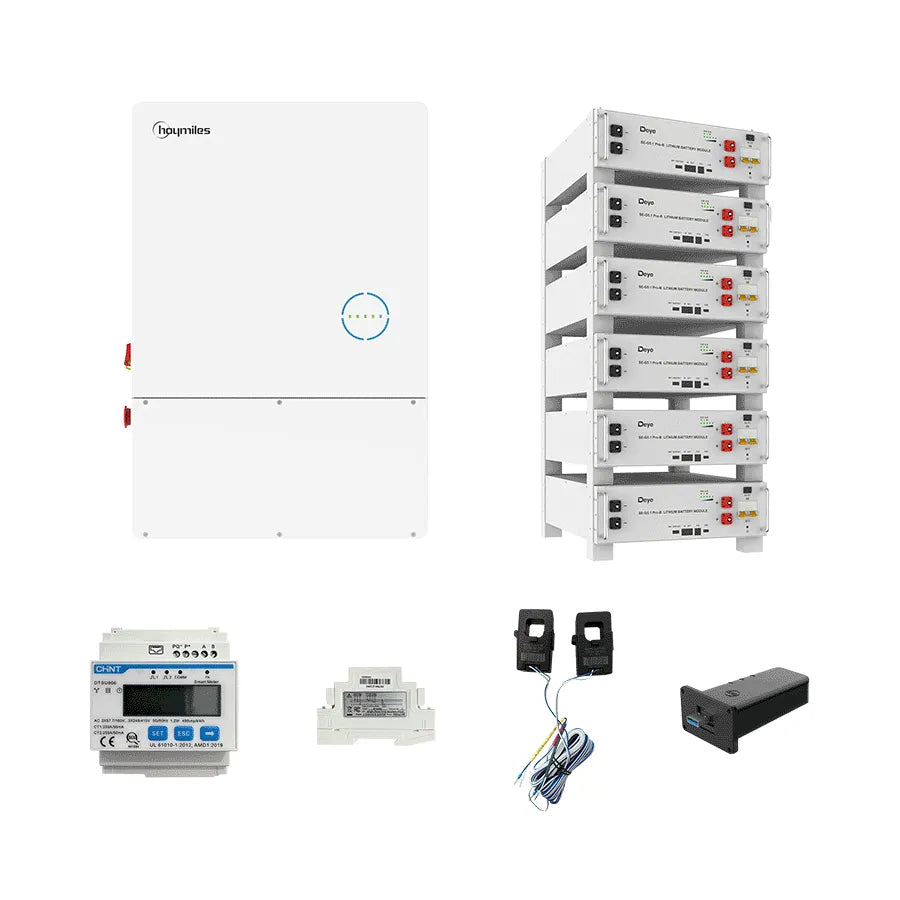

KH11556(11.5KW INV+6*5.12KWH BAT)

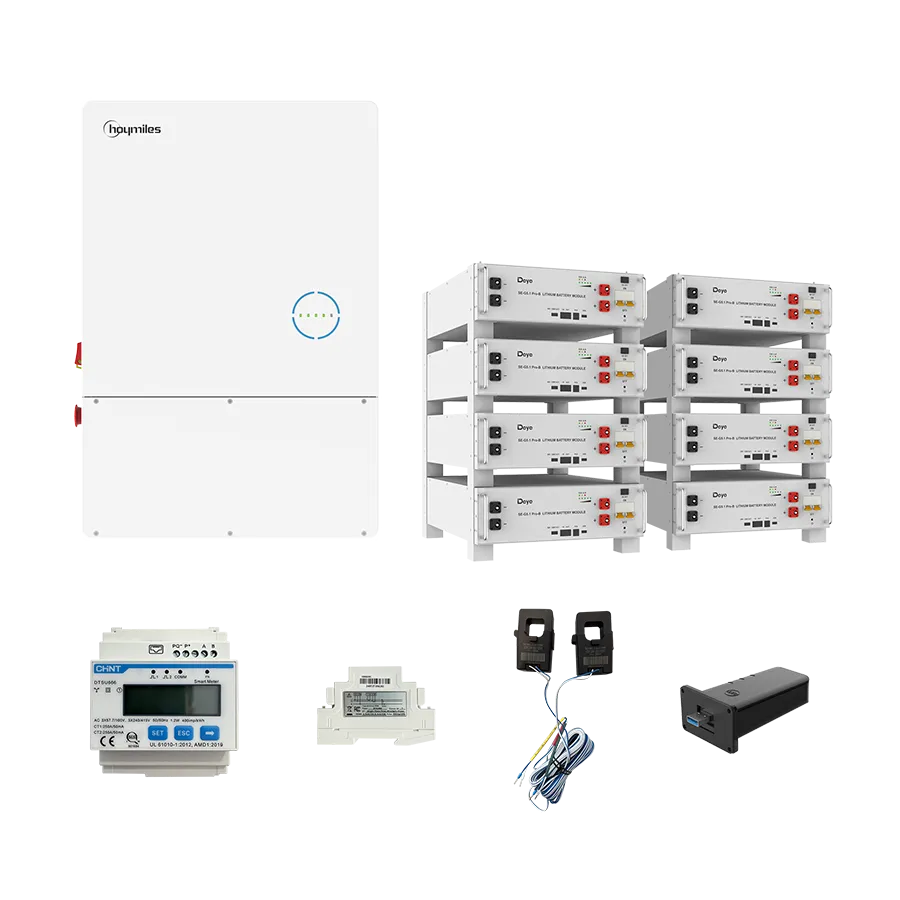

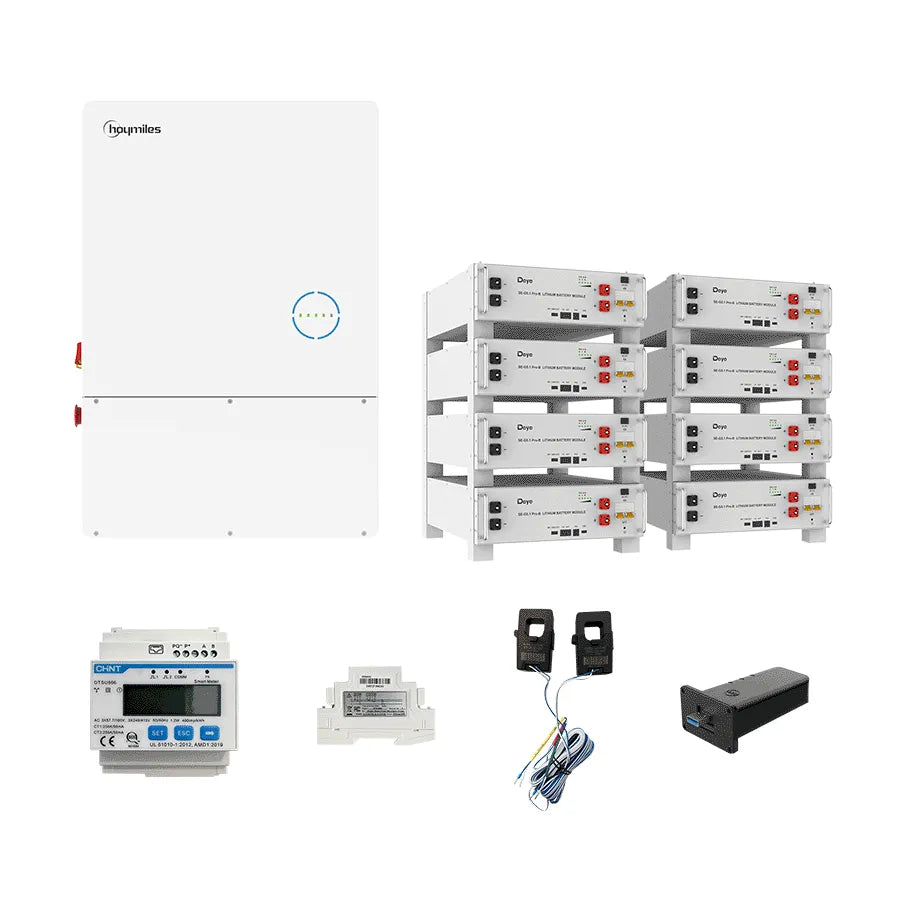

KH11558(11.5KW INV+8*5.12KWH BAT)

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Title

30 DAYS Price Guarantee

BestSolarBundle guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Title

Free Local

Shipping

Warranty

Protection

Lifetime Customer

Support

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports

Overview

Title

Tech Specs

Title

Hoymiles 11.5KW Hybrid Inverter

AC Output Voltage	240, 211-264/208, 183-229
Max. Input Power	19200W
Efficiency	97.6%
Max Charging Current	200A
MPPT Voltage Range	500VDC
Max. parallel	10
Backup switch Time	<40ms
Battery Technologies	Li-ion/Lead-acid
Battery Nominal DC Voltage	48V
BMS Communication	RS485, option: Wi-Fi/Ethernet/4G
Enclosure	Type 4X
Operating Temperature	-13℉ to +149℉ (>113℉, derating)/-25℃ to +65℃ (>45℃, derating)
Noise	<40 dB
Dimension	19.8 × 29.1 × 7.95 inch
Weight	90.4lbs
Warranty	10 Years
Certificate	UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A

Deye SE-G5.1 Pro-B Lithium Battery

Nominal Voltage	51.2V
Nominal Capacity	100AH
Energy	5.12KWH
Scalability	Expandable up to 64 units in parallel (max. 327kWh)
Usable Energy	4.6kWh
Recommend Depth of Discharge	90%
IP Rating Of Enclosure	IP20
Operating Temperature	Charge:0~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C
MAX Continuous Charge Current	100A
Cycle Life	≧6000
Installation	Installation Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Dimension	440 × 133 × 540 mm
Weight	45kg
Warranty	10 Years
Certificate	UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A
