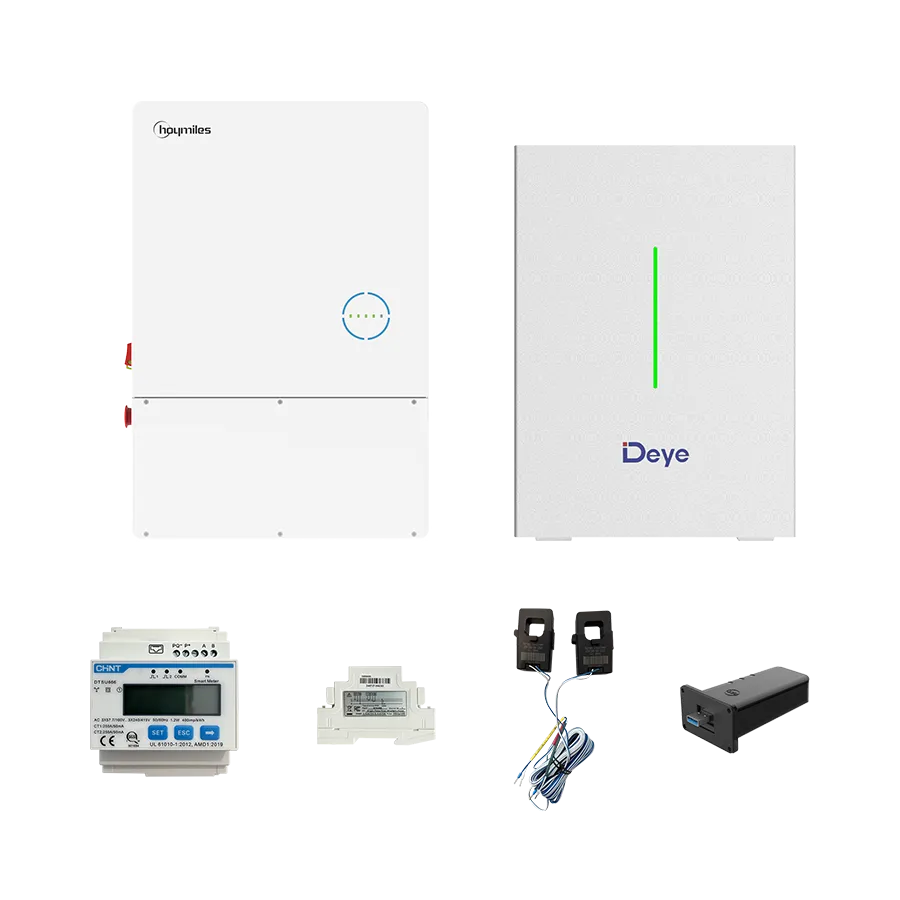

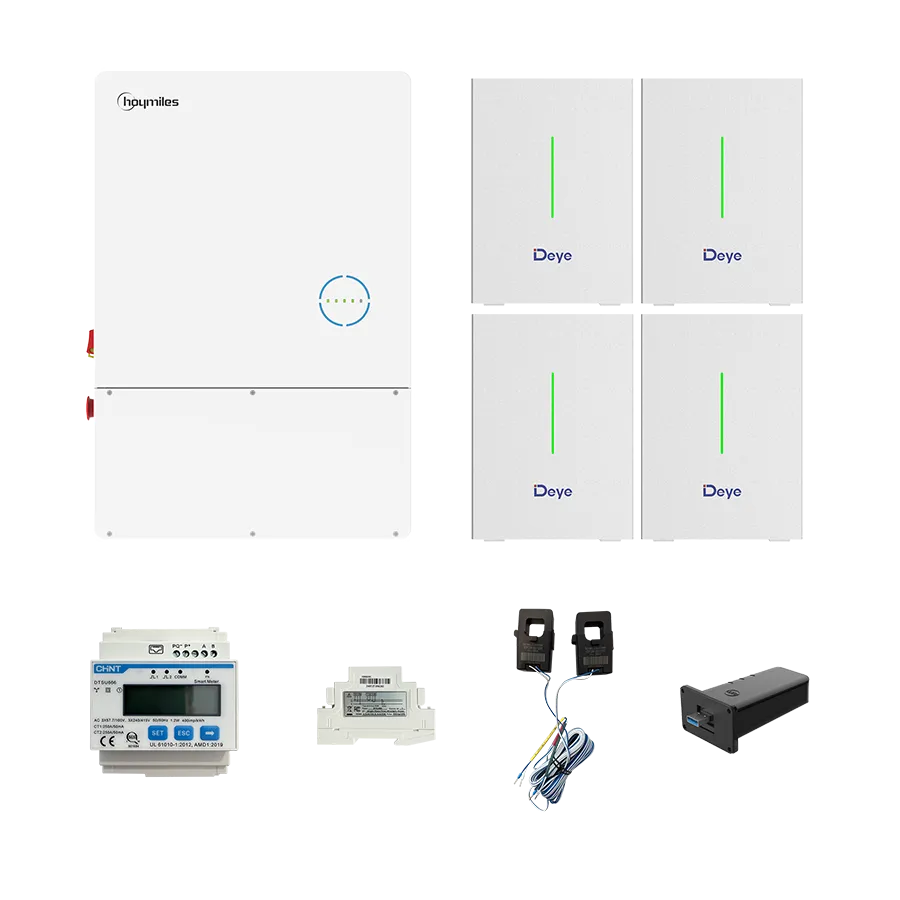

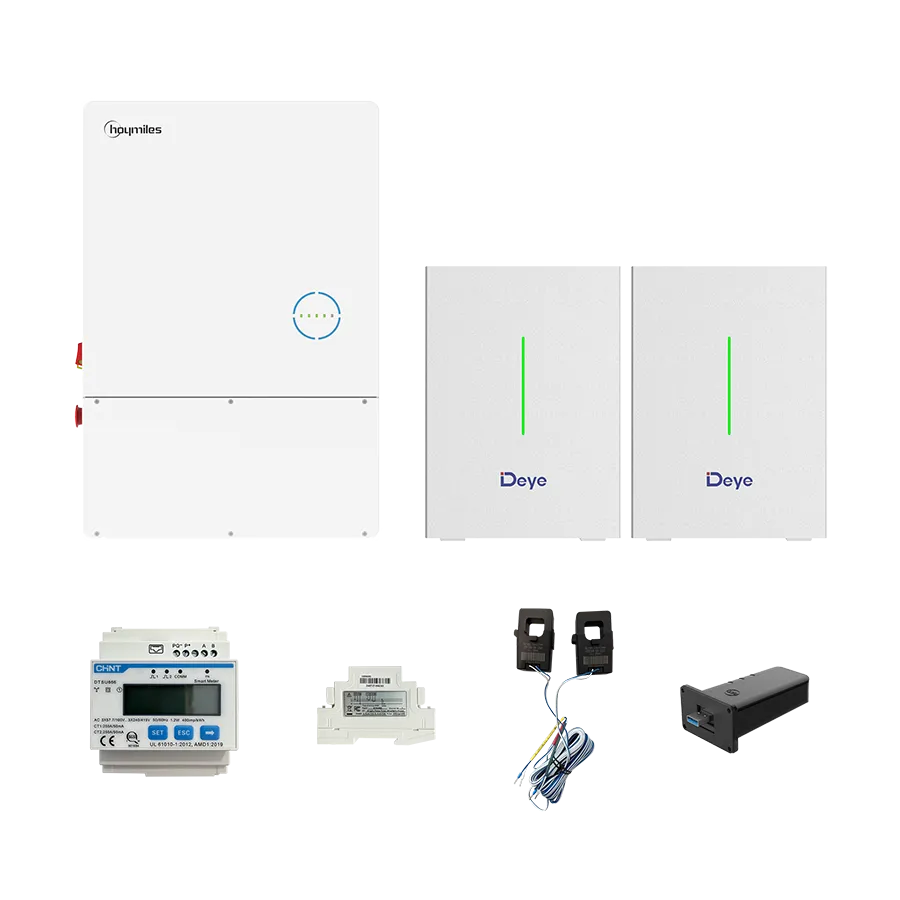

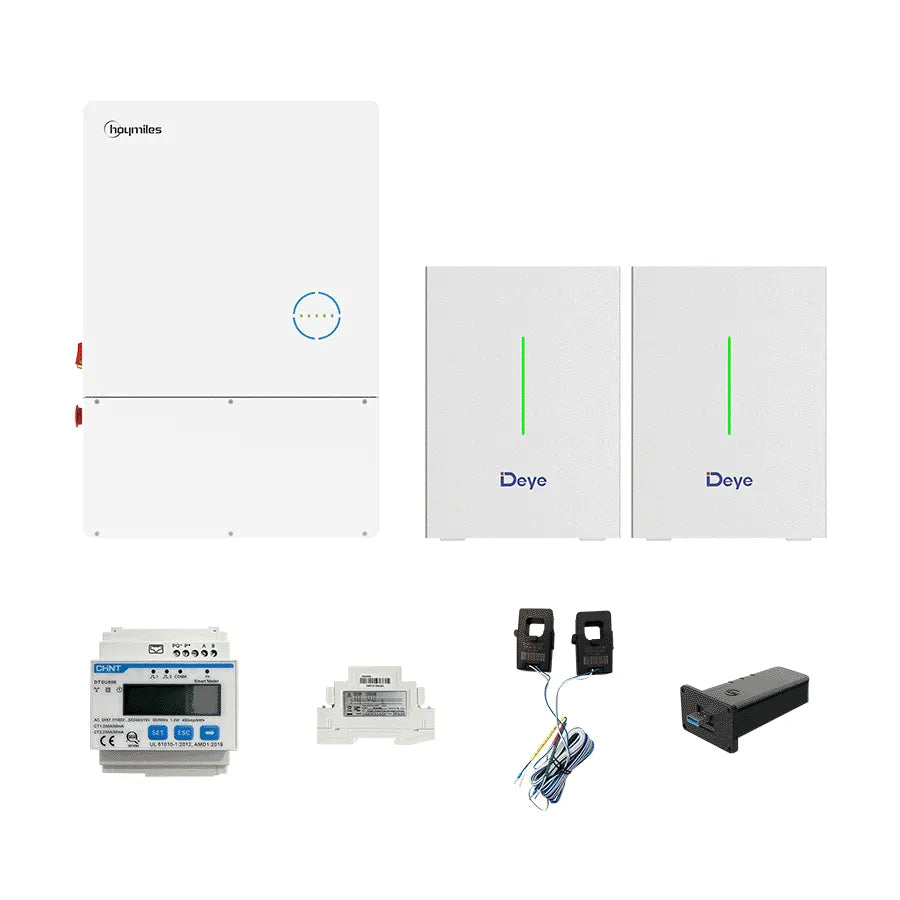

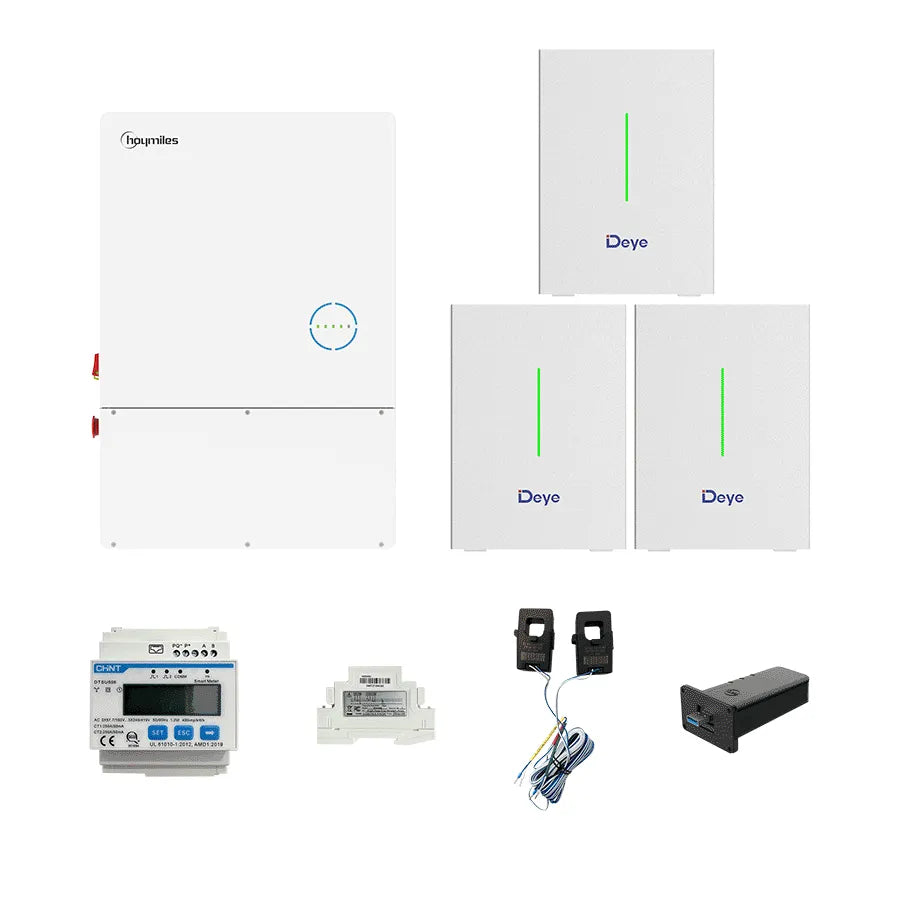

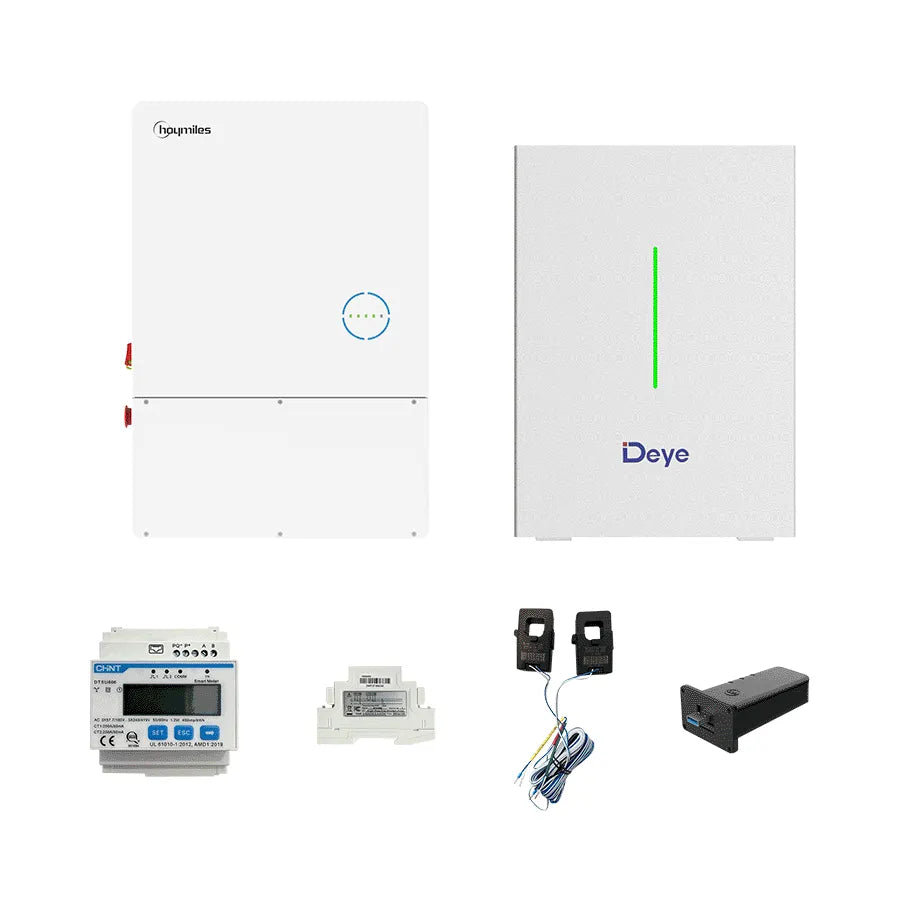

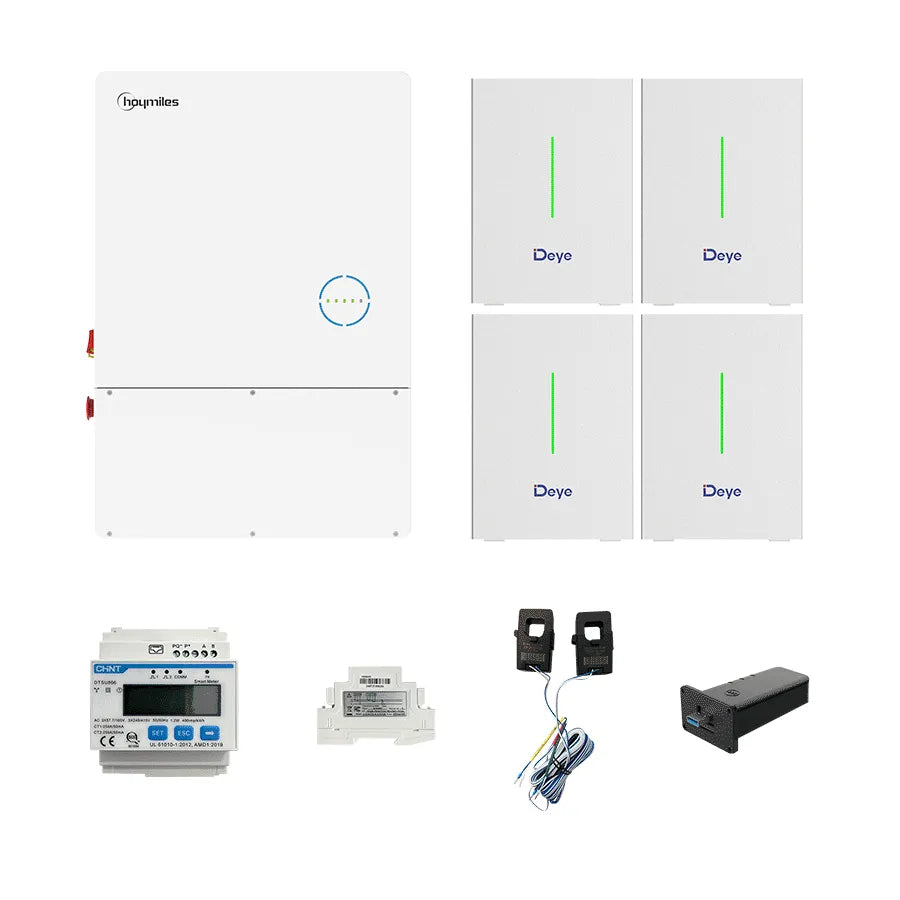

- Hoymiles 11.5kW Inverter with Deye RW-F10.2 — UL 9540 Closed-Loop Bundle (10/20/30/40kWh)
Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title
Hoymiles 11.5KW Hybrid Inverter
| AC Output Voltage | 240, 211-264/208, 183-229 |
| Max. Input Power | 19200W |
| Efficiency | 97.6% |
| Max Charging Current | 200A |
| MPPT Voltage Range | 500VDC |
| Max. parallel | 10 |
| Backup switch Time | <40ms |
| Battery Technologies | Li-ion/Lead-acid |
| Battery Nominal DC Voltage | 48V |
| BMS Communication | RS485, option: Wi-Fi/Ethernet/4G |
| Enclosure | Type 4X |
| Operating Temperature | -13℉ to +149℉ (>113℉, derating)/-25℃ to +65℃ (>45℃, derating) |
| Noise | <40 dB |
| Dimension | 19.8 × 29.1 × 7.95 inch |
| Weight | 90.4lbs |
| Warranty | 10 Years |
| Certificate | UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A |

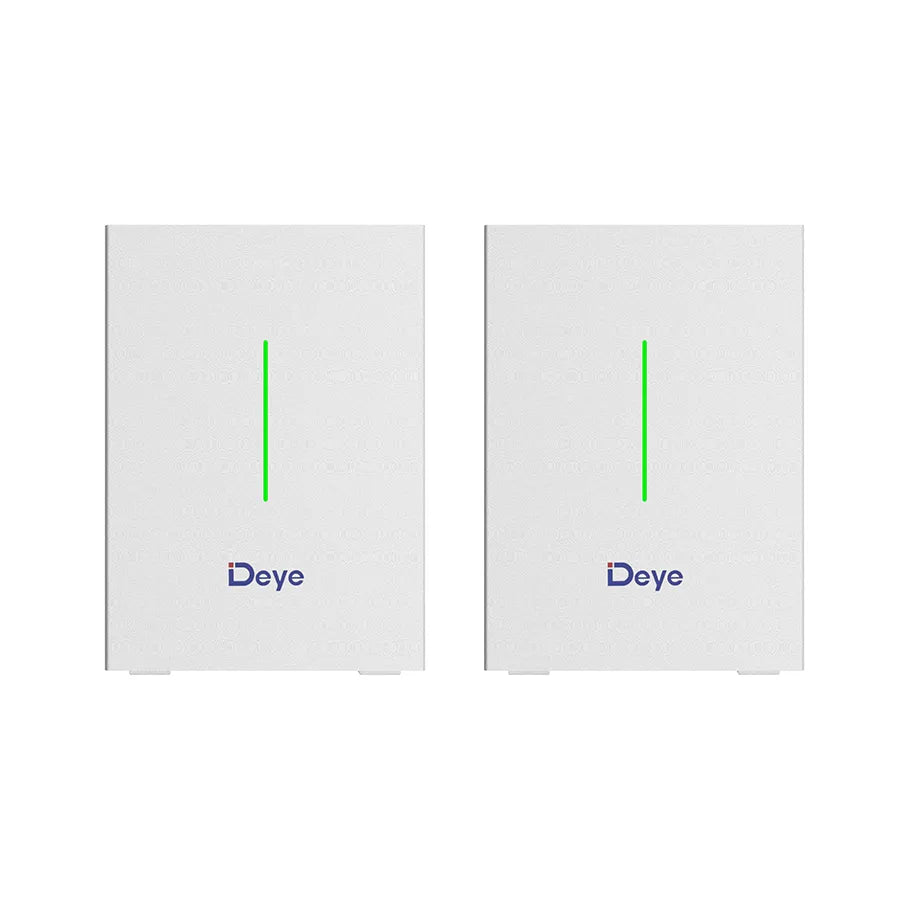

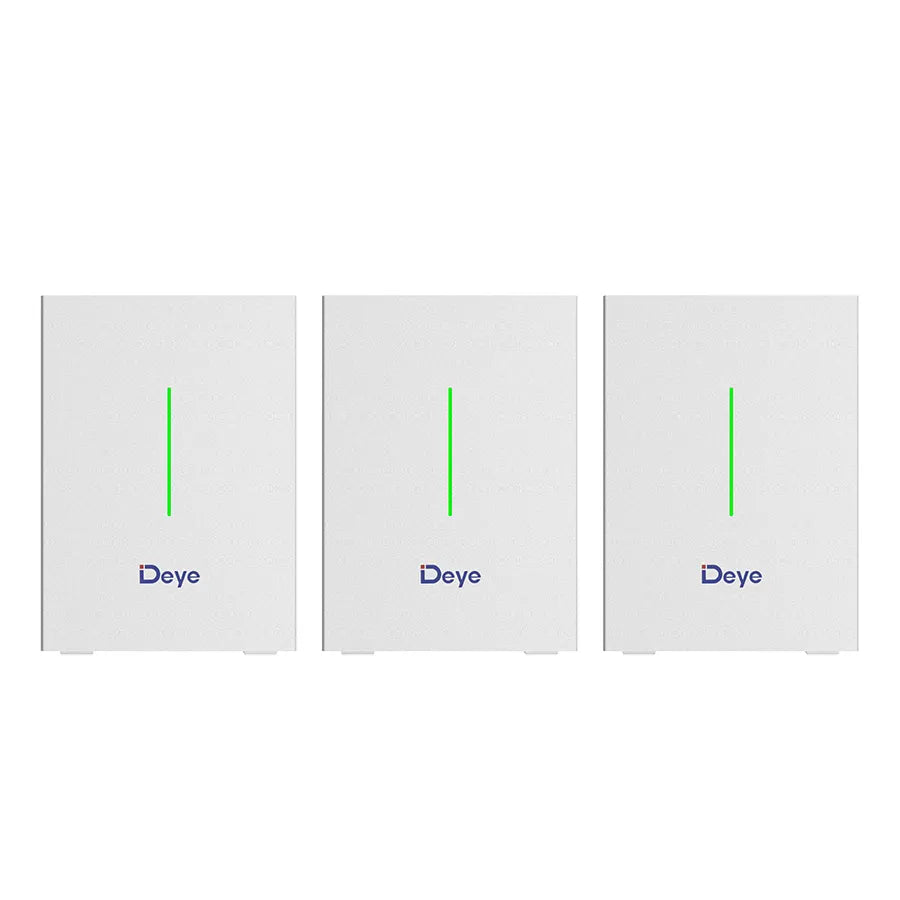

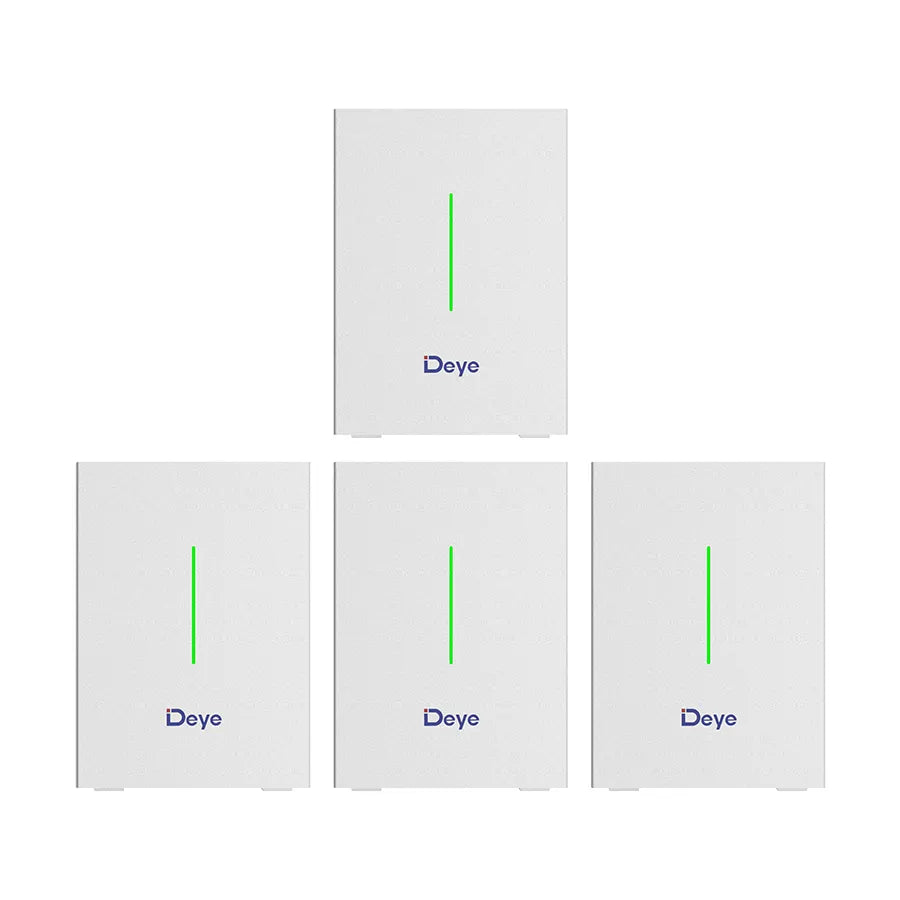

Deye RW-F10.2 LifePO4 Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Built-in Circuit Breaker | 125A 4P,60Vdc |
| Energy | 10.24KWH |
| Scalability | Expandable up to 32 units in parallel (max. 327kWh) |
| Usable Energy | 9.2kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP65 |
| Operating Temperature | Charge:1~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| Cycle Life | ≧6000 |
| Installation | Wall-Mounted, Floor-Mounted |
| Dimension | 600 × 830 × 200 mm |
| Weight | 107kg |
| Warranty | 10 Years |
| Certificate | UN38.3,FCC, UL1973,UL9540A,UL9540 |
