Hoymiles 11.5kW Hybrid Inverter with Gateway + Split Phase Meter

$2,850.00
Save $0

Free shipping (lower 48 states)

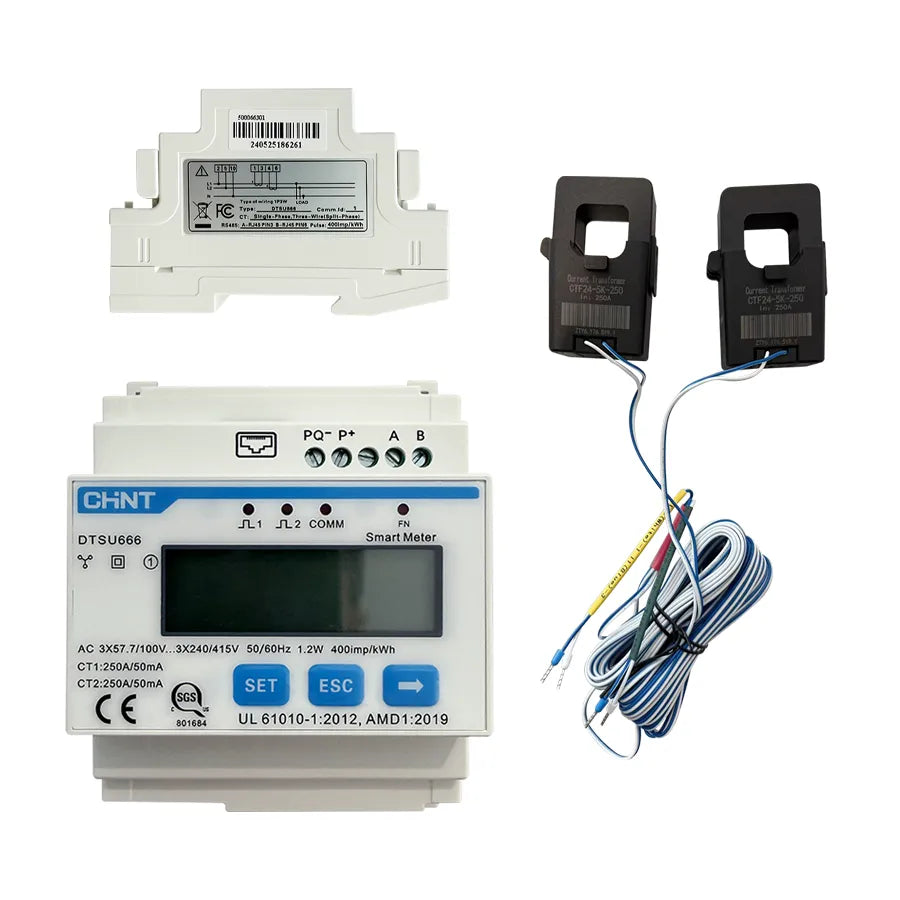

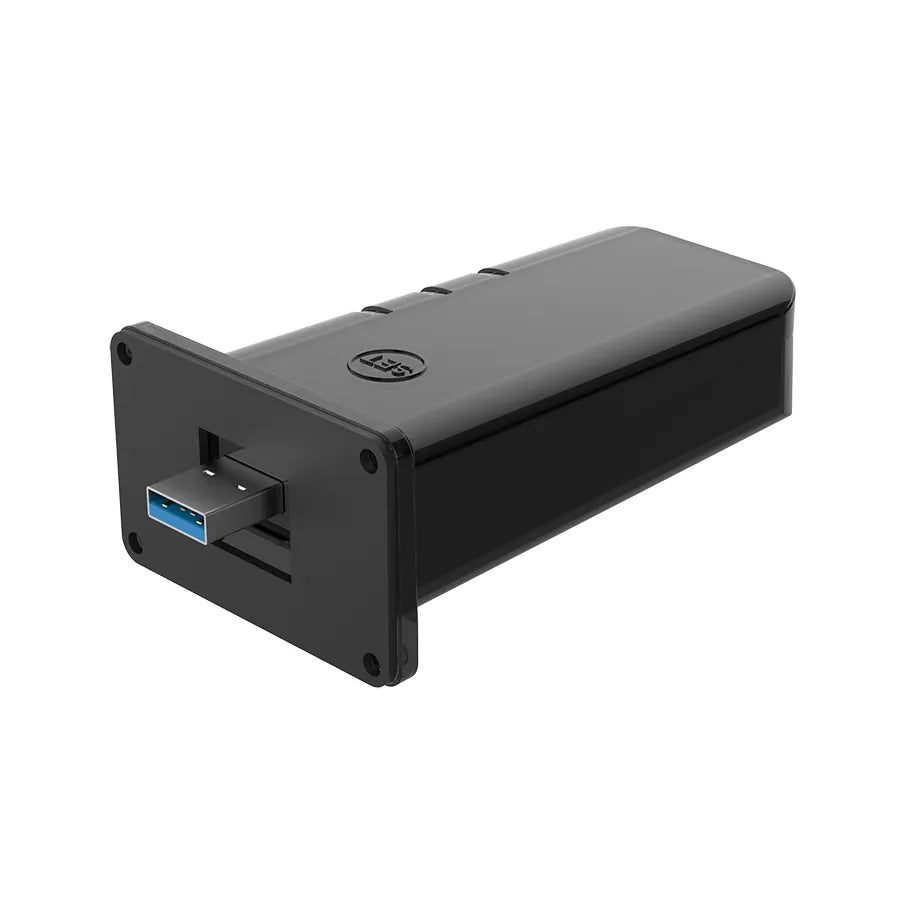

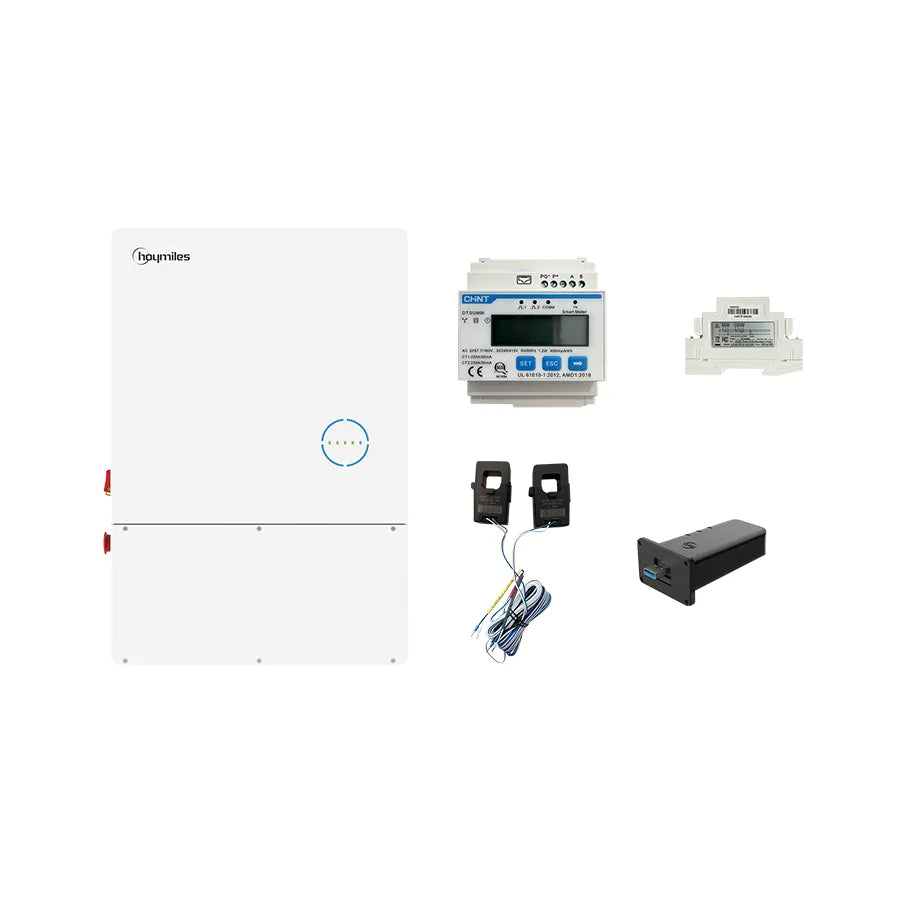

Bundle Contents: Hybrid Inverter: 11.5 kW Gateway Split Phase Meter
Product Model

Choose a configuration below.


Quantity
Title

Total Price

           Total Price

$2,850.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

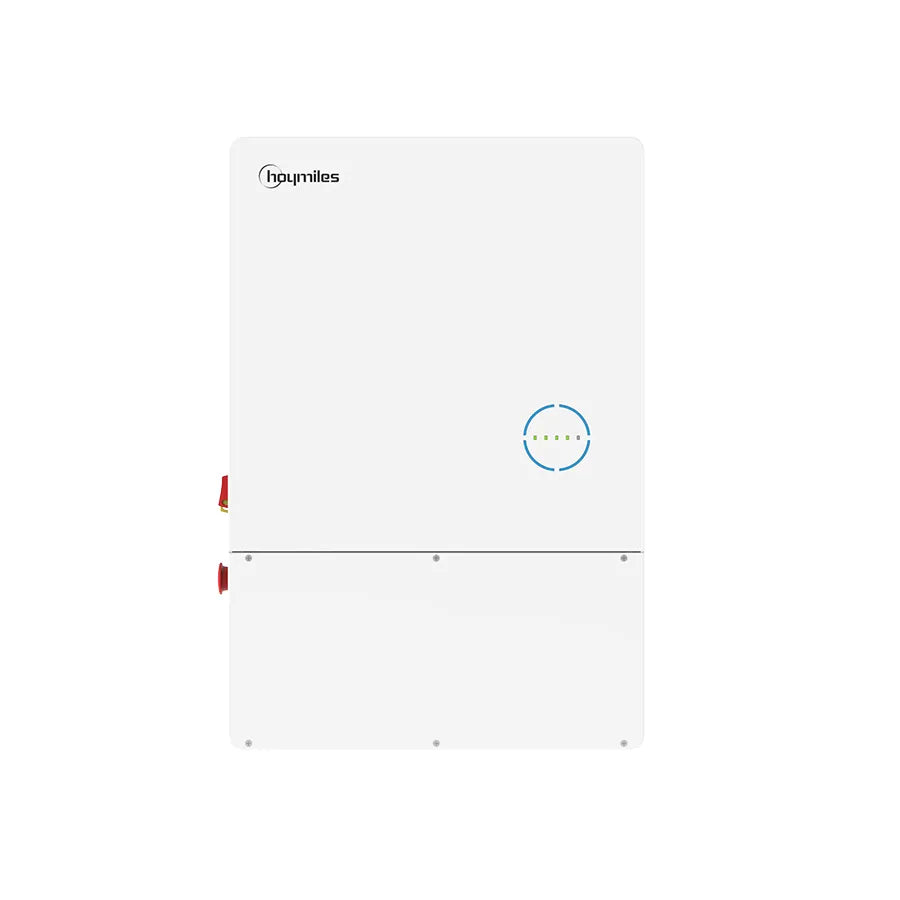

Hoymiles 11.5KW Hybrid Inverter
AC Output Voltage 240, 211-264/208, 183-229
Max. Input Power 19200W
Efficiency 97.6%
Max Charging Current 200A
MPPT Voltage Range 500VDC
Max. parallel 10
Backup switch Time <40ms
Battery Technologies Li-ion/Lead-acid
Battery Nominal DC Voltage 48V
BMS Communication RS485, option: Wi-Fi/Ethernet/4G
Enclosure Type 4X
Operating Temperature -13℉ to +149℉ (>113℉, derating)/-25℃ to +65℃ (>45℃, derating)
Noise <40 dB
Dimension 19.8 × 29.1 × 7.95 inch
Weight 90.4lbs
Warranty 10 Years
Certificate UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A

Supports

Title

  • Download

  • Video

  • FAQ

User Manual
Warranty
Certifications
Hoymiles 11.5KW Datasheet
Hoymiles 5.1 Short no panels
