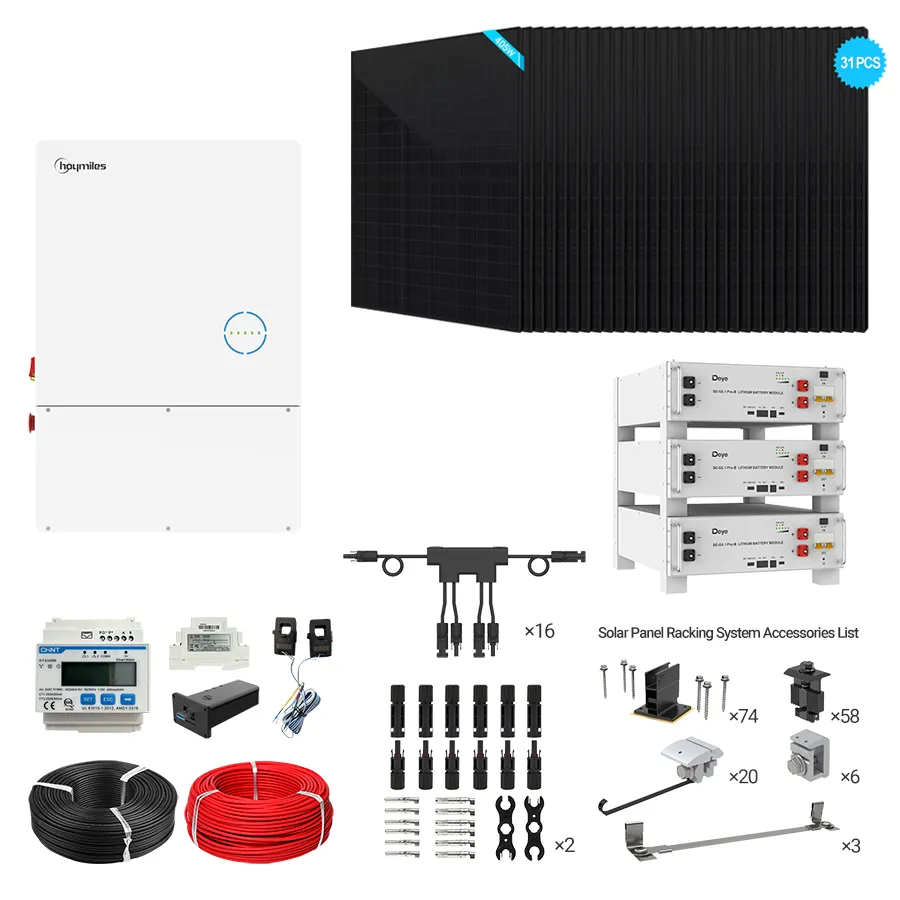

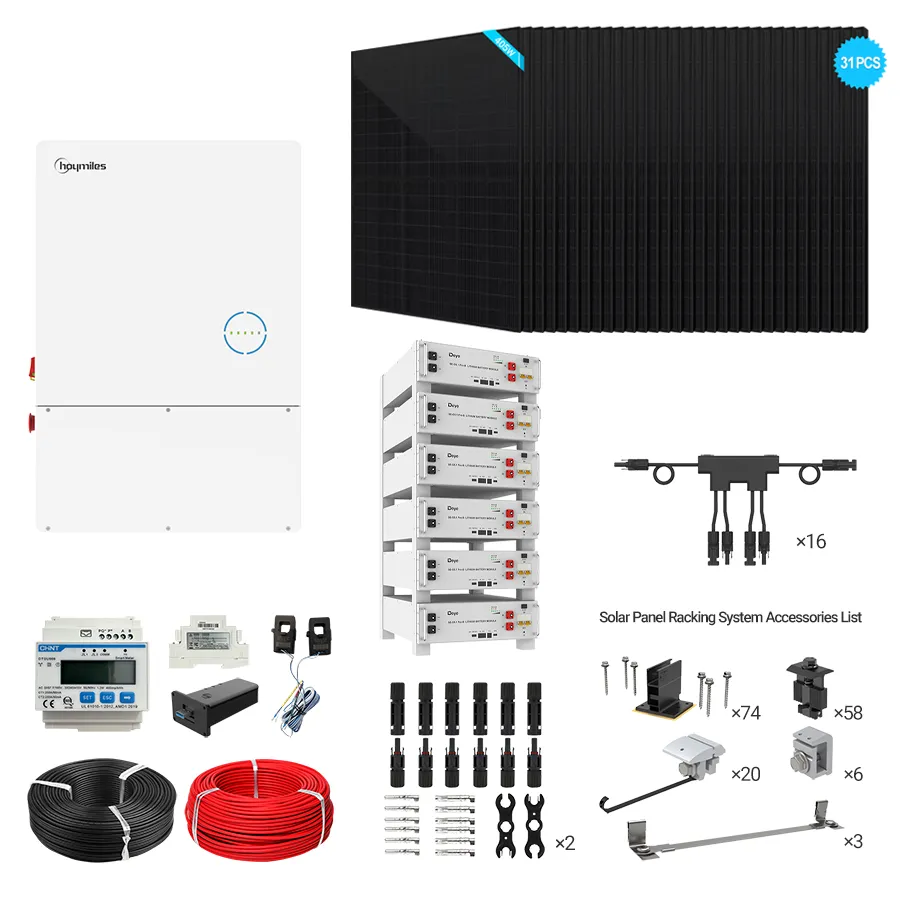

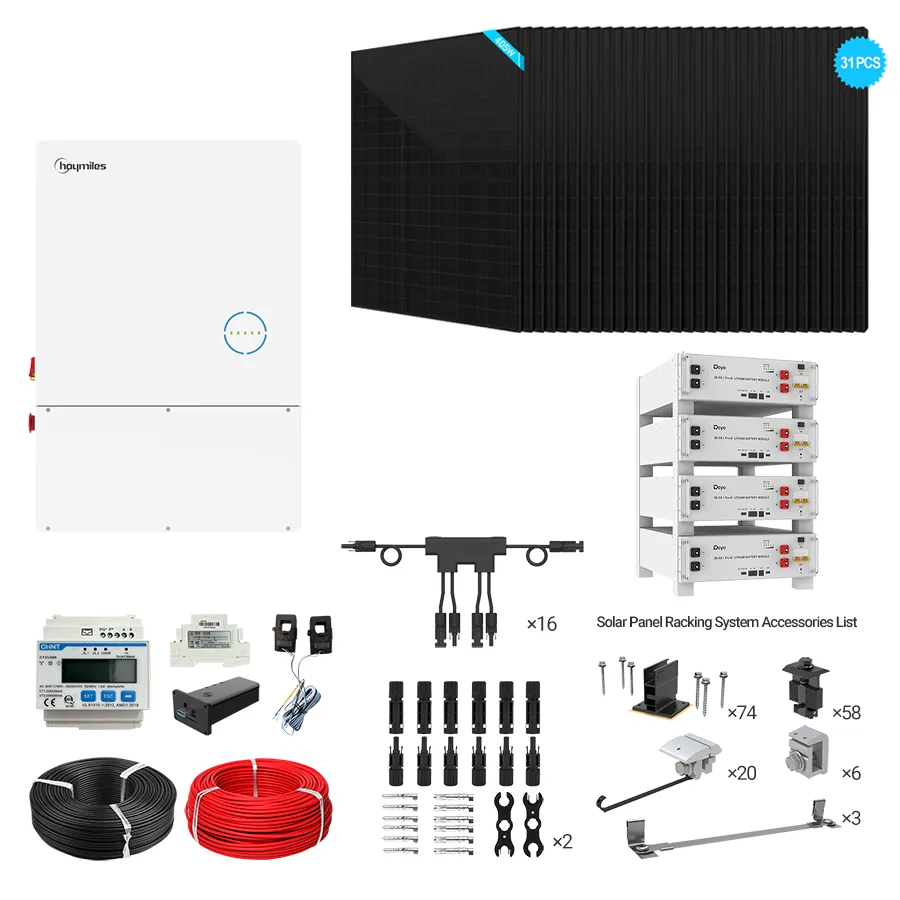

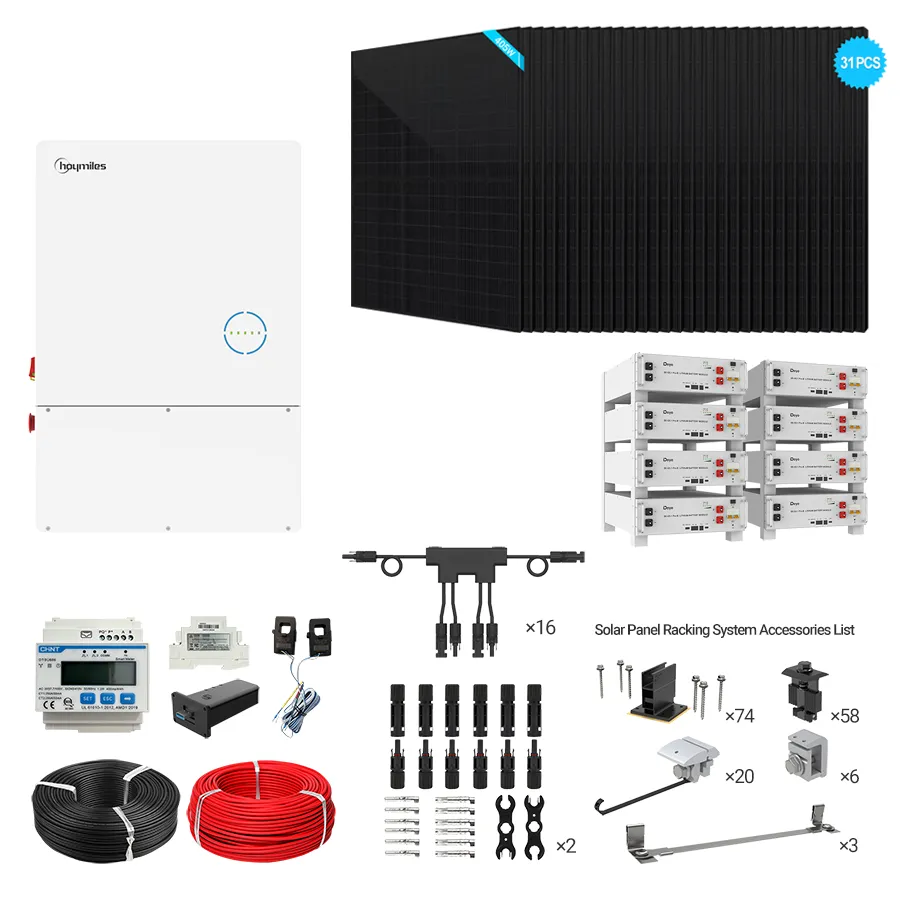

- Hoymiles 11.5kW Hybrid Bundle | 12.6kW PV + 10-40kWh Battery
Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title
Hoymiles 11.5KW Hybrid Inverter
| AC Output Voltage | 240, 211-264/208, 183-229 |
| Max. Input Power | 19200W |
| Efficiency | 97.6% |
| Max Charging Current | 200A |
| MPPT Voltage Range | 500VDC |
| Max. parallel | 10 |
| Backup switch Time | <40ms |
| Battery Technologies | Li-ion/Lead-acid |
| Battery Nominal DC Voltage | 48V |
| BMS Communication | RS485, option: Wi-Fi/Ethernet/4G |
| Enclosure | Type 4X |
| Operating Temperature | -13℉ to +149℉ (>113℉, derating)/-25℃ to +65℃ (>45℃, derating) |
| Noise | <40 dB |
| Dimension | 19.8 × 29.1 × 7.95 inch |
| Weight | 90.4lbs |
| Warranty | 10 Years |
| Certificate | UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A |

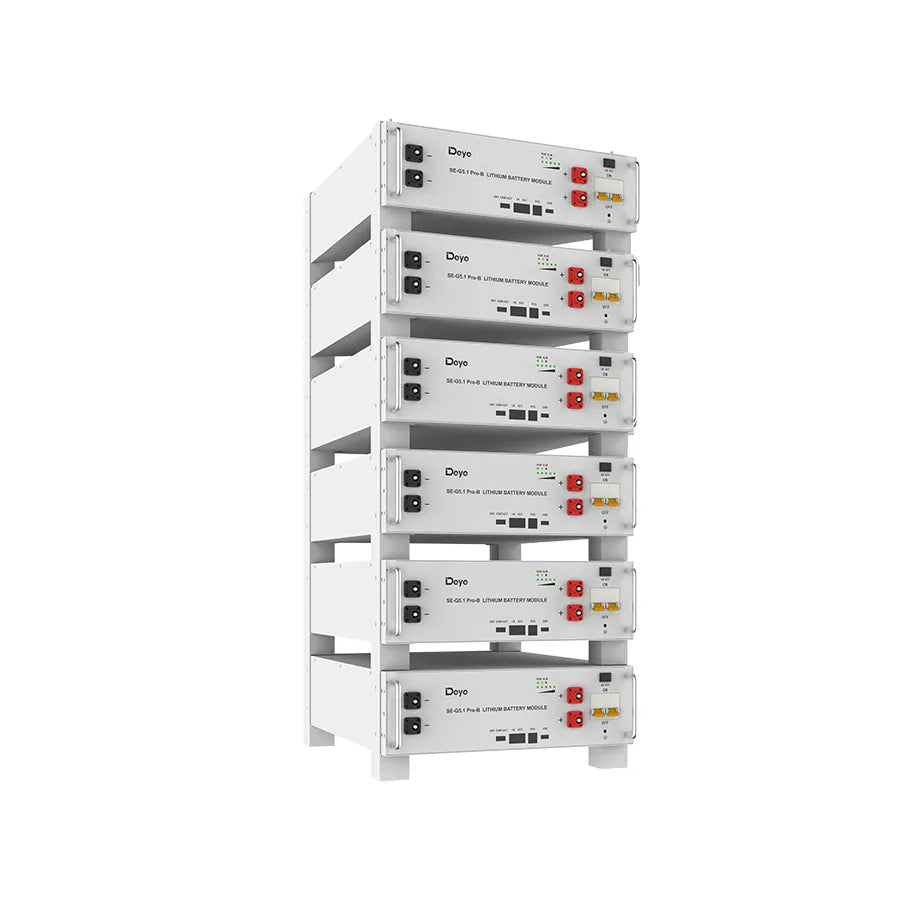

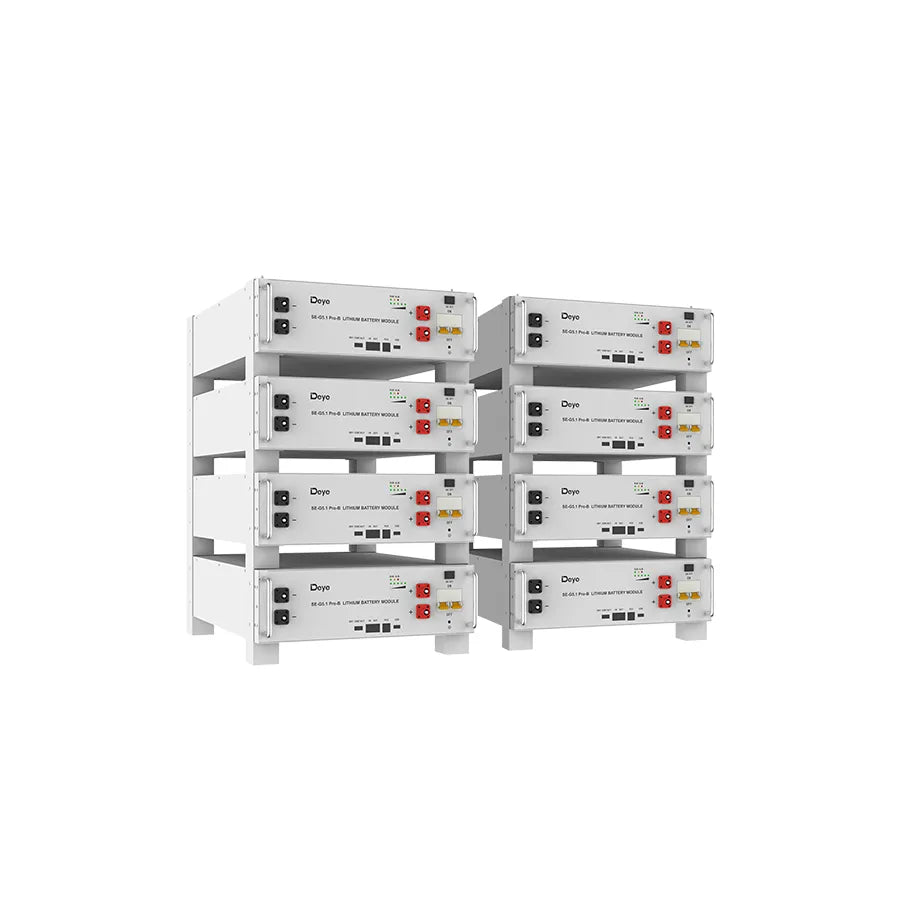

Deye SE-G5.1 Pro-B Lithium Battery
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12KWH |
| Scalability | Expandable up to 64 units in parallel (max. 327kWh) |
| Usable Energy | 4.6kWh |
| Recommend Depth of Discharge | 90% |
| IP Rating Of Enclosure | IP20 |
| Operating Temperature | Charge:0~55°℃(Optional heating: -20°℃~55°℃ ),Discharge:-20℃C~55°C |
| MAX Continuous Charge Current | 100A |
| Cycle Life | ≧6000 |
| Installation | Installation Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) |
| Dimension | 440 × 133 × 540 mm |
| Weight | 45kg |
| Warranty | 10 Years |
| Certificate | UN38.3,IEC62619,CE,UK, VDE2510-50,CEI0-21,FCC, UL1973,UL9540A |
405W Mono-Crystalline PERC Solar Panel
| Peak Power | 405W |
| Solar Cell | Mono Crystalline Silicon,91mm×182mm |
| Power Tolerance | (0~+5W） |
| Module Efficiency(%) | 20.72% |
| Maximum Power Current(IMP) | 13.05A |
| Maximum Power Voltage(VMP) | 31.04V |
| Short Circuit Current(ISE) | 13.83A |
| Open Circuit Voltage(VOC) | 37.13V |
| Landscape | 1100mm (4mm2) |
| Front cover | 3.2mm ultra clear embossed tempered coated glass |
| Connector | MC4 compatible |
| Junction box | IP68, |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V |
| Dimension | 1722x1134x30mm |
| Weight | 20.3kg |
| Warranty | 12-year product warranty & 25-year linear power warranty |
| Certificate | UL 61730-1,UL 61730-2,CSA C22.2 |
TRT Rail-less Base System
| Rail-less Base 3010354 | Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment. |
| Mid Clamp 3010355 | Mid Clamp 3010355 |
| Hidden End Clamp 3010138 | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
| Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness. | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
PV Wire & PV Connector
| Rated Voltage | UL1500V |
| Rated Current | 50A |
| Cable Specification | 90ºC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm, 14 AWG, 12 AWG, 10 AWG |
| Resistance of Connector | Max 0.3mΩ |
| Flammability Class | UL94 V-0 |
| Temperature Range | -40℃～+85℃ |
| Flammability Class | UL94 V-0 |
| Wire Size | 10AWG 6mm² |
| Number of Strands | 75 |
| Color | Black/Red |
| Inner Layer Thickness | 0.044in |
| Outer Jacket Thickness | 0.029in |
| Outer Diameter(O.D.) | 0.268in |
| Bending Radius | 1.60in |
| Conductor Resistance | 1.01Ω/1,000ft |
| Voltage rating | 2,000V/2KV |
| Temperature Rating | 40ºC to 90ºC |
| Certificate | UL 4703, RoHS compliant |
Hoymiles Rapid Shutdown
| Output voltage range | 16-160 V |
| Input voltage range | 8-80 V |
| Maximum current | 15 A |
| Maximum short circuit current | 25 A |
| Maximum system voltage | 1000 V / 1100 V (1500 V optional) |
| Communication type | SunSpec PLC |
| Shutdown output voltage | 1 V |
| Power consumption | 200 mW |
| Input/Output connectors | MC4 / MC4 EVO2, optional |
| Input cable length | 0.45 m (1.48 ft.) / 1.6 m (5.23 ft.), optional |
| Output cable length | 2.7 m (+) / 0.1 m (-) 8.86 ft. (+) / 0.33 ft. (-) |
| Dimensions | 133 x 58 x 16 mm (5.24 x 2.28 x 0.63 inch) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Outdoor rating | IP68 / NEMA6P |
| Certificate | UL1741, CSA C22.2 No. 330-17, IEC/EN 62109-1, FCC Part15 Class B, ICES-003, IEC/EN 61000-6-1/-2/-3/-4 |
Supports
Title
-
Download
-
Video
-
FAQ
Data Sheet
User Manual
Warranty
Certifications
Hoymiles 11.5KW Datasheet
Download
Deye SE-G5.1 Pro-B Datasheet
Download
SUNPRO 405W Full Black 30MM Data Sheet
Download
TRT Rail-less Base System01 Datasheet
Download
TRT Rail-less Base System Datasheet
Download
TRT Rail-less Base Racking System Datasheet
Download
PV Wire Flyer Datasheet
Download
QC4.10_H4 Connector Datasheet
Download
Hoymiles Rapid Shutdown HRSD-2C Datasheet
Download
HY_A_DEYE10.2-_3.8-11.5_k-xP_UL9540_Certificate
Download
HY_A_DEYE5.1-_3.8-11.5_k-xP_UL9540_Certificate
Download
SE-G5.1 Pro-B UL Certification
Download
SUNPRO E532265 Certificate of Compliance
Download
Top Rack Public Sharable Summary of Fire Testing Result 106018786MID-001
Download
Top Rack High Wind Water Penetration Testing
Download
TRT_3010355_Mid-Clamp_Certificate
Download
Top Rack TRT_01_Certificate
Download
PV Wire UL4703
Download
HRSD Series SunSpec Receiver Global Certificate
Download
HRSD-2C Series FCC CFR47 part15B NA Certificate
Download
Hoymiles HRSD-2C Letter Of Attestation
Download
HOYMILES 5.1 Installation Guide
