Name: GoodWe ES-US 11.4kW Inverter With ABD + EV Charger + 12.8-38.4kWh Battery (APsmart RSD)
Brand: My Store
SKU: KG1143204
Price: 8500.0 USD
Availability: InStock

UL 9540 Closed-Loop Bundle

GoodWe ES-US 11.4kW Inverter With ABD + EV Charger + 12.8-38.4kWh Battery (APsmart RSD)

$8,500.00

Save $0

WHAT IS INCLUDED WITH THE KITS ! KG1143204 – 11.4kW Inverter + 12.8kWh Battery ★ Hybrid Inverter: 1 X GoodWe ES-US 11.4kW 211-264 47.5A ★ Battery: 4 X GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 High Voltage Battery(UL 9540) ★ 1 X GDPCU ★ 1 X Automatic Backup Device ★ 1 X EV Charger KG1143205 – 11.5kW Inverter + 16kWh Battery) ★ Hybrid Inverter: 1 X GoodWe ES-US 11.4kW 211-264 47.5A ★ Battery: 5 X GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 High Voltage Battery(UL 9540) ★ 1 X GDPCU ★ 1 X Automatic Backup Device ★ 1 X EV Charger KG1143206 – 11.5kW Inverter + 19.2kWh Battery ★ Hybrid Inverter: 1 X GoodWe ES-US 11.4kW 211-264 47.5A ★ Battery: 6 X GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 High Voltage Battery(UL 9540) ★ 1 X GDPCU ★ 1 X Automatic Backup Device ★ 1 X EV Charger KG1143212 – 11.5kW Inverter + 38.4kWh Battery ★ Hybrid Inverter: 1 X GoodWe ES-US 11.4kW 211-264 47.5A ★ Battery: 12 X GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 High Voltage Battery(UL 9540)n ★ 2 X GDPCU ★ 1 X Automatic Backup Device ★ 1 X EV Charger

+SHOW MORE

Product Model

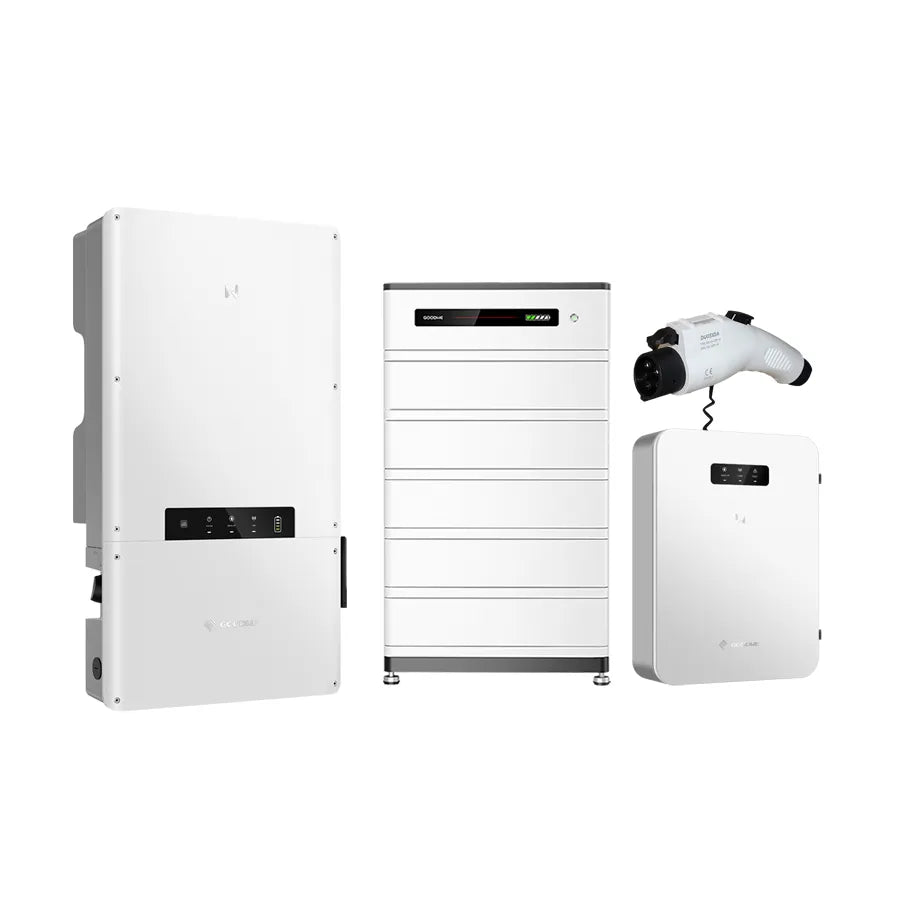

KG1143204(11.4kW INV + ABD + EV Charger + PCU+12.8kWh BAT)

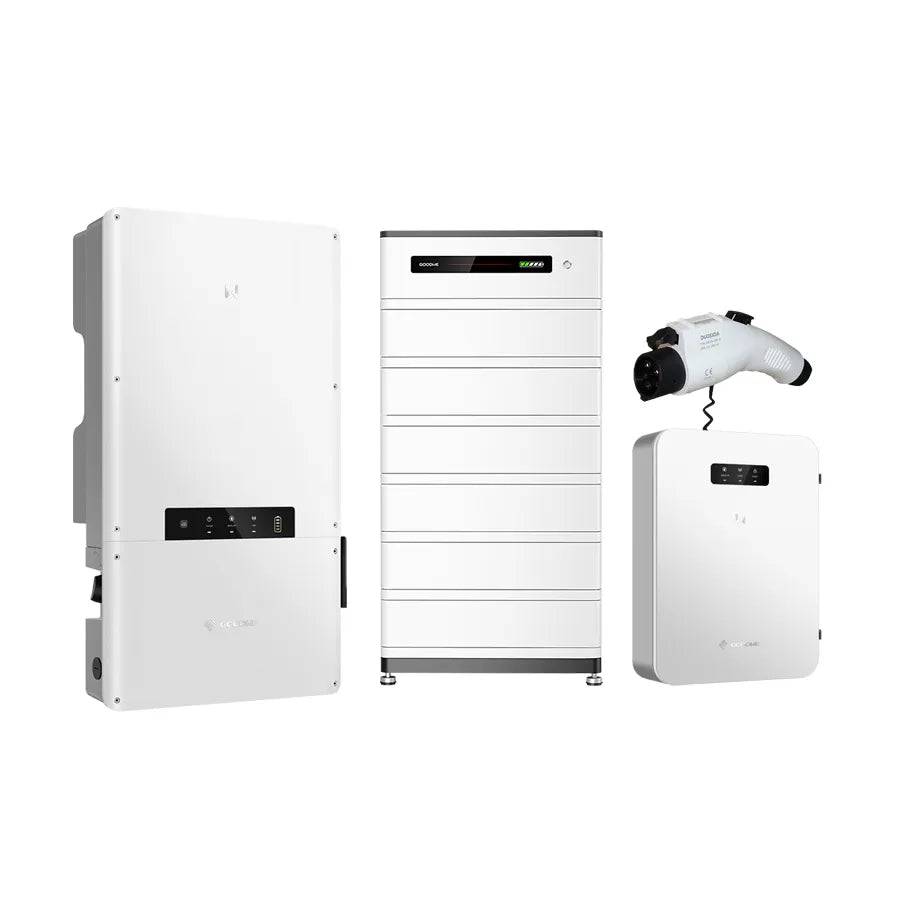

KG1143205(11.4kW INV + ABD + EV Charger + PCU+16kWh BAT)

KG1143206(11.4kW INV + ABD + EV Charger + PCU+19.2kWh BAT)

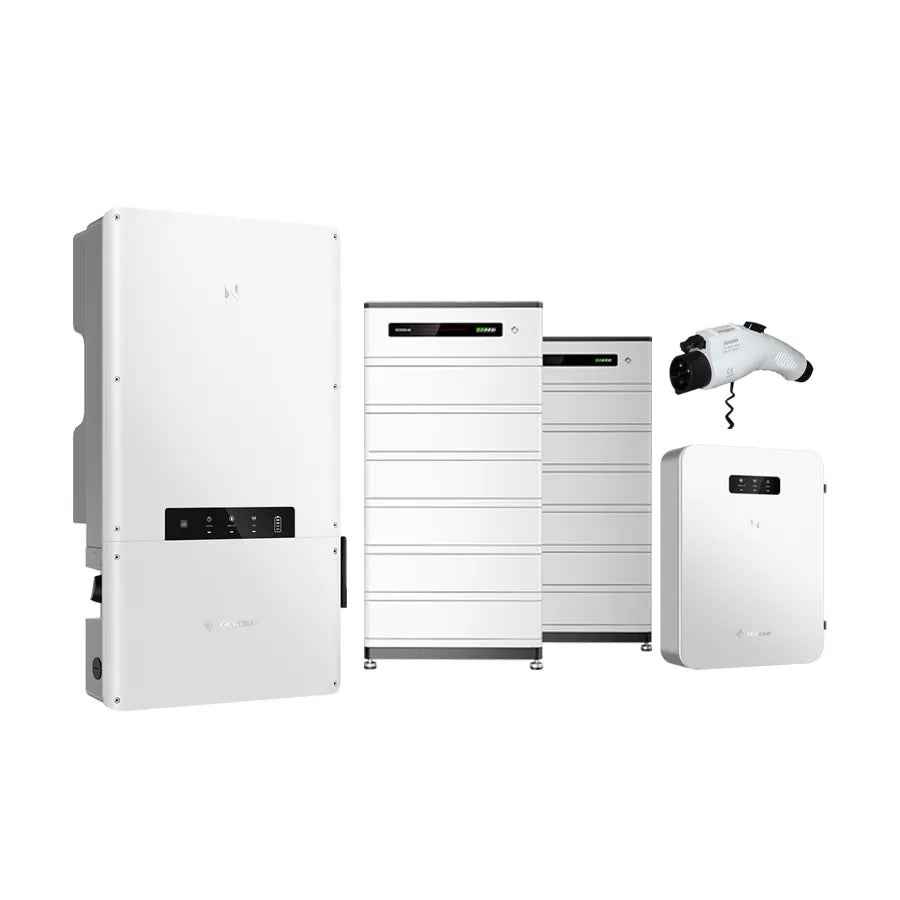

KG1143212(11.4kW INV + ABD + EV Charger + PCU+38.4kWh BAT)

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Title

30 DAYS Price Guarantee

BestSolarBundle guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Title

Free Local

Shipping

Warranty

Protection

Lifetime Customer

Support

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports

Overview

Title

Tech Specs

Title

GoodWe ES-US 11.4kW 211-264 47.5A Hybrid Inverter

AC Output Voltage	211-264
Max. Input Power	17100W
Efficiency	97.6%
Max Charging Current	50A
MPPT Voltage Range	550VDC
Max Continuous Charging Current	50A
Battery Technologies	Li-ion
Battery Nominal DC Voltage	300V
BMS Communication	RS485, CAN
Enclosure	NEMA Type 4X
Operating Temperature	-31°F ~ +140°F (-35°C ~ +60°C)
Noise	<40 dB
Dimension	19.1 × 35.4 × 7.5 inch
Weight	84.9lbs
Warranty	10 Years
Certificate	UL 1741, CSA 22.2 No. 107.1, UL 1998, UL1699B,UL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,FCC part15 CLASS B

GoodWe Lynx FH-US 12.8kWH 256V LiFeO4 Battery

Nominal Voltage	256V
Operating Voltage Range	228V ~ 288V
Energy	12.8KWH
Nominal Power (kW)	8.96kW
Relative Humidity	≤95%
Nominal Dis- / Charge Current (A)	35
Ingress Protection Rating	IP65
Operating Temperature	Charge: +32°F ~ +122°F (0°C ~ +50°C); Discharge: +5°F ~ +122°F (-15°C ~ +50°C)
Installation	Ground-Mounted
Dimension	23.6 × 35.6 × 15 inch
Weight	384.71lbs
Warranty	10 Years
Certificate	UL1973, UL9540A-2019,FCC part 15,UN38.3

Automatic Backup Device

Nominal Voltage	240V
Feed-in Type	Split Phase
Nominal AC Voltage of Line Conductor (V)	120 / 240
Operating Voltage Range (V)	211V ~ 264V
Operating Temperature Range	-13°F ~ 140°F (-25°C ~ 60°C)*2
Max. Operating Altitude	9842ft (3000m)
Cooling Method	Natural Convection
Mounting Method	Wall Mounted
Ingress Protection Rating	Type 3R, IP44
Dimension	17.7 × 24 × 5.9 inch
Weight	26lbs
Warranty	10 Years
Certificate	UL1741, CSA22.2 NO.107-01,FCC part15 CLASS B
