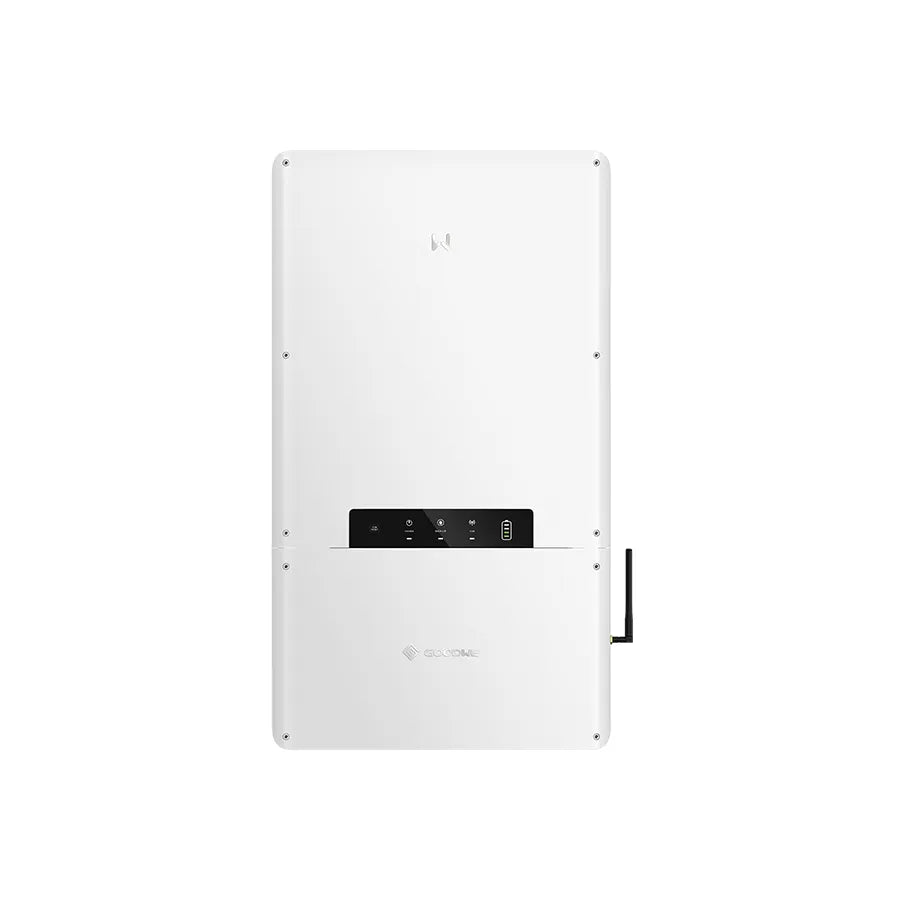

GoodWe ES-US 11.4kW 211-264 47.5A Hybrid Inverter
| AC Output Voltage | 211-264 |
| Max. Input Power | 17100W |
| Efficiency | 97.6% |
| Max Charging Current | 50A |
| MPPT Voltage Range | 550VDC |
| Max Continuous Charging Current | 50A |
| Battery Technologies | Li-ion |
| Battery Nominal DC Voltage | 300V |
| BMS Communication | RS485, CAN |
| Enclosure | NEMA Type 4X |
| Operating Temperature | -31°F ~ +140°F (-35°C ~ +60°C) |
| Noise | <40 dB |
| Dimension | 19.1 × 35.4 × 7.5 inch |
| Weight | 84.9lbs |
| Warranty | 10 Years |
| Certificate | UL 1741, CSA 22.2 No. 107.1, UL 1998, UL1699B,UL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,FCC part15 CLASS B |

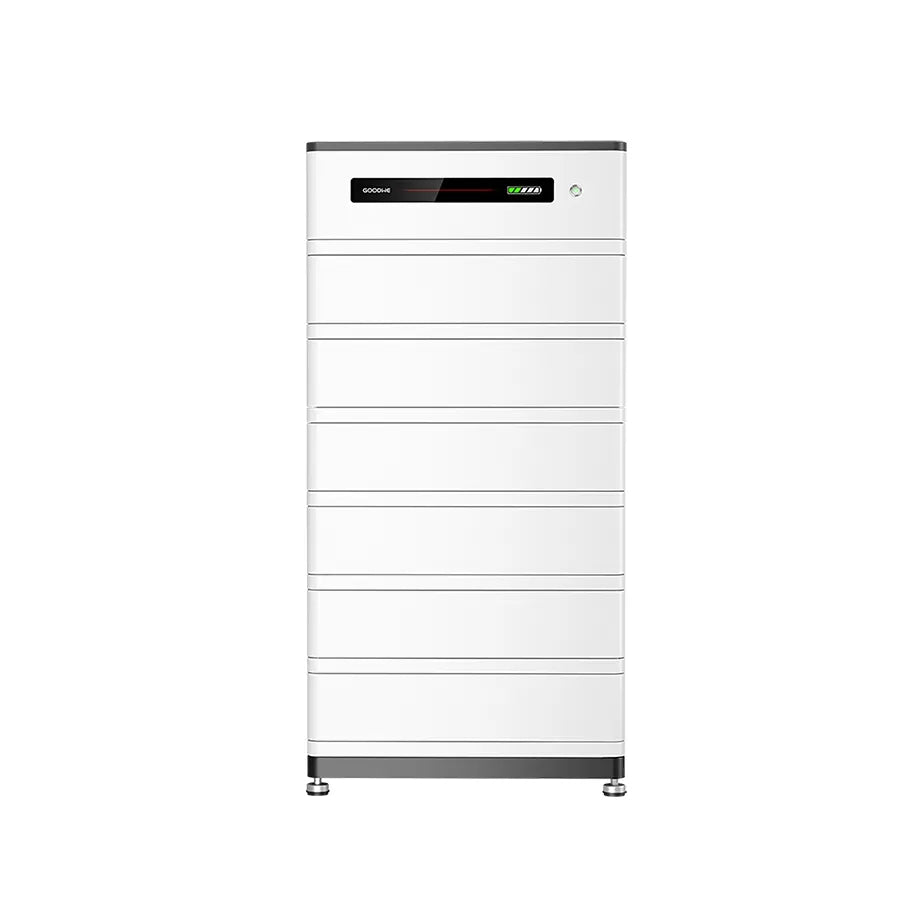

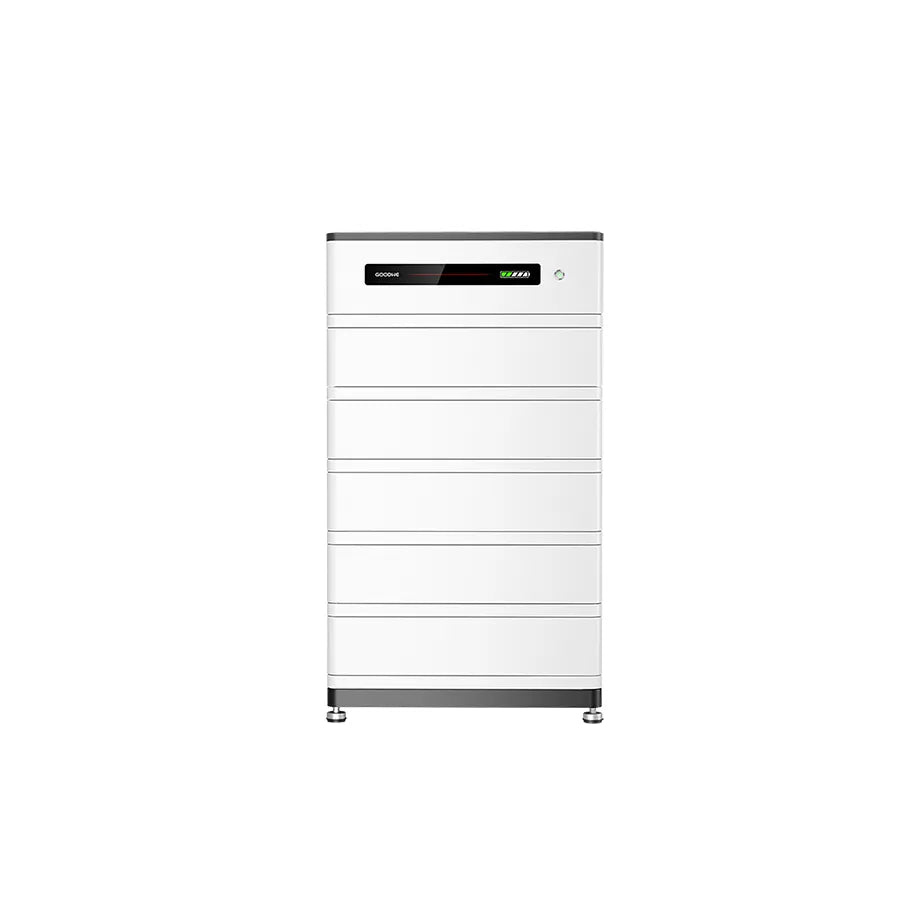

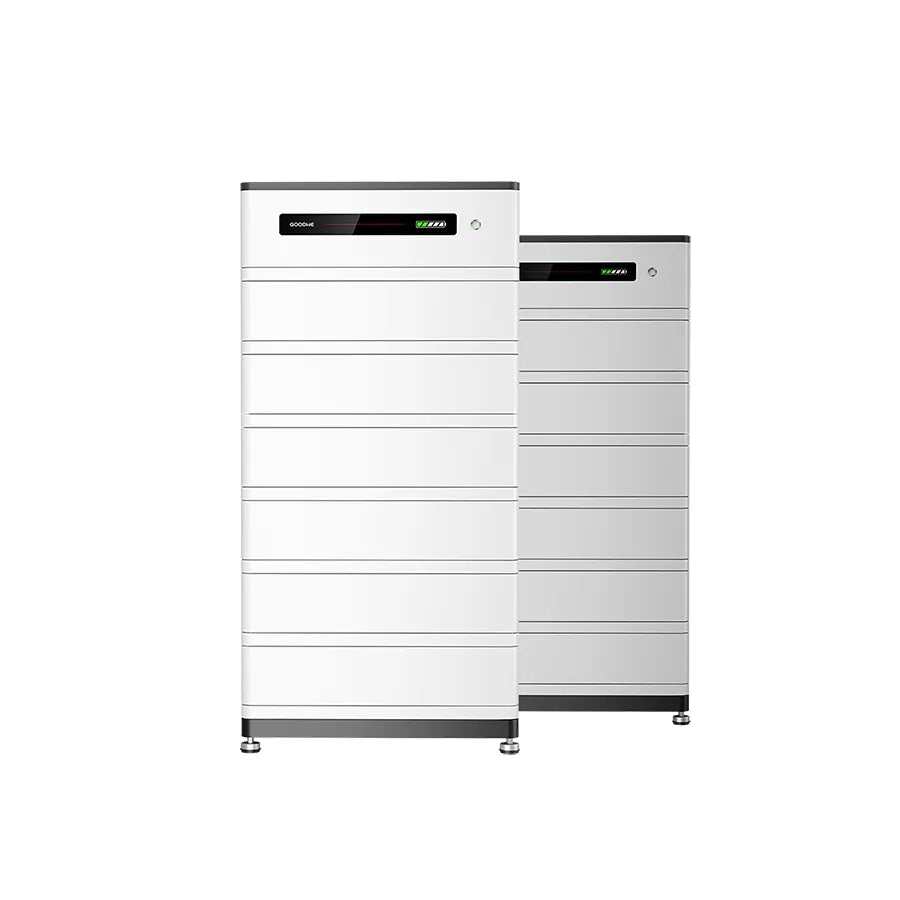

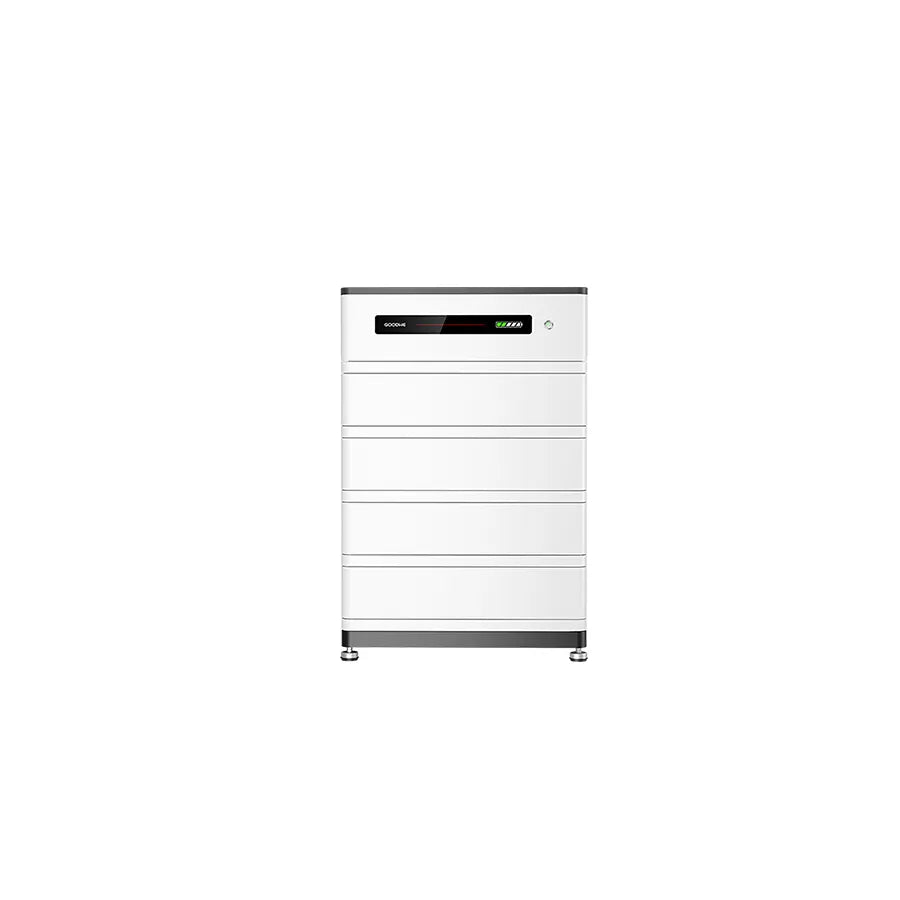

GoodWe Lynx FH-US 12.8kWH 256V LiFeO4 Battery
| Nominal Voltage | 256V |
| Operating Voltage Range | 228V ~ 288V |
| Energy | 12.8KWH |
| Nominal Power (kW) | 8.96kW |
| Relative Humidity | ≤95% |
| Nominal Dis- / Charge Current (A) | 35 |
| Ingress Protection Rating | IP65 |
| Operating Temperature | Charge: +32°F ~ +122°F (0°C ~ +50°C); Discharge: +5°F ~ +122°F (-15°C ~ +50°C) |
| Installation | Ground-Mounted |
| Dimension | 23.6 × 35.6 × 15 inch |
| Weight | 384.71lbs |
| Warranty | 10 Years |
| Certificate | UL1973, UL9540A-2019,FCC part 15,UN38.3 |

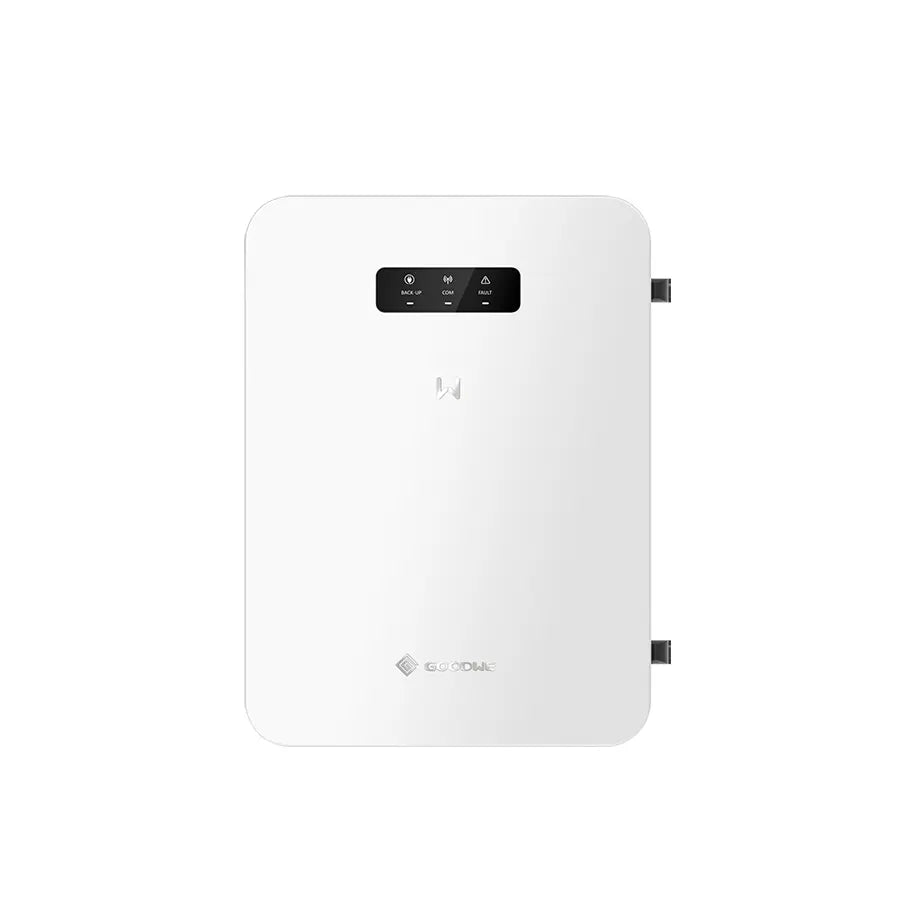

Automatic Backup Device
| Nominal Voltage | 240V |
| Feed-in Type | Split Phase |
| Nominal AC Voltage of Line Conductor (V) | 120 / 240 |
| Operating Voltage Range (V) | 211V ~ 264V |
| Operating Temperature Range | -13°F ~ 140°F (-25°C ~ 60°C)*2 |
| Max. Operating Altitude | 9842ft (3000m) |
| Cooling Method | Natural Convection |
| Mounting Method | Wall Mounted |
| Ingress Protection Rating | Type 3R, IP44 |
| Dimension | 17.7 × 24 × 5.9 inch |
| Weight | 26lbs |
| Warranty | 10 Years |
| Certificate | UL1741, CSA22.2 NO.107-01,FCC part15 CLASS B |
