Name: GoodWe ES-US 11.4kW Hybrid Bundle | 15.8kW PV + 12.8-38.4kWh Battery
Brand: My Store
SKU: KG114320431
Price: 11990.0 USD
Availability: InStock

GoodWe ES-US 11.4kW Hybrid Bundle | 15.8kW PV + 12.8-38.4kWh Battery

$11,990.00

$15,800.00

Save $3,810

Free shipping (lower 48 states)

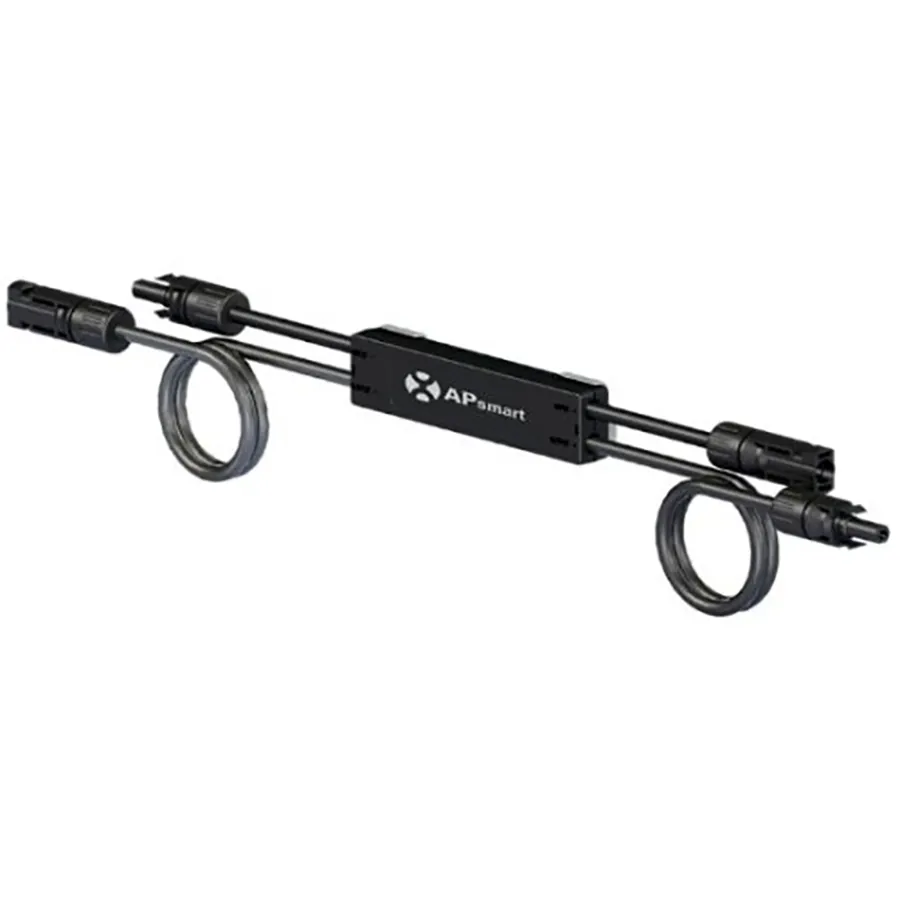

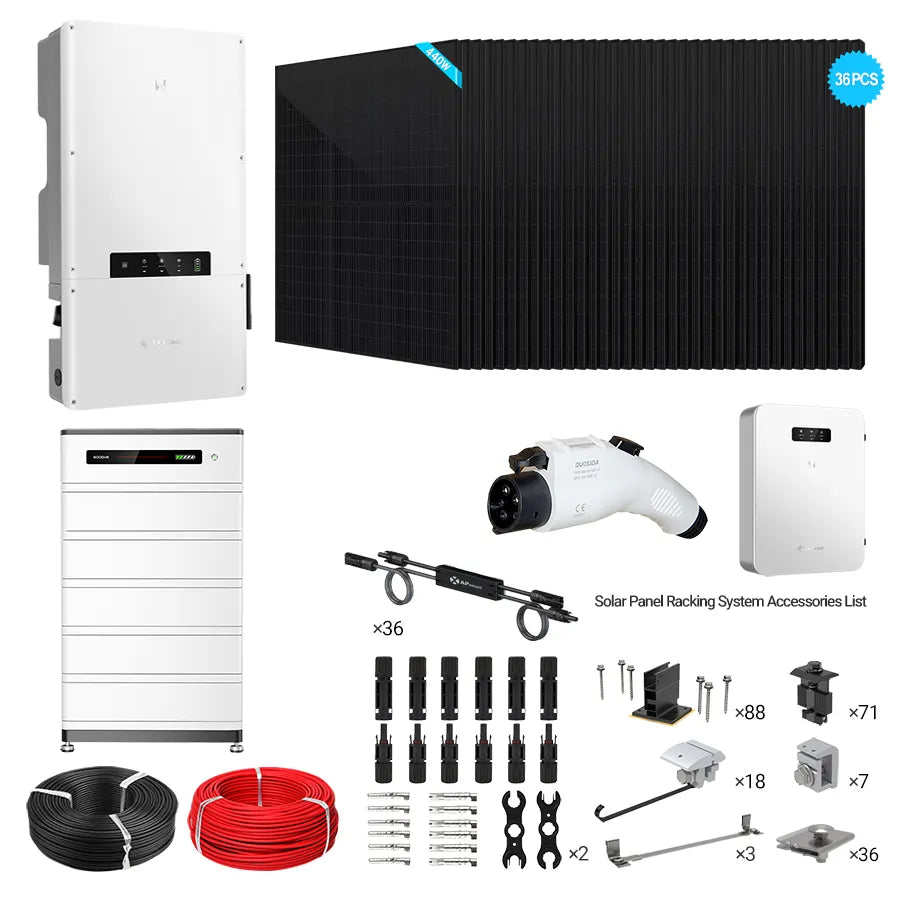

Bundle Contents: Hybrid Inverter: 11.4 kW Batteries: 4 Different Battery Capacity Options Available Solar Panels: Sunpro 440W Tier 1 Full Black Panel(×36) Racking: TopRack System for 36 Panels PV Cables and MC4 Connectors GDPCU Rapid Shutdown Units (×36) Automatic Backup Device(ABD) EV Charger

Select Battery Capacity

Choose a configuration below.

12.8kWh

16kWh

19.2kWh

38.4kWh

Quantity

Title

Total Price

Total Price

$11,990.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title

GoodWe ES-US 11.4kW 211-264 47.5A Hybrid Inverter

AC Output Voltage	211-264
Max. Input Power	17100W
Efficiency	97.6%
Max Charging Current	50A
MPPT Voltage Range	550VDC
Max Continuous Charging Current	50A
Battery Technologies	Li-ion
Battery Nominal DC Voltage	300V
BMS Communication	RS485, CAN
Enclosure	NEMA Type 4X
Operating Temperature	-31°F ~ +140°F (-35°C ~ +60°C)
Noise	<40 dB
Dimension	19.1 × 35.4 × 7.5 inch
Weight	84.9lbs
Warranty	10 Years
Certificate	UL 1741, CSA 22.2 No. 107.1, UL 1998, UL1699B,UL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,FCC part15 CLASS B

GoodWe Lynx FH-US 12.8kWH 256V LiFeO4 Battery

Nominal Voltage	256V
Operating Voltage Range	228V ~ 288V
Energy	12.8KWH
Nominal Power (kW)	8.96kW
Relative Humidity	≤95%
Nominal Dis- / Charge Current (A)	35
Ingress Protection Rating	IP65
Operating Temperature	Charge: +32°F ~ +122°F (0°C ~ +50°C); Discharge: +5°F ~ +122°F (-15°C ~ +50°C)
Installation	Ground-Mounted
Dimension	23.6 × 35.6 × 15 inch
Weight	384.71lbs
Warranty	10 Years
Certificate	UL1973, UL9540A-2019,FCC part 15,UN38.3

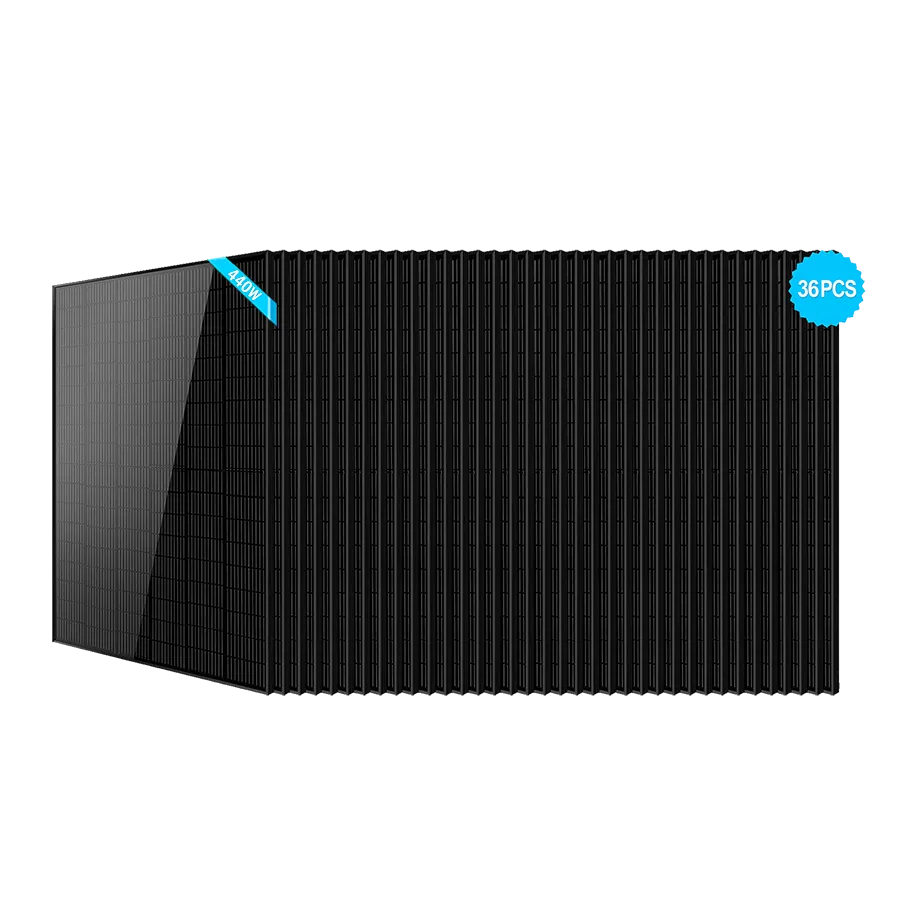

440W Mono-Crystalline BIFACIAL Solar Panel

Peak Power	440W
Solar Cell	Mono Crystalline BIFACIAL,91mm×182mm
Power Tolerance	(0~+5W）
Module Efficiency(%)	22.53%
Maximum Power Current(IMP)	13.72A
Maximum Power Voltage(VMP)	32.09V
Short Circuit Current(ISE)	14.43A
Open Circuit Voltage(VOC)	38.53V
Landscape	1100mm (4mm2)
Front cover	2.0mm Anti-Reflection Coating, Heat Strengthened Glass
Connector	MC4 Compatible
Junction box	IP68, 3 bypass diodes
Operating Temperature	-40°C to +85°C
Maximum System Voltage	1000V
Dimension	1722x1134x30mm
Weight	23.3kg
Warranty	15-year product warranty & 25-year linear power warranty
Certificate	UL 61730-1,UL 61730-2,CSA C22.2

Automatic Backup Device

Nominal Voltage	240V
Feed-in Type	Split Phase
Nominal AC Voltage of Line Conductor (V)	120 / 240
Operating Voltage Range (V)	211V ~ 264V
Operating Temperature Range	-13°F ~ 140°F (-25°C ~ 60°C)*2
Max. Operating Altitude	9842ft (3000m)
Cooling Method	Natural Convection
Mounting Method	Wall Mounted
Ingress Protection Rating	Type 3R, IP44
Dimension	17.7 × 24 × 5.9 inch
Weight	26lbs
Warranty	10 Years
Certificate	UL1741, CSA22.2 NO.107-01,FCC part15 CLASS B

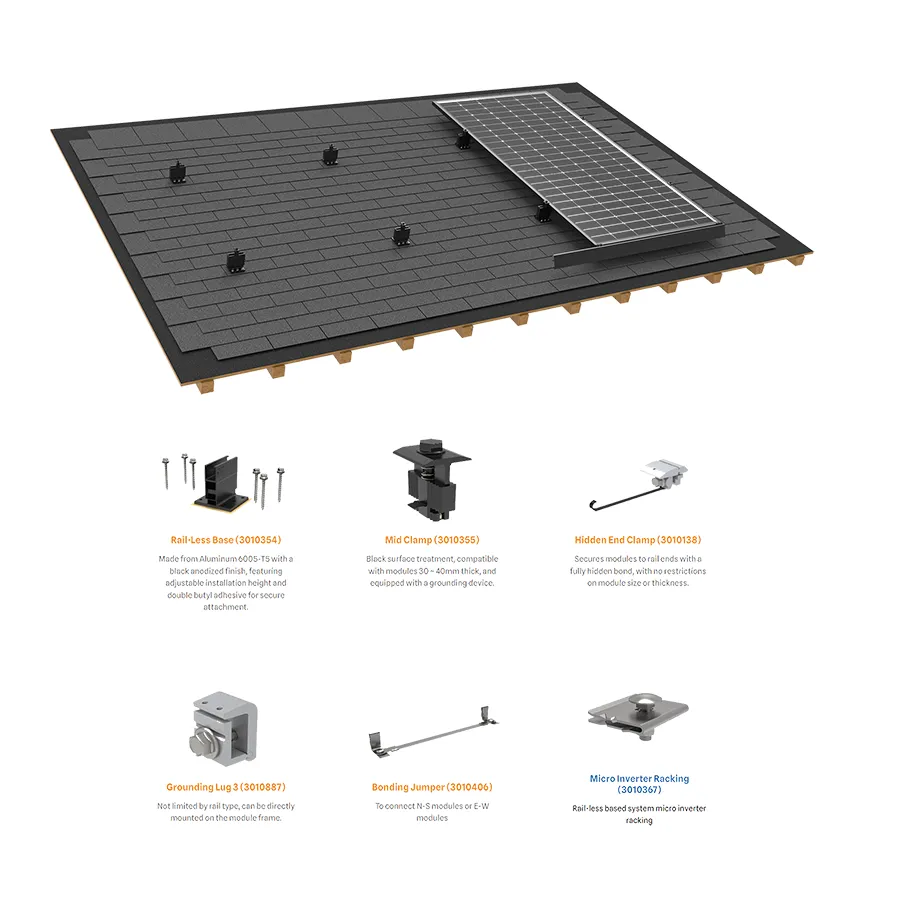

TRT Rail-less Base System

Rail-less Base 3010354	Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment.
Mid Clamp 3010355	Mid Clamp 3010355
Hidden End Clamp 3010138	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking
Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness.	To connect N-S modules or E-W modules.
Micro Inverter Racking (3010367)	Rail-less based system micro inverter racking

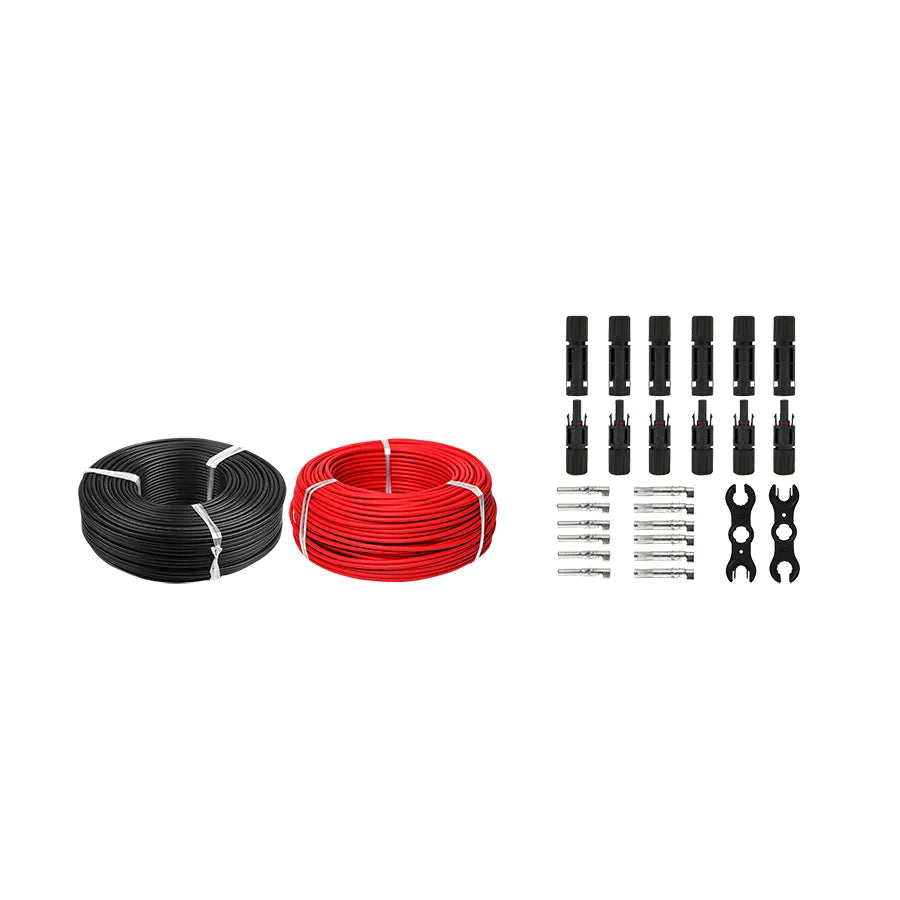

PV Wire & PV Connector

Rated Voltage	UL1500V
Rated Current	50A
Cable Specification	90ºC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm, 14 AWG, 12 AWG, 10 AWG
Resistance of Connector	Max 0.3mΩ
Flammability Class	UL94 V-0
Temperature Range	-40℃～+85℃
Flammability Class	UL94 V-0
Wire Size	10AWG 6mm²
Number of Strands	75
Color	Black/Red
Inner Layer Thickness	0.044in
Outer Jacket Thickness	0.029in
Outer Diameter(O.D.)	0.268in
Bending Radius	1.60in
Conductor Resistance	1.01Ω/1,000ft
Voltage rating	2,000V/2KV
Temperature Rating	40ºC to 90ºC
Certificate	UL 4703, RoHS compliant
