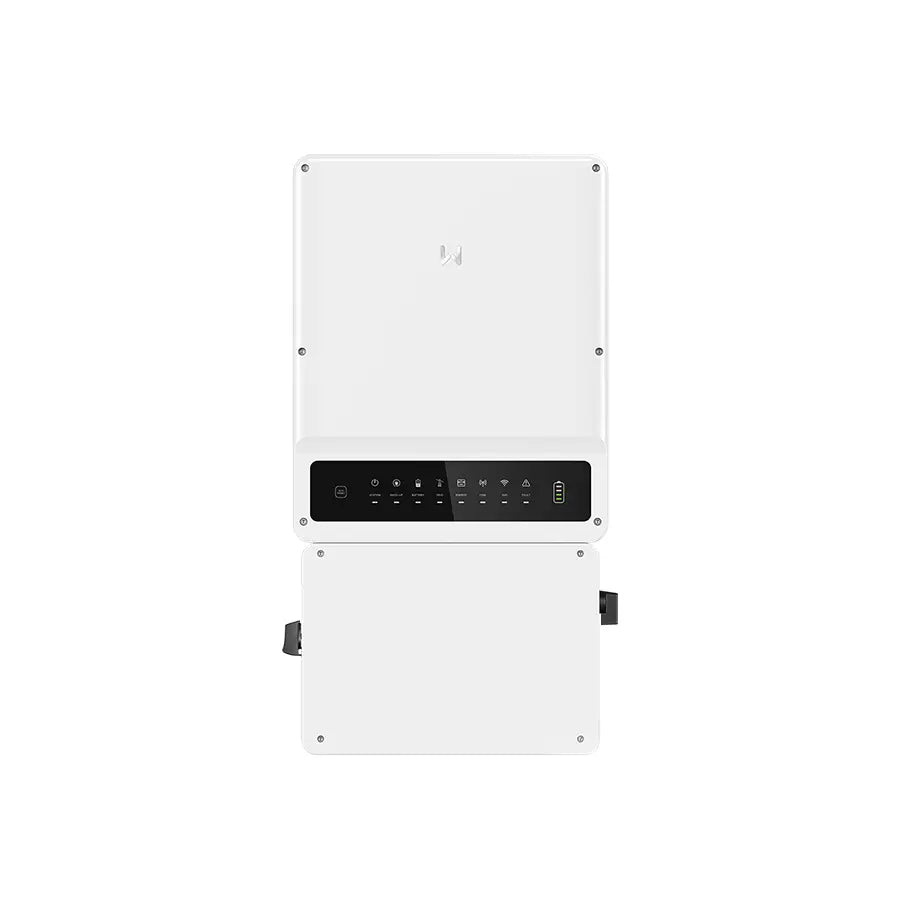

Name: GoodWe A-ES 9.6kW Inverter with ATX
Brand: My Store
SKU: GA9.6K
Price: 1580.0 USD
Availability: InStock

GoodWe A-ES 9.6kW Inverter with ATX

$1,580.00

$2,300.00

Save $720

Free shipping (lower 48 states)

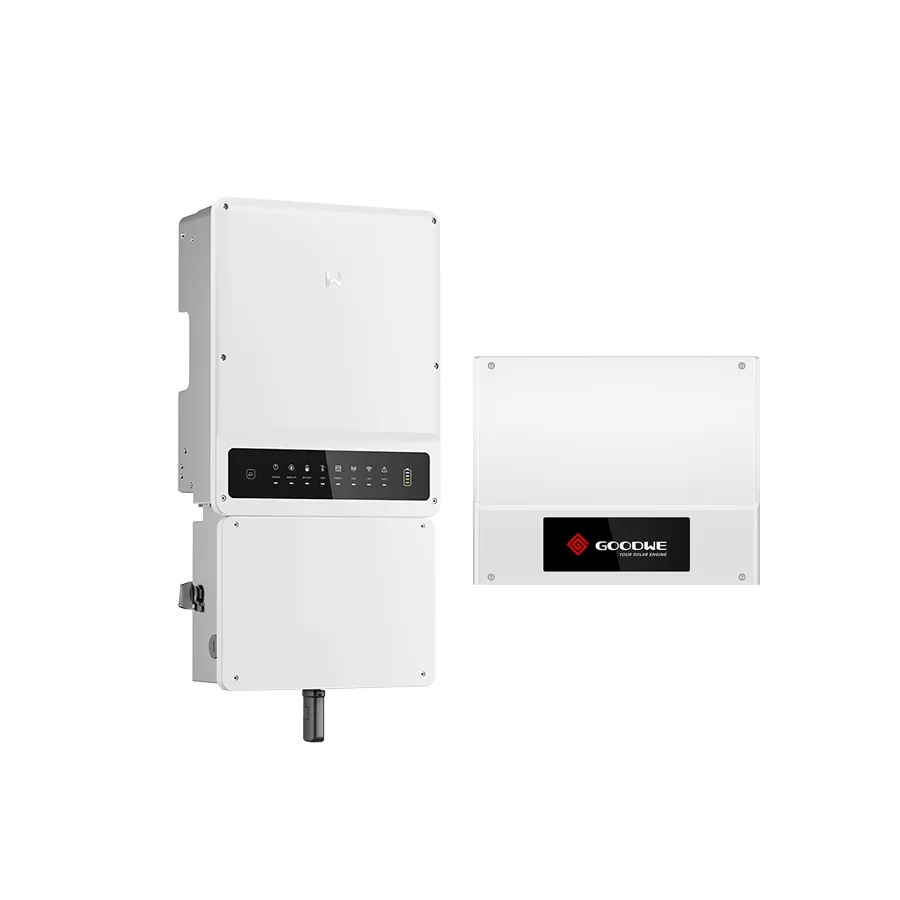

GoodWe A-ES Hybrid Inverter + ATX Auto Transformer Split-phase hybrid inverter (5–9.6 kW) for solar + storage systems Works with 80–495 V high-voltage batteries and up to 4 MPPTs ATX transformer balances 120/240 V loads for stable output Fast UPS-level backup with AFCI and rapid shutdown protection NEMA 4X enclosure, smart meter integration, and quiet operation Ideal for North American residential and off-grid applications

Product Model

9.6kW SKU:GA9.6K

Quantity

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview
Tech Specs
Supports
Reviews

Overview

Title

Tech Specs

Title

GoodWe A-ES 11.4kW 211-264 47.5A Hybrid Inverter

AC Output Voltage	211 to 264V @240V
Max. Input Power	15000W
Efficiency	97.6%
MPPT Voltage Range	550VDC
Max Continuous Charging Current	50A
Battery Technologies	Li-ion
Battery Voltage Range	80V ~ 495V
BMS Communication	RS485, CAN
Enclosure	NEMA Type 4X
Operating Temperature	-31°F ~ +140°F (-35°C ~ +60°C)
Noise	<40 dB
Dimension	16.3 × 31.1 × 6.9 inch
Weight	70.5lbs
Warranty	10 Years
Certificate	UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,UL 1741, CSA 22.2 No. 107-01, UL 1998, UL1699B,FCC part15 CLASS B

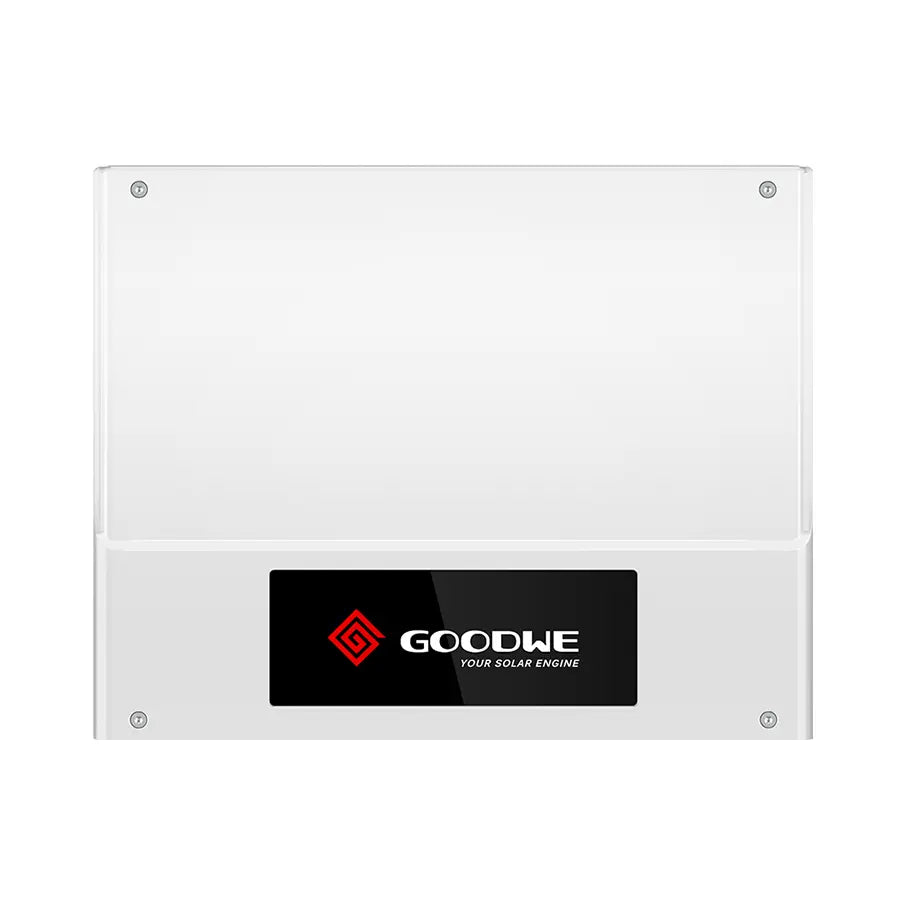

Automatic Transformer

Rated Voltage	120/240V Split Phase
Max. Continuous Rated Power (L-N) (VA)	4800V
Rated Frequency	60Hz
Max Continuous Output Current Per Phase@120V	40A
Split Phase Imbalance Current@Rated Power	40A
Thermal Protection	YES
Operating Temperature Range	-31°F ~ +140°F (-35°C ~ +60°C)
Relative Humidity	0 ~ 95%
Ingress Protection Rating	Type 4X
Mounting Method	Wall Mounted
Noise Emission (dB)	<25db
Weight	48.5lbs
Dimension	13.6 × 10.9 × 6.9 inch
Warranty	10 Years
Certificate	UL1741
