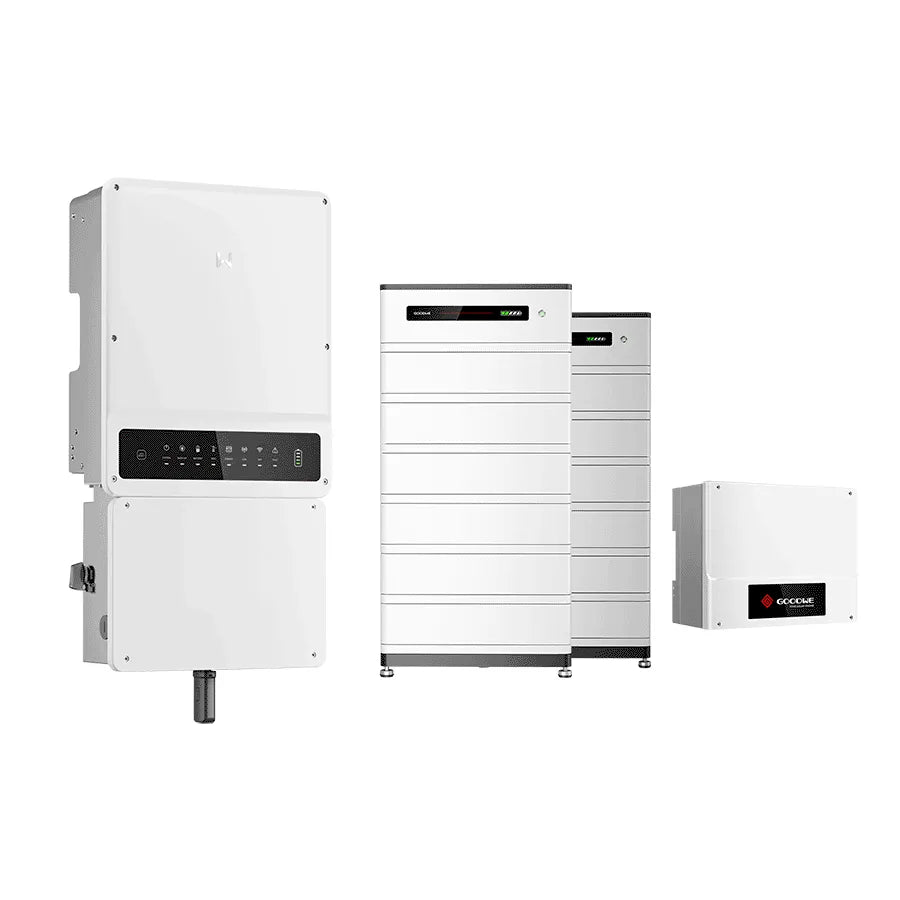

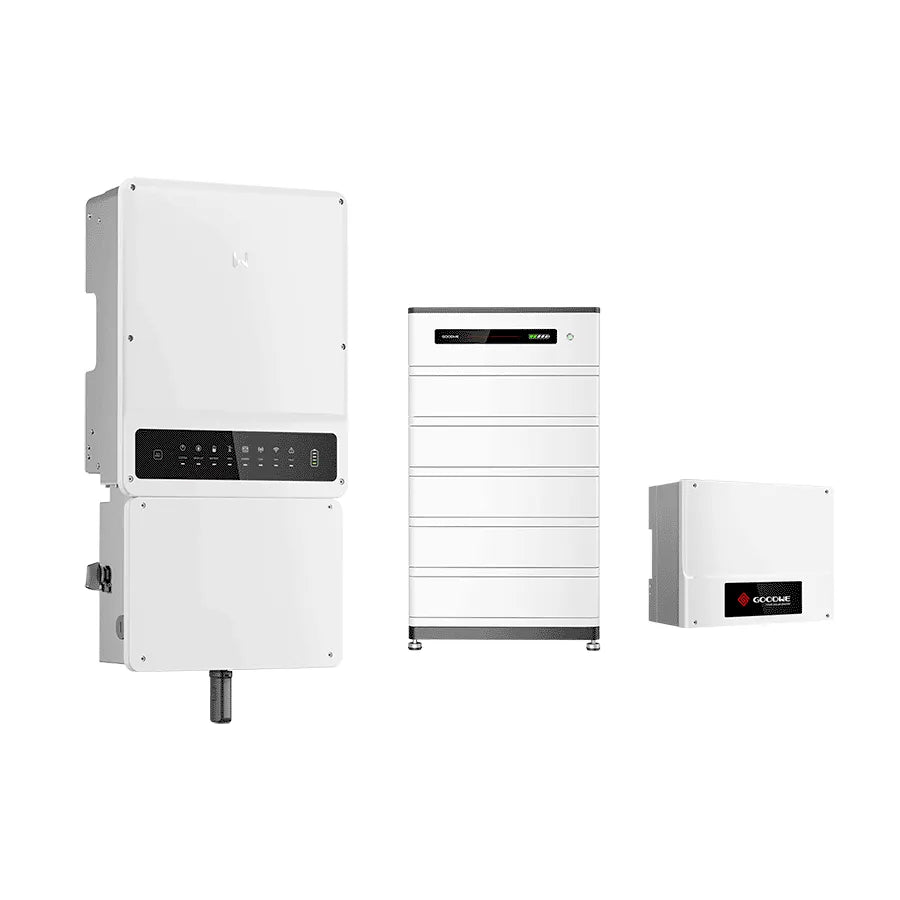

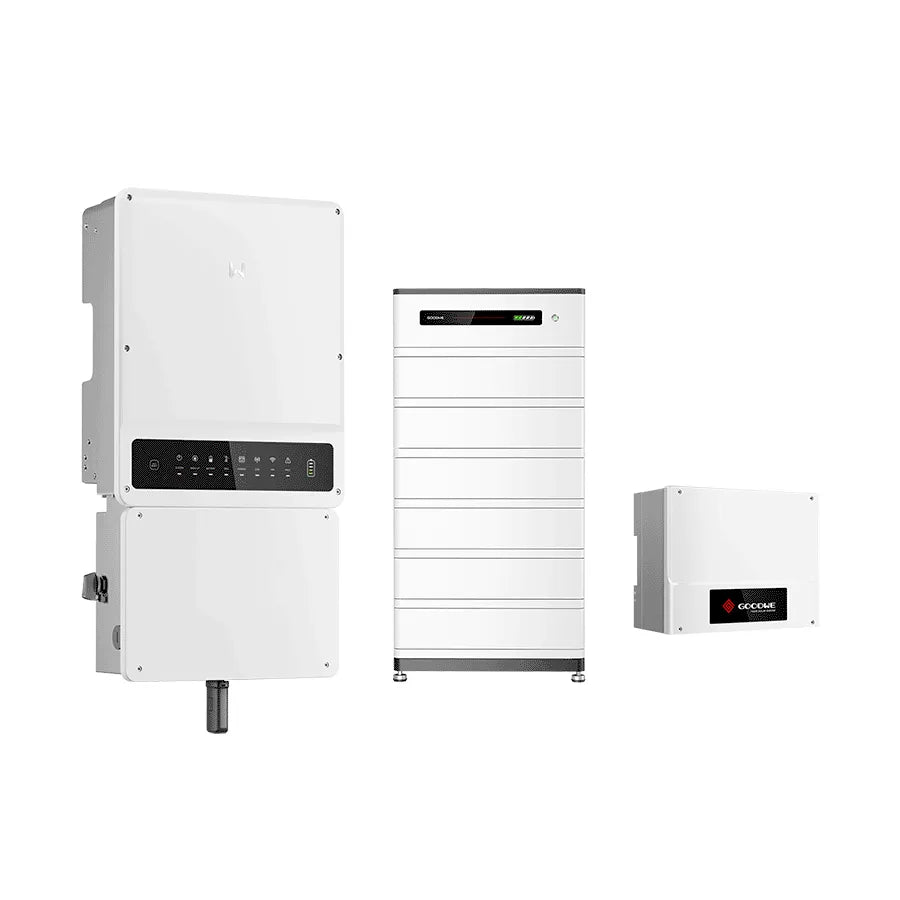

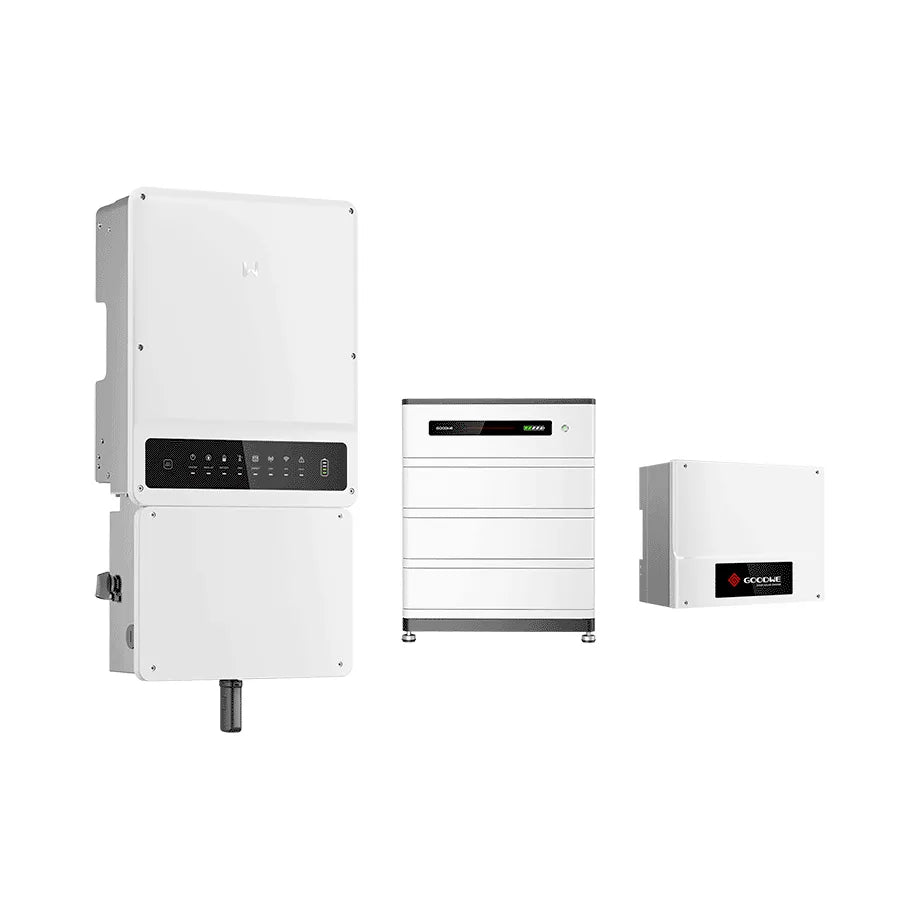

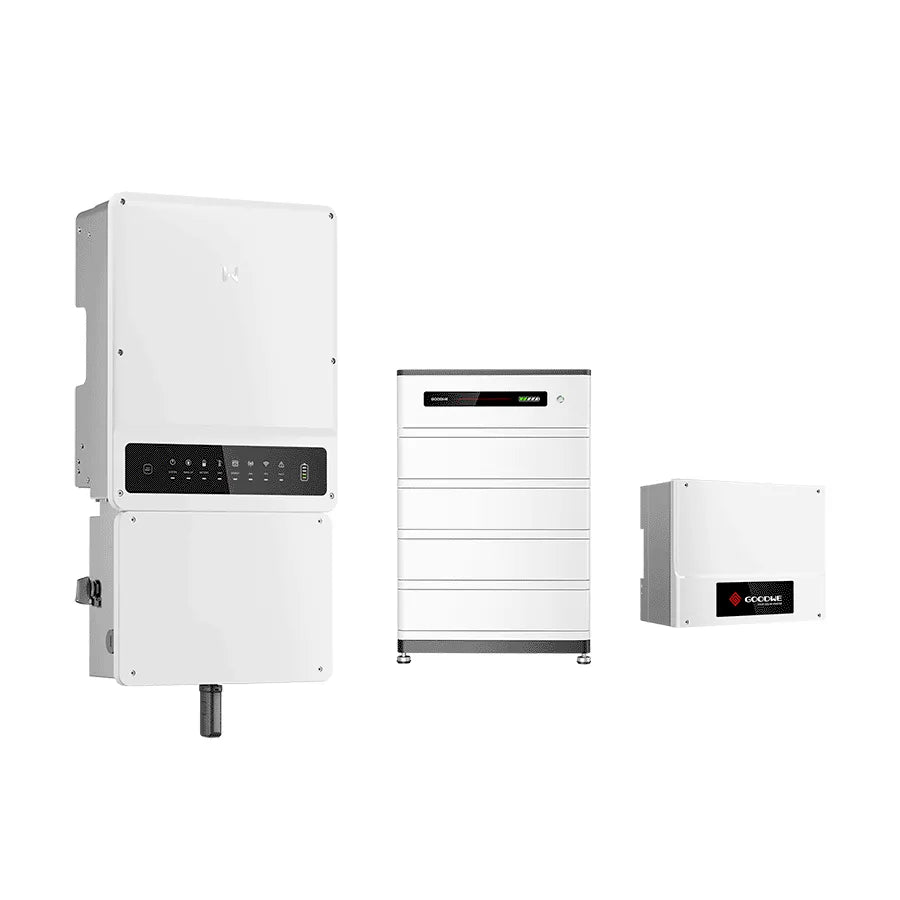

- GoodWe A-ES 9.6kW Inverter with GoodWe Lynx FH-US High Voltage Battery — UL 9540 Closed-Loop Bundle (9.6/12.8/16/19.2/38.4kWh)(APsmart RSD)
Build Your Own Bundle
Custom your own solar + storage bundle
Submit your requirements and we'll provide you with a tailored solution.
-
Overview
-
Tech Specs
-
Supports
-
Reviews
Overview
Title
Tech Specs
Title

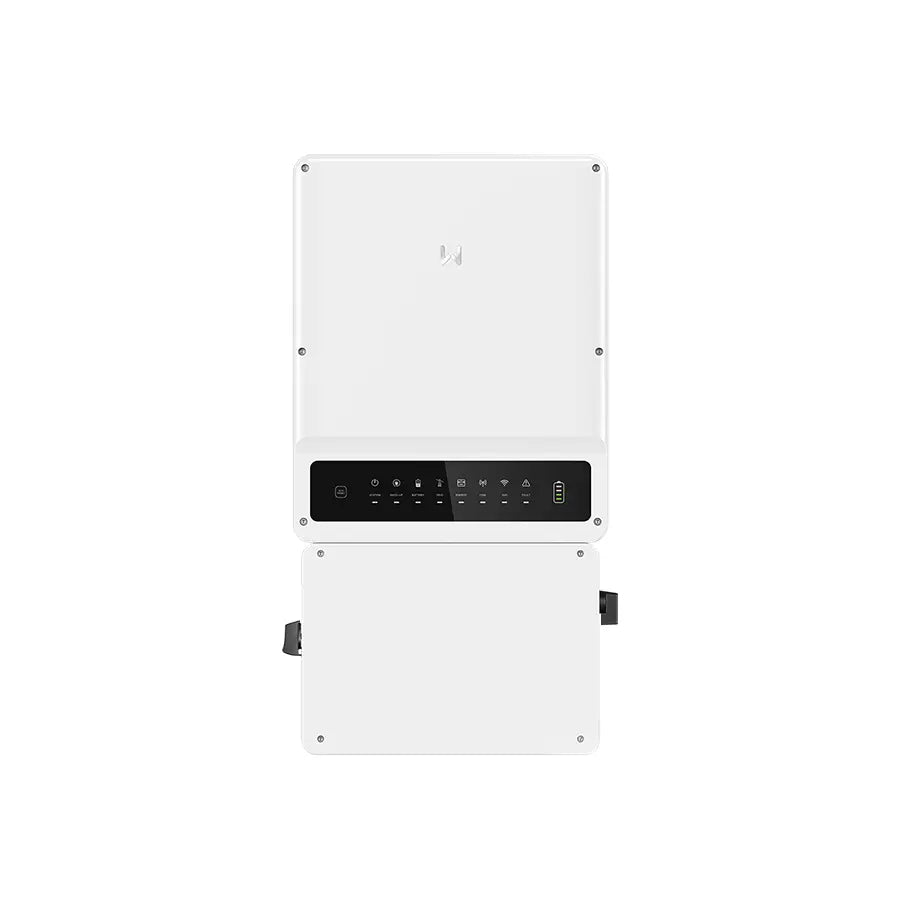

GoodWe A-ES 11.4kW 211-264 47.5A Hybrid Inverter
| AC Output Voltage | 211 to 264V @240V |
| Max. Input Power | 15000W |
| Efficiency | 97.6% |
| MPPT Voltage Range | 550VDC |
| Max Continuous Charging Current | 50A |
| Battery Technologies | Li-ion |
| Battery Voltage Range | 80V ~ 495V |
| BMS Communication | RS485, CAN |
| Enclosure | NEMA Type 4X |
| Operating Temperature | -31°F ~ +140°F (-35°C ~ +60°C) |
| Noise | <40 dB |
| Dimension | 16.3 × 31.1 × 6.9 inch |
| Weight | 70.5lbs |
| Warranty | 10 Years |
| Certificate | UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,UL 1741, CSA 22.2 No. 107-01, UL 1998, UL1699B,FCC part15 CLASS B |

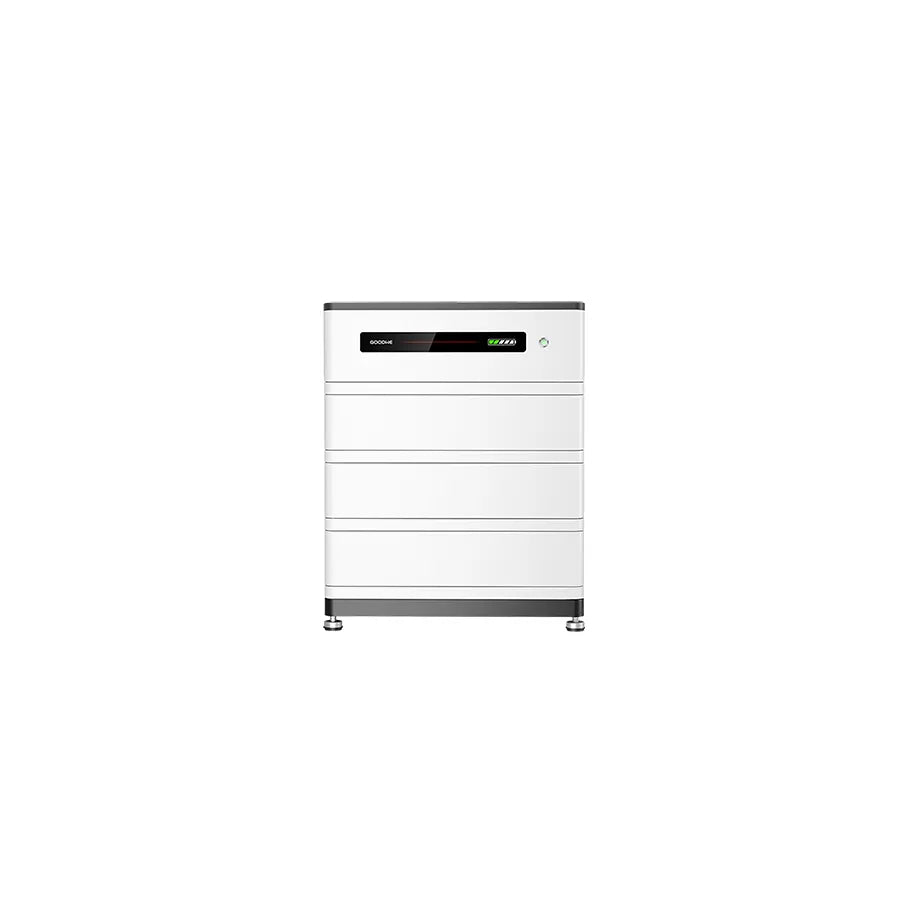

GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 Battery
| Nominal Voltage | 256V |
| Operating Voltage Range | 228V ~ 288V |
| Energy | 12.8KWH |
| Nominal Power (kW) | 8.96kW |
| Relative Humidity | ≤95% |
| Nominal Dis- / Charge Current (A) | 35 |
| Ingress Protection Rating | IP65 |
| Operating Temperature | Charge: +32°F ~ +122°F (0°C ~ +50°C); Discharge: +5°F ~ +122°F (-15°C ~ +50°C) |
| Installation | Ground-Mounted |
| Dimension | 23.6 × 35.6 × 15 inch |
| Weight | 384.71lbs |
| Warranty | 10 Years |
| Certificate | UL1973, UL9540A-2019,FCC part 15,UN38.3 |
Automatic Transformer
| Rated Voltage | 120/240V Split Phase |
| Max. Continuous Rated Power (L-N) (VA) | 4800V |
| Rated Frequency | 60Hz |
| Max Continuous Output Current Per Phase@120V | 40A |
| Split Phase Imbalance Current@Rated Power | 40A |
| Thermal Protection | YES |
| Operating Temperature Range | -31°F ~ +140°F (-35°C ~ +60°C) |
| Relative Humidity | 0 ~ 95% |
| Ingress Protection Rating | Type 4X |
| Mounting Method | Wall Mounted |
| Noise Emission (dB) | <25db |
| Weight | 48.5lbs |
| Dimension | 13.6 × 10.9 × 6.9 inch |
| Warranty | 10 Years |
| Certificate | UL1741 |
