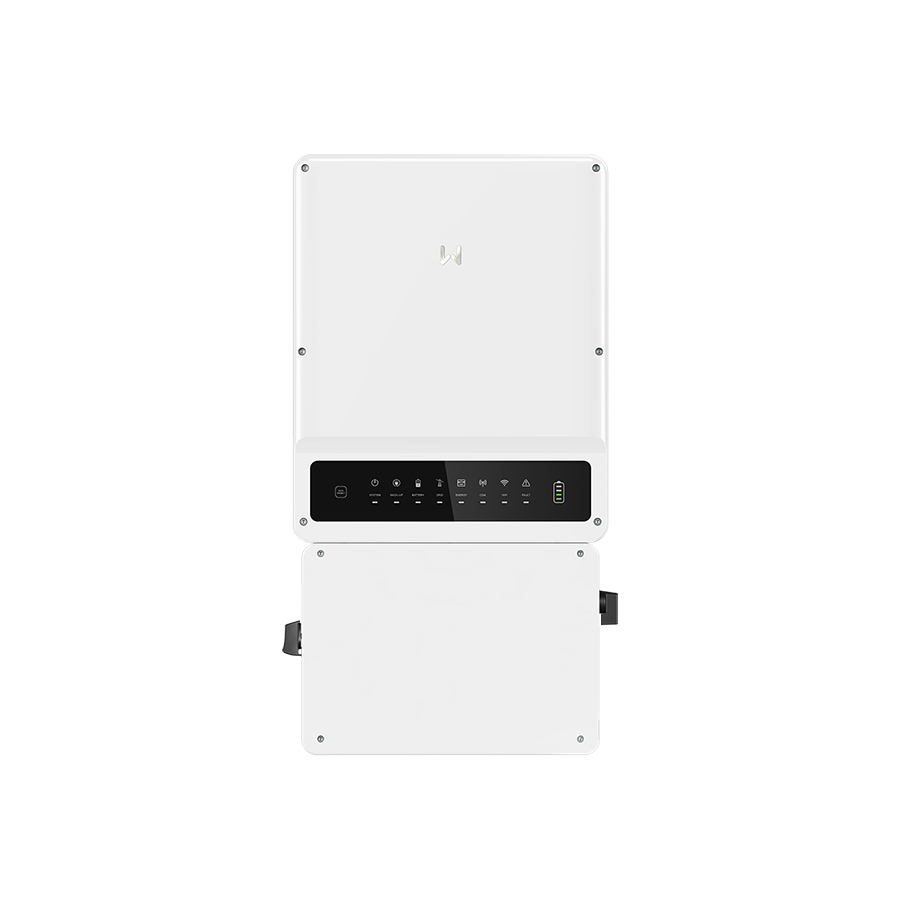

GoodWe A-ES 11.4kW 211-264 47.5A Hybrid Inverter
| AC Output Voltage | 211 to 264V @240V |
| Max. Input Power | 15000W |
| Efficiency | 97.6% |
| MPPT Voltage Range | 550VDC |
| Max Continuous Charging Current | 50A |
| Battery Technologies | Li-ion |
| Battery Voltage Range | 80V ~ 495V |
| BMS Communication | RS485, CAN |
| Enclosure | NEMA Type 4X |
| Operating Temperature | -31°F ~ +140°F (-35°C ~ +60°C) |
| Noise | <40 dB |
| Dimension | 16.3 × 31.1 × 6.9 inch |
| Weight | 70.5lbs |
| Warranty | 10 Years |
| Certificate | UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1,UL 1741, CSA 22.2 No. 107-01, UL 1998, UL1699B,FCC part15 CLASS B |

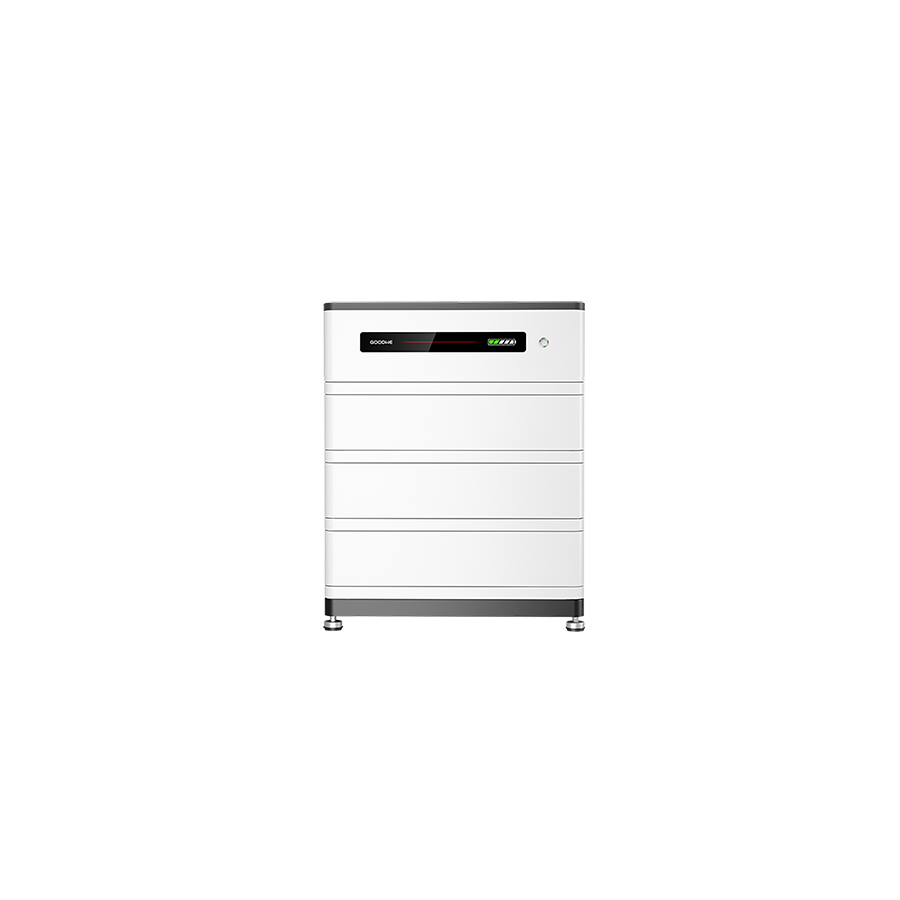

GoodWe Lynx FH-US 3.2kWH 256V LiFeO4 Battery
| Nominal Voltage | 256V |
| Operating Voltage Range | 228V ~ 288V |
| Energy | 12.8KWH |
| Nominal Power (kW) | 8.96kW |
| Relative Humidity | ≤95% |
| Nominal Dis- / Charge Current (A) | 35 |
| Ingress Protection Rating | IP65 |
| Operating Temperature | Charge: +32°F ~ +122°F (0°C ~ +50°C); Discharge: +5°F ~ +122°F (-15°C ~ +50°C) |
| Installation | Ground-Mounted |
| Dimension | 23.6 × 35.6 × 15 inch |
| Weight | 384.71lbs |
| Warranty | 10 Years |
| Certificate | UL1973, UL9540A-2019,FCC part 15,UN38.3 |

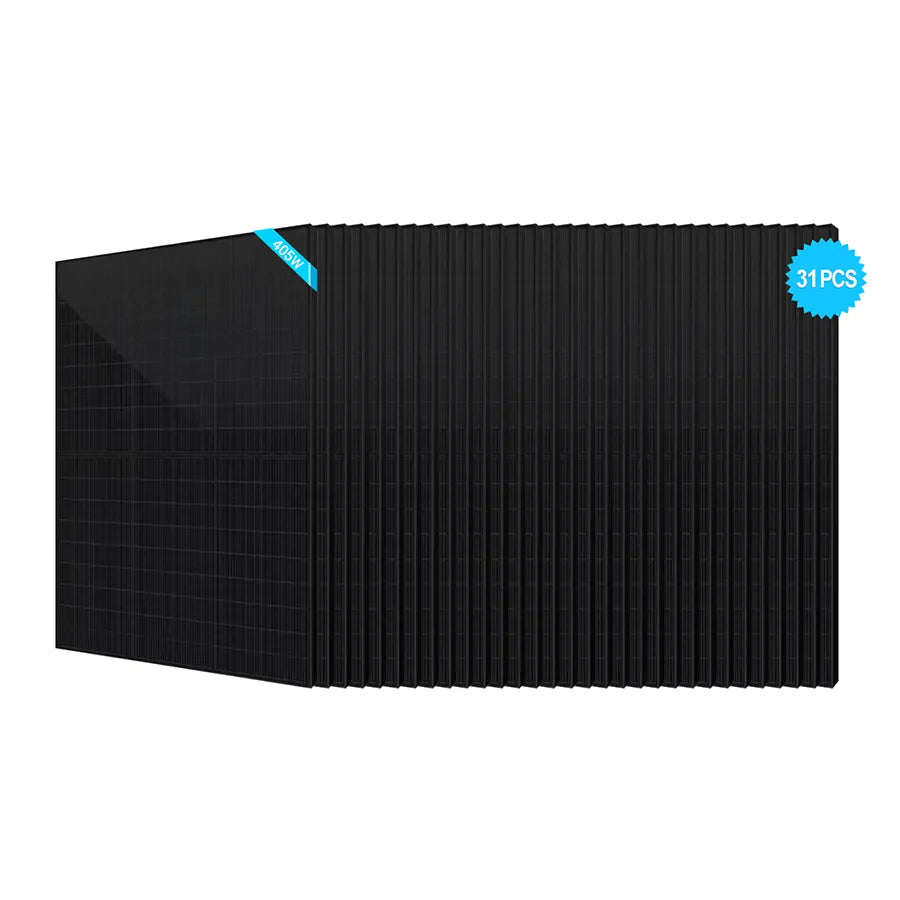

405W Mono-Crystalline PERC Solar Panel
| Peak Power | 405W |
| Solar Cell | Mono Crystalline Silicon,91mm×182mm |
| Power Tolerance | (0~+5W） |
| Module Efficiency(%) | 20.72% |
| Maximum Power Current(IMP) | 13.05A |
| Maximum Power Voltage(VMP) | 31.04V |
| Short Circuit Current(ISE) | 13.83A |
| Open Circuit Voltage(VOC) | 37.13V |
| Landscape | 1100mm (4mm2) |
| Front cover | 3.2mm ultra clear embossed tempered coated glass |
| Connector | MC4 compatible |
| Junction box | IP68, |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V |
| Dimension | 1722x1134x30mm |
| Weight | 20.3kg |
| Warranty | 12-year product warranty & 25-year linear power warranty |
| Certificate | UL 61730-1,UL 61730-2,CSA C22.2 |
Automatic Transformer
| Rated Voltage | 120/240V Split Phase |
| Max. Continuous Rated Power (L-N) (VA) | 4800V |
| Rated Frequency | 60Hz |
| Max Continuous Output Current Per Phase@120V | 40A |
| Split Phase Imbalance Current@Rated Power | 40A |
| Thermal Protection | YES |
| Operating Temperature Range | -31°F ~ +140°F (-35°C ~ +60°C) |
| Relative Humidity | 0 ~ 95% |
| Ingress Protection Rating | Type 4X |
| Mounting Method | Wall Mounted |
| Noise Emission (dB) | <25db |
| Weight | 48.5lbs |
| Dimension | 13.6 × 10.9 × 6.9 inch |
| Warranty | 10 Years |
| Certificate | UL1741 |
TRT Rail-less Base System
| Rail-less Base 3010354 | Made from Aluminum 6005-T5 with a black anodized finish, featuring adjustable installation height and double butyl adhesive for secure attachment. |
| Mid Clamp 3010355 | Mid Clamp 3010355 |
| Hidden End Clamp 3010138 | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
| Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness. | To connect N-S modules or E-W modules. |
| Micro Inverter Racking (3010367) | Rail-less based system micro inverter racking |
PV Wire & PV Connector
| Rated Voltage | UL1500V |
| Rated Current | 50A |
| Cable Specification | 90ºC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm, 14 AWG, 12 AWG, 10 AWG |
| Resistance of Connector | Max 0.3mΩ |
| Flammability Class | UL94 V-0 |
| Temperature Range | -40℃～+85℃ |
| Flammability Class | UL94 V-0 |
| Wire Size | 10AWG 6mm² |
| Number of Strands | 75 |
| Color | Black/Red |
| Inner Layer Thickness | 0.044in |
| Outer Jacket Thickness | 0.029in |
| Outer Diameter(O.D.) | 0.268in |
| Bending Radius | 1.60in |
| Conductor Resistance | 1.01Ω/1,000ft |
| Voltage rating | 2,000V/2KV |
| Temperature Rating | 40ºC to 90ºC |
| Certificate | UL 4703, RoHS compliant |
