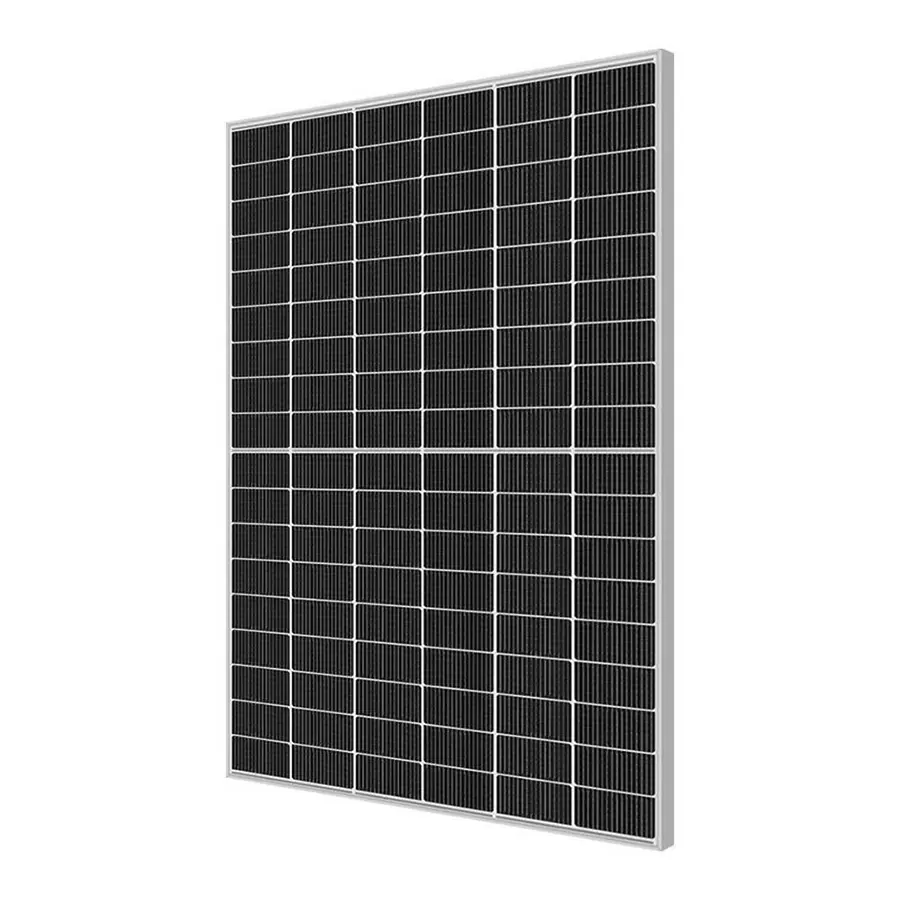

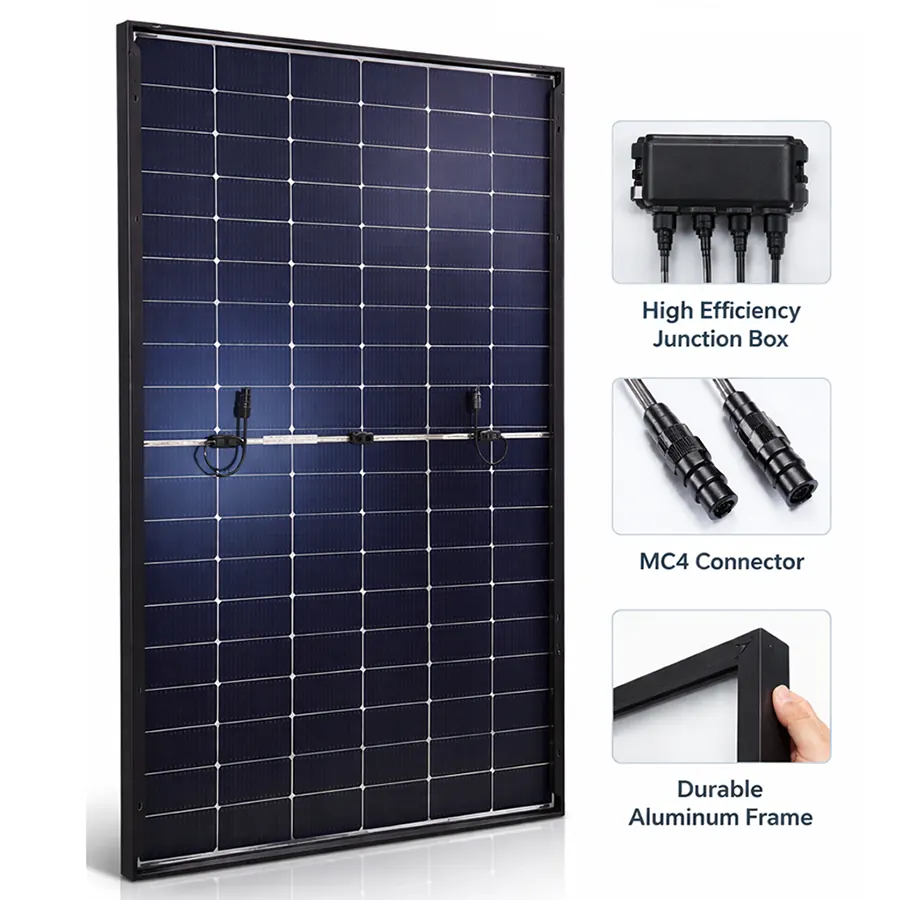

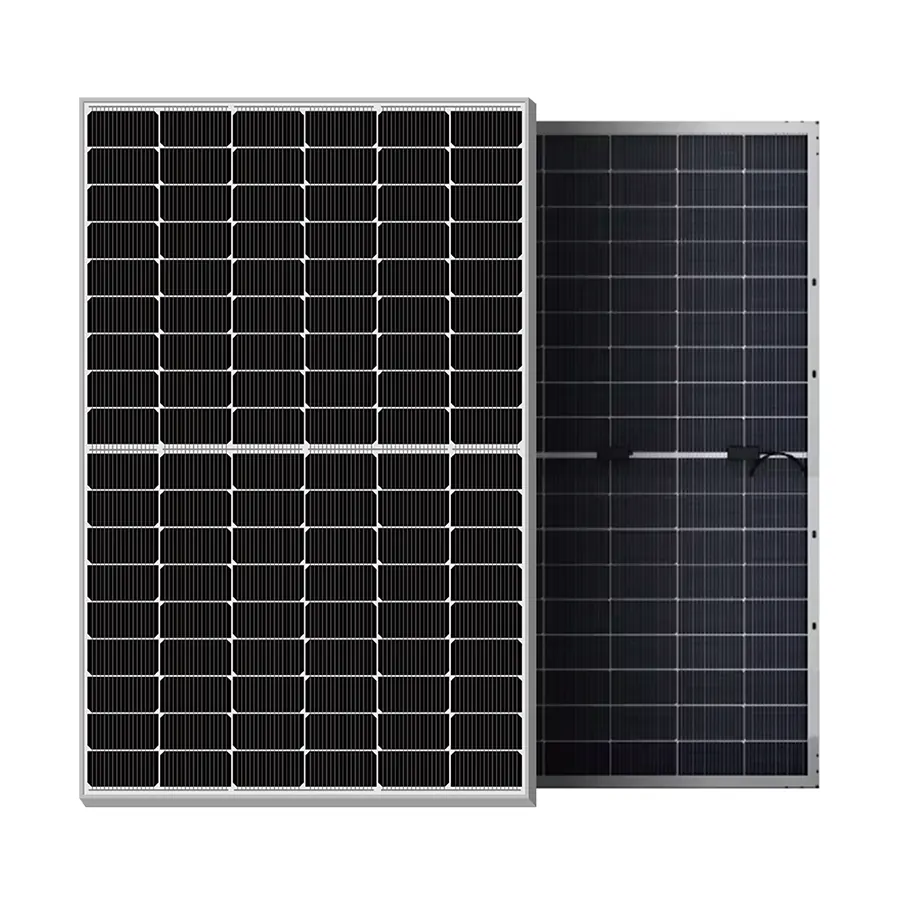

Resun 430W Mono Half-Cut Bifacial Solar Panel | 5.16-15.5kW PV

$1,450.00
Save $0

Free shipping (lower 48 states)

Resun 430W Mono Half-Cut Bifacial Solar Panel High-efficiency 182mm mono-crystalline bifacial double glass module Features dual-glass structure for Fire Class C safety Supports 1500V DC system to lower installation costs Delivers 80% bifaciality for up to 25% gain 15-year product warranty & 30-year linear power warranty
Product Model

Choose a configuration below.


Quantity
Title

Total Price

           Total Price

$1,450.00

Equipment-only bundle. Licensed installation required per NEC & local AHJ. Improper installation may void warranty. Disclaimer — Installation & Safety Policy (PDF).

Build Your Own Bundle

Custom your own solar + storage bundle

Submit your requirements and we'll provide you with a tailored solution.

Overview

Title

Tech Specs

Title
430W Mono-Crystalline BIFACIAL Solar Panel
Peak Power 430W
Solar Cell Mono Crystalline BIFACIAL,91mm×182mm
Module Efficiency(%) 22.02%
Maximum Power Current(IMP) 13.38A
Maximum Power Voltage(VMP) 32.15V
Short Circuit Current(ISE) 14.18A
Open Circuit Voltage(VOC) 38.60V
Cell configuration 108cells(6*18)
Front cover 2.0+2.0mm Tempered Glass
Junction box IP68, 3 bypass diodes
Operating Temperature -40°C to +85°C
Maximum System Voltage 1000V(DC)/1500V(DL)
Fire Rating Class C，Type 29
Dimension 1722x1134x30mm
Weight 23.8kg
Warranty 15-year product warranty & 25-year linear power warranty
Certificate UL 61730-1,UL 61730-2,CSA C22.2

Supports

Title

  • Download

  • Video

  • FAQ

User Manual
Warranty
Certifications
Resun 430W Mono Half-Cut Bifacial Data Sheet
